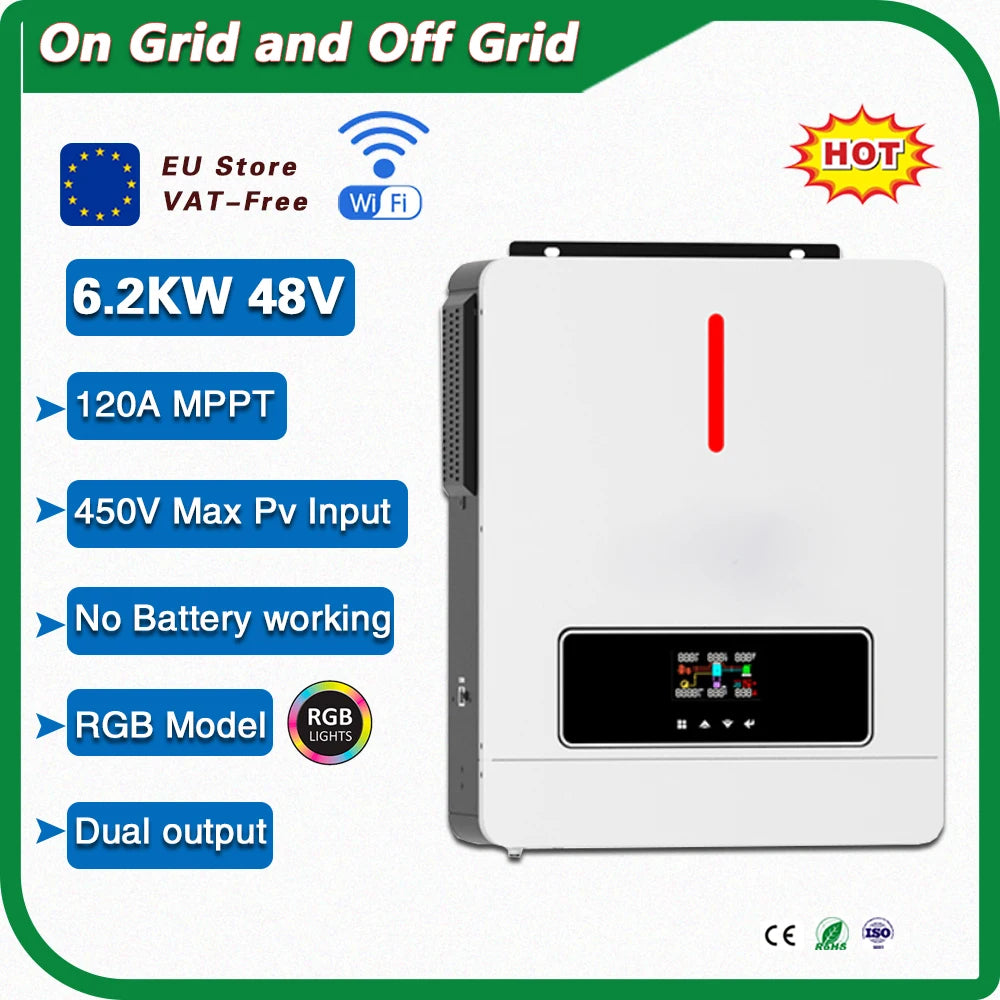

6200W 48V Dual Output RGB Light 90-500VDC 120A MPPT Charger Controller on/off Grid With BMS Solar Inverter Work without battery

6200W 48V Dual Output RGB Light 90-500VDC 120A MPPT Charger Controller on/off Grid With BMS Solar Inverter Work without battery

€848,07
€0,00 €848,07
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Output Voltage
Al meer dan 2.500 klanten geholpen
  • Gratis verzending
  • 30 dagen bedenktijd
  • Veilig betalen met iDEAL

SPECIFICATIONS

Battery Voltage: 48VDC

Brand Name: other

Certification: CE,RoHS

Is Smart Device: Yes

Maximum Solar Charging Current: 120A

Model Number: 6.2KW-48V

Norminal Output Voltage: 220/230/240VAC

Origin: Mainland China

Output Current: 15.2A

Output Frequency: 50/60hz

Output Power: 6200W

Output Type: SINGLE

Output Waveform: Pure sine wave

Size: 44*33*15cm

Weight: 11KG

is_customized: Yes



Notice:

This is the local store of Sunbro Store in France.
You do not need to pay additional value-added tax，We will ship to you from the EU warehouse.
EU customers please rest assured to buy！！
6200W 48V Dual Output RGB Light 90-500VDC 120A MPPT Charger Controller on/off Grid With BMS Solar Inverter Work without battery


>>>>Key Features:


▲Pure sine wave solar inverter(on/off Grid)
▲WIFI&GPRS available for IOS and Android

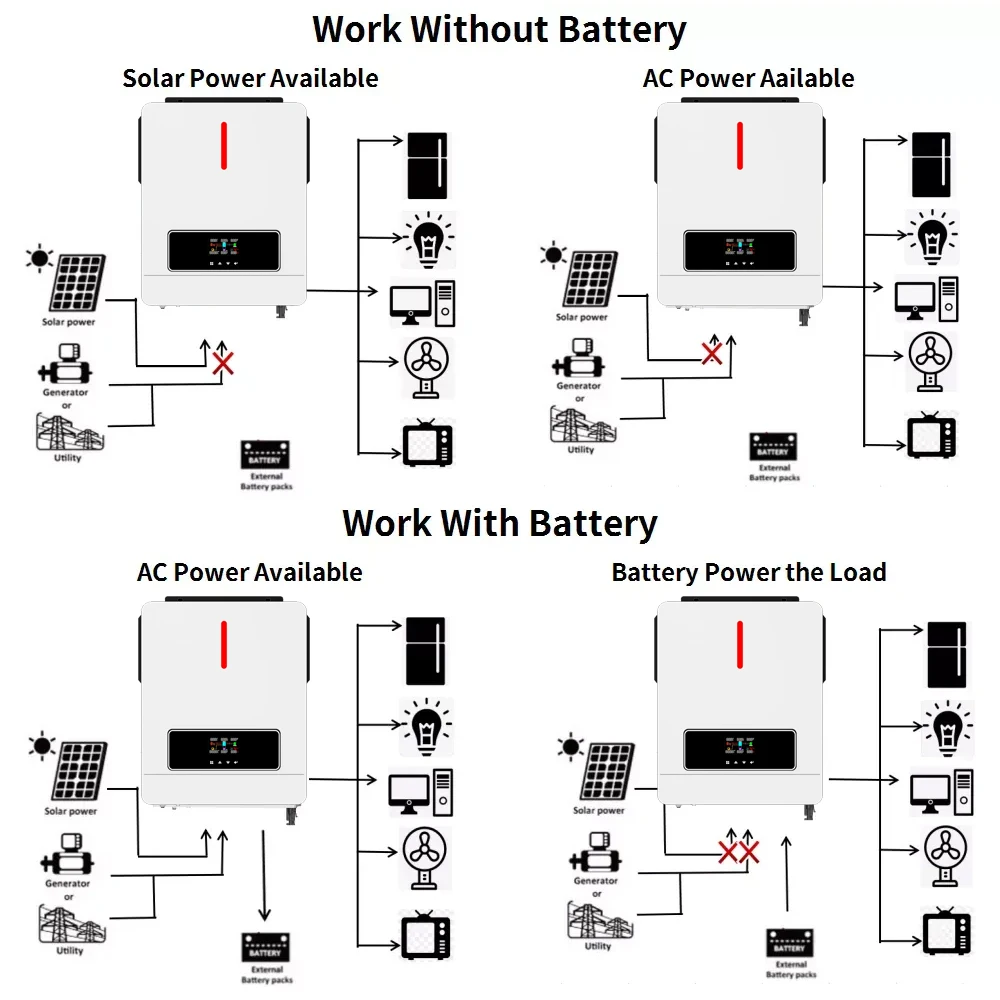

▲Inverter running without battery
▲One-key restoration to factory Settings
▲Built-in Lithium battery automatic activation
▲Built-in 120A(for 3.6KW/6.2KW)140A(for 7.2KW)
▲MPPT:Max 6200W(for 3.6KW),max 6500W(for 6.2KW) max 7500w(for 7.2kw)solar charge
▲High PV input voltage range(90~500VDC)
▲Built-in anti-dusk kit for harsh environment
▲Smart battery charge design to optimize battery life

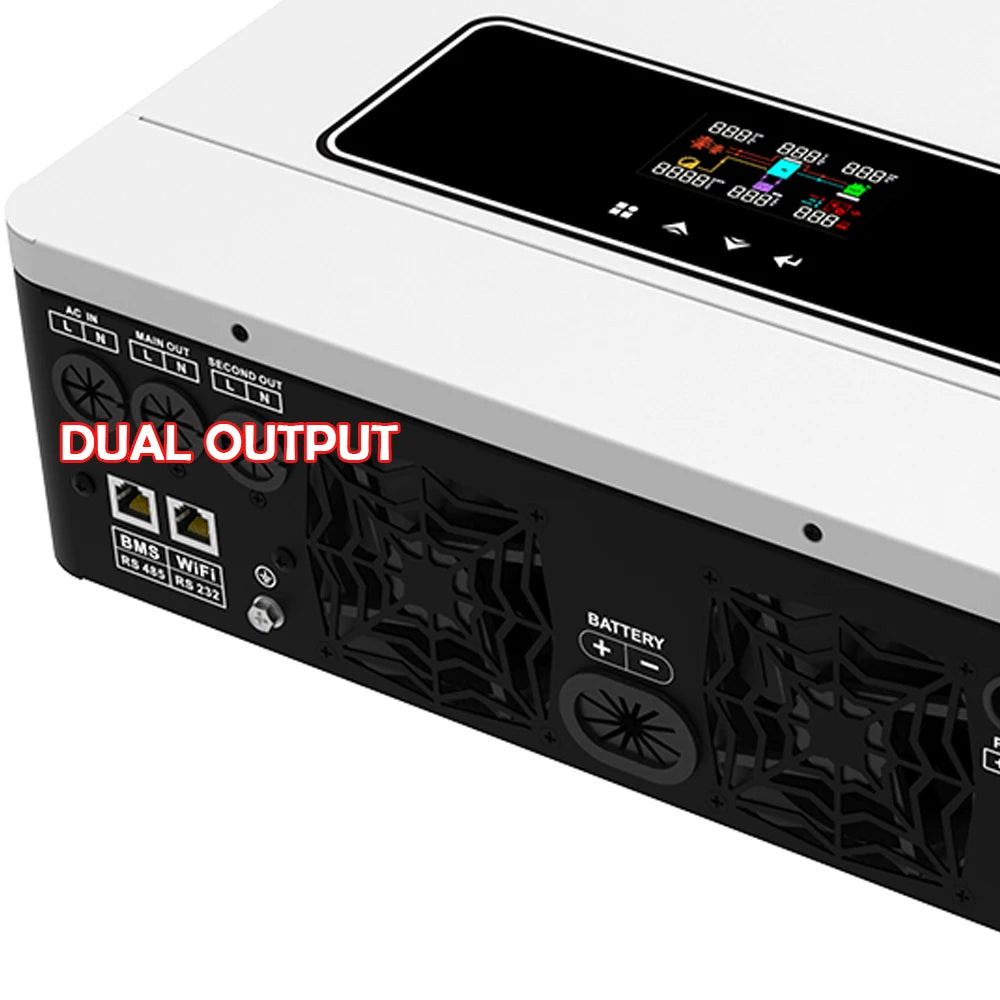

▲Dual Output



>>>>SPEC:



Model

NM-ECO-6.2KW PLUS

Phase

1-Phase

Maximum PV Input Power

6500W

Rated Output Power

6200W/6200VA

Maximum Solar Charging Current

120A

GRID-TIE OPERATION

PV Input(DC)

Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

Start-up Voltage/Initial Feeding Voltage

30VDC/90VDC

MPPT Voltage Range

60VDC~450VDC

Number of MPPT/Max Input Current

1/22A

GRID OUTPUT(AC)

Norminal Output Voltage

220/230/240VAC

Output Valtage Range

195.5~253VAC

Norminal Output Current

27.0A

Power Factor

>0.99

Feed-in Grid Frequency Range

49~51~1Hz

EFFICIENCY

Max Conversion Efficiency(Solar to AC)

98%

TWO LOAD OUTPUT POWER(V2.0)

Full Load

6200W

Maximum Main Load

6200W

Max Second Load(battery mode)

2067W

Main Load Cut Off Voltage

52VDC

Main Load Return Voltage

54VDC

OFF-GRID OPERATION

AC Input

AC Start-up Voltage/Auto Restart Voltage

120-140VAC/180VAC

Acceptable Input Voltage Range

90-280VAC or 170-280VAC

Maximum AC Input Current

36.4A

Nominal operating frequency

50/60Hz

Surge power

14400W

BATTERY MODE OUTPUT(AC)

Nominal Output Voltage

120-140VAC/180VAC

Output Waveform

Pure sine wave

Efficiency(DC to AC)

94%

BATTERY&CHARGER

Nominal DC Voltage

48VDC

Maximum Solar Charging Current

140A

Maximum AC Charging Current

100A

GENERAL

PHYSICAL

Dimension,D*W*H(mm)

110*334*423

Net Weight(Kgs)

11

INTERFACE

Communication Port

RS232/WiFi/Remove LCD/GPRS

ENVIRONMENT

Operating Temperature

-10~50

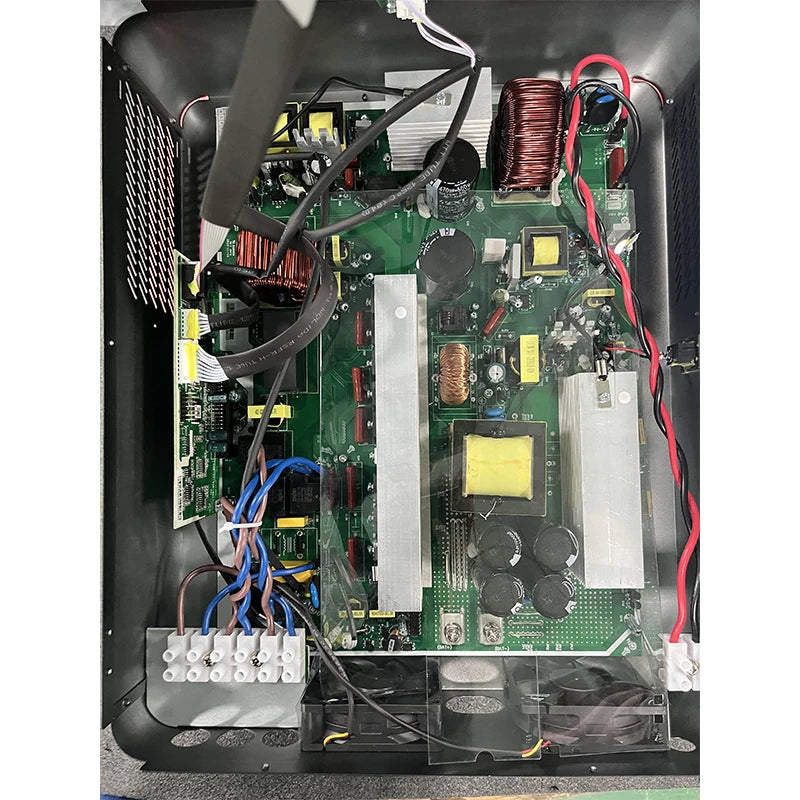

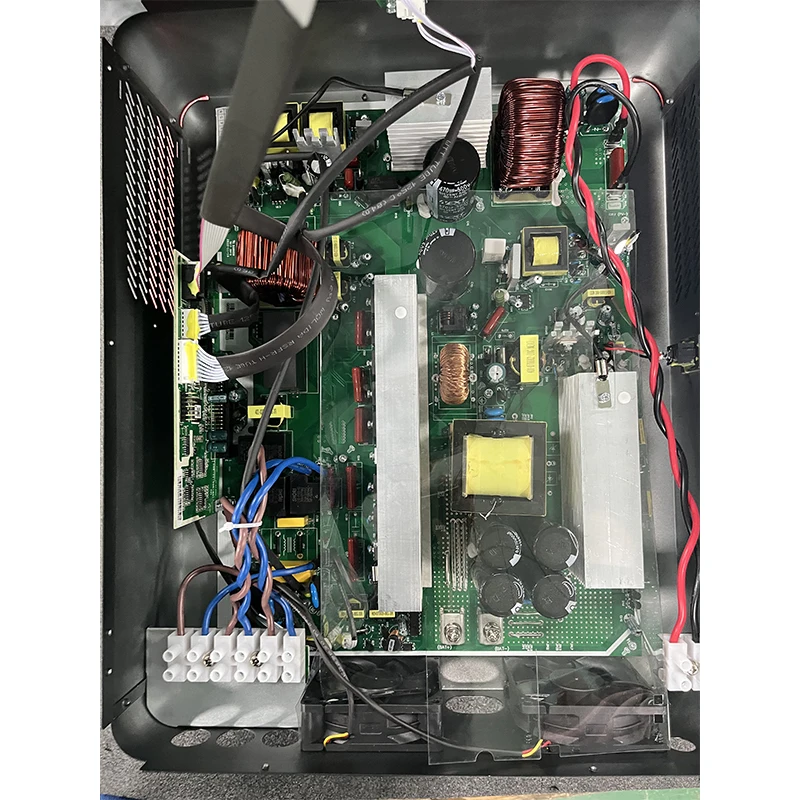

>>>>product detail shown:
