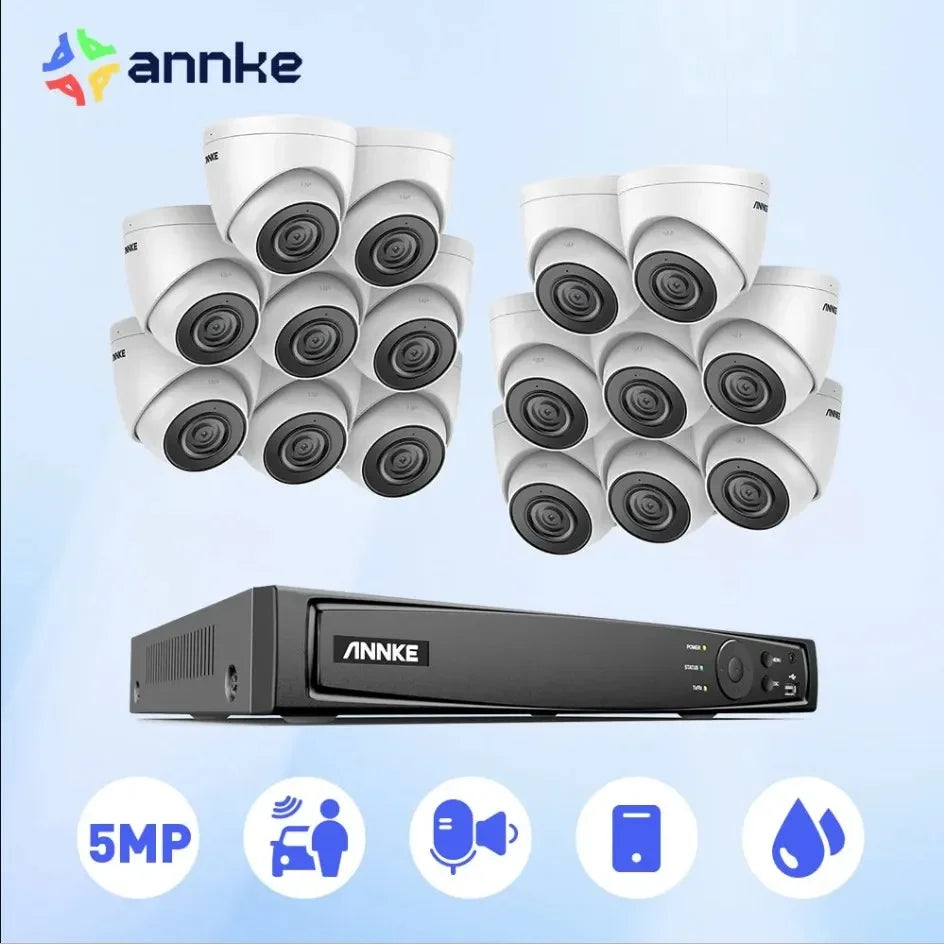

ANNKE 16CH FHD 5MP POE Video Security System H.265+ 8MP NVR With 16X 5MP Weatherproof Surveillance POE Cameras With Audio Record

ANNKE 16CH FHD 5MP POE Video Security System H.265+ 8MP NVR With 16X 5MP Weatherproof Surveillance POE Cameras With Audio Record

€1.685,43
€0,00 €1.685,43
Sale Sold out
Taxes included. Shipping calculated at checkout.
Ships From
Build-in HDD
Al meer dan 2.500 klanten geholpen
  • Gratis verzending
  • 30 dagen bedenktijd
  • Veilig betalen met iDEAL

SPECIFICATIONS

Audio Input: Built-in Microphone

Brand Name: ANNKE

Cable Length: 18m

Certification: CE,FCC

Feature 1: VIDEO SURVEILLANCE SYSTEM

Feature 2: security video system

Feature 3: cctv surveillance system

Feature 4: CCTV Camera System

Feature 5: POE Video Surveillance Set

Feature 6: CCTV POE Kit

Feature 7: poe nvr system

Feature 8: ip camera system

High-concerned chemical: None

Housing: Metal & Plastic

IR Cut Filter: YES

Image sensor: 1/3" Progressive Scan CMOS

Lens: 2.8mm

Model Number: N46PCK+I51DS

Night Vision Distance: Up to 100ft/30m

Number of Infrared LEDs: 2pcs

Onvif: Support

Operating Power: POE

Origin: Mainland China

PCS of Camera: 16pcs

Resolution: 5 MP

Smart home platform: Other

TV System: NTSC,PAL

Video Compression: H.265+

Video Input: 16 Channel

Video Output: HDMI Up to 4K,VGA Up to 1080P

Wide Dynamic Range/DNR: Digital WDR,3D DNR

ANNKE H500 5MP PoE Turret Security Camera System with 16CH 4K NVR


NVR Features:

★8MP high definition Real-time live viewing

★8MP recording&playback

★16 built-in PoE inputs

★Advanced H.265+ Video Compression

★Supports iPhone.iPad.Android mobile remote monitoring


Camera Features:
★ 5MP IR Network Turret Camera with audio input
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Built-in microphone for real-time audio security
★ Up to 100ft night vision with EXIR 2.0
★ Clear day and night vision with 3D DNR and 120DB WDR
★ IP67 Dust and Waterproof Rating
★ Support PoE (Power over Ethernet)&DC12V
NVR Specification:
Video Compression:H.264+/H.264/H.265/H.265+/MPEG4
IP Video Input:16CH POE
Video Output:HDMI Up to 4K,VGA Up to 1080P
Audio Input/Output:1/1 RCA
Incoming bandwidth:160M
Max Recording Resolution:Up to 8M(3840x2160)
Max Playback Resolution:Up to 8M(3840x2160)
Max Playback Channel:16CH
Max Playback Capacity:4-ch@1080P, 1-ch@8MP
Onvif Protocols:Support
HDD2 SATA interface
HDD Capacity:Up to 6TB capacity
Network interface:RJ45x1(10/100/1000M)
POE:16 Ports(IEEE802.3at/af)
USB:2x USB 2.0
Operating Power:AC 100-240V
Power Consumption:≤15W(without HDD and POE)
POE: Max 25.5W for single port
Working Temperature:14 °F ~ 131 °F /-10 °C ~+55 °C
Dimensions(W x H x D):15.2” x 12.4” x 2.0” / 385 x 315 x 52mm
Weight (without hard disk) :6.6lbs / 3KG
Camera Specification:
Image Sensor :1/3" Progressive Scan CMOS

Main Stream Max. Frame Rate: "50 Hz: 20 fps (2592 X 1944), 25 fps (2560 X 1440, 2304 X 1296, 1920 X 1080, 1280 X 720)

60 Hz: 20 fps (2592 X 1944), 30 fps (2560 X 1440, 2304 X 1296, 1920 X 1080, 1280 X 720)"

Substream Max. Frame Rate "50 Hz: 25 fps (640 X 480, 640 X 360, 320 X 240)

60 Hz: 30 fps (640 X 480, 640 X 360, 320 X 240)"

Video Compression: H.265+/H.265/H.264+/H.264

Video Bitrate: 32 Kbps - 8 Mbps

Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Input:Built-in Microphone

Lens: 2.8 mm

Min. Illumination: Color: 0.028 Lux @(F2.0, AGC On)

Angle of View Horizontal FoV: 71.5°, Vertical FoV 53°, Diagonal FoV 91°

Number of Infrared LEDs: 2 pcs

Night Vision Distance: Up to 100 ft/30 m

DNR: 3D DNR

Wide Dynamic Range: 120 dB WDR

ONVIF: Support

IR-Cut Filter: Yes

Ethernet: RJ45 X1 (10 M/100 M)

Housing: Metal & Plastic

Color: White

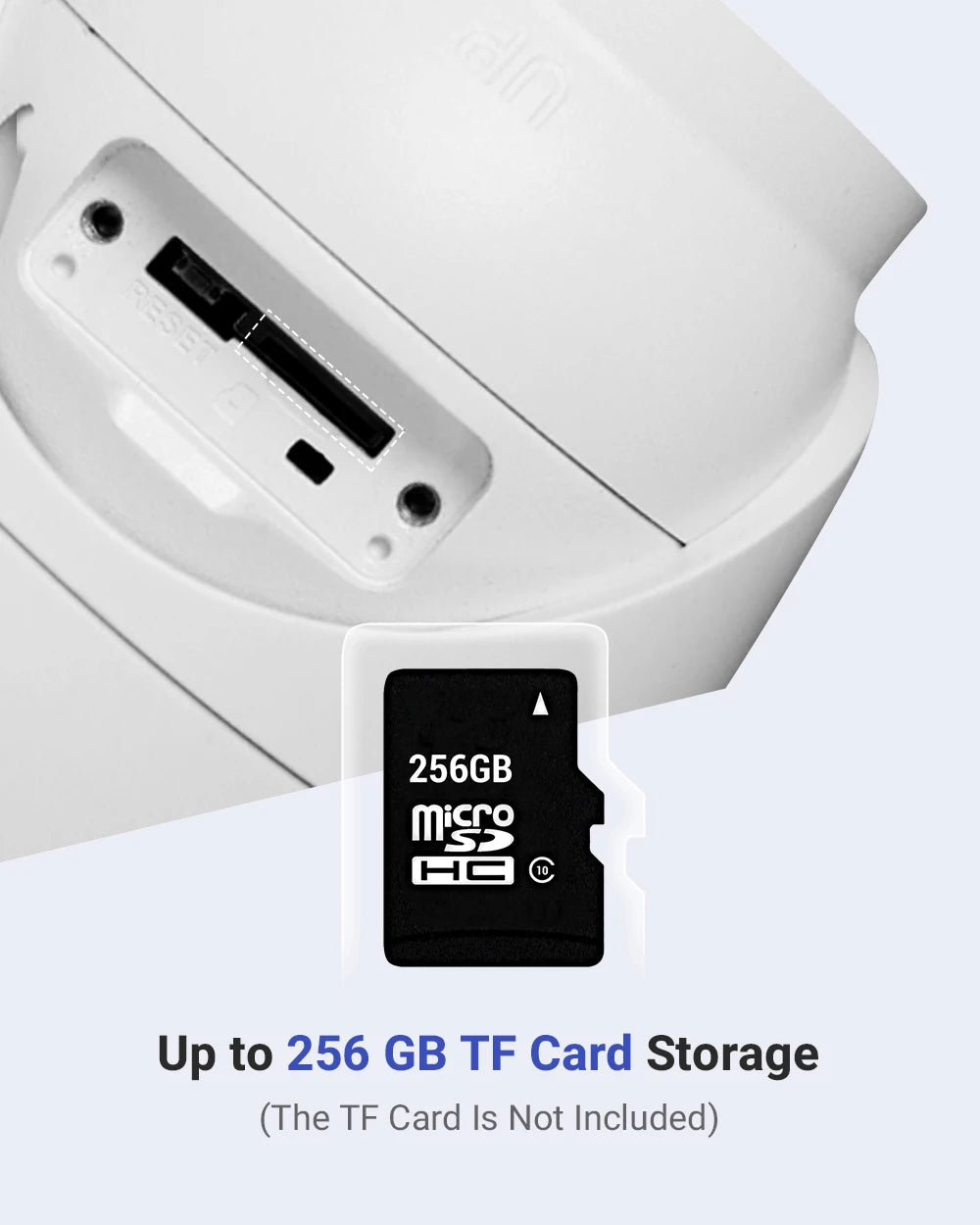

Storage: Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB

Hardware Reset: Yes

Operating Power: DC 12 V; PoE (802.3af)

Operating Temperature: -22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use: Indoor/Outdoor

Interface Protection: IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection

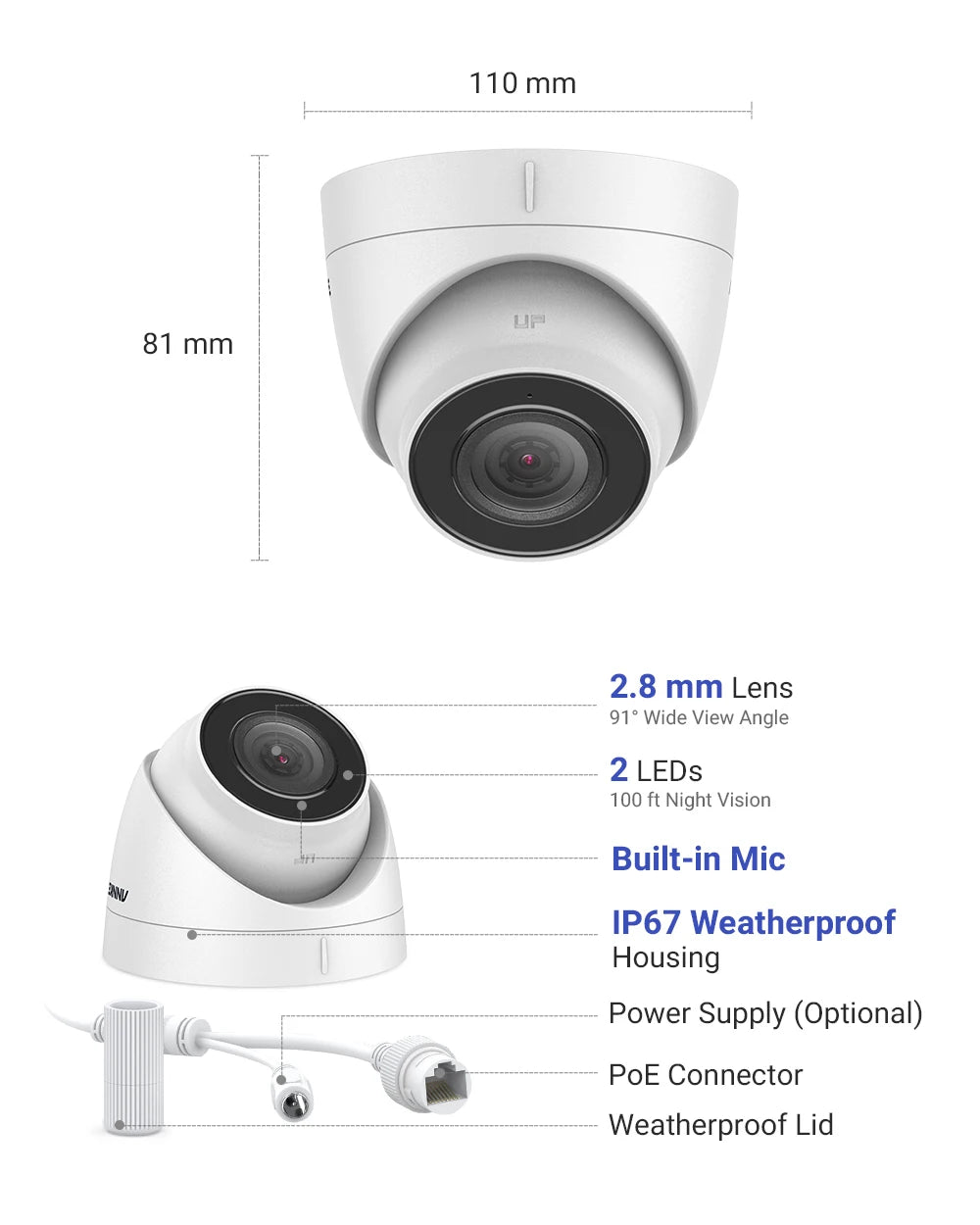

Dimension (L X W X H): Ø110 mm X 85.3 mm (Ø4.3" X 3.4")

Weight: 320 g (0.7 lb.)


The package included:

X1 NVR

X16 Cameras

X8 30m Network cable

X8 18m Network cable

X1 Power cable

X1 USB mouse

X1 User manual

X1 Network cable

X1 HDMI cable
