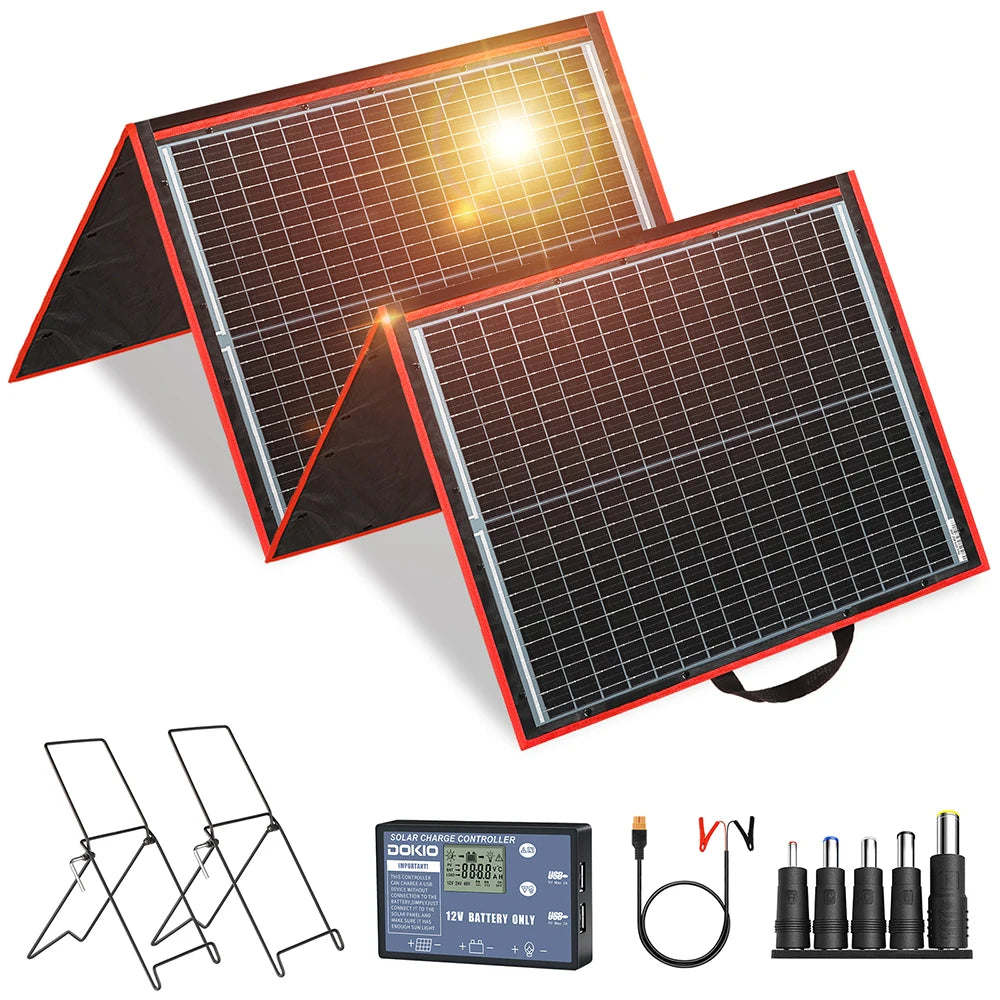

Dokio 100W 160W 200W 300W Portable Foldable Solar Panel with 12V Controller (with bracket SKU) Solar Panel for Family Camping

€438,06

~~€0,00~~ €438,06

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color 160W ZJ

Ships From Poland

Quantity

Gratis verzending
30 dagen bedenktijd
Veilig betalen met iDEAL

SPECIFICATIONS

Brand Name: DOKIO

Certification: CE

Flexible Solar Panel: Yes

Foldable Solar Panel: Yes

High-concerned chemical: None

Material: Monocrystalline Silicon

Max. Power: 160W

Model Number: FFSP-160M

Number of Panels: 1

Origin: Mainland China

Type: Solar Panel

Dear customer, due to product upgrade,

the size and weight of the product you receive may be different.

Model:FFSP-110M

Material:Monocrystalline silicon

Maximum Power(Pmax):100W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):6.1A

Open-Circuit Voltage (Voc):22.5V

Short-Circuit Current (Isc):6.35A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:28x20.5x0.47(in)/70x50x1.2(cm)

Expansion Dimension:40x28x0.24(in)/100x70x0.6(cm)

Net Weight: 2.7 kg

Package Weight:3.6kg

Package Size:75x58x7cm

Package List:

1*100W Flexible Foldble Solar Panel (50W*2)

1*3M wire,

1*10A 12Vcontroller,

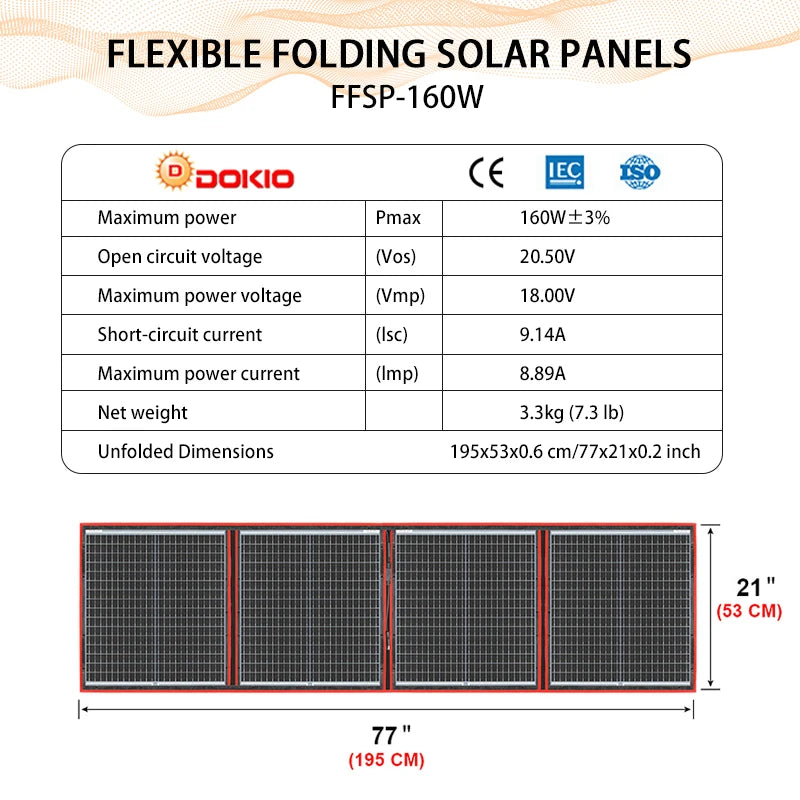

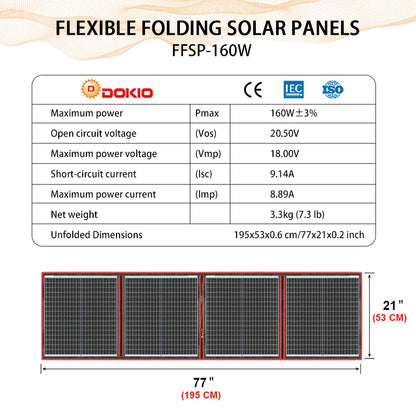

Model:FFSP-160M

Material:Monocrystalline silicon

Maximum Power(Pmax): 160W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):8.89A

Open-Circuit Voltage (Voc): 22.50V

Short-Circuit Current (Isc):9.14A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:22x20.67x0.94(in)/56x52.5x2.4(cm)

Expansion Dimension:82.7x22x0.24(in)/210x56x0.6(cm)

Net Weight:4.5kg

Package Weight:5.4kg

Package Size:68x56x6cm

Model:FFSP-220M

Material:Monocrystalline silicon

Maximum Power(Pmax): 200W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):11.12A

Open-Circuit Voltage (Voc): 22.50V

Short-Circuit Current (Isc):11.36A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:28x21x0.9(in)/70x50x2.4(cm)

Expansion Dimension:85x28x0.24(in)/216x72x0.6(cm)

Net Weight:5.3kg

Package Weight:6.3kg

Package Size:80x60x7cm

Package List:

1*200W Flexible Foldble Solar Panel

1*3M wire,1*20A 12Vcontroller,

A total of 4M long cable. With alligator clips.

Cable thickness: 2x1.5 mm²

Model:FFSP-320M

Material:Monocrystalline silicon

Maximum Power(Pmax): 300W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):16.67A

Open-Circuit Voltage (Voc): 22.50V

Short-Circuit Current (Isc):16.92A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:39.37x19.69x0.94(in)/100x50x2.4(cm)

Expansion Dimension:78.74x39.37x0.24(in)/200x100x0.6(cm)

Net Weight:7.1kg

Package Weight:8.2kg

Package Size:108x57x7cm

Package List:

1*300W Flexible Foldble Solar Panel

A total of 4M long cable. With alligator clips.

1*20A 12Vcontroller

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

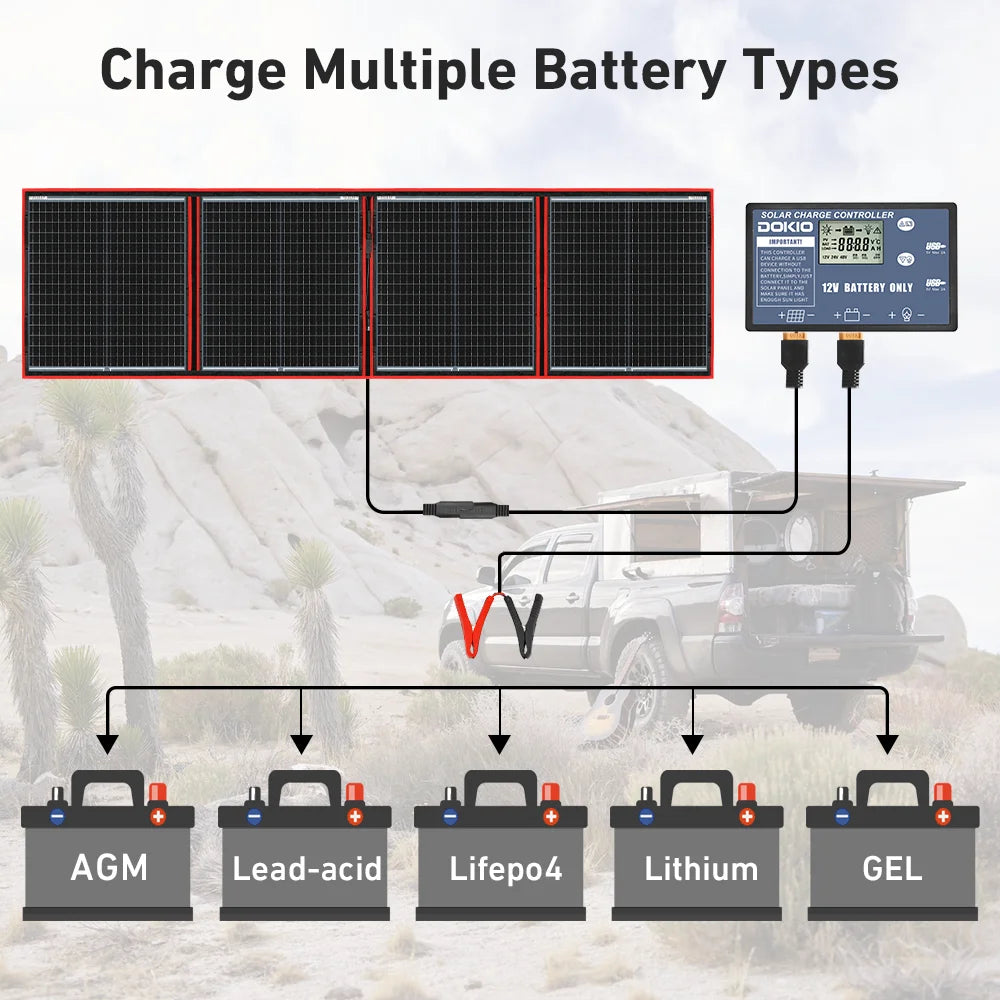

Controller support lead-acid,lithium ions and LiFePO4 battries.
Cable thickness: 2x1.0 mm²
A total of 4M long cable. With alligator clips.
