Dokio 97W 150W 195W 295W Portable Foldable Solar Panel with 12V Controller Flexible Solar Panel for Family Camping Trip

Dokio 97W 150W 195W 295W Portable Foldable Solar Panel with 12V Controller Flexible Solar Panel for Family Camping Trip

€224,22
€0,00 €224,22
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Ships From
Al meer dan 2.500 klanten geholpen

Twijfel je of dit het juiste product is? Stel je vraag, dan denken we met je mee.

Mail ons

Op werkdagen reageren we meestal binnen 1 werkdag

  • Gratis verzending in 3-5 werkdagen
  • 30 dagen bedenktijd
  • Veilig betalen met iDEAL

SPECIFICATIONS

Brand Name: DOKIO

Certification: CE

Flexible Solar Panel: Yes

Foldable Solar Panel: Yes

High-concerned chemical: None

Material: Monocrystalline Silicon

Max. Power: 150W

Model Number: FFSP-150M

Number of Panels: 1

Origin: Mainland China

Size: 195*53*0.6 cm

Type: Solar Panel


Dear customer, due to product upgrade,the size and weight of the product you receive may be different.


Product Description:

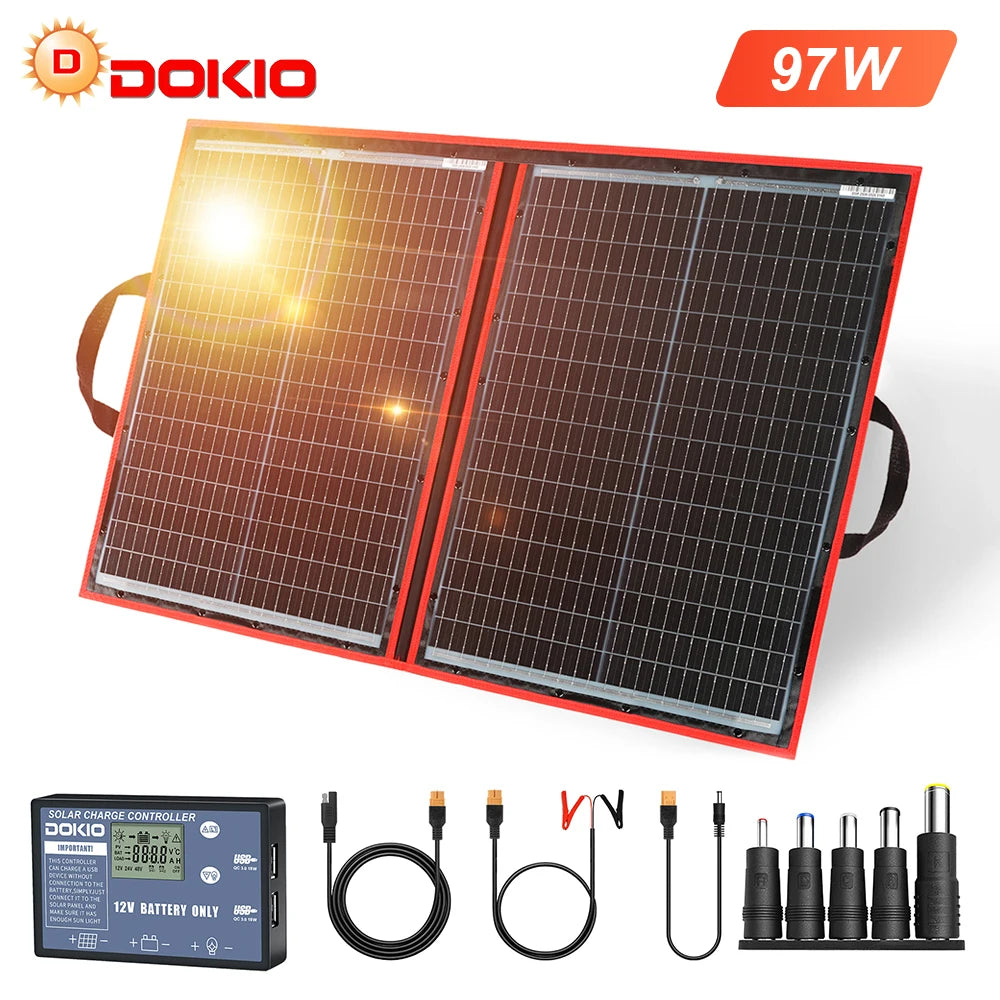

Model:FFSP-97M
Material:Monocrystalline silicon
Maximum Power(Pmax):97W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):6.1A
Open-Circuit Voltage (Voc):20.5V
Short-Circuit Current (Isc):6.35A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:48*66*1.2 cm
Expansion Dimension:96*66*0.6 cm
Net Weight: 2.4 kg
Package Weight:3.4kg
Package Size:77*50.5*4 cm
Package List:
1*97W Flexible Foldble Solar Panel，
1*3M wire,
1*10A 12Vcontroller,
1*English User Manual

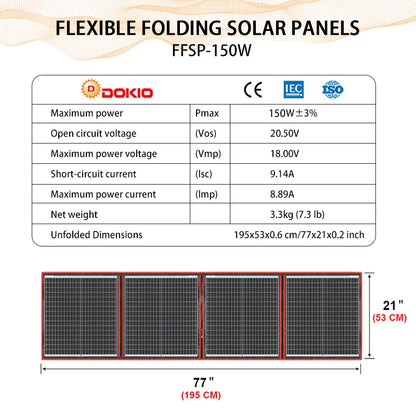

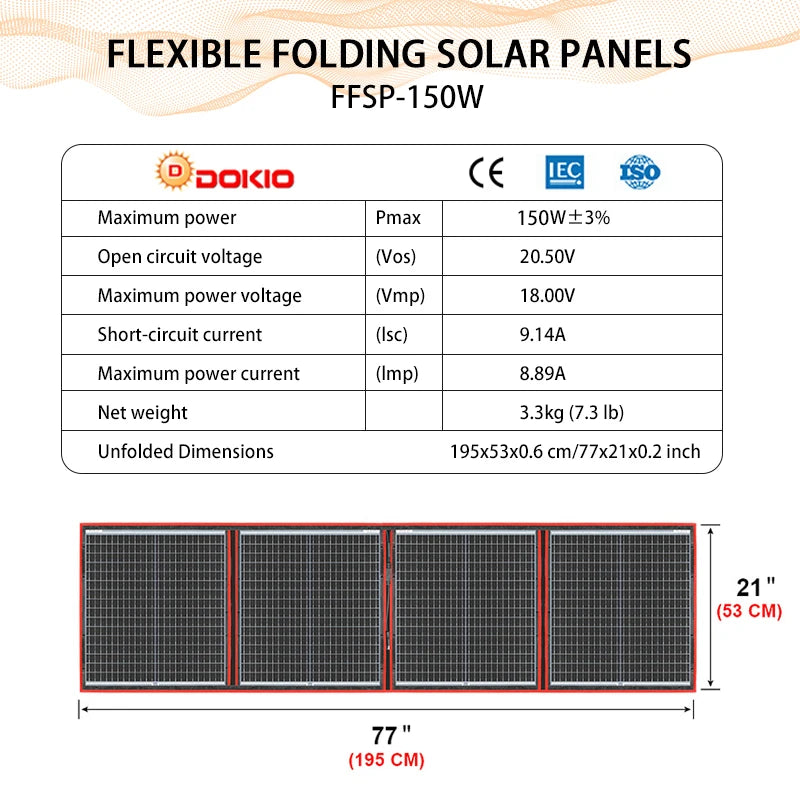

Model:FFSP-150M
Material:Monocrystalline silicon
Maximum Power(Pmax): 150W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):8.89A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):9.14A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:53*49*2.8 cm
Expansion Dimension:195*53*0.6 cm/77*21*0.2 inch
Net Weight:3.3kg
Package Weight:4.5kg
Package Size: 63*50.5*4 cm
Package List:
1*150W Flexible Foldble Solar Panel，
1*3M wire,
1*10A 12Vcontroller,
1*English User Manual


Model:FFSP-195M
Material:Monocrystalline silicon
Maximum Power(Pmax): 195W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):11.12A
Open-Circuit Voltage (Voc): 20.5V
Short-Circuit Current (Isc):11.36A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:49*67*2.8 cm
Expansion Dimension:195*67*0.6 cm/77*26*0.2 inch
Net Weight:4.4kg
Package Weight:5.6kg
Package Size:77*50.5*4 cm
Package List:
1*195W Flexible Foldble Solar Panel
1*3M wire,
1*20A 12Vcontroller,
A total of 4M long cable. With alligator clips，
1*English User Manual


Model:FFSP-295M
Material:Monocrystalline silicon
Maximum Power(Pmax): 295W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):16.67A
Open-Circuit Voltage (Voc): 20.50V
Short-Circuit Current (Isc):16.92A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:49*95*2.8 cm
Expansion Dimension:196*95*0.6 cm/77.2*37*0.2 inch
Net Weight:6.9kg
Package Weight:8.1kg
Package Size:105*50.5*4 cm
Package List:
1*295W Flexible Foldble Panel
A total of 4M long cable. With alligator clips，
1*20A 12Vcontroller
1*English User Manual

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

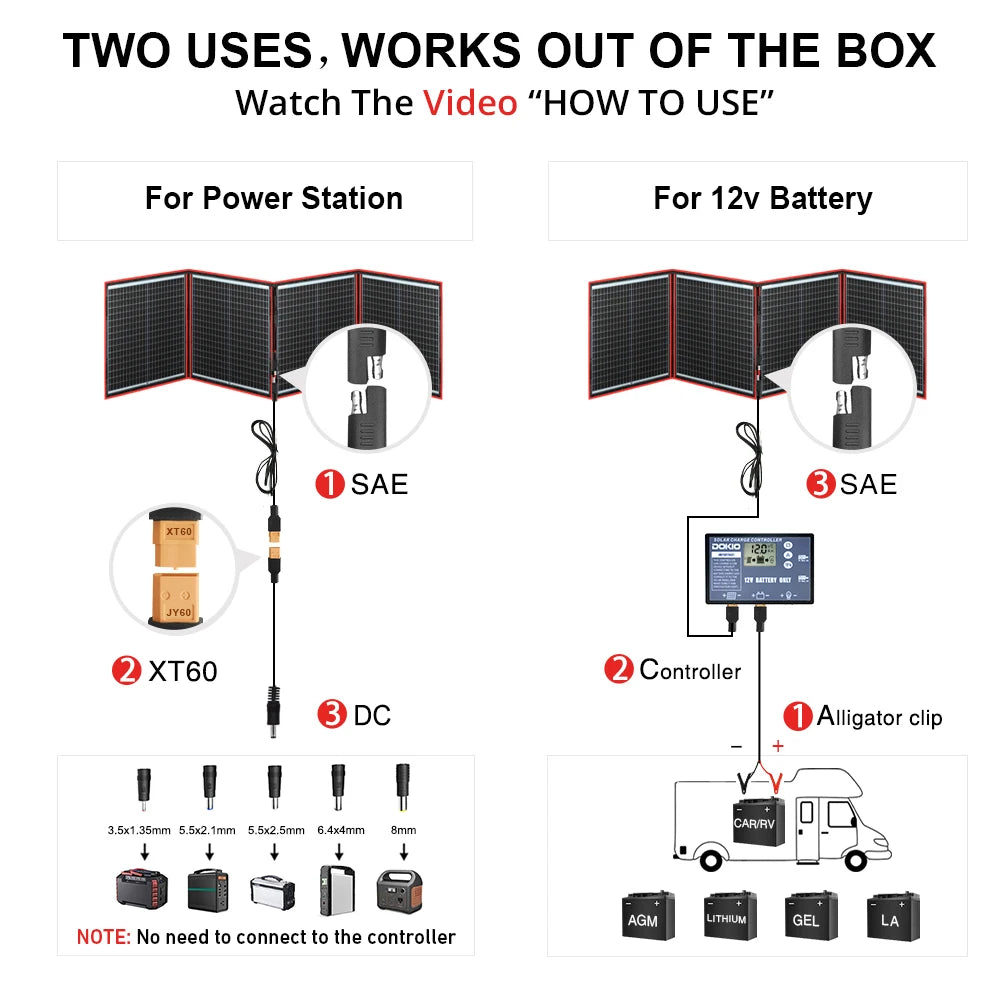

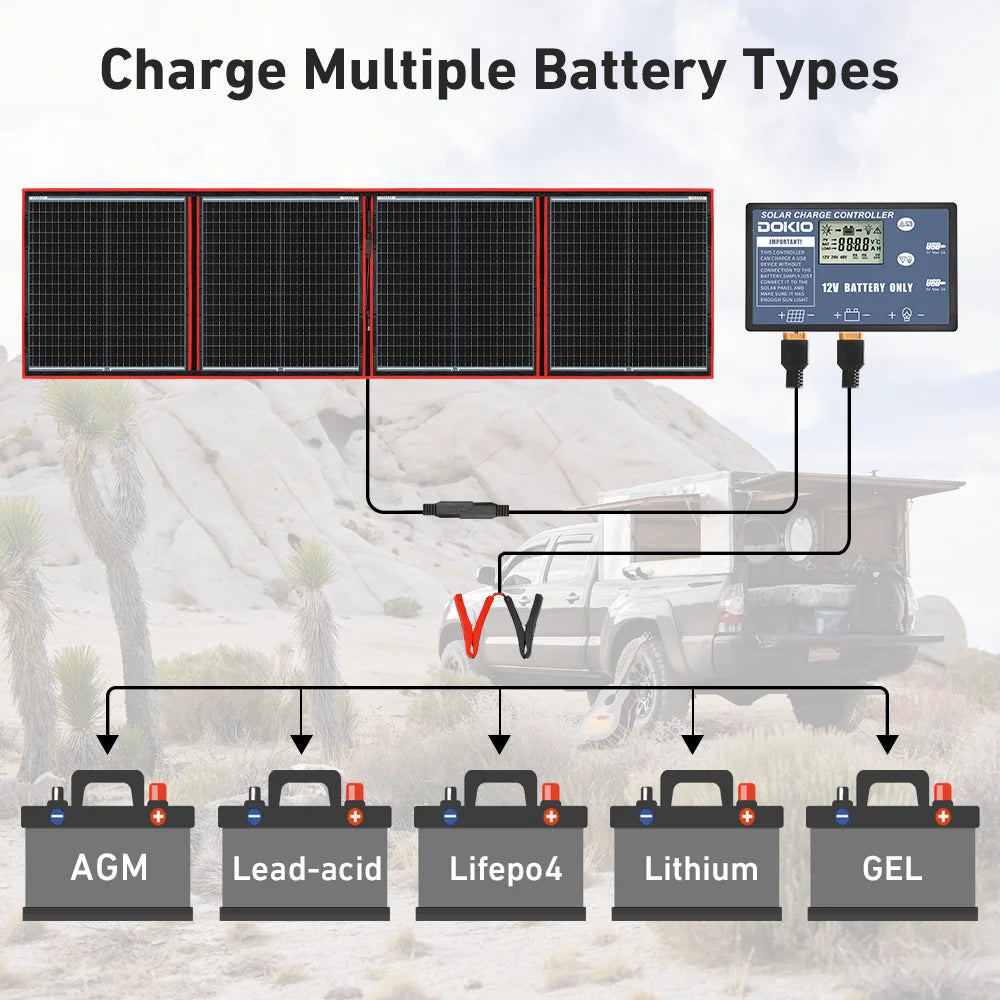

Controller support lead-acid,lithium ions and LiFePO4 battries.
