Feature

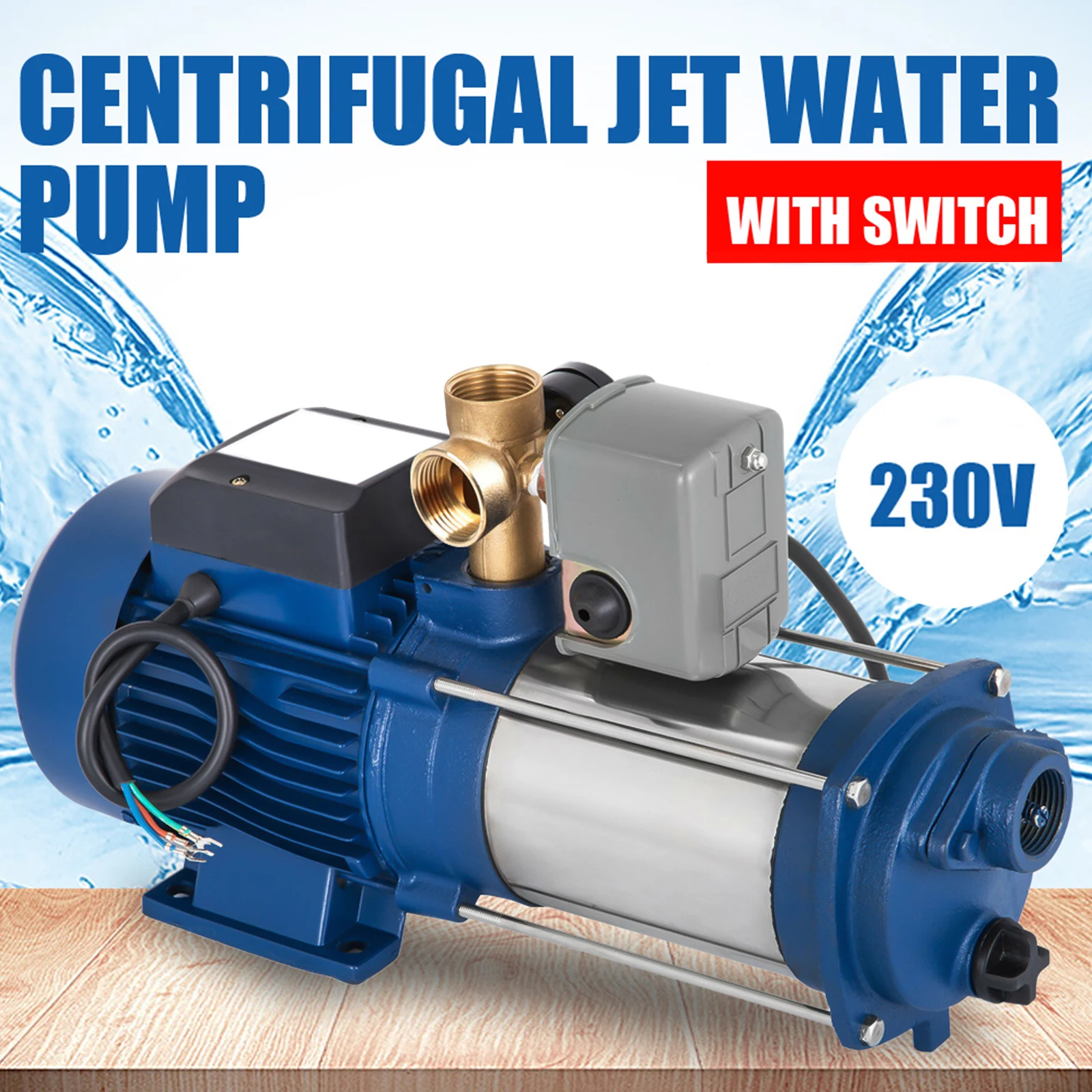

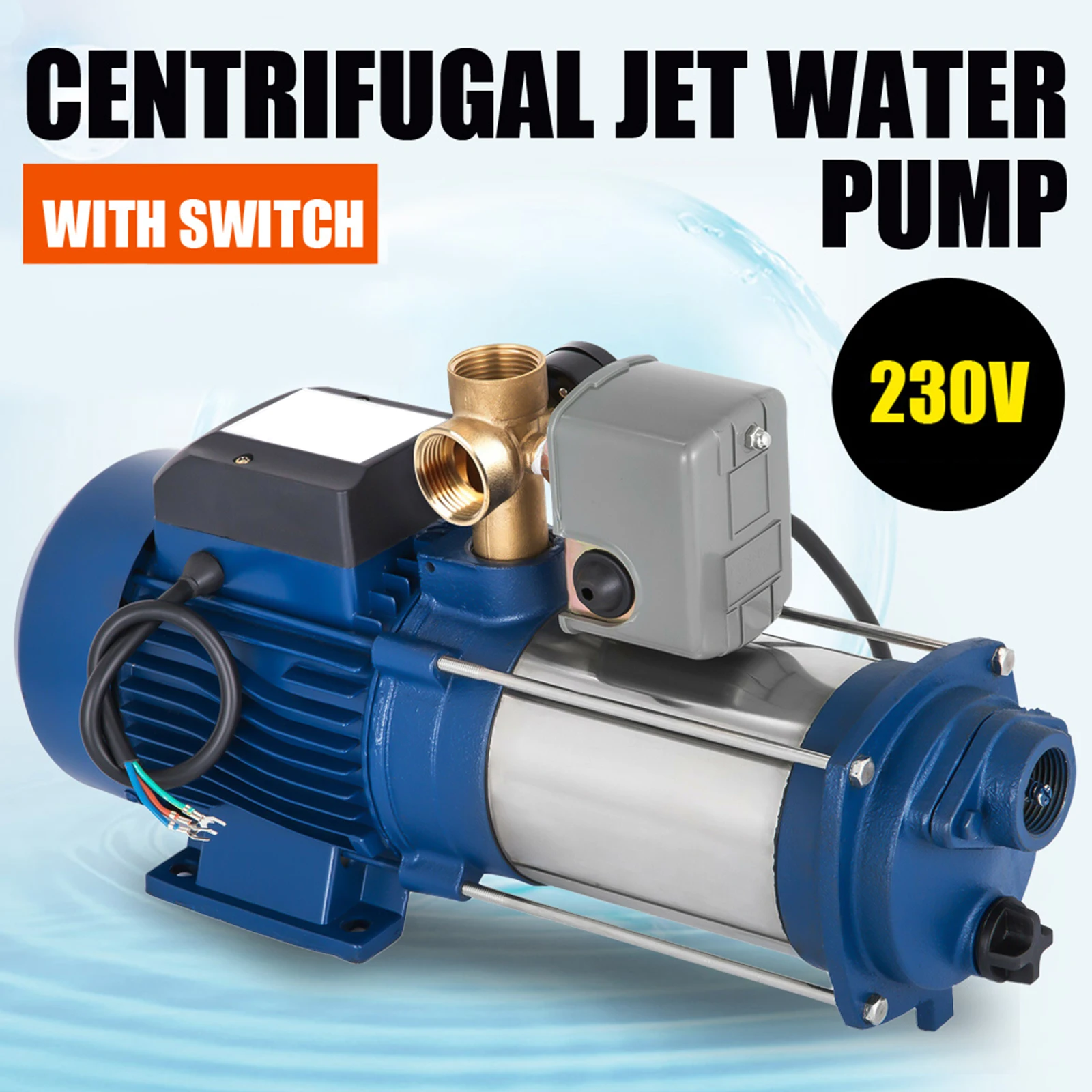

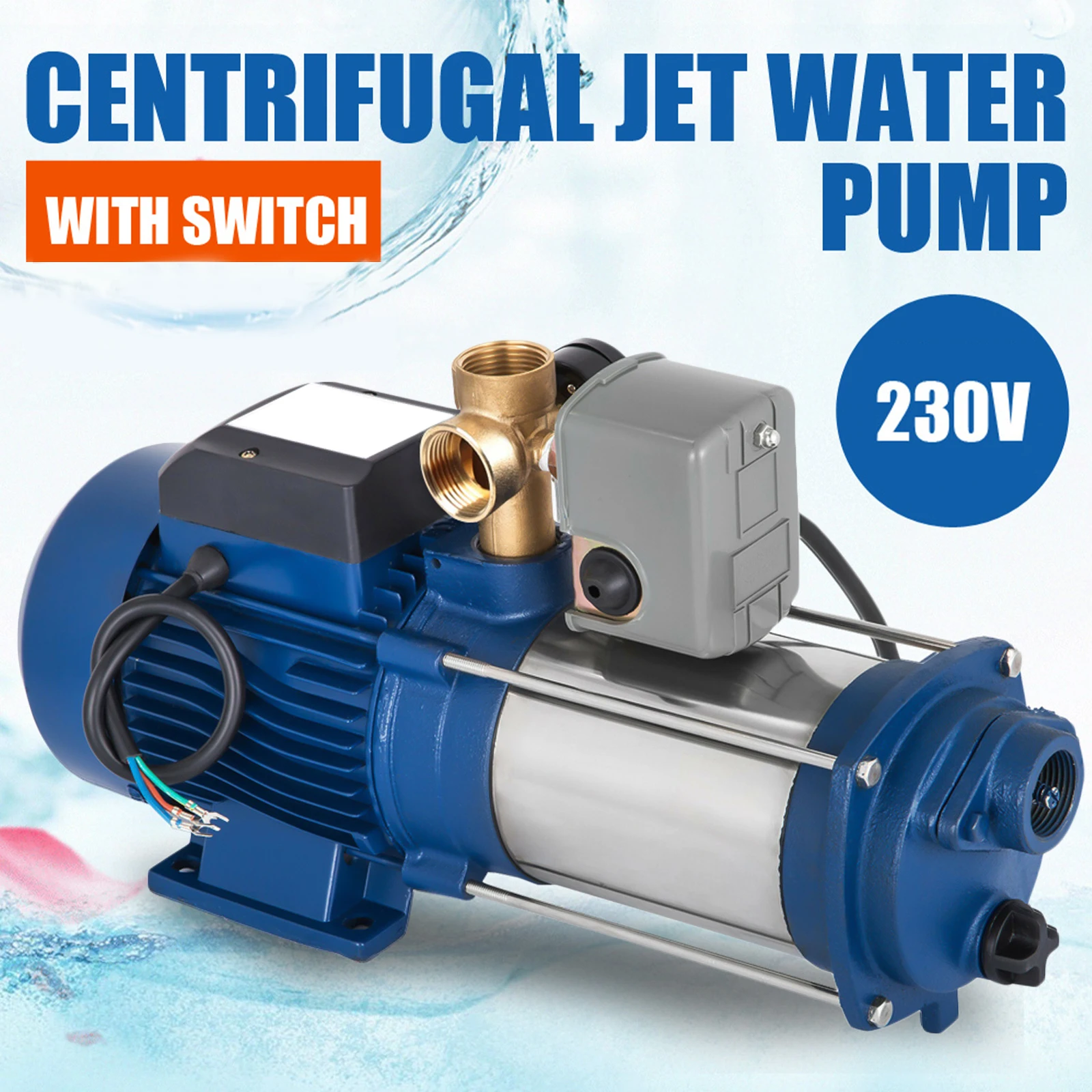

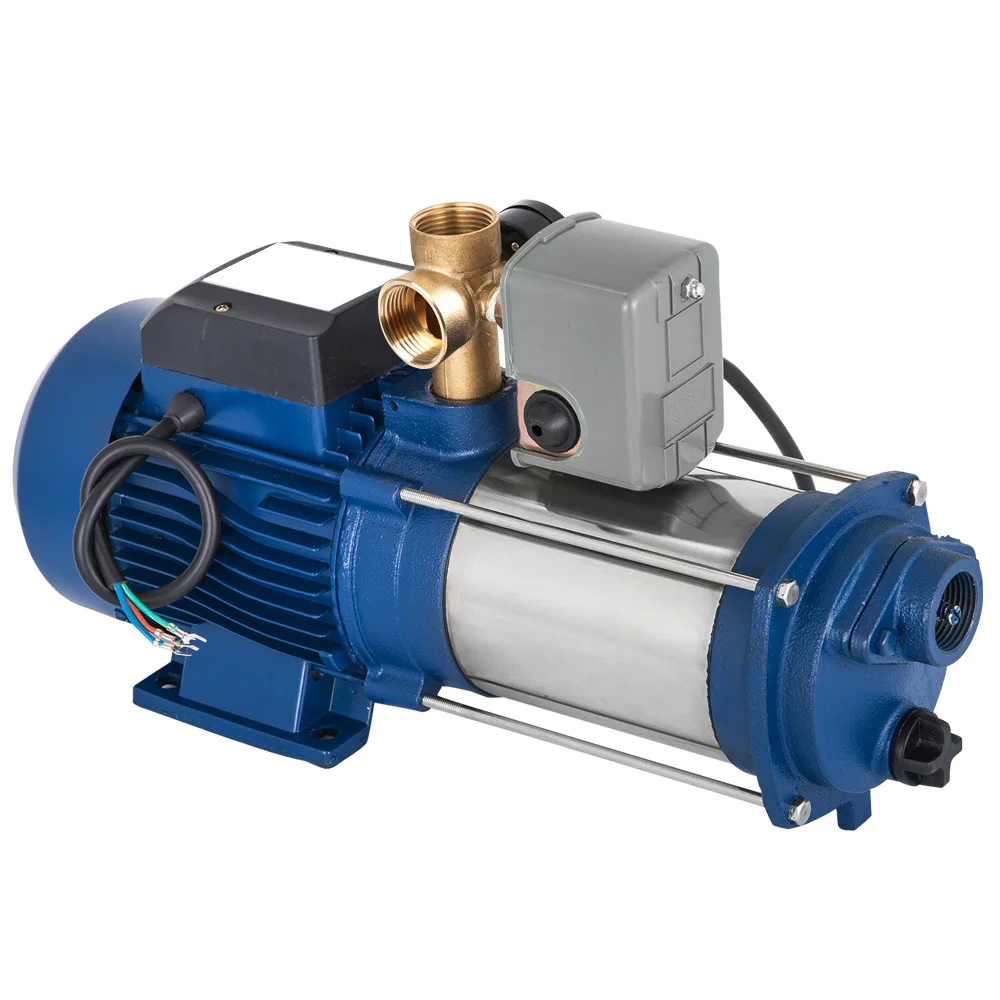

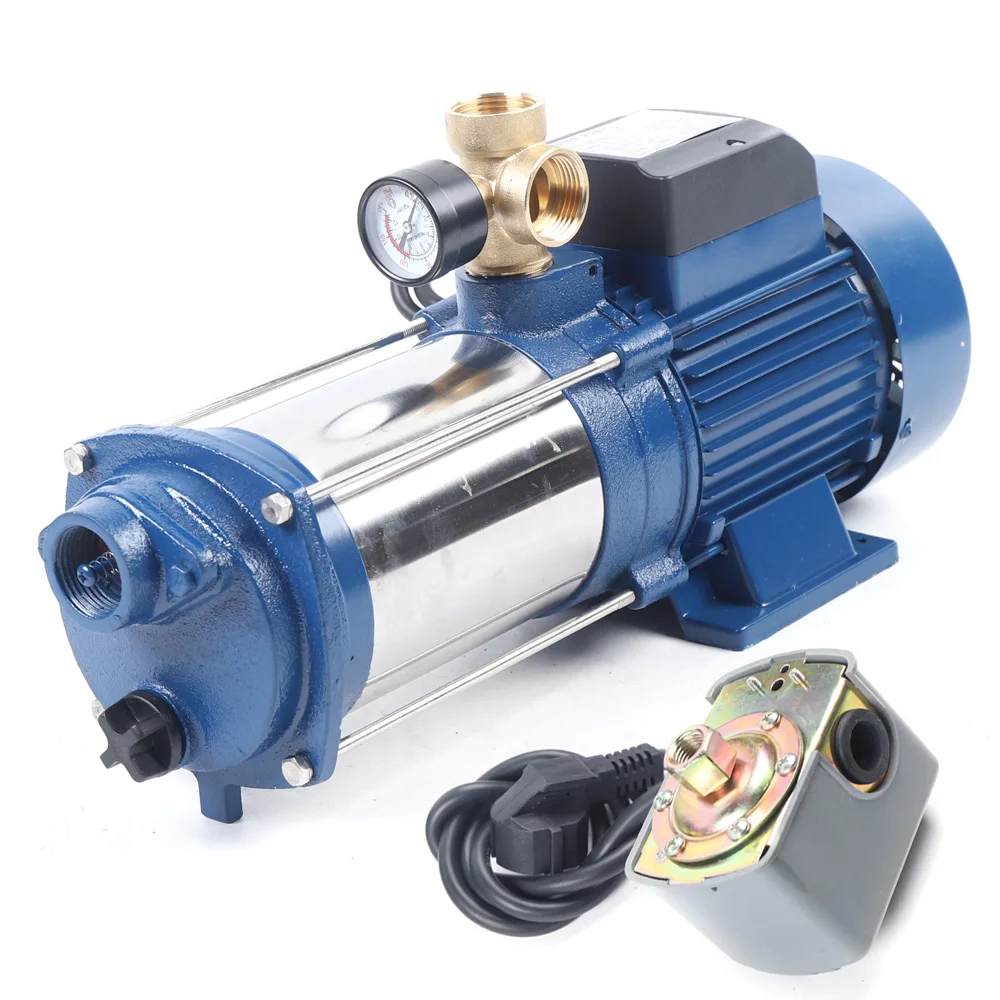

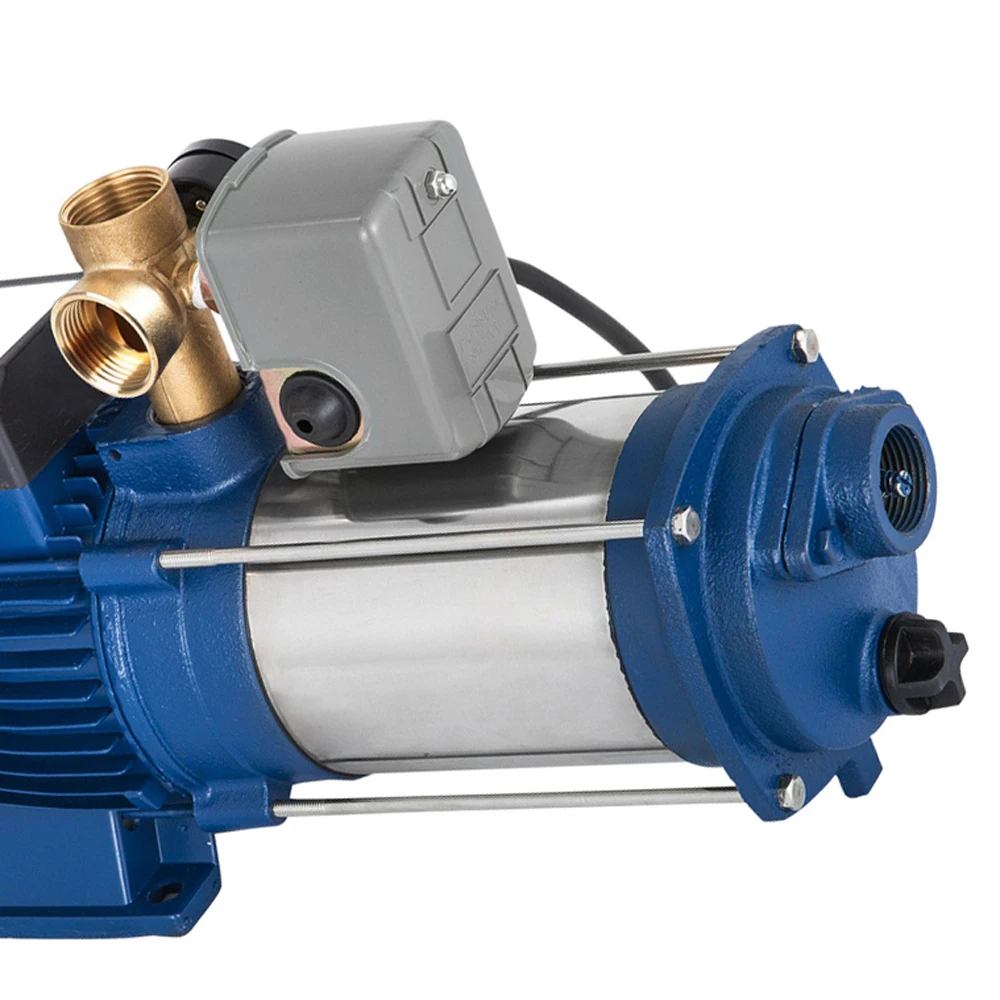

Centrifugal pump with switch

Robust and stainless steel housing

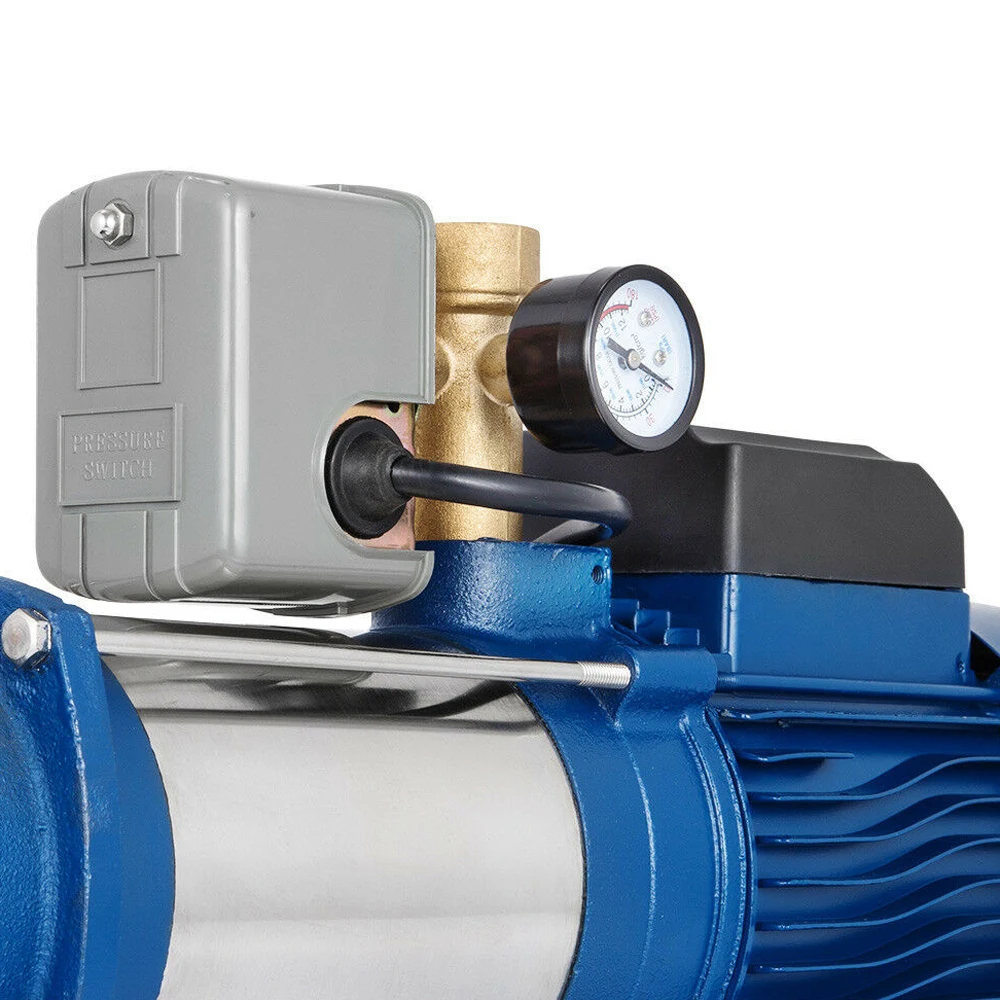

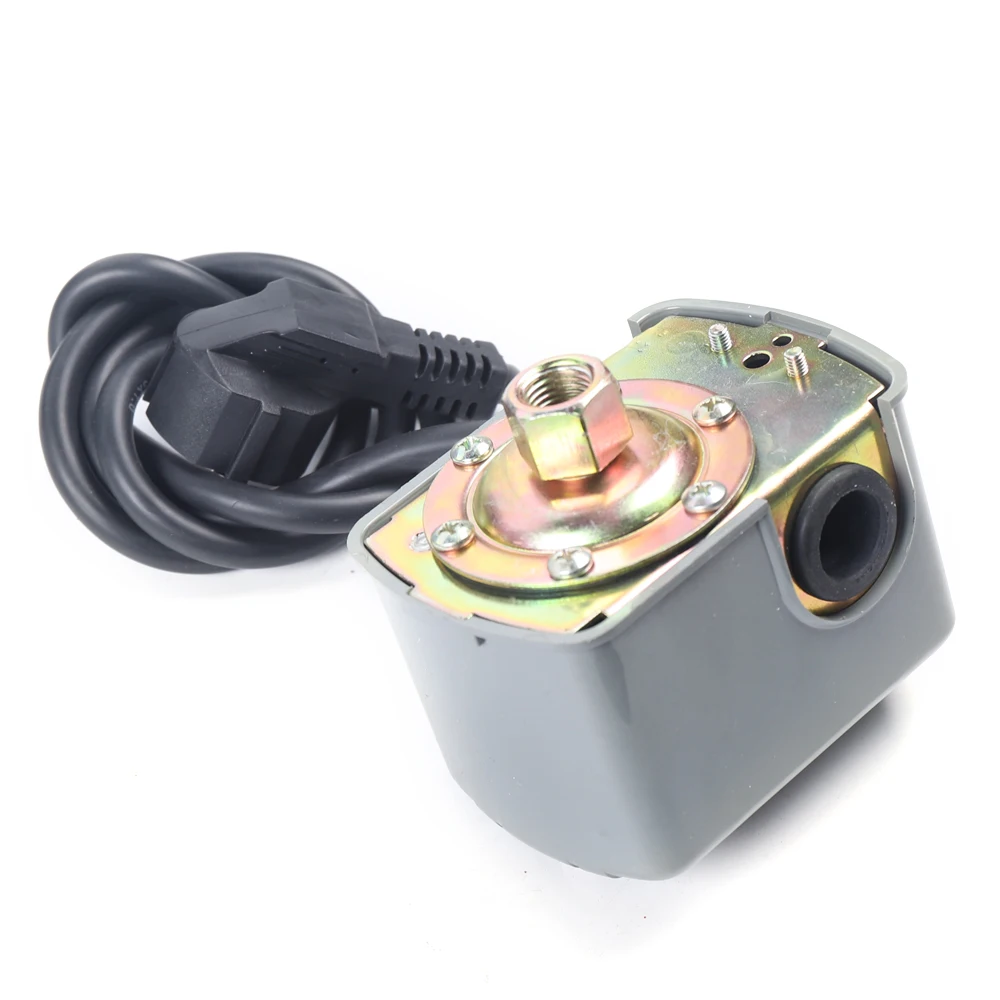

Connection box with switch and mains connection

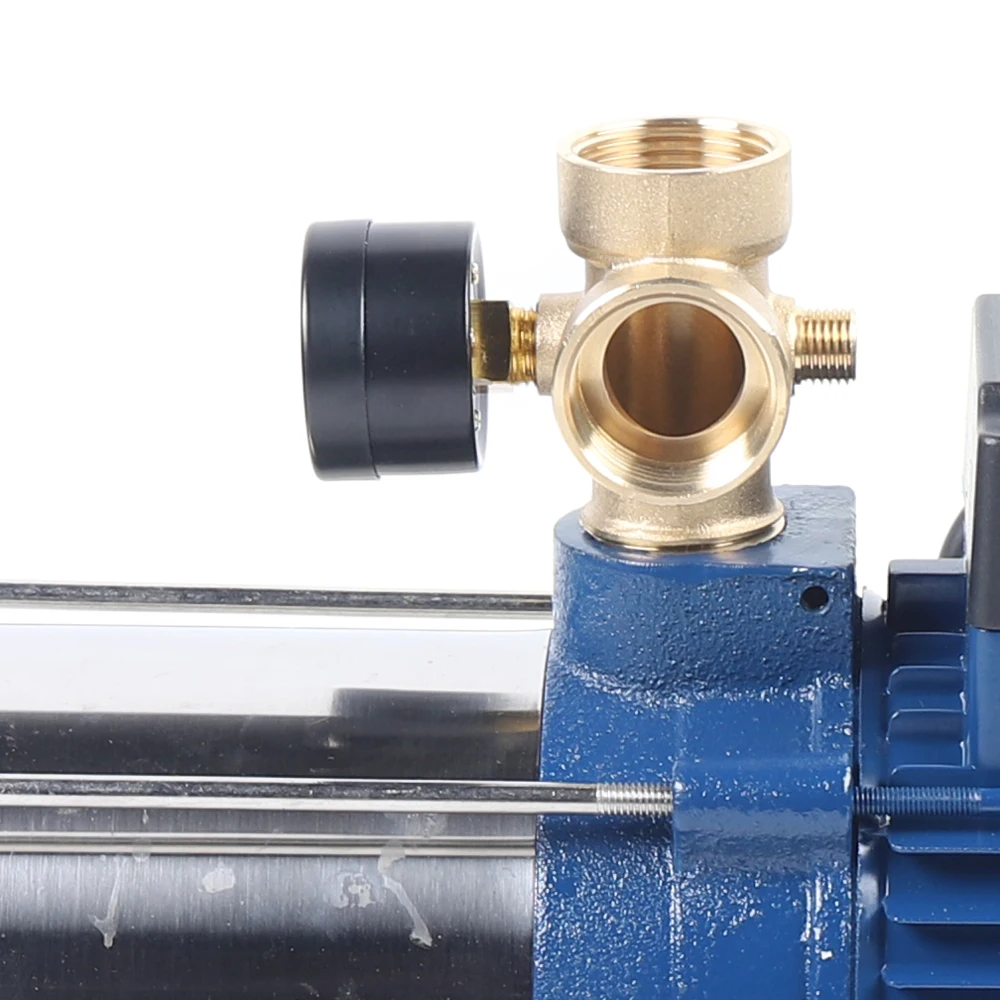

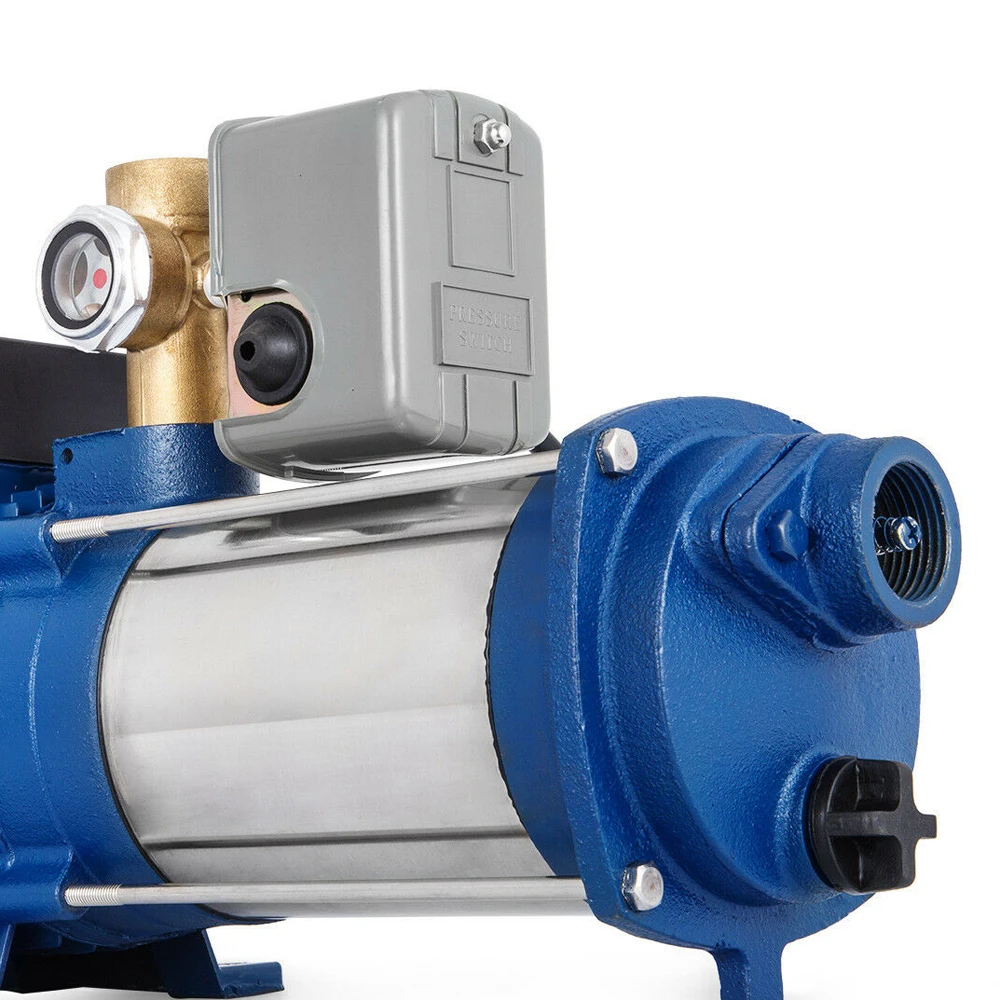

Hose or pipe connection thread (top)

Integrated thermal motor circuit breaker

Used to strengthen the pipeline, water supply and drainage

An excellent choice for improving your home water supply or garden irrigation

Specifications

Condition: New

Product: Centrifugal pump

Materials: stainless steel and cast iron

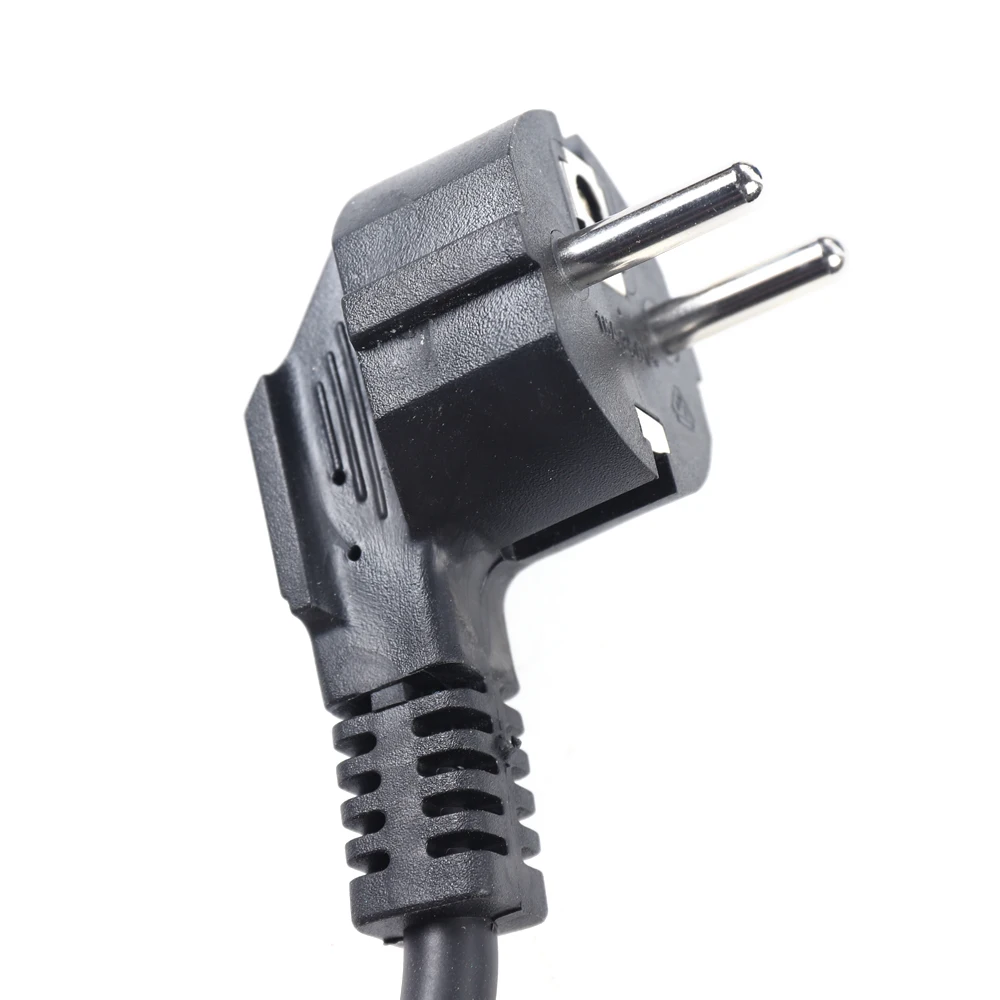

Power supply: socket

Type: 1800W

Color: Blue

Voltage: 230 V, 50 Hz

Power: 1800 W, 2.6 PS

Speed: 2850 rpm.

Max. Durchfluss: 4 m3/h (67L /min 4000L/H

Maximum delivery height: 90 m (295 ft)

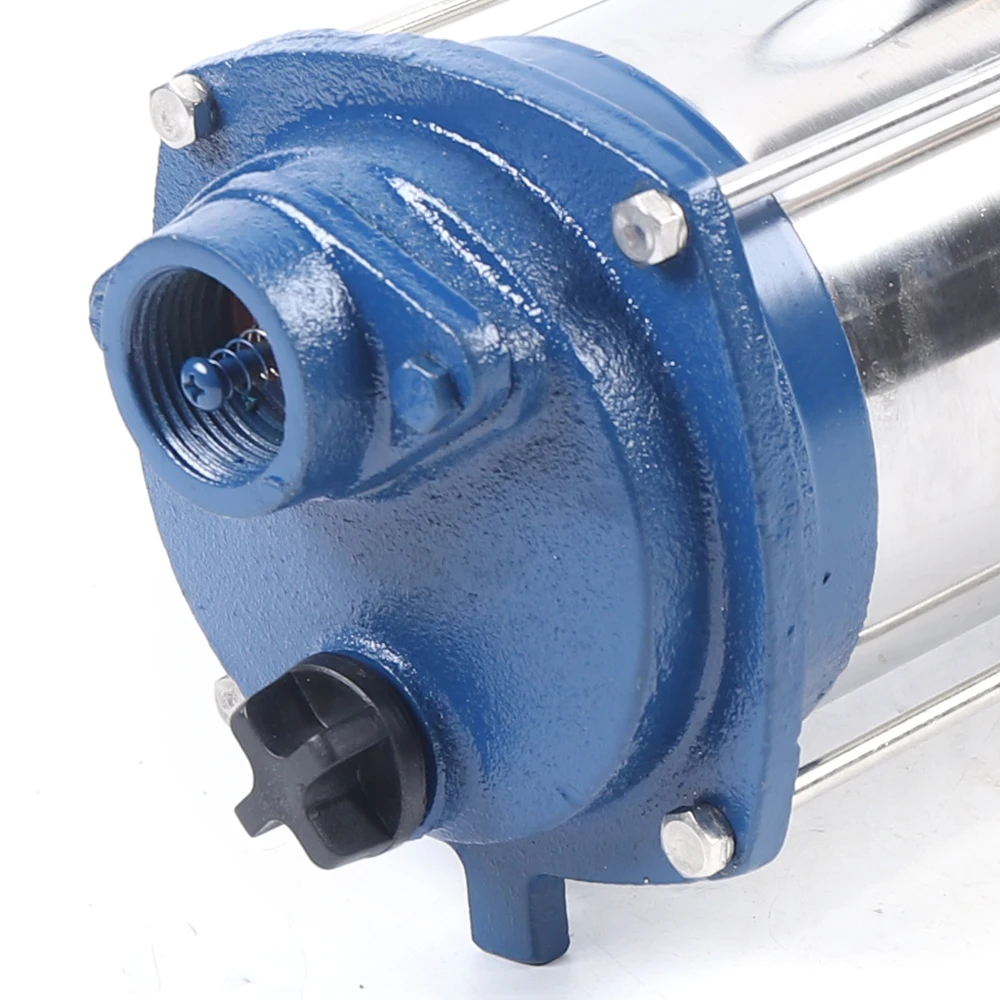

Connection of suction and pressure side: 2.54 cm (1 inch)

Protection class: IP44

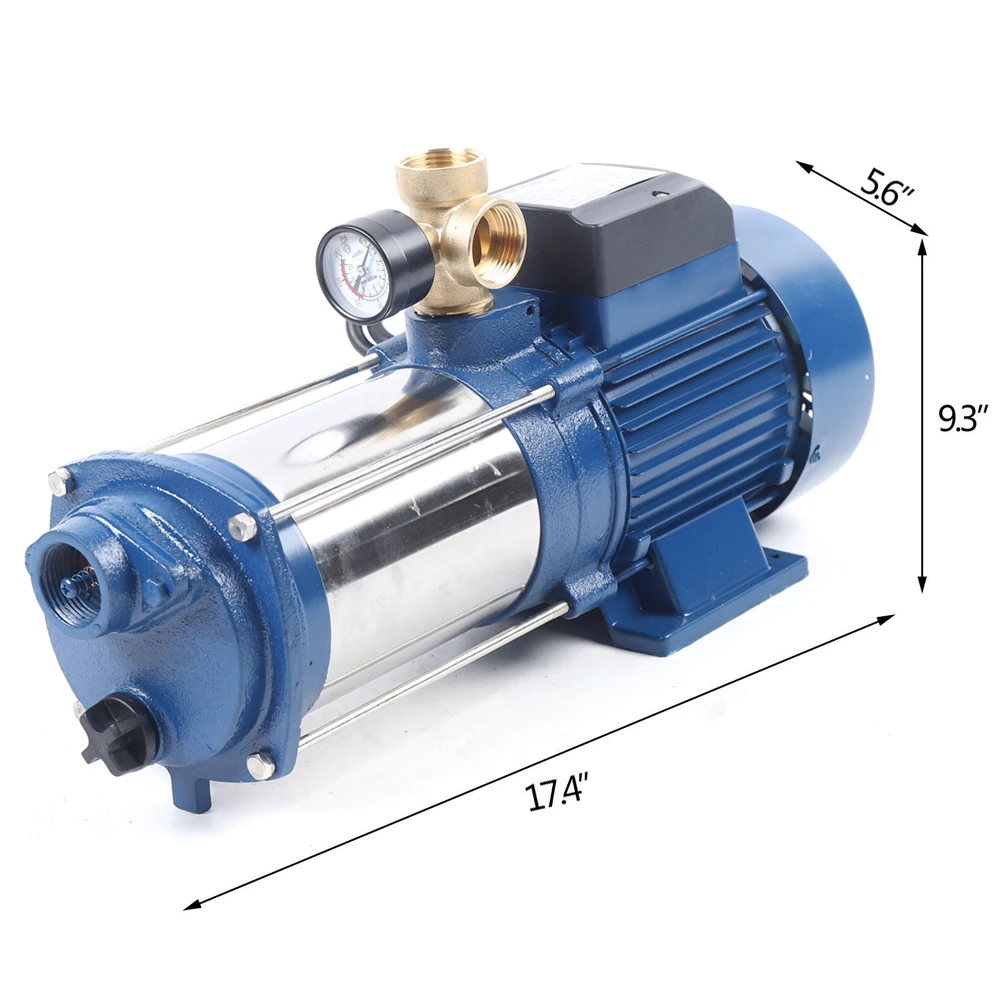

Packaging size: 46 x 26 x 20 cm

Gross weight: 13 kg

Use

Our centrifugal jet water pump is widely used for pipeline support and water supply. It can also be used for water supply and disposal in the agricultural industry or in gardens, hotels, cafeterias, factories, mines and high-rise buildings.

Important instructions

1.If possible, the pump should be placed near the well hole to keep the maximum power.

2. Pay attention to the suction height. Please equip the suction line with a check valve to ensure the existence of the water column.

3.Please fill the pump and suction line with water before commissioning, otherwise there is a risk of dry running.

4.The suction line should have a diameter of 1" - 1 1/4", but not smaller or larger. Otherwise, the pump will not be able to provide the required power or pressure.

Package Content

1 x Centrifugal jet water pump
