SPECIFICATIONS

Battery Capacity: 8000mAh Li-ion Battery

Battery Included: Yes

Brand Name: Huepar

Certification: CE,FCC,RoHS

Charging Port: Type-C

Charging Time: About 5.0 hrs with 5V/2A adapter

Feature: With remote control

High-concerned chemical: None

Laser Beam: High Brightness Green beam

Laser Class: Class 2, < 1mW power output

Levelling Range: ±3°

Measurement Model: 16 Lines

Mode: Self-leveling & manual & pulse mode

Model Number: ZK04CG-L+LR-6RGA+S60

Mount size: 1/4"-20

Name: Huepar 4D Cross Line Laser Level With Detector Rangefinder

Operating Times: About 8 hours

Origin: Mainland China

Precision: ±2mm/10m

Self-leveling time: ≤3s

Size: 24*26.8*11.5cm

Type: Vertical & Horizontal Lasers,Cross Line Laser Tool

Wavelength: 505-520nm

Working Distance: 30m / 40-60m with laser receiver

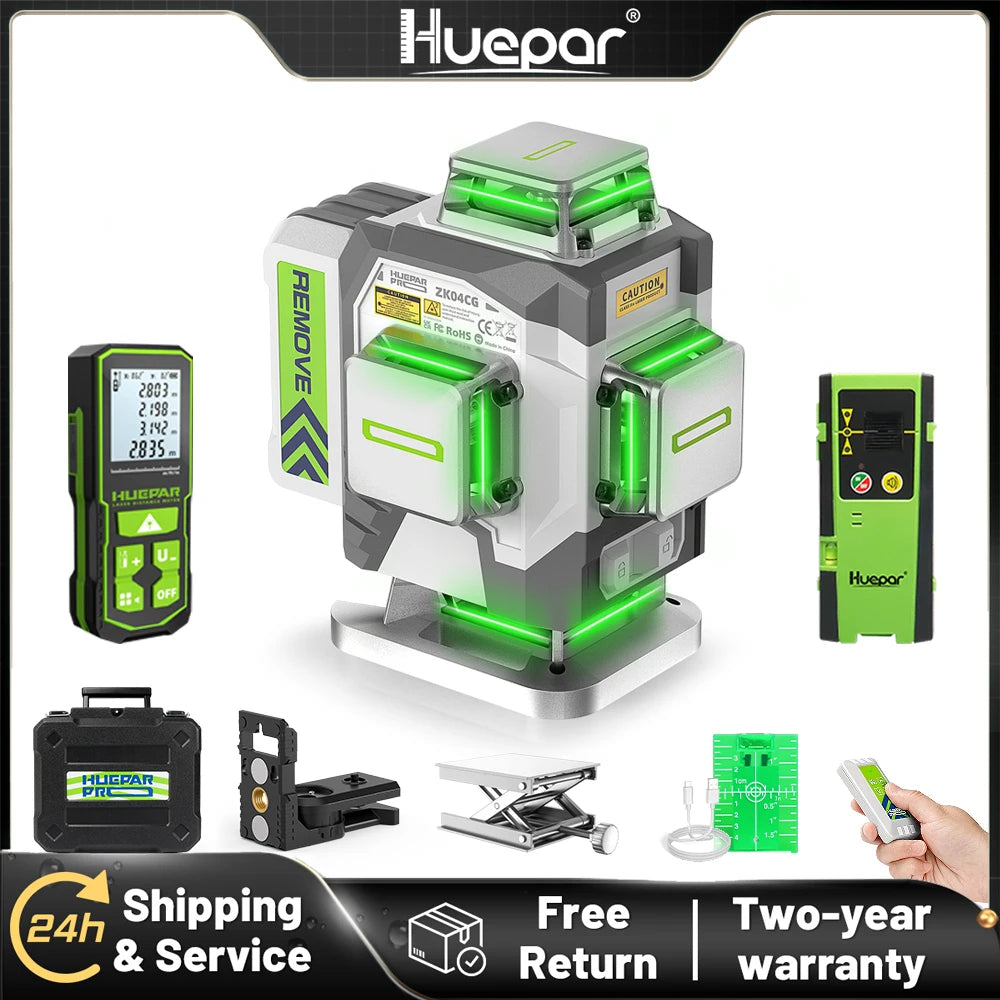

Huepar High Accuracy 16 Lines Laser Level With Detector Rangefinder ±2mm Accuracy Green 4D Self-leveling Cross Line Laser Tools

Huepar ZK04CG-L SET 4D 2±mm/10m Accuracy Green Laser Level Specifications:

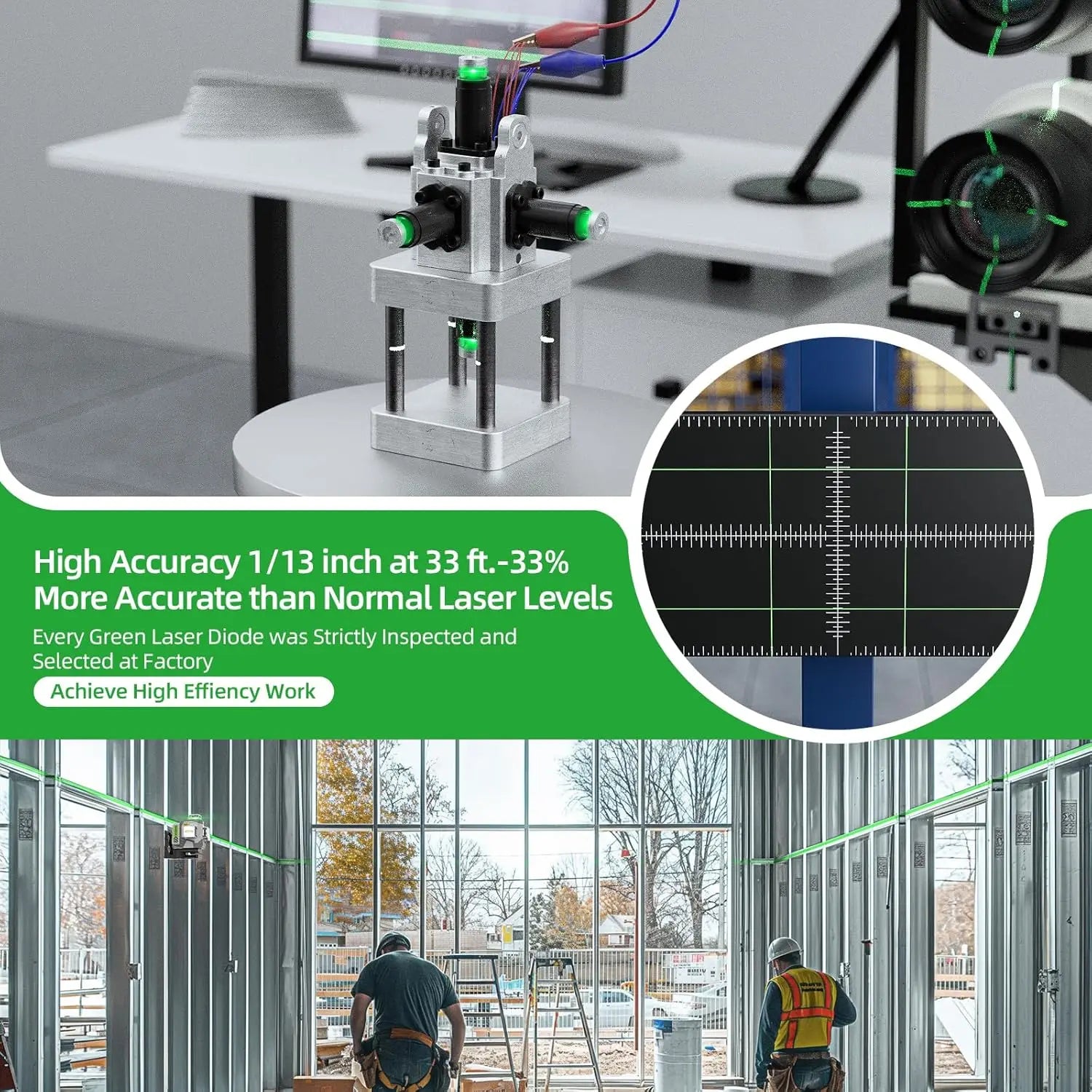

High Accuracy ±2mm/10, ±1/13 inch at 33Ft

• From a large number of laser level modules, high precision modules are selected and specially tuned by hand to produce a laser level with an accuracy of 2mm at 10m.

• The percentage of high-precision modules in the total number of modules is only 10%.

• Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

• The remote control enables to select the 4 x 360° laser lines individually at a distance up to 32.8Ft.

• The laser line(s) can be temporarily turned OFF by the remote control when need to leave for a while.

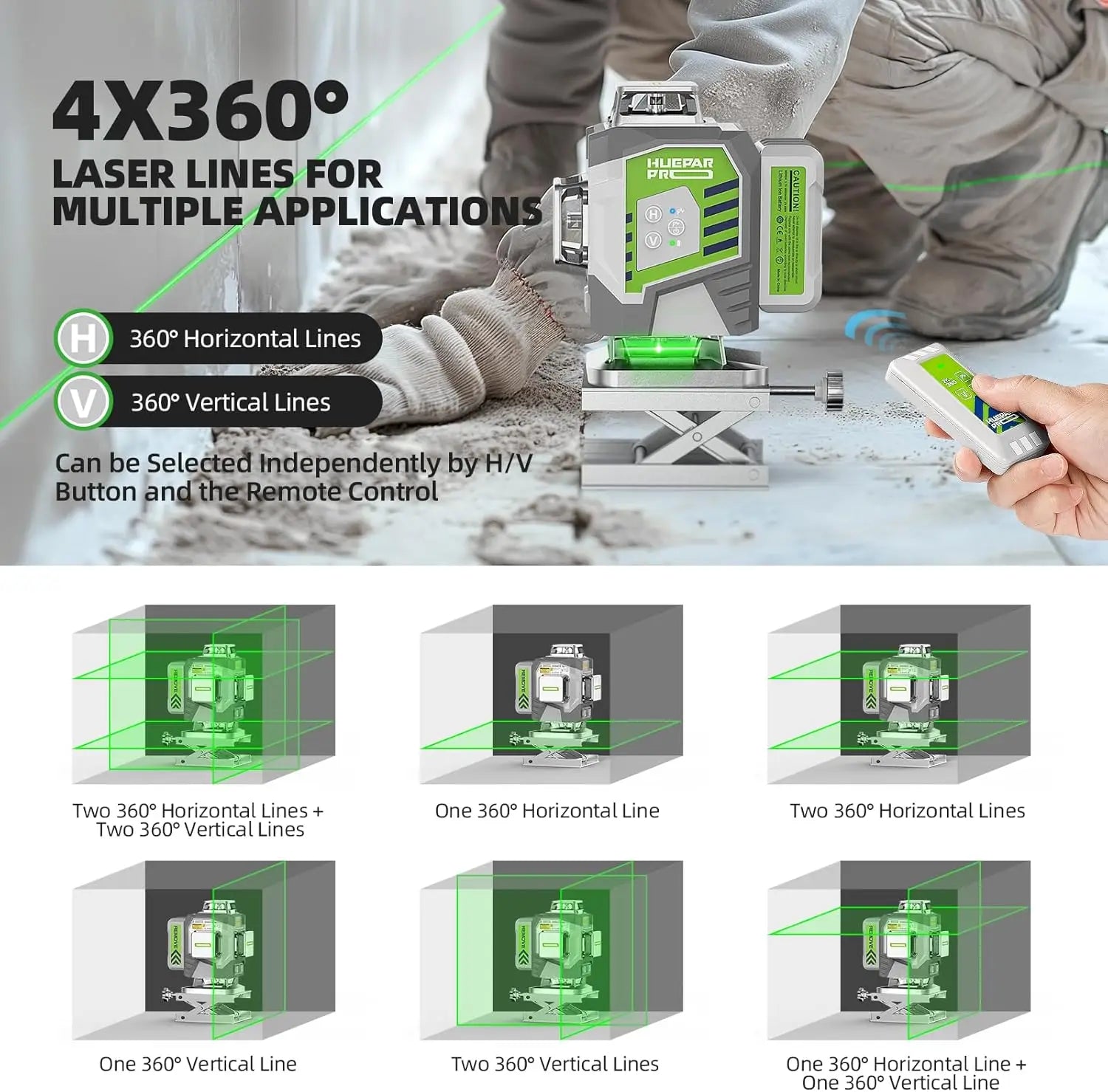

Line Switching

• Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

• The remote control enables to select the 4 x 360° laser lines individually at a distance up to 32.8Ft.

• The laser line(s) can be temporarily turned OFF by the remote control when need to leave for a while.

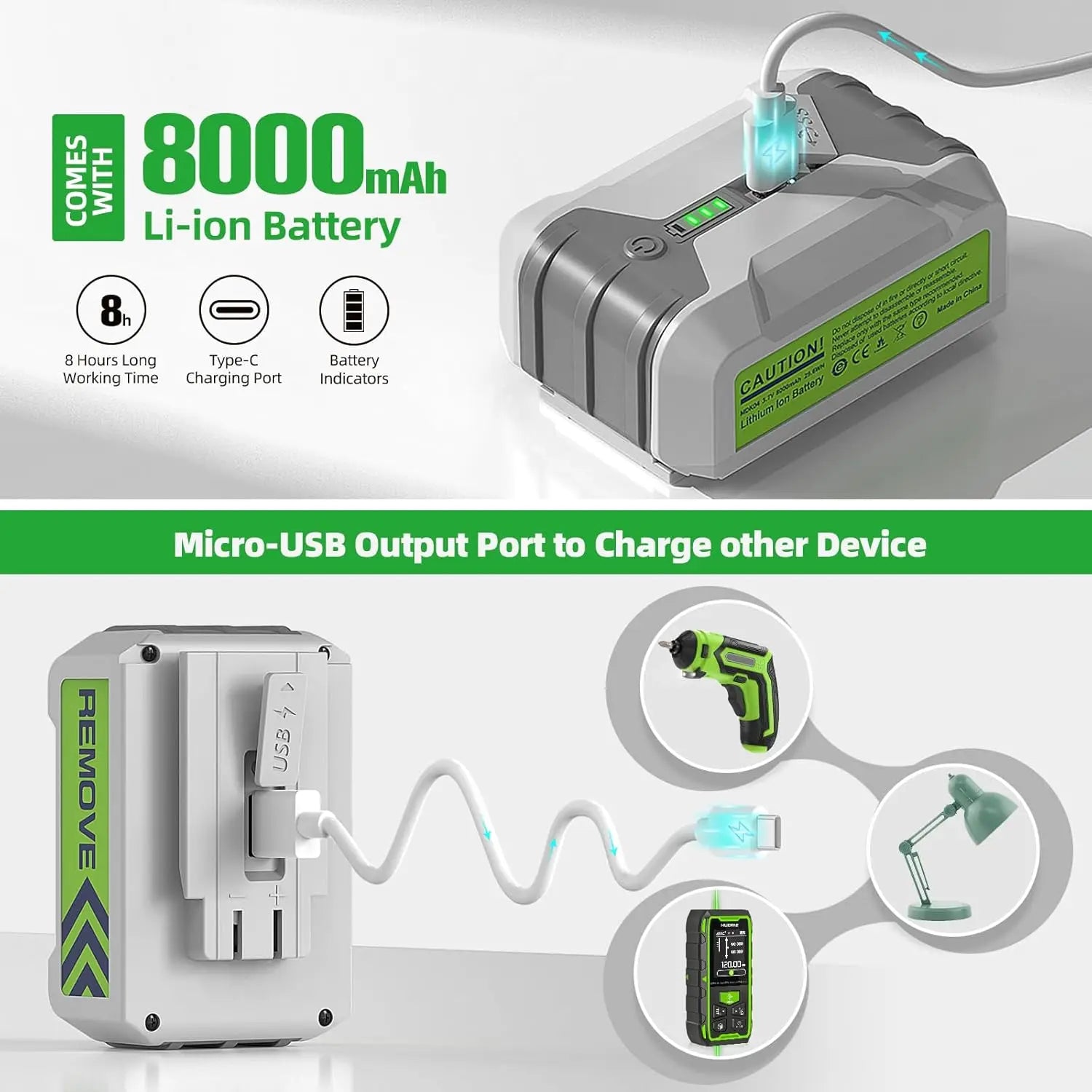

8 Hours Working Time With all beams on

• 8000mAh rechargeable Li-ion battery support the laser level to work for 8 hours with all four 360° laser beams on.

• Type-C charging port can be used to charge the battery through car charger, rechargeable treasure and other ways.

• Battery indicators let you know the power status at any time.

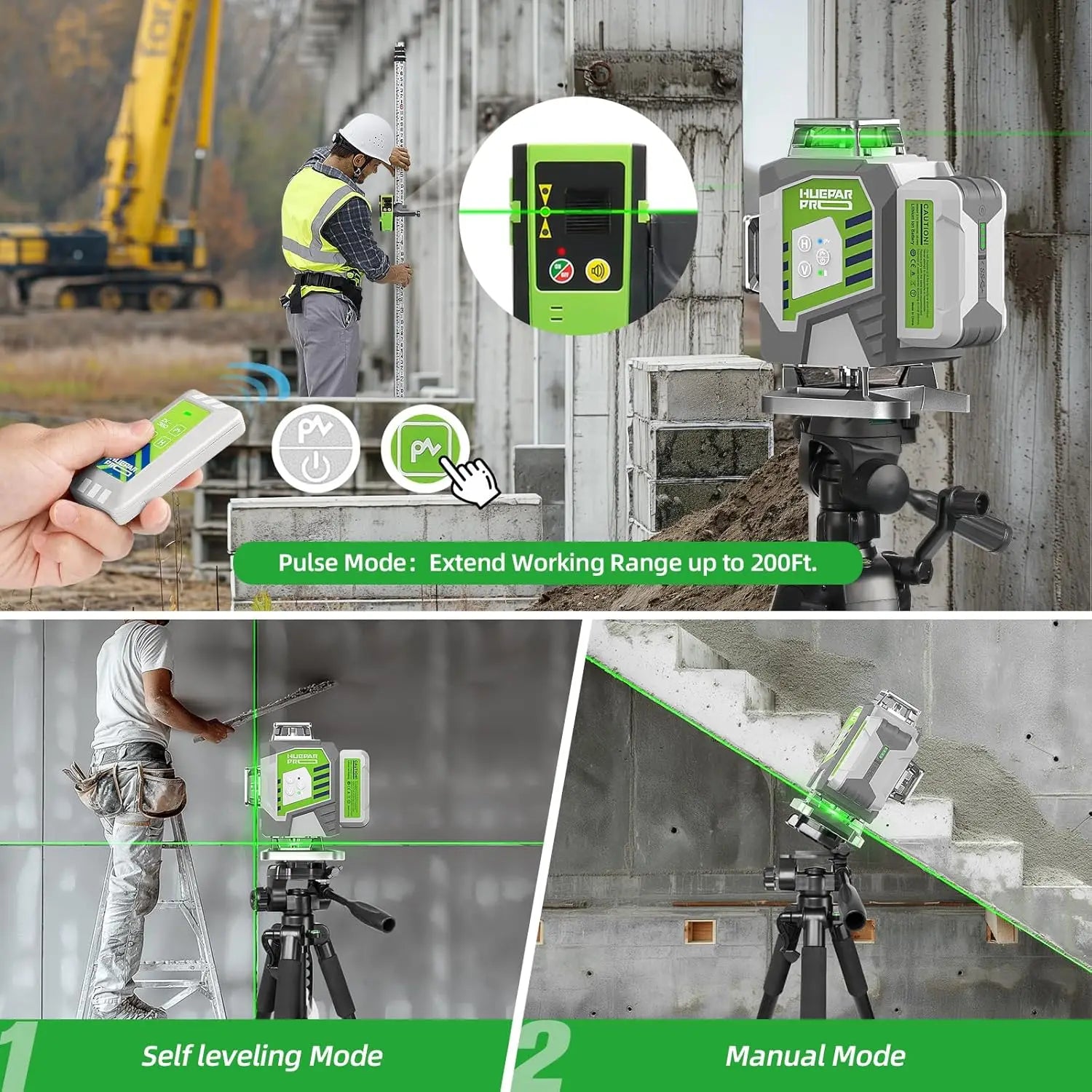

Self-leveling & Manual Mode

• Self-leveling mode:  Unlock the pendulum, and enable the self-leveling mode, when the tool exceeds the self-leveling range by ±3°.

• The laser beam(s) will blink about every 3-5 seconds to notify the user it is not self-leveling now.

• Manual mode:Once the pendulum is locked, it switches to manual mode, the self-leveling function is disabled, the cross laser tool is locked, and you can position the laser level at any angle you need.

Outdoor Pulse Mode

• Turn ON the pulse mode: After powering ON, short press the "Pv" button to turn ON/OFF the pulse mode. When the pulse mode is activated, the laser beams are dimmer.

• Pulse mode extends the working range up to 40-60m in brighter working conditions when using with Huepar Line Laser Detector(LR-8RG/LR-5RG/LR-6RG) .

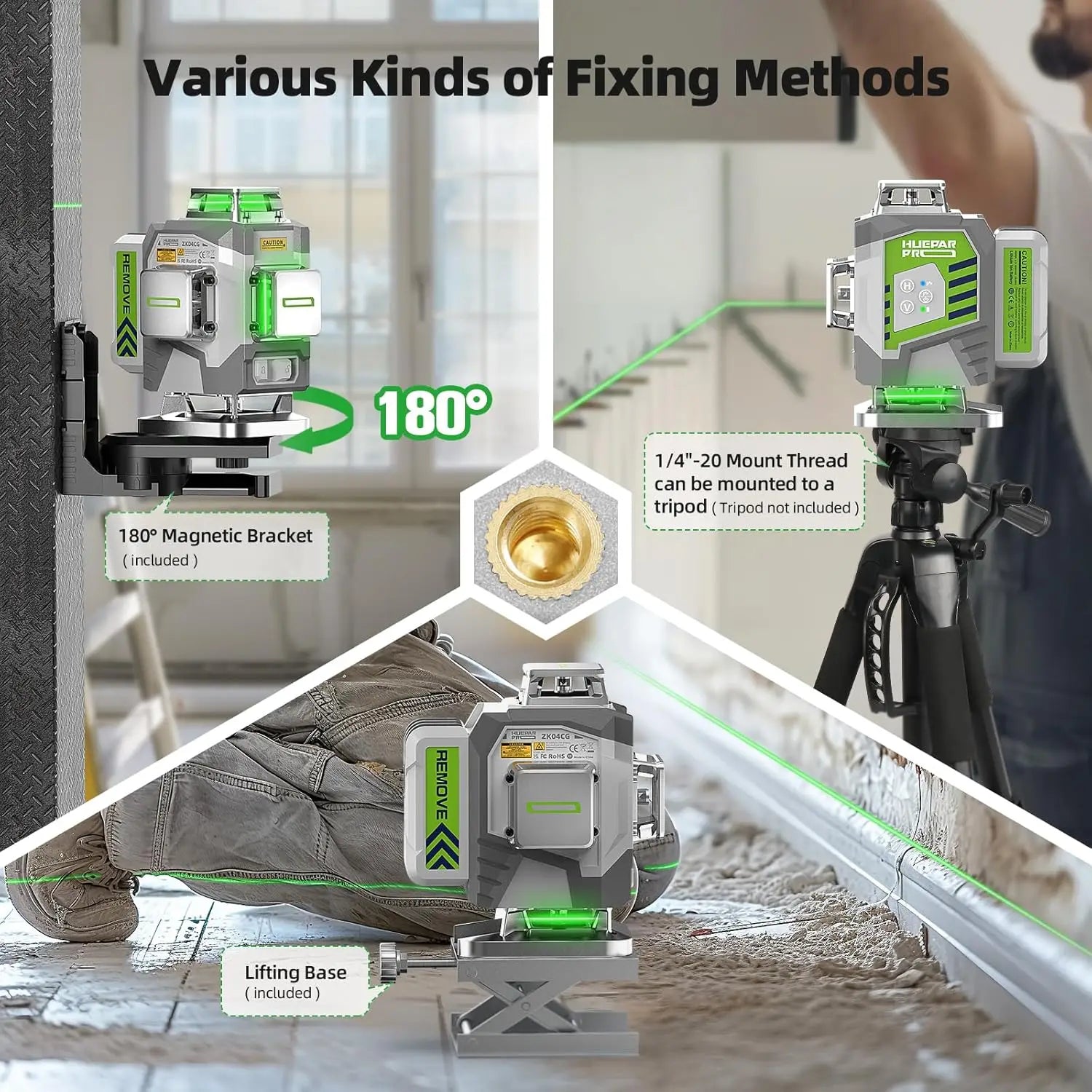

Strong magnetic bracket

• The ZK04CG uses with 180 degree magnetic bracket, it is easy and convenient for you to use.

• The mount size for this device is 1/4"-20 mount thread, it can be mounted to a tripod or other adapter also.

360° Horizontal Floor Laser & Lifting Base

• This tiling laser tool generates one 360° horizontal floor laser at the bottom that can hit a 1/2 inch ultra-low horizontal line on the ground, prefect for the layout of tile, stone, brick, carpet and hardwood flooring, etc.

• With the lifting base, the laser lines raise from the surface between 0.83 inch and 3.2 inch height.

Use of different scenarios: Construction work, window installation, wall tiling, stair laying and so on.
