SPECIFICATIONS

Brand: LANPWR

Brand Name: other

Certification: CE

Charge Mode: 0.2C to 14.6V

Charge Temperature: 0℃ to 50℃(32℉ to 122℉)

Charge current: 40A

Charge cut-off voltage: 14.6 ±0.2V

Combination Method: 4S1P

Continuours current: 100A

Cycle Life: ≥4000 cycles@0.2C 100% DOD

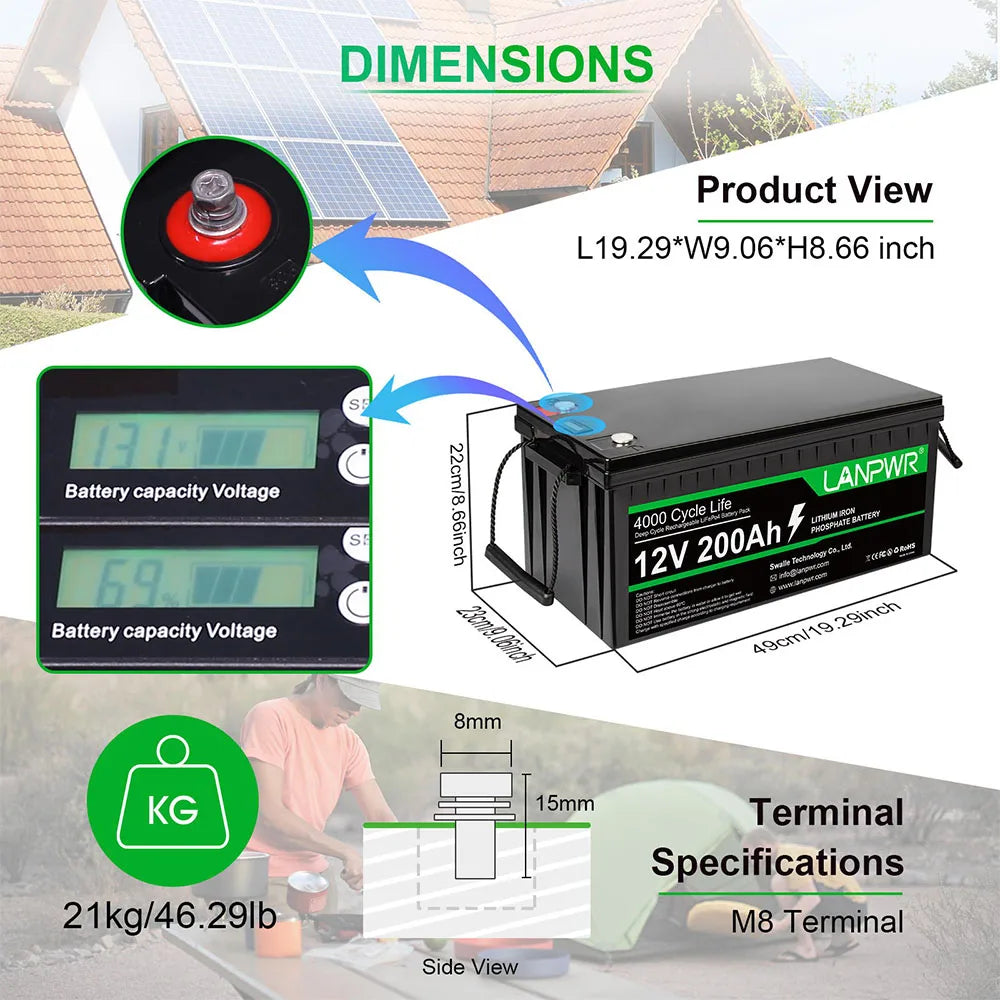

Dimensions: 522mm±2mm*240mm±2mm*220mm±2mm

Discharge Temperature: -20℃ to 60℃(-4℉ to 140℉)

Discharge cut-off voltage: 10V

Efficiency of Discharge: 96-99%@0.5C

Energy: 2560Wh

Internal Resistance: ≤60mΩ

Max Pulse current: 300A(＜3s)

Model Number: 12V 200Ah

Months Self Discharge: ＜3%

Nominal Capacity: 2560Wh,200Ah(C5,25℃）

Nominal Voltage: 12.8V

Origin: Mainland China

Plastic Case: ABS

Protocol: NO

Size: 49*23*22

Storage Temperature: -20℃ to 45℃(-4℉ to 113℉)

Terminal: M8

Type: LiFePO4

Weight: 21kg

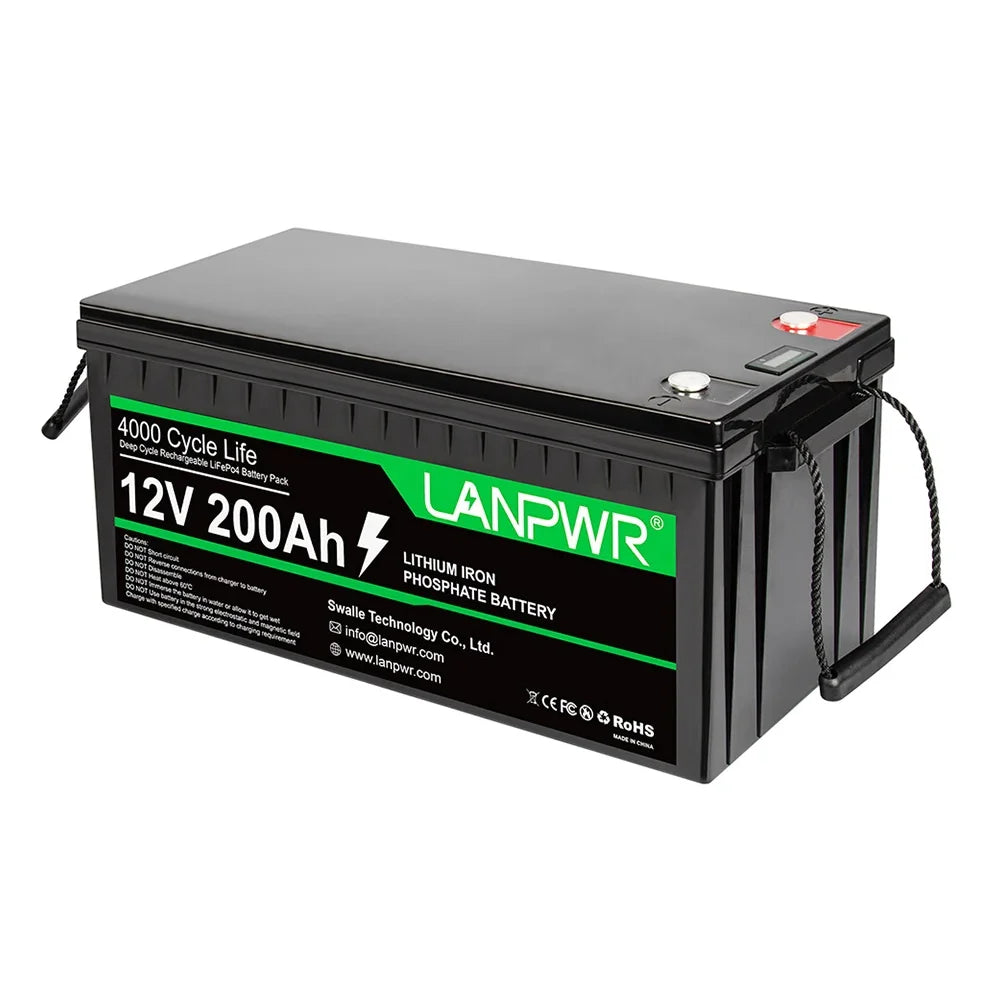

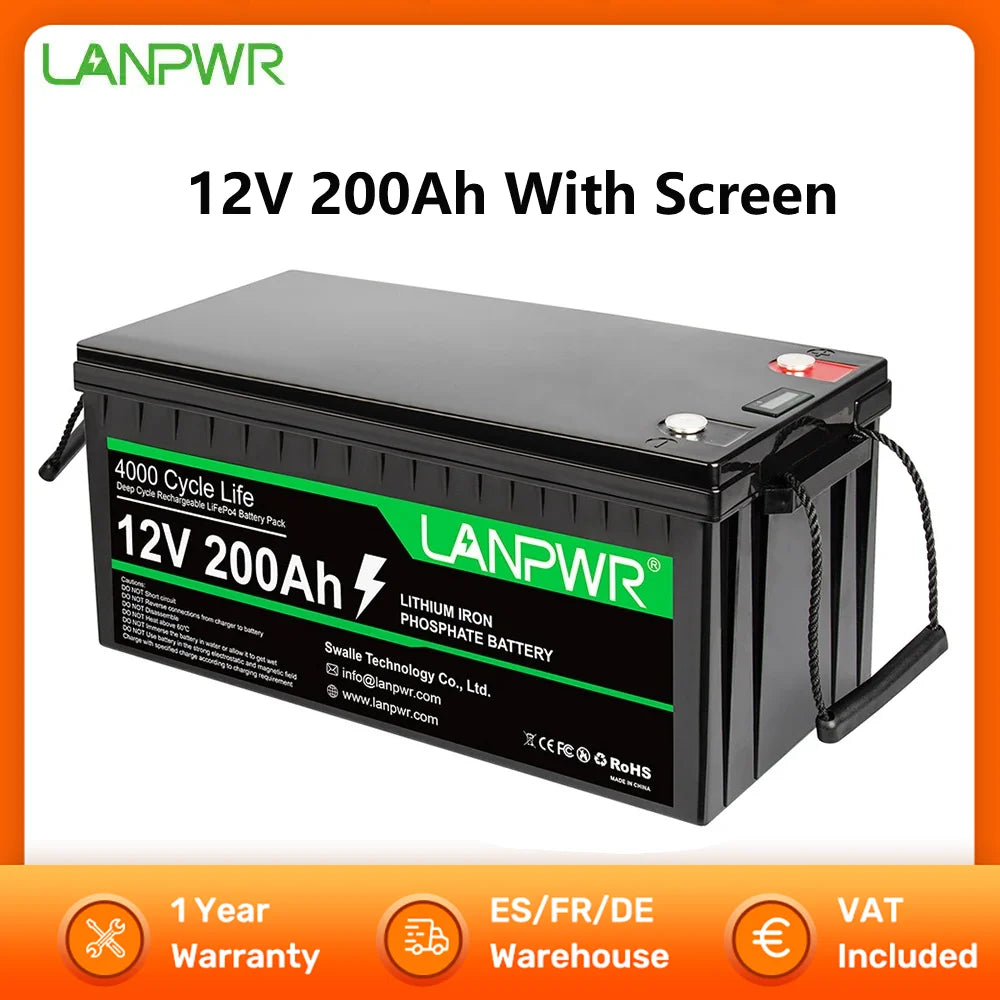

LANPWR 12V 200Ah LiFePO4 Lithium Battery Pack Backup Power, 2560Wh Energy, 4000+ Deep Cycles, Built-in 100A BMS, Solar, Off-Grid

>>Highlights

10 Years Lifetime & Lightweight Design

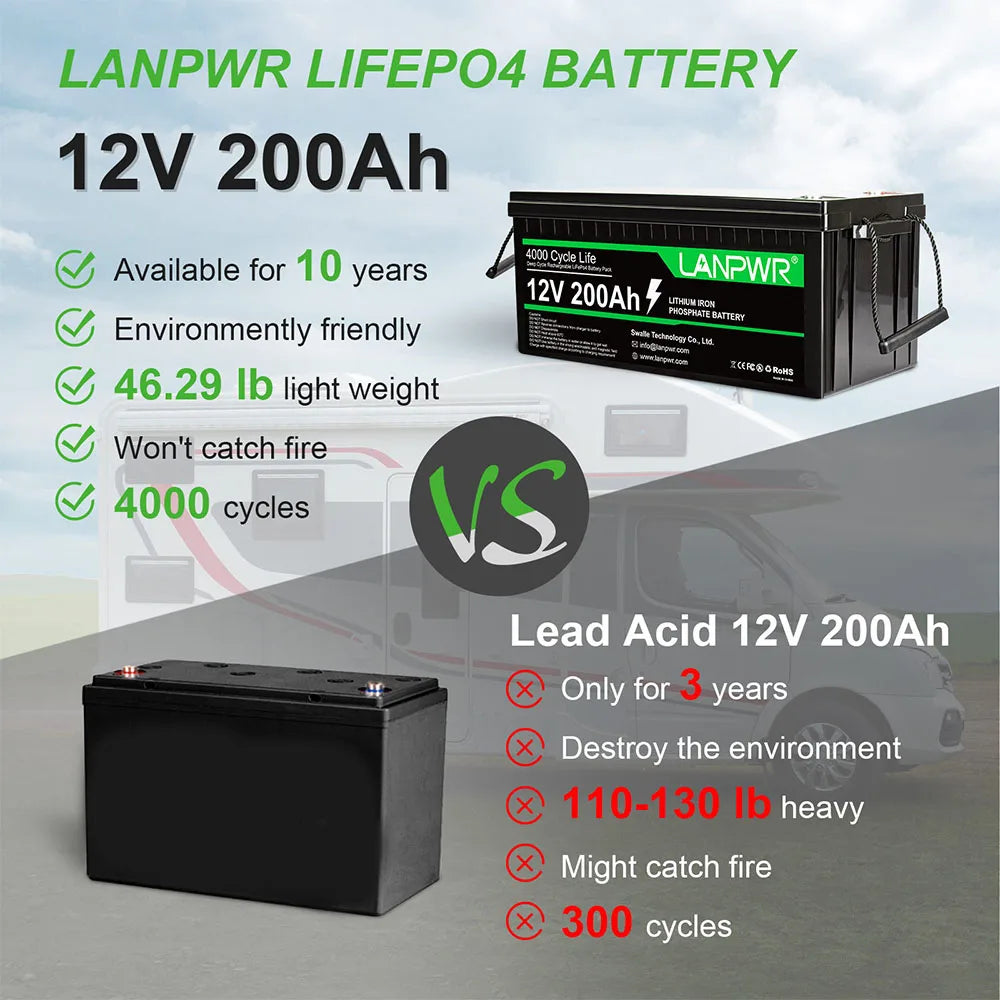

LANPWR LiFePO4 battery provides 4000+ cycles, which is more than 10 times Lead Acid with 200-500 cycles, helping to minimize replacement cost and reduce the total cost of ownership. Weighs only 1/3 the weight of lead-acid batteries, which makes it an easy choice for RVs, Marine, and Off-Grid Applications.

Automotive Grade Lithium Battery & Eco-friendly
LANPWR 12V 200Ah batteries are manufactured by Automotive Grade LiFePO4 Cells with higher energy density, more stable performance, and greater power. With no acid in the battery, you're able to safely mount it in any position. LiFePO4 batteries can be recycled and do not produce elements that are harmful to the environment, but lead-acid batteries pollute the environment.

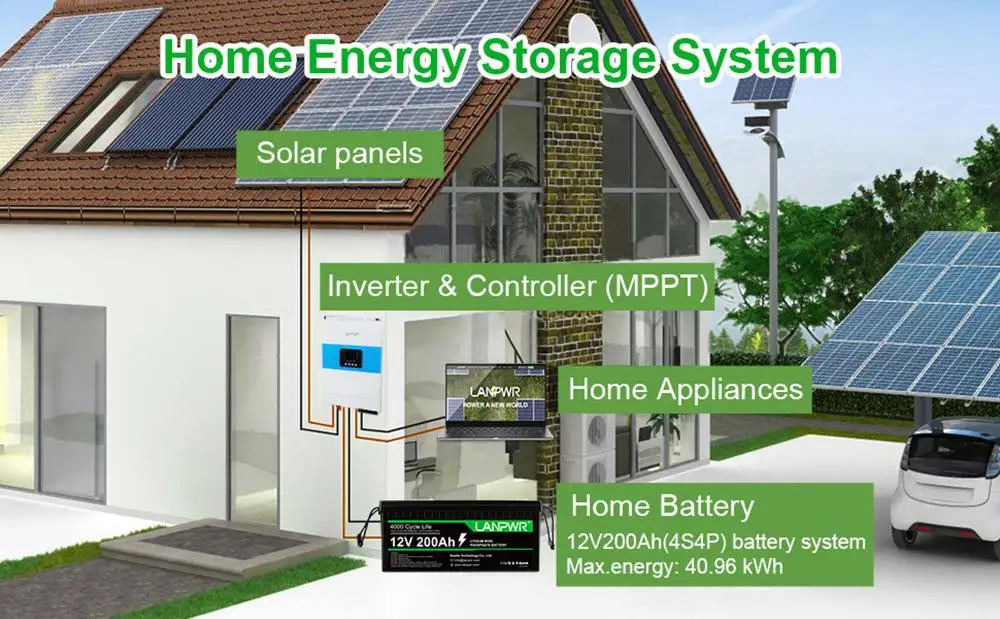

Capacity Expansion

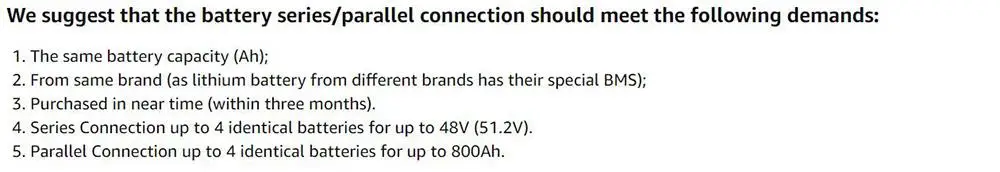

LANPWR LiFePO4 battery can be connected in parallel and in series for larger capacity and voltage. Max connection in series: up to 4 identical batteries for up to 48V connecting in series. Connection in parallels: it can connect multiple batteries, suggesting no more than 4pcs in parallel. Allow being extended up to 4 in series and 4 in parallel (Max 4S4P) to get more capacity (Max 800Ah) and higher voltage (24V, 36V, 48V). When the batteries are used in parallel or series, the battery voltage and capacity must be the same and purchased in near time(within 3 months).

100A Battery Management System
LANPWR LiFePO4 battery has built-in 100A BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuits with an excellent self-discharge rate. Built-in high-temp cut-off prevents charging over 122°F (50°C). Without memory effect, no matter what state the battery is, it can be used as soon as it is charged. LANPWR LiFePO4 battery is IP65 level.

About Trolling Motor
LANPWR 12V 200Ah LiFePO4 battery is designed for energy storage battery rather than starting battery, this battery is NOT suitable for starter batteries or golf cart batteries. Recommended: 12V 200Ah battery for 30-70lbs thrust trolling motor.
