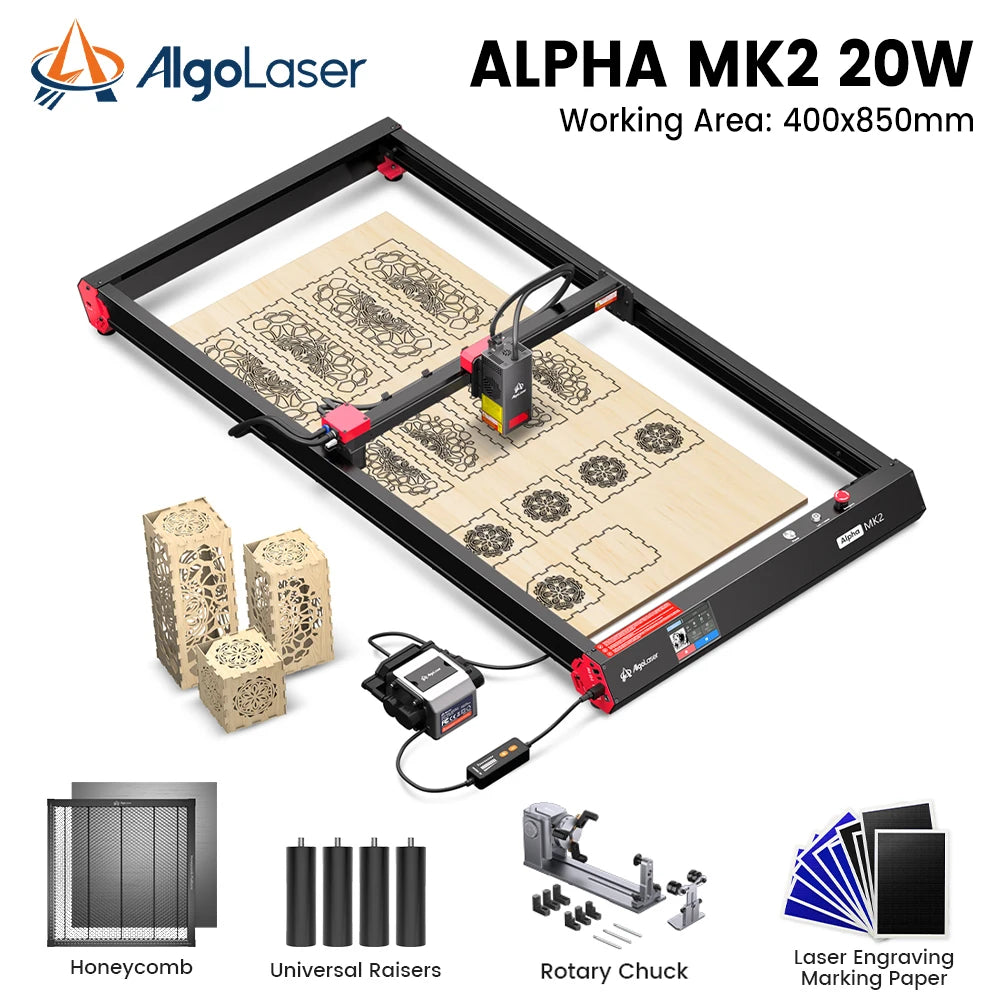

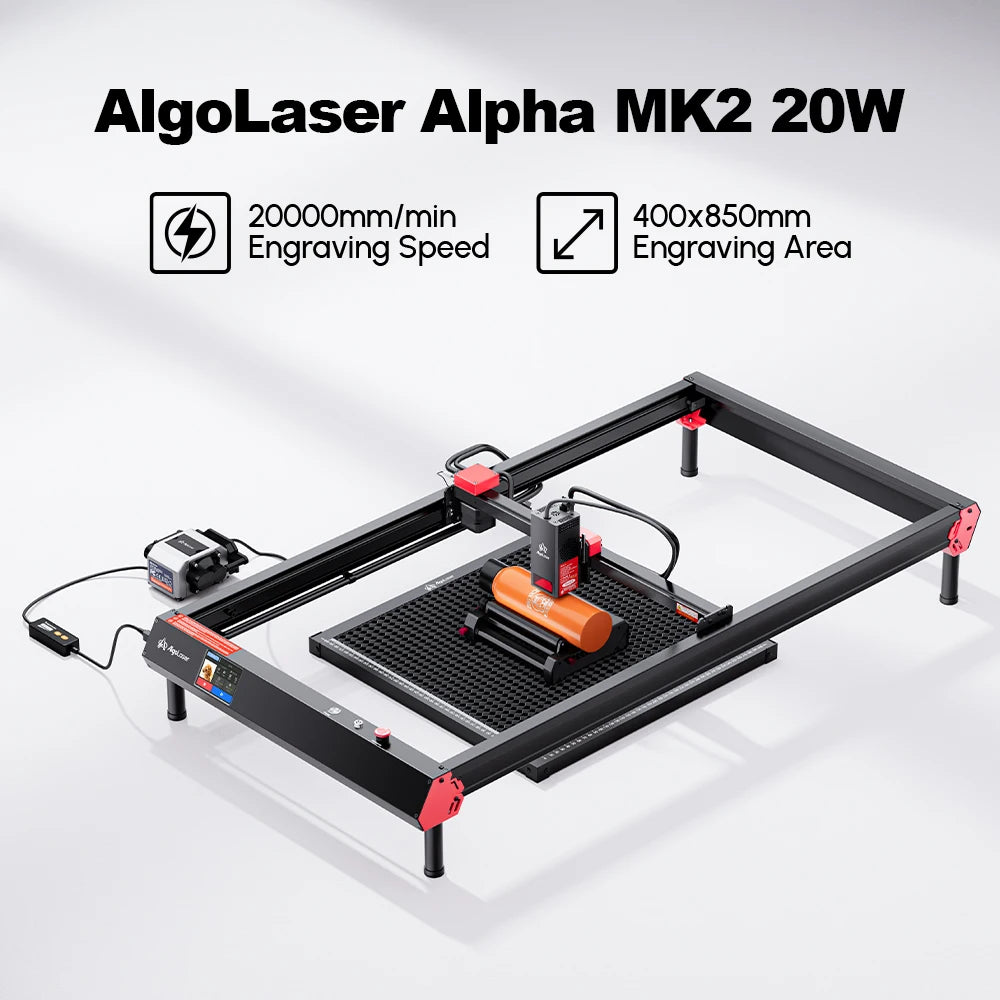

40x40CM/40X85CM 20W AlgoLaser Alpha MK2 with Air Pump/Rotary Chuck/Honeycomb Working Table/Raiser/10 pcs Marking Paper Free Gift

Specification:

Engraving area: 400*400mm

With Expand kits Engraving area :400*850mm(need to order separately)

Control Software:LaserGRBL (free), LightBurn (Paid Software), Wifi APP

Safety Precautions:

Machine Offset Detection and Protection

Machine Tilt Detection and Protection

USB Connection Detection and Protection

Beam detection and protection

Current and Voltage Detection and Protection

Emergency Stop Switch

Key Lock

Frame Materials:Aluminum Profile

Electric Power:72W

Luminous Power:20W

Wave Length:445±5nm

Control Mode:PWM

Power Rate:S0-S1,000

Engraving Speed:0-20,000MM/Min

Baud Rate:115200 - 921600 (Default: 115200)

Computer OS:Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn)

Control Softwares:LaserGRBL (free), LightBurn (not free), Wifi App

Input Format:BMP, JPG, PNG, NC, DXF, SVG, etc.

Available Materials of Engraving:Wood, Paperboard, Black Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc.

Available Materials of Cutting:Paper Board, KT Board, Felt Cloth, Leather, Plywood, Black Acrylic, Rubber, MDF,ets.

Input Voltage:110V-240V (Compatible)

Power Adapter Output:24V / 3A

Operating Temp.:-20℃-50℃

【20W Output Power】AlgoLaser laser engraver offers high performance and versatility with its 20W output power. With a high energy density of 0.07mm*0.13mm focal spot,it can achieve speeds of up to 25,000 mm/min without compromising quality. This makes it capable of engraving or cutting a wide range of materials, including wood, bamboo, leather, kraft paper, stainless steel, and aluminum.

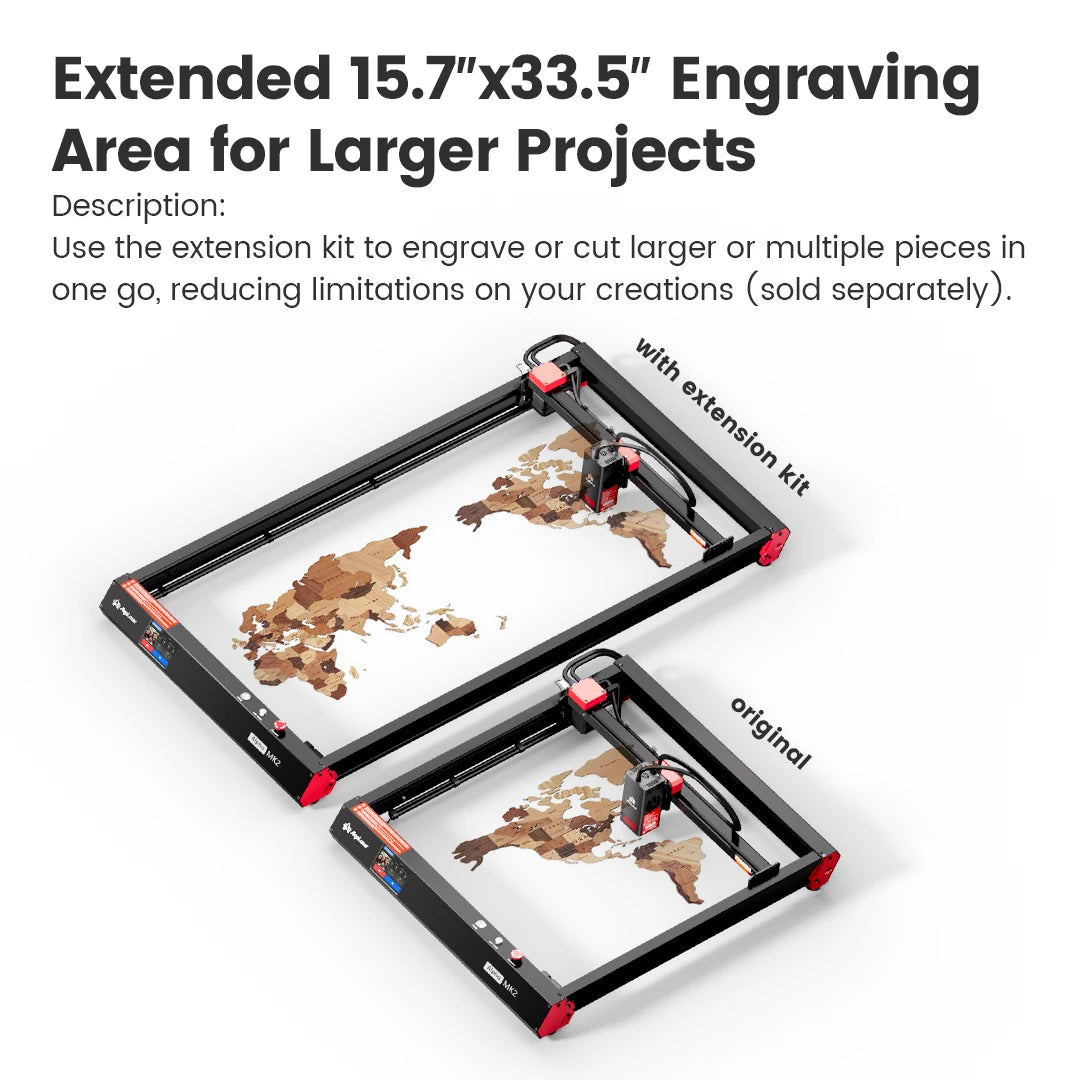

【Large Engraving Area】The machine also features a generous engraving area of 400 x 850mm, giving you the creative freedom to take on large projects or engrave multiple pieces at once. Plus, its height-adjustable laser head and adjustable risers enable you to engrave objects of different heights with ease.

【Safety Protection】To ensure a clean and safe work environment, the laser head is equipped with a smoke exhaust filter and dual cooling fans that effectively absorb fumes and dust generated during engraving. The filter cartridge has a detachable cover for easy filter removal and replacement.Thanks to its built-in sensor that immediately stops and beeps if flames are detected. If the machine is accidentally moved, tilted, or flipped during operation, it will pause and alarm.

【Magnetic Shading Plate】One standout feature of the Phecda is its translucent magnetic shading plate. This innovative structure shields your eyes from harmful UV light and can also function as a laser filtering see-through cover to observe the light spot engraving track. Additionally, it doubles as a smoke collection device, improving the efficiency of the smoke filter. For even more safety, the machine comes with goggles to protect your eyes.

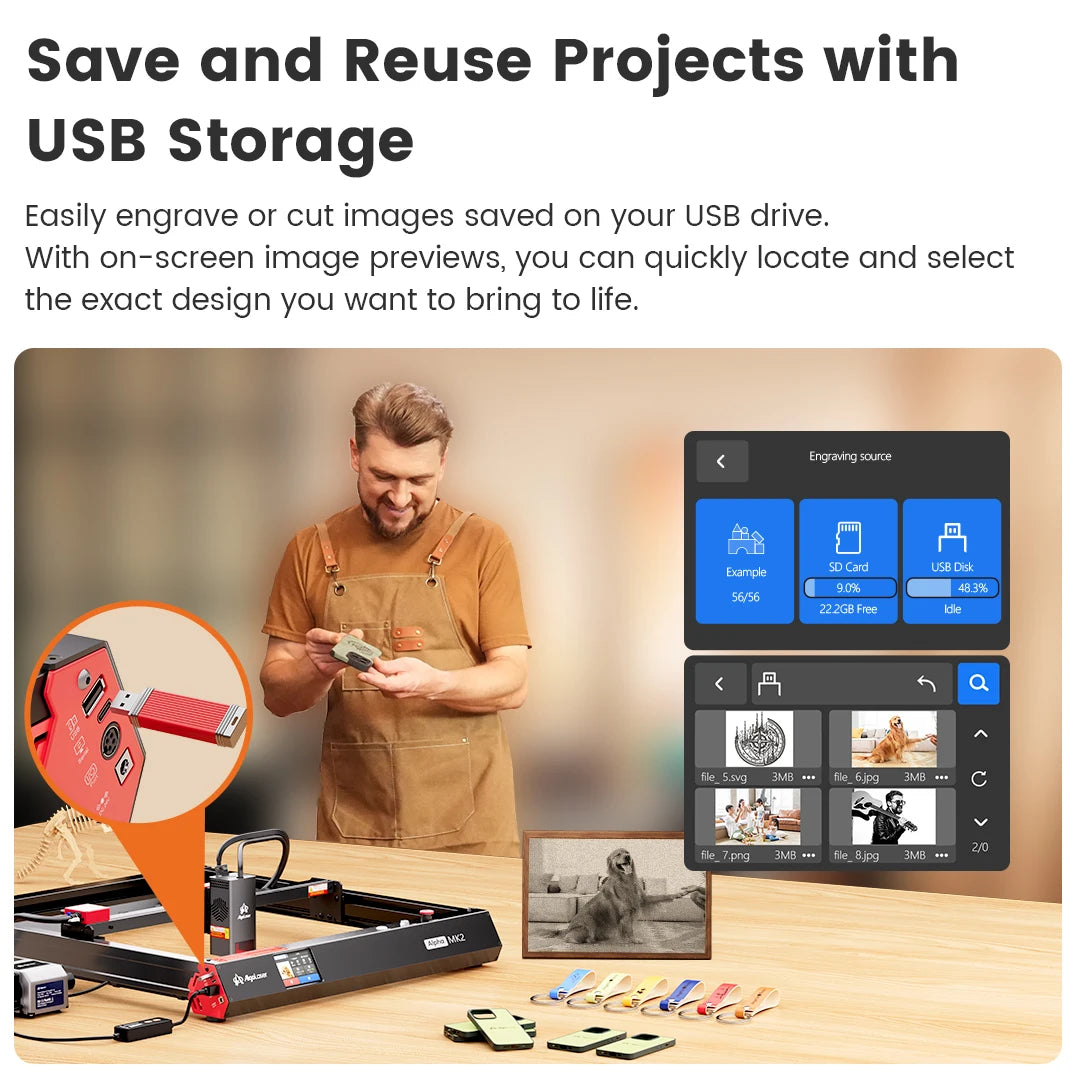

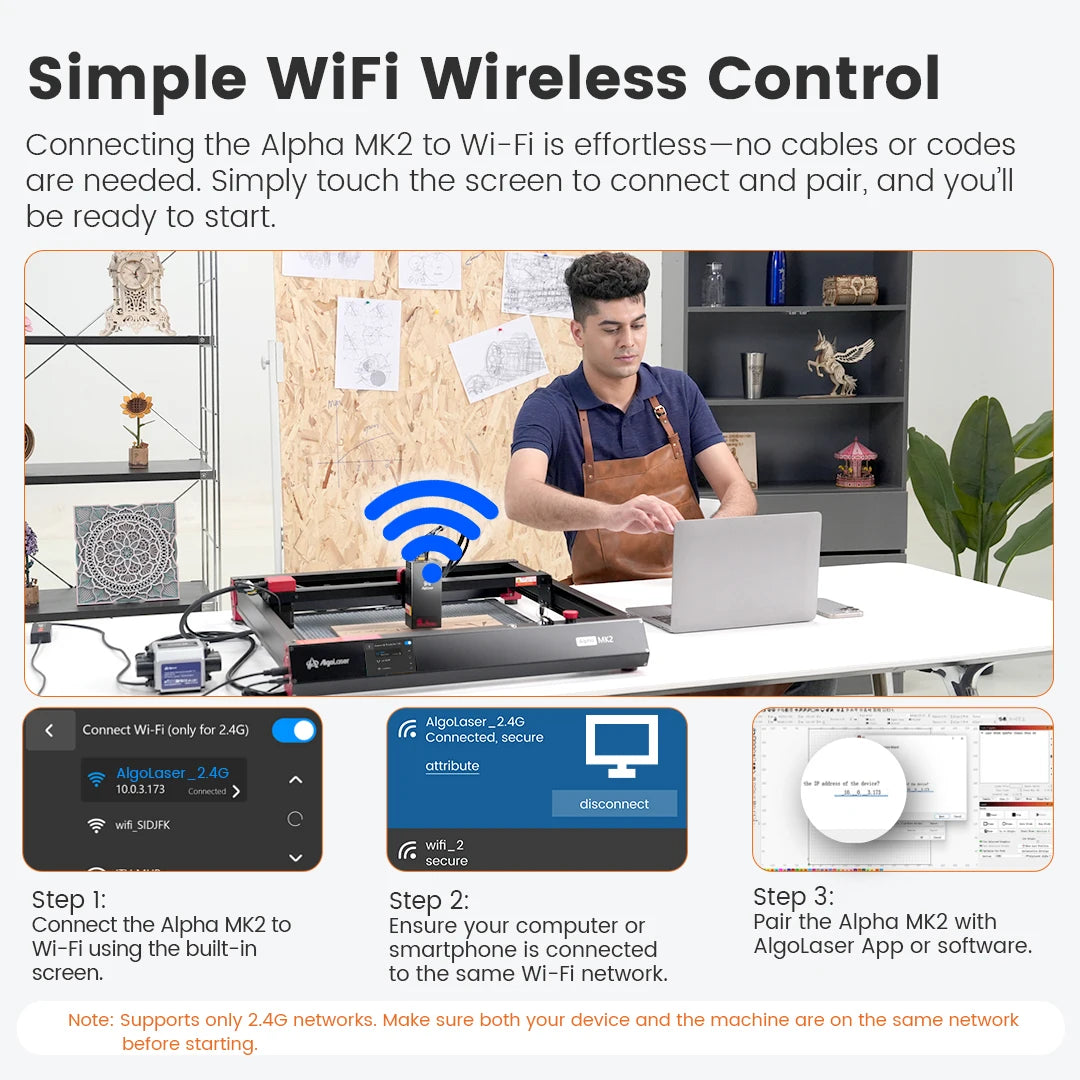

【Multiple Operation Methods】The AlgoLaser Alpha MK2 22W laser engraver offers multiple operation methods for your convenience. You can control the machine via a mobile App for remote WIFI operation and custom engraving (your phone must be connected to the machine's wifi), transfer data using a USB cable or TF card, and it supports LightBurn and LaserGRBL software for added flexibility.

【Latest AlgoOS】The upgraded AlgoOS system boosts performance and adds new features like AlgoSketch(drawing&writing), AlgoType(text input), reverse engraving, lock screen and newly upgraded UI design. It makes using the ALPHA MK2 20W easier, more flexible, and way more fun!
