ANCEL HD3600 Heavy Duty Truck Scanner for Construction Machinery Diesel Scan Tool for Komatsu, John Deere, Volvo D-P-F Resets

€701,21

~~€0,00~~ €701,21

Aanbieding Uitverkocht

Belastingen inbegrepen. Verzendkosten worden berekend bij de checkout.

Color ANCEL HD3600

Ships From CZECH REPUBLIC spain

Aantal

Gratis verzending
30 dagen bedenktijd
Veilig betalen met iDEAL

SPECIFICATIONS

Brand Name: ANCEL

Certification: CE

Hardware Version: Newest version

Hign-concerned Chemical: None

Item Type: Code Readers & Scan Tools

Origin: Mainland China

Software Update: Yes

Software Version: Newest version

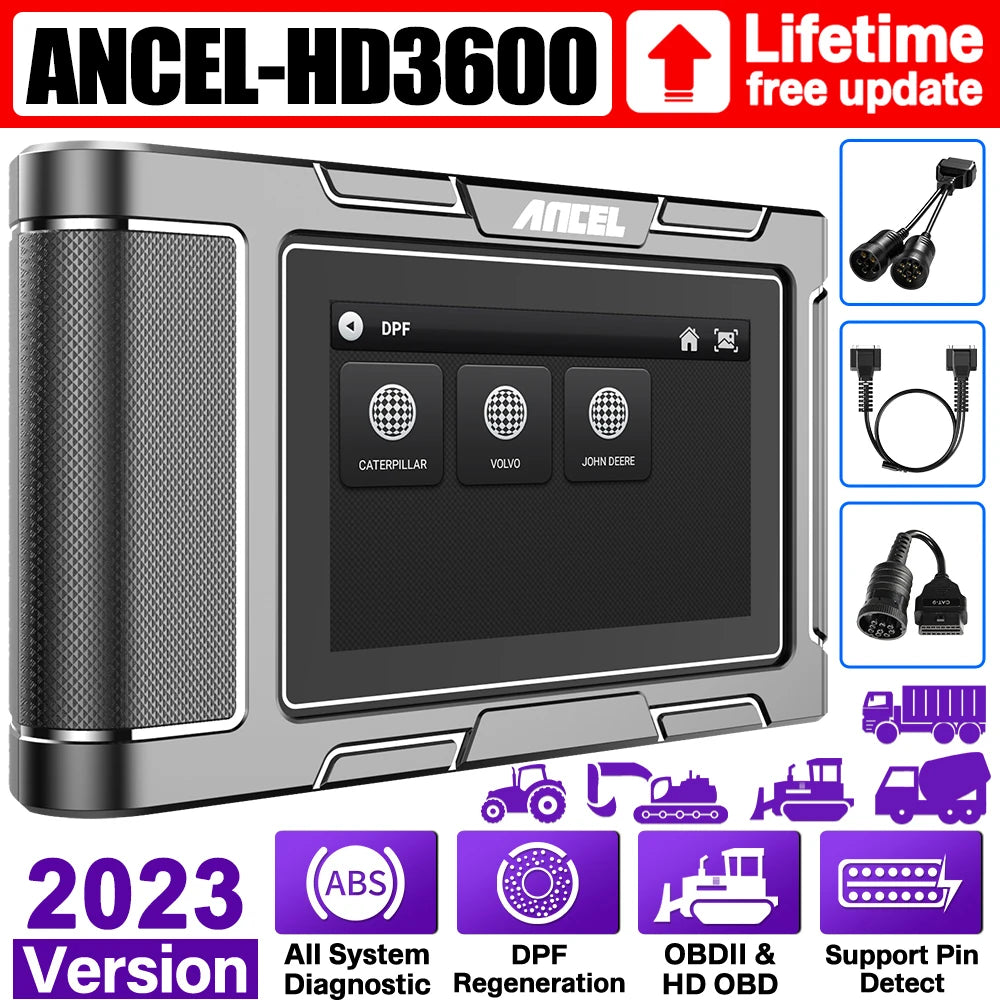

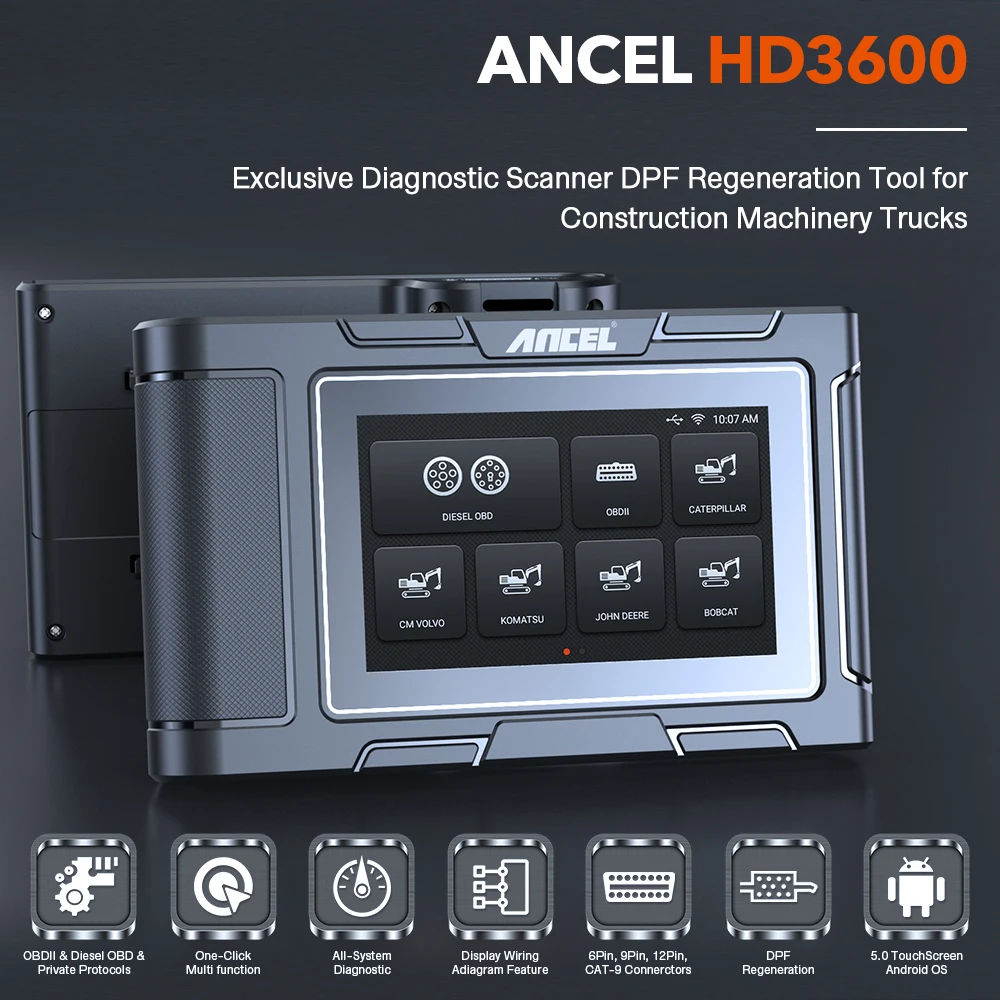

ANCEL HD3600 Construction Machinery Diesel Scan Tool with D-P-F Regeneration, Full System Heavy Duty Truck Scanner Android Touchscreen HD Code Reader for Caterpillar, Komatsu, John Deere, Volvo

ANCEL HD3600 is a diagnostic tool for the construction machinery vehicles based on the Android tablet, which works on Agricultural, Construction, Mining and other Off-highway applications. Diagnosing and repairing Excavators, Bulldozers, Loaders, Cranes, Dump trucks
Dozers, Street Sweepers and so on. It is currently the only scan tool that can diagnose both construction machinery and heavy trucks.

Advantage of ANCEL HD3600 Scanner Tools.

Support Multiple Protocols:

Supports diesel OBD and OBDII standard protocol, including SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4 and ISO 27145-4 and CDL private protocol.

Construction Machinery Doctor:

Do in-depth and comprehensive diagnosis of construction machinery and equipment such as Caterpillar, Komatsu, John Deere, Volvo, Bobcat, Case, Hitachi and Yanmar.

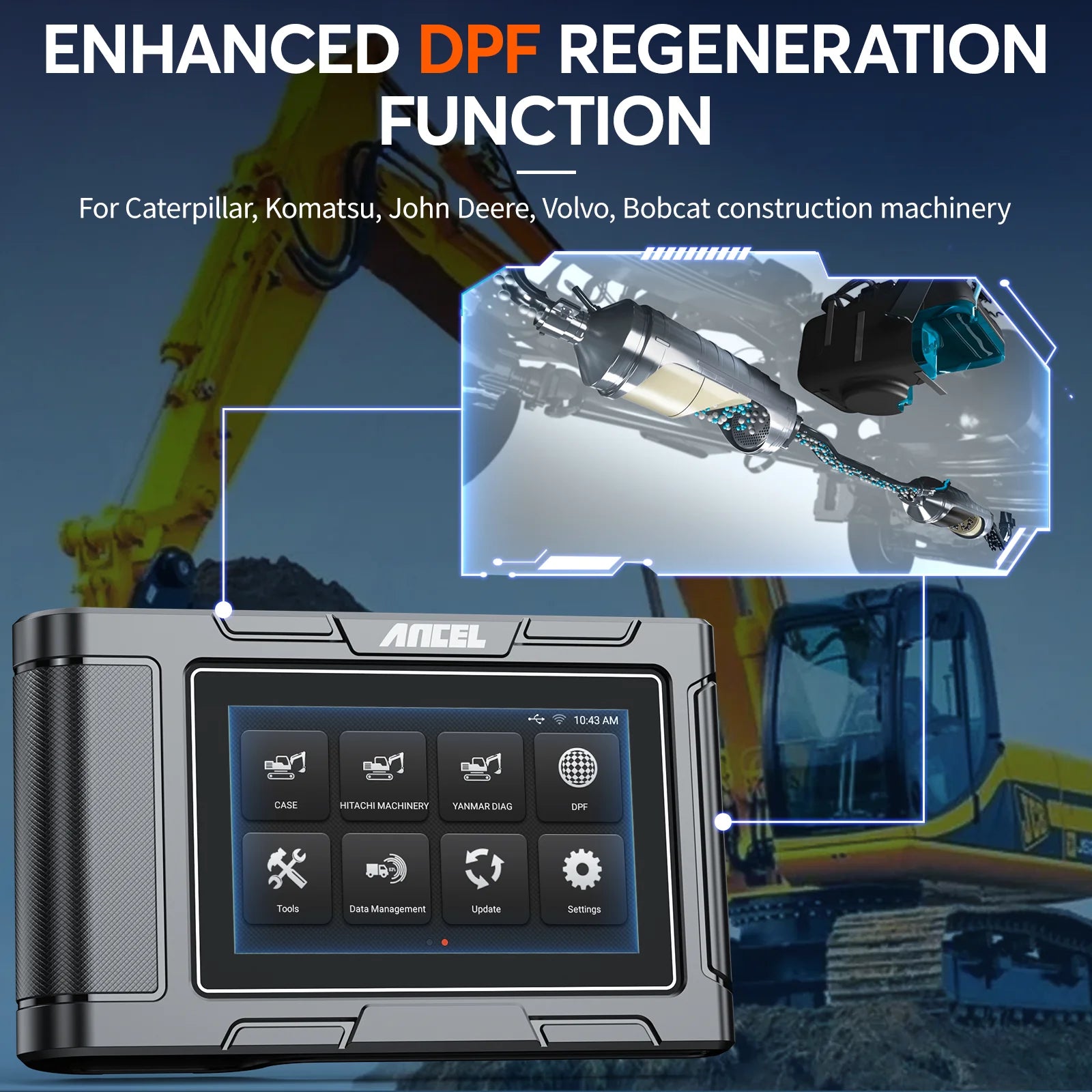

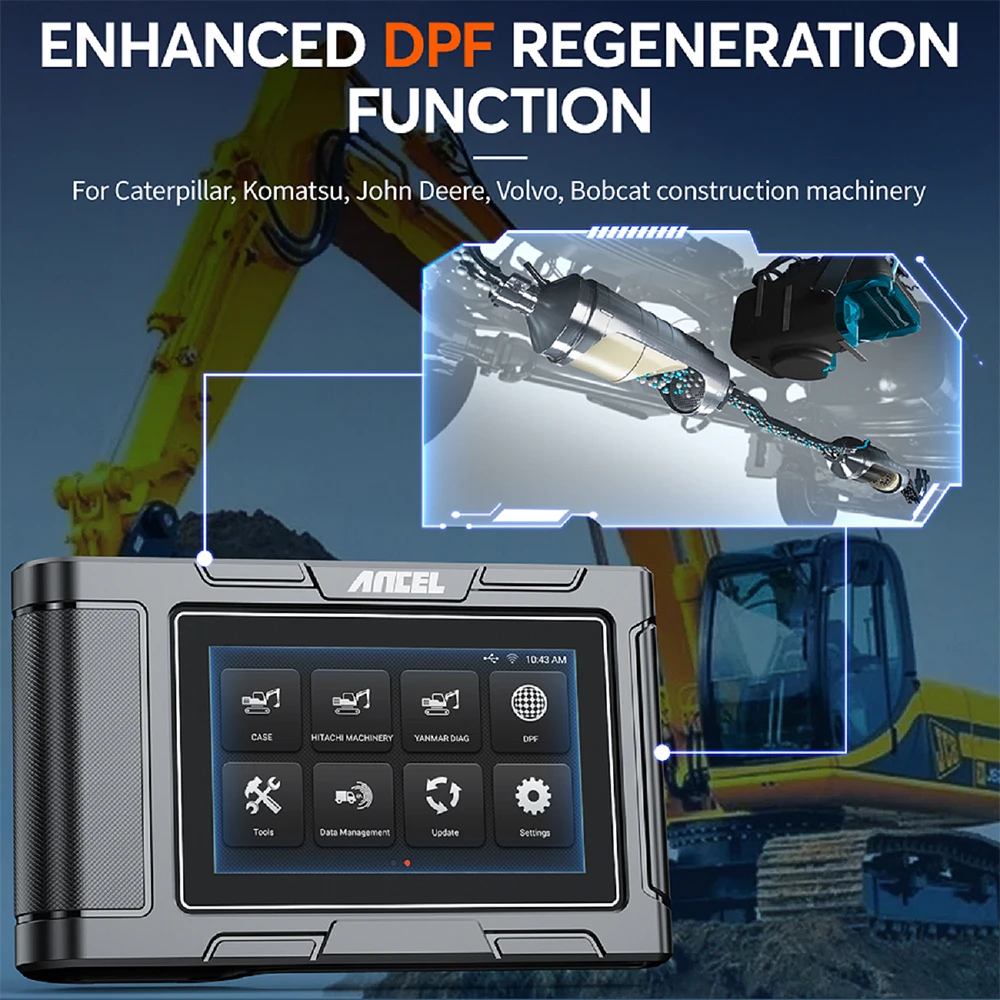

Advanced D-P-F Regeneration:

Forced D-P-F regeneration for Caterpillar, Komatsu, John Deere, Volvo, Bobcat, keep you out of the big trouble of D-P-F filter clogging.including D-P-F regeneration, D-P-F reset, BlueTec, forced DPR regeneration, DPR reset, differential pressure test, DPD forced regeneration etc.

All-system Diagnostics:

ANCEL HD3600 performs full system diagnosis on construction equipment vehicles and trucks. When the warning lights of the engine, ABS, airbag, transmission or other system flash, HD3600 can help you easily know how serious the fault is. It also do OBD test, such as reading codes, clearing codes, reviewing live data, retrieving vehicle information, etc.

Unique Display Wiring Diagram Function:

Allows you to diagnose cummins engine through jumpers or jumper boxes, eliminating the trouble of damaged and lost diagnostic cables.

Excellent Configuration:

Equipped With a fast running Android operating system and quad-core CPU processor, built-in 1GB RAM and 8GB Flash, allowing you to easily operate it on the 800*480 high-definition display. 2.4GHz WIFI allows you to upgrade software wirelessly.

Life Time Free Update+ Professional Technical Support:

ANCEL HD3600 updates and improvements, and more features are constantly added so you can do more without paying for more.

Support Multi-language:

English, Spanish

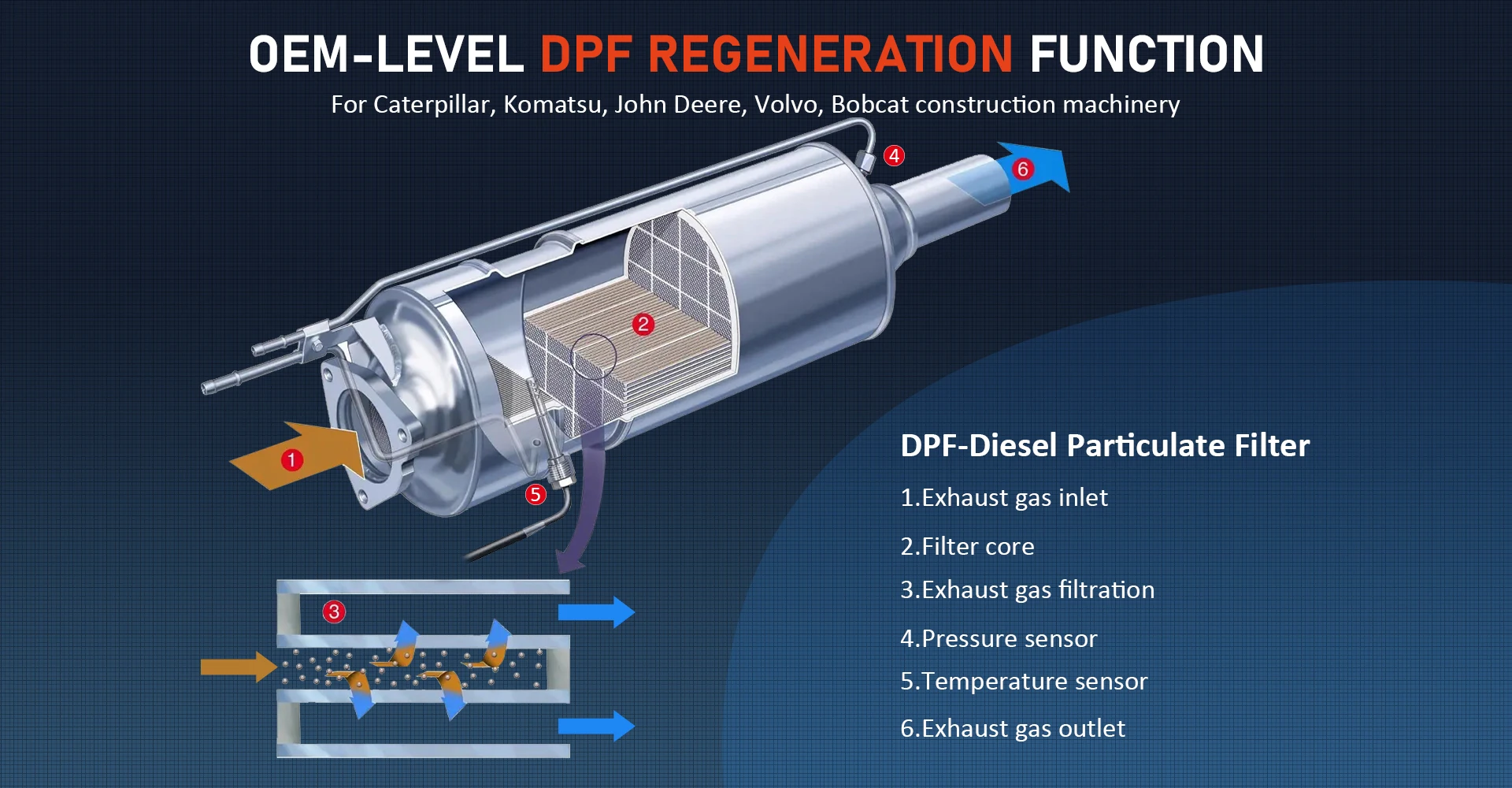

Why need to do D-P-F regeneration?

Regeneration, or regen, of the D-P-F filter, is the process that burns the soot accumulation that is inside the D-P-F filter. An unmaintained D-P-F runs your vehicles unnecessarily hard and less efficient. A clogged D-P-F filter is also tied to your fuel mileage and can cause your truck to feel sluggish. If you can no longer start a regen then you will eventually get stuck in a derate which will then lead to an engine shut down.

When is D-P-F regeneration necessary?

The exhaust backpressure sensor is replaced.
The PM trap is removed or replaced.
The fuel additive nozzle is removed or replaced.
The catalytic oxidizer is removed or replaced.
The D-P-F regeneration MIL is turned on and maintenance is performed.
The D-P-F regeneration control module is replaced.

Why to choose ANCEL HD3600 to perform D-P-F regeneration yourself?

1) Make sure your construction machinery vehicle has enough power again (For Caterpillar, Komatsu, John Deere, Volvo, Bobcat)

If the diesel filter is clogged, the vehicle will not be able to fully use the fuel, resulting in insufficient mileage. Therefore, it is very important to clean the D-P-F filter regularly, which only HD3600 can do.

2) Save a lot of maintenance costs:

It is well known that maintenance costs at least 500-2000 dollars, but if you do the work yourself, your long-term savings will be enough to buy a new car.

3) Other benefits of cleaning your D-P-F filters:

Better MPG, better gas response, less frequent regenerations (passive), longer D-P-F life, less downtime...

Manufacturer-Level Diagnostics ( turn off the warning light).

OEM-Level Full Systems Diagnostic

ANCEL HD3600 diesel scanner can not only support full system scanning of construction machinery vehicles conforming to standard diesel OBD protocol, such as engine, ABS/EBS, transmission, body controller, chassis controller, instrument panel system, cruise control, gateway, etc. , also supports all system diagnostics for heavy duty trucks. Meet the diagnostic needs of a variety of models!

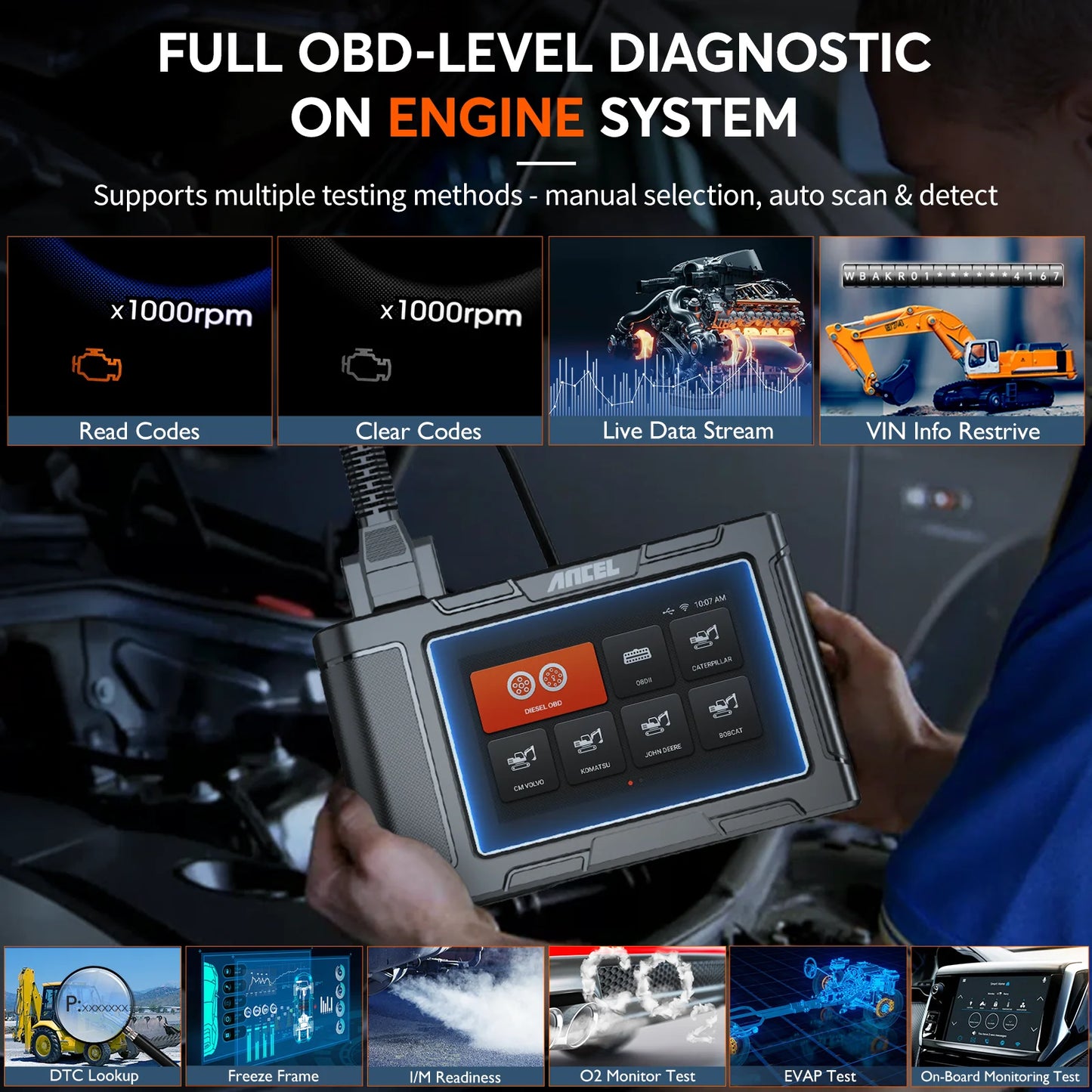

OBD-Level Diagnostic on Engine

Retrieve ECU Information:
Read and display the control system module information detected from ECU.

Read Fault Codes:
Read the fault code information retrieved from the vehicle system module.

Erase Fault Codes:
Clear the fault code and freeze frame data retrieved from the vehicle system module.

Review Live Data: Read and display the real-time operation parameters of the current system module.

Graphic: View the real-time operating parameters of the unit in the data stream waveform graph mode, and select [List] to return to the numerical display state.

Compare: Compare the data steam. Select a saved data file of the same vehicle type in the pop-up dialog box, and select [OK] to return, and then an additional column "CMPR values" in the data stream interface.

Save: Save the current data stream (for subsequent data stream comparison)

Unlock more advanced features.

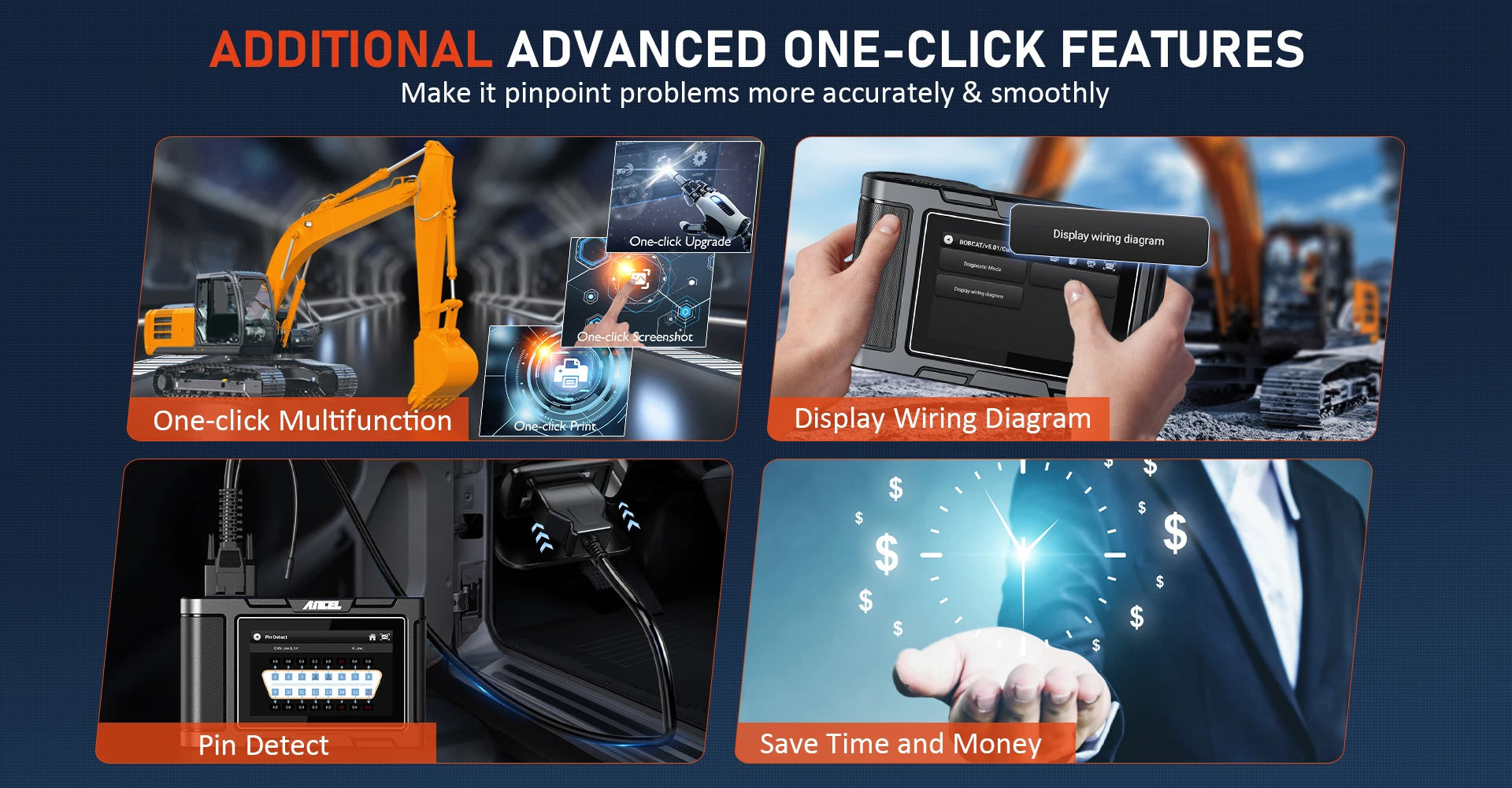

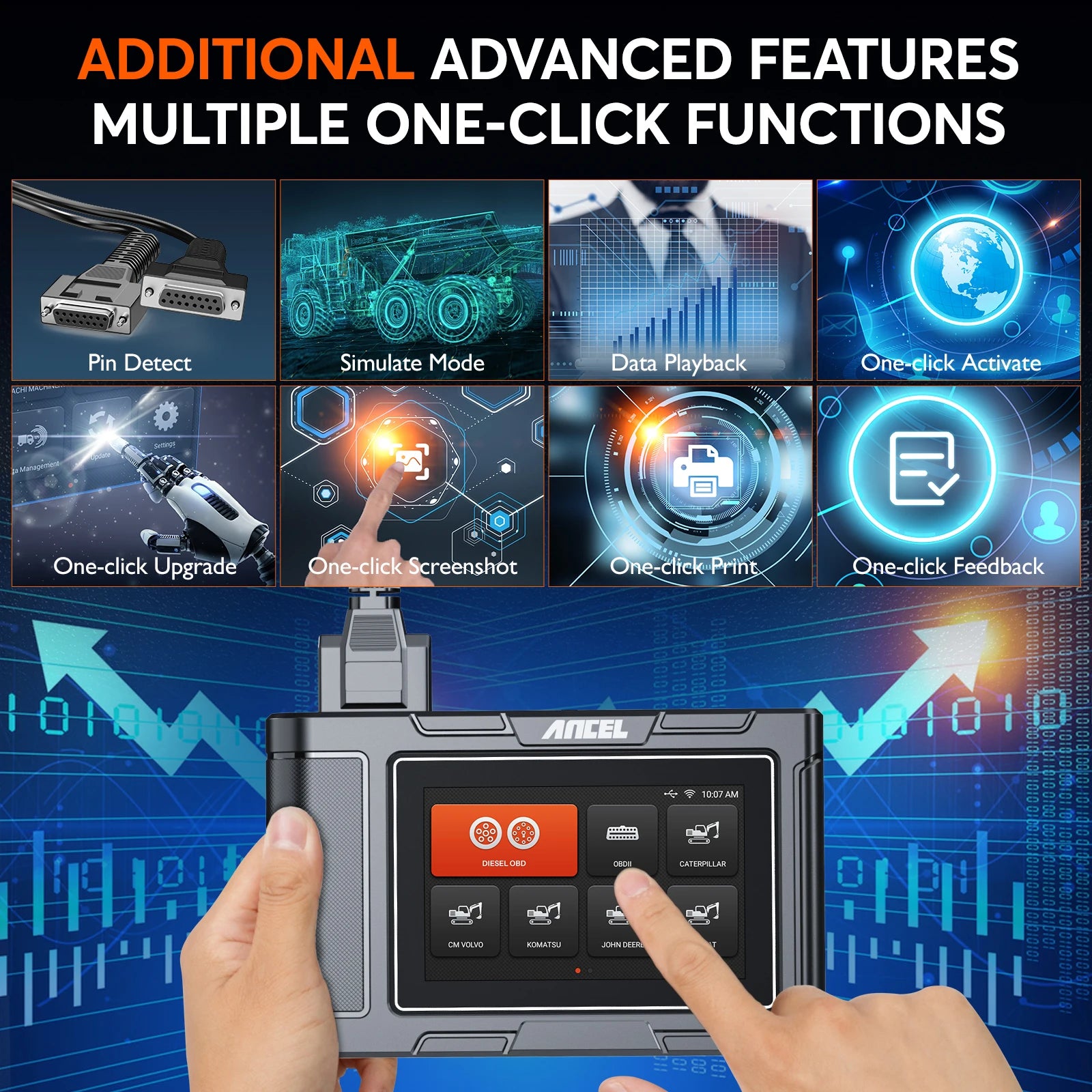

One-click multi-function:
Activate, screenshot, printing, upgrade, feedback, etc. can all be completed with one-click operation

One-click activate:
Let you easily start your first construction machinery vehicle diagnosis without complicated setup.

One-click upgrade:
Click on the "Upgrade" menu to automatically check for the latest updates. Enjoy lifetime free updates by connecting to WiFi.

One-click feedback:
You will get reliable and professional product support from ANCEL's after-sales team through this function.

One-click printing: One-click generation of standardized diagnostic reports that can print diagnostic report data such as vehicle information, fault codes and data streams, and software interfaces. The resulting diagnostic report can be printed using an optional printer that you can purchase the printer at the bundle link below the link.

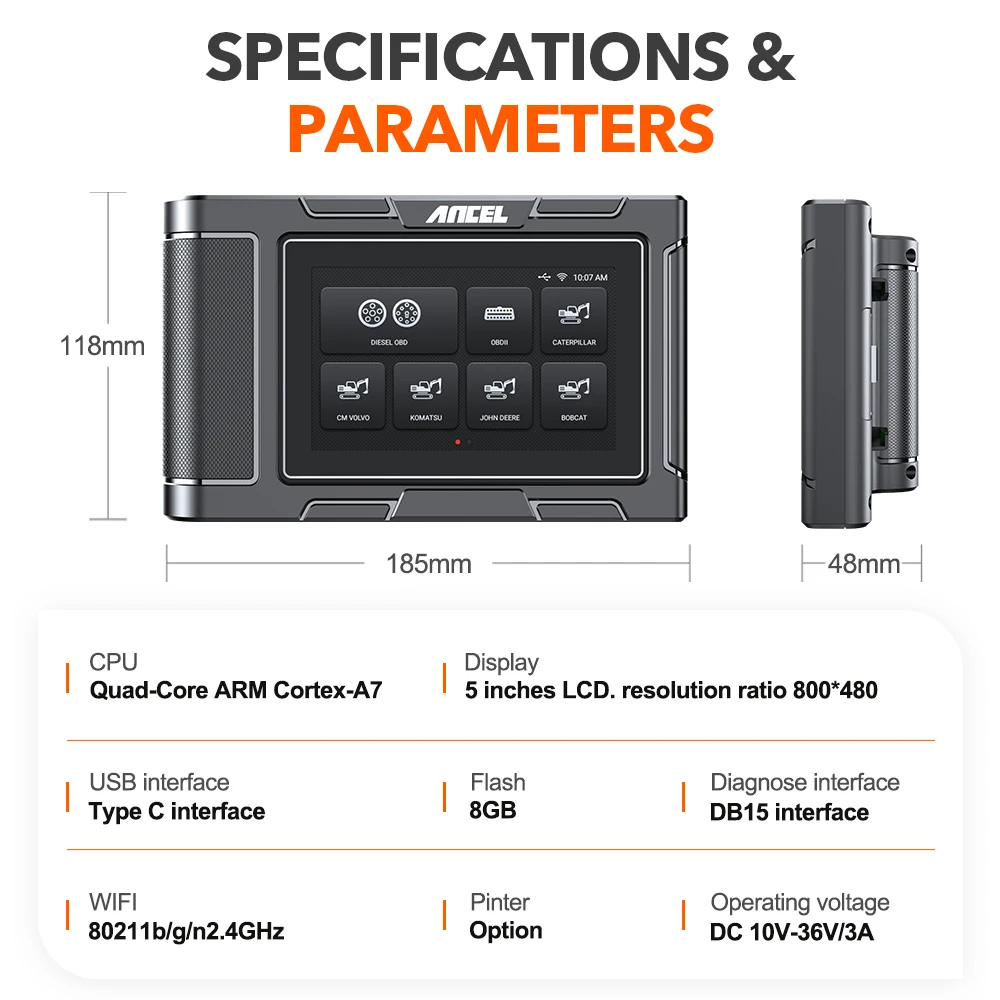

Hardware Parameter:

CPU: Quad-Core ARM Cortex-A7
RAM: 1GB
Flash: 8GB
Display: 5 inches LCD, resolution ratio 800*480
WIFI: 802.11b/g/n 2.4GHz
USB interface: Type C interface
Diagnose interface: DB15 interface
Operating voltage: DC 10V~24V/3A
Operating temperature: -20℃~60℃

Printer Hardware Parameter （need to extra buy）:

Item: ANCEL HD001 Printer
Paper Specification: 3.1in * 1.1in
Printer: 80mm Thermal printer
Print speed: 60mm/s
Effective print width: 72mm
Print resolution: 203dpi 1mm=8dots
Print paper specifications: 80mm*30mm

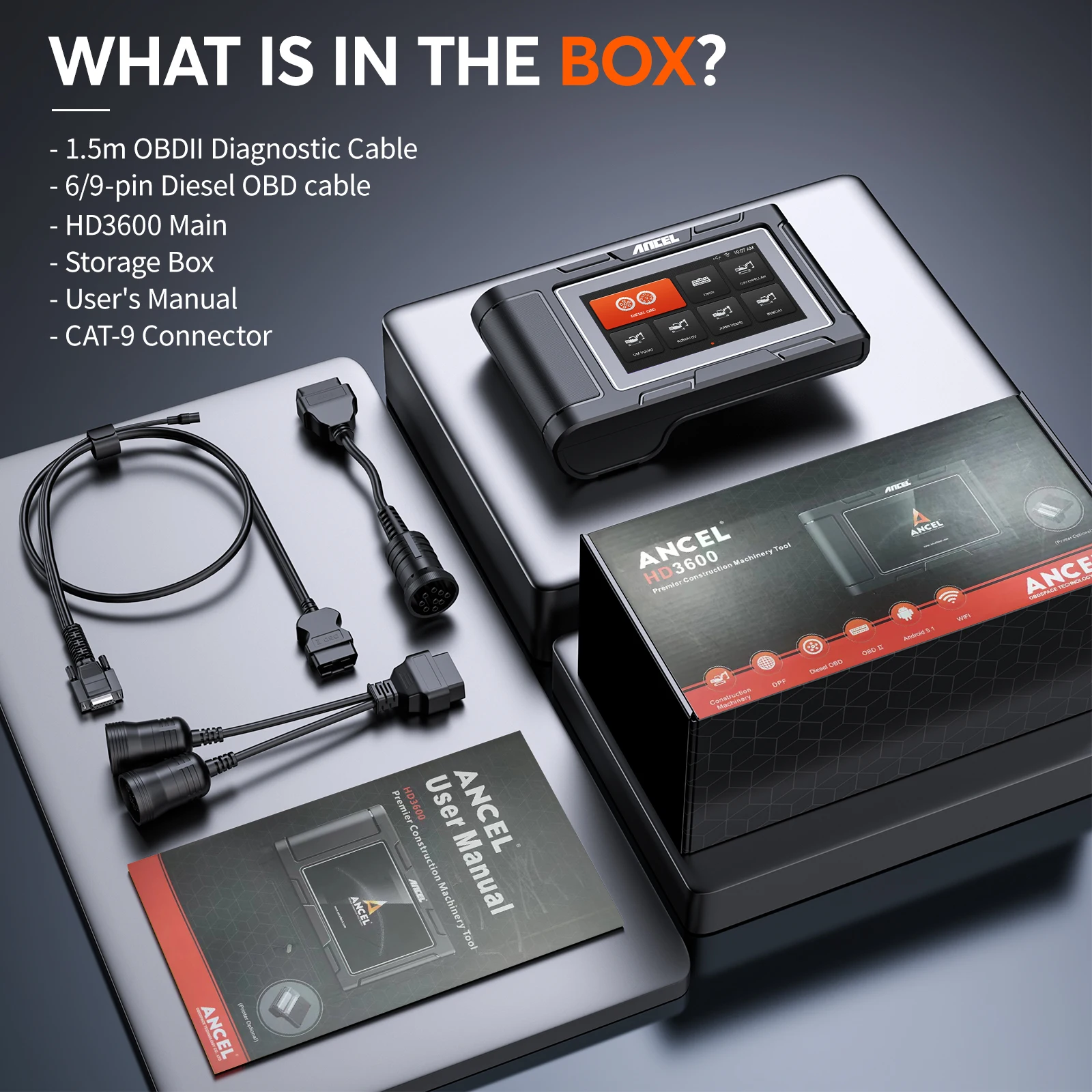

What is in the Box?

1pcs 1.5m OBDII Diagnostic Cable
1pcs 6/9 pin Diesel OBD cable
1pcs D3600 Main
1pcs Storage Box
1pcs CAT-9 Connector
1pcs User's Manual
