SPECIFICATIONS

Angle of View: 70 degree

Brand Name: ANNKE

Cable Length: None

Camera Housing: Plastic for Main Part

Camera Video Resolution: 3MP (2304X 1296)

Certification: CE,FCC

Feature 1: Wireless Video Surveillance Kit

Feature 10: surveillance camera

Feature 11: video security system

Feature 12: video surveillance

Feature 2: Wifi Security Camera System

Feature 3: Home Wireless Video Surveillance Kit

Feature 4: Video surveillance wifi

Feature 5: Security Camera System

Feature 6: CCTV Video Surveillance

Feature 7: CCTV Camera System

Feature 8: kit video surveillance

Feature 9: cctv camera

HDD Capacity: Up to 6 TB Capacity

High-concerned chemical: None

IR-Cut Filter: YES

Image Sensor: 1/2.8" Progressive Scan CMOS

Lens: 3.6mm

Max Playback Capacity: 4CH 3MP/2CH 5MP

Max Playback Channel: 4CH

Max Playback Resolution: Up to 5MP (2560 X 1920)

Max Recording Resolution: Up to 5MP (2560 X 1920)

Model Number: N48WHR-74GK

NVR Audio Output: Support

Night Vision Distance: Up to 100 ft/30 m

Number of Infrared LEDs: 18pcs

Operating Power: DC 12V

Origin: Mainland China

PCS of Camera: 4PCS,6pcs,8PCS

Recorder Housing: Metal for Main Part

Resolution: 3 MP

Smart home platform: Other

TV System: NTSC,PAL

Video Compression: H.264+

Video Input: 8 Channel

Video Output: HDMI and VGA up to 1080p

WiFi: 2.4 GHz (Built-in Antenna)

Note:

Our recorder is 5MP,other's only 3MP.

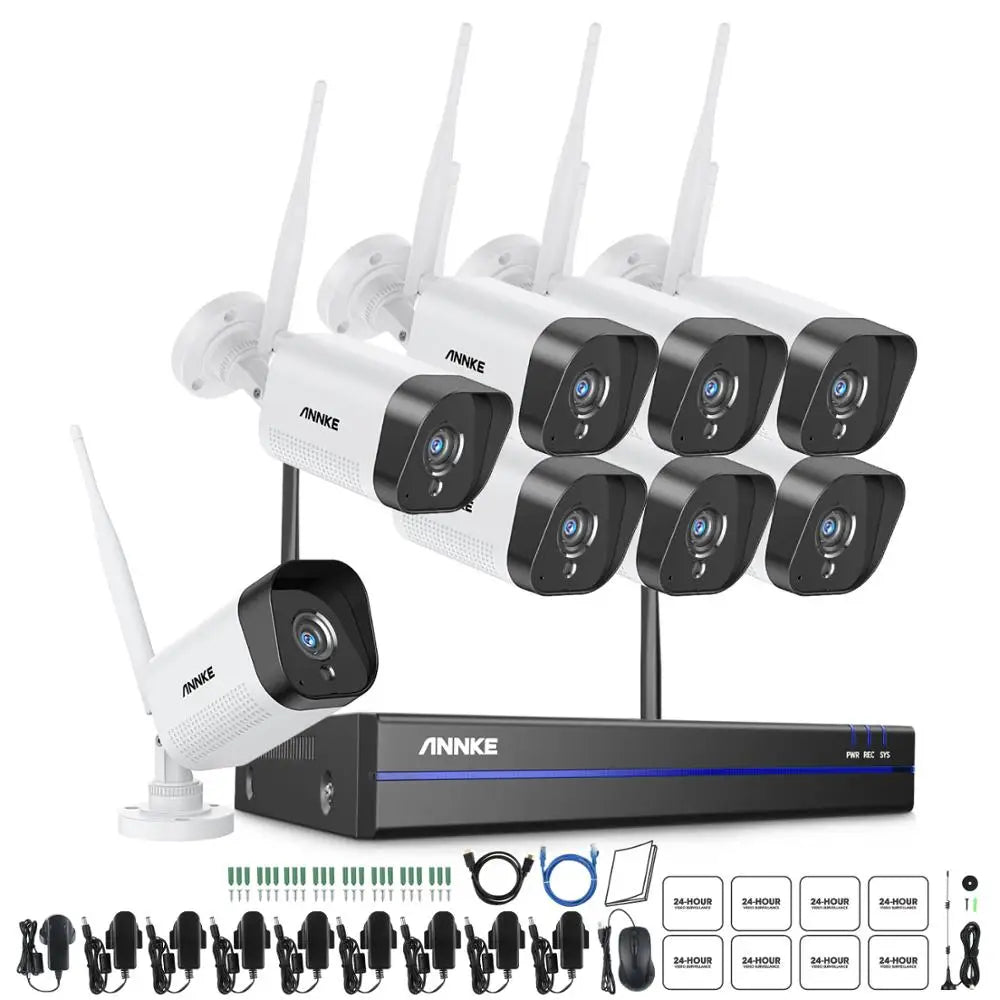

ANNKE WS300 8CH 3MP Super HD Wireless Security Camera System

Key features:

3MP Super HD Clarity

5MP Wireless NVR

100 ft Night Vision

H.264+ Video Format

Work with Alexa

AI Human Detection

Smart Motion Detection

Built-in Mic for Audio Record

Outdoor IP66 Waterproof

Remote Access Wherever

24/7 Record Without Internet







NVR Specification:

Video Compression:H.264+

IP Video Input:8CH Wireless

Video OutputHDMI and VGA:up to 1080p

Audio Output:Support

Max Recording Resolution:Up to 5MP (2560 X 1920)

Max Playback Resolution:Up to 5MP (2560 X 1920)

Max Playback Channel:4CH

Max Playback Capacity:4CH 2MP/2CH 5MP

HDD:1 SATA Interface

HDD Capacity:Up to 6 TB Capacity

Network Interface:RJ45 X1 (10/100 M)

Wireless Antenna:2 Ports (IEEE802.11b/g/n)

WiFi:2.4 GHz (Built-in Antenna)

USB:USB 2.0 X1

Housing:Metal for Main Part

Operating Power:DC 12 V

Power Consumption:W (Without HDD)

Working Temperature:14 °F ~ 131 °F/-10 °C ~ 55 °C



Camera Specification:

Video Resolution:3MP (2304 X 1296)

Image Sensor :1/2.8" Progressive Scan CMOS

Audio Compression:G.711A

Video Compression:H.264+

Lens:3.6 mm

Angle of View:70°

Number of Infrared LEDs:18

Night Vision Distance:Up to 100 ft/30 m

IR-Cut Filter:Yes

Ethernet:RJ45 X1 (10 M/100 M)

Wireless:IEEE802.11b/g/n

Housing:Plastic for Main Part

Operating Power:DC 12 V
Operating

Temperature:-4 °F – 140 °F/-20 °C – 60 °C

Indoor/Outdoor:Indoor/Outdoor

Weatherproof Rating:IP66











If you choose 4pcs cameras,the package included:

x1 NVR

x4 Camera

x1 HDMI Cable(5.9 ft/1.8 m X1)

x1 Cat5e Ethernet Cable(3.3 ft/1 m X1)

x1 USB Mouse

x5 Power Adapter

x1 3M Extension Antenna

x4 Mounting Screw Bag

x1 NVR User Manual





If you choose 6pcs cameras,the package included:

x1 NVR

x6 Camera

x1 HDMI Cable(5.9 ft/1.8 m X1)

x1 Cat5e Ethernet Cable(3.3 ft/1 m X1)

x1 USB Mouse

x7 Power Adapter

x1 3M Extension Antenna

x6 Mounting Screw Bag

x1 NVR User Manual

If you choose 8pcs cameras,the package included:

x1 NVR

x8 Camera

x1 HDMI Cable(5.9 ft/1.8 m X1)

x1 Cat5e Ethernet Cable(3.3 ft/1 m X1)

x1 USB Mouse

x9 Power Adapter

x1 3M Extension Antenna

x8 Mounting Screw Bag

x1 NVR User Manual
