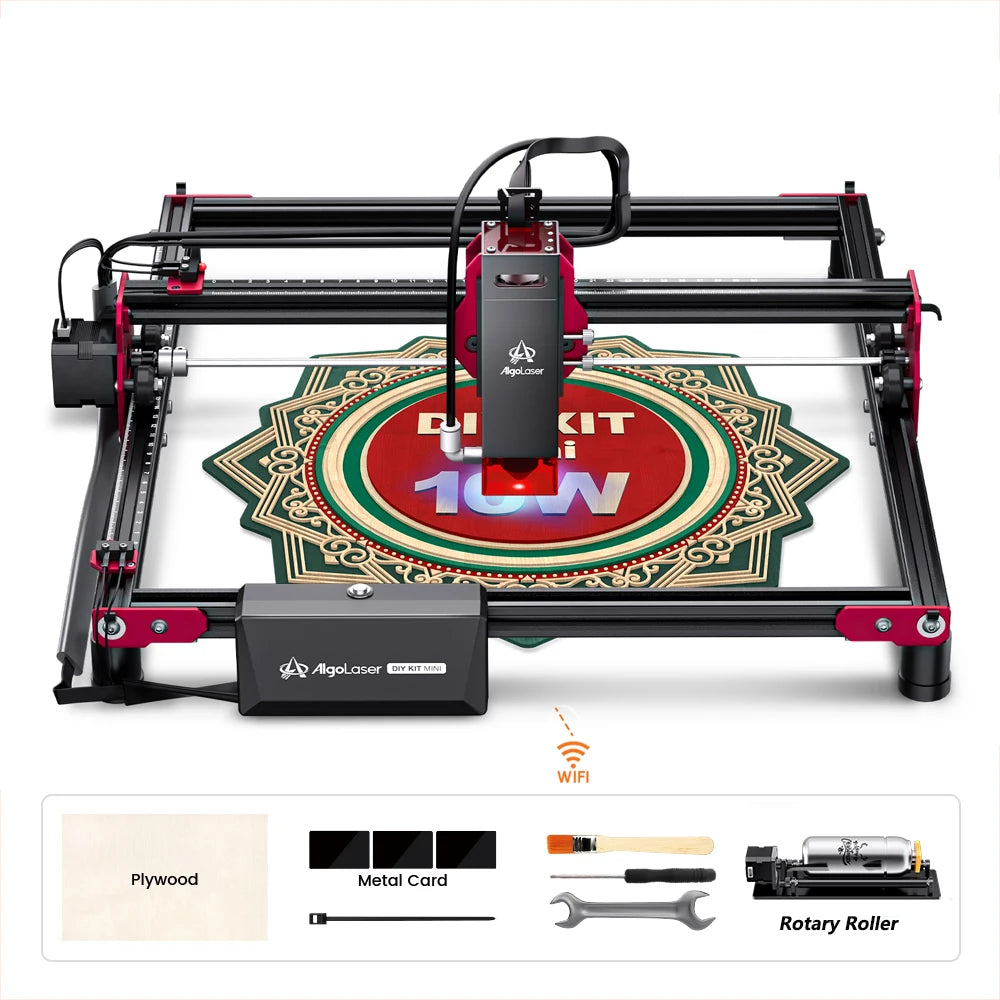

DIY Laser Engraver AlgoLaser Laser Cutter 10W Output and Laser Engraver and Laser Cutter Machine APP Supported Woodworking Tools
DIY Laser Engraver AlgoLaser Laser Cutter 10W Output and Laser Engraver and Laser Cutter Machine APP Supported Woodworking Tools
Kan beschikbaarheid voor afhalen niet laden
- Gratis verzending
- 30 dagen bedenktijd
- Veilig betalen met iDEAL
SPECIFICATIONS
Brand Name: AlgoLaser
CNC or Not: Normal
Certification: CE
Condition: New
Connections: With Wifi Offline Control
Controller: GRBL
DIY KIT: CNC Router
DIY KIT Materials: Wood Leather Cutting Machine
Diode CNC Router: 450±5nm Blue Light
Engraving Area: 310x300mm
Engraving Speed: 0-12000mm/min
High-concerned chemical: None
Is Smart Device: Yes
Model: AlgoLaser DIY KIT MINI 10W
Model Number: AlgoLaser DIY KIT MINI 10W
New Users: Entry-level Laser Engraver
Optical power: 10W
Origin: Mainland China
Type: CNC Diode Laser Engraver

Motherboard:ALGOLASER_DIY_KIT_V1.2

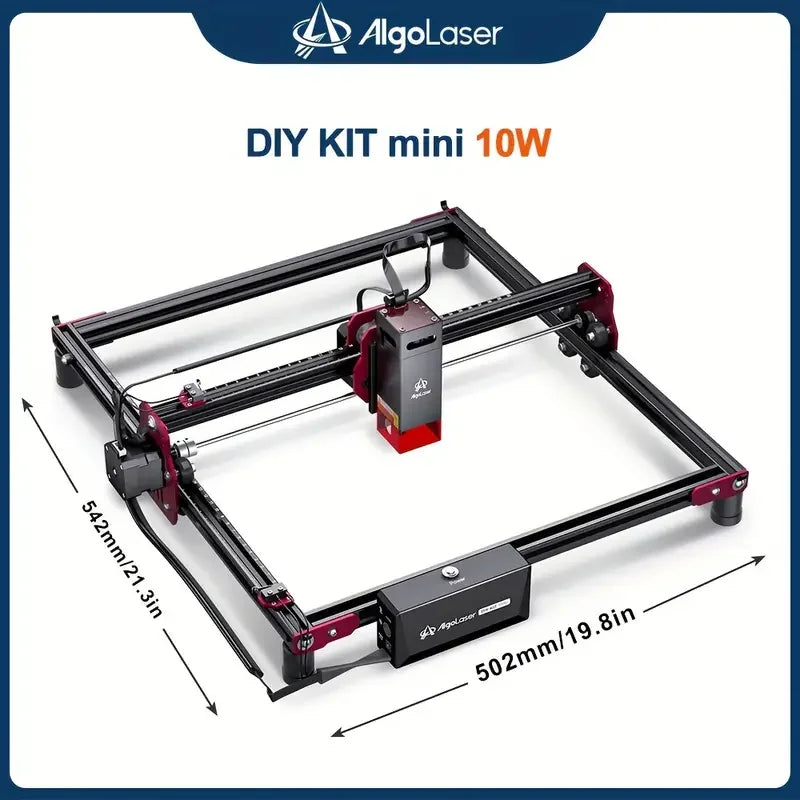

Engraving area: 315*300mm
Control Software:LaserGRBL (free), LightBurn (Paid Software), Wifi APP
Safety Precautions:
Machine Offset Detection and Protection
Machine Tilt Detection and Protection
USB Connection Detection and Protection
Beam detection and protection
Current and Voltage Detection and Protection
Frame Materials:Aluminum Profile
Motors:NEMA 42 Stepper Motors
Mechanical Precision:Y:12.5um,X:12.5um
Pixel Accuracy:Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy)
Electric Power:72W
Luminous Power: 10,000mw
Wave Length:445±5nm
Control Mode:PWM
Power Rate:S0-S1,000
Engraving Speed:0-12,000MM/Min
Baud Rate:115200 - 921600 (Default: 115200)
Computer OS:Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn)
Control Softwares:LaserGRBL (free), LightBurn (not free), Wifi App
Input Format:BMP, JPG, PNG, NC, DXF, SVG, etc.
Available Materials of Engraving:Wood, Paperboard, Black Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc.
Available Materials of Cutting:Paper Board, KT Board, Felt Cloth, Leather, Thin Plywood, Thin Black Acrylic, etc.
Input Voltage:110V-240V (Compatible)
Power Adapter Output:24V / 3A
Operating Temp.:-20℃-50℃
ADVANTAGES:
-
【Offline Control】AlgoLaser DIY KIT MINI Support mobile APP control, wifi connection, USB connection, offline USE,The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
【Ultra-Fine Compression】 AlgoLaser DIY KIT MINI 10W laser engraver equipped with powerful 10W output, which cuts up to 20mm wood and 10mm black acrylic. 0.01 mm ultra-fine engraving accuracy makes engraving more delicate, and the focusing range of the is narrowed down to 0.08*0.08 mm. The engraving speed is up to 333 mm/s for faster and cleaner cuts. The engraving machine speed can be as high as 12000 mm/min, engraving area is 315*300mm.
【5 Safety Protection】 ①Current and Voltage Detection and Protection.②USB Connection Detection and Protection.③Beam Detection and Protection.④Machine Offset Detection and Protection.⑤Machine Tilt Detection and Protection.

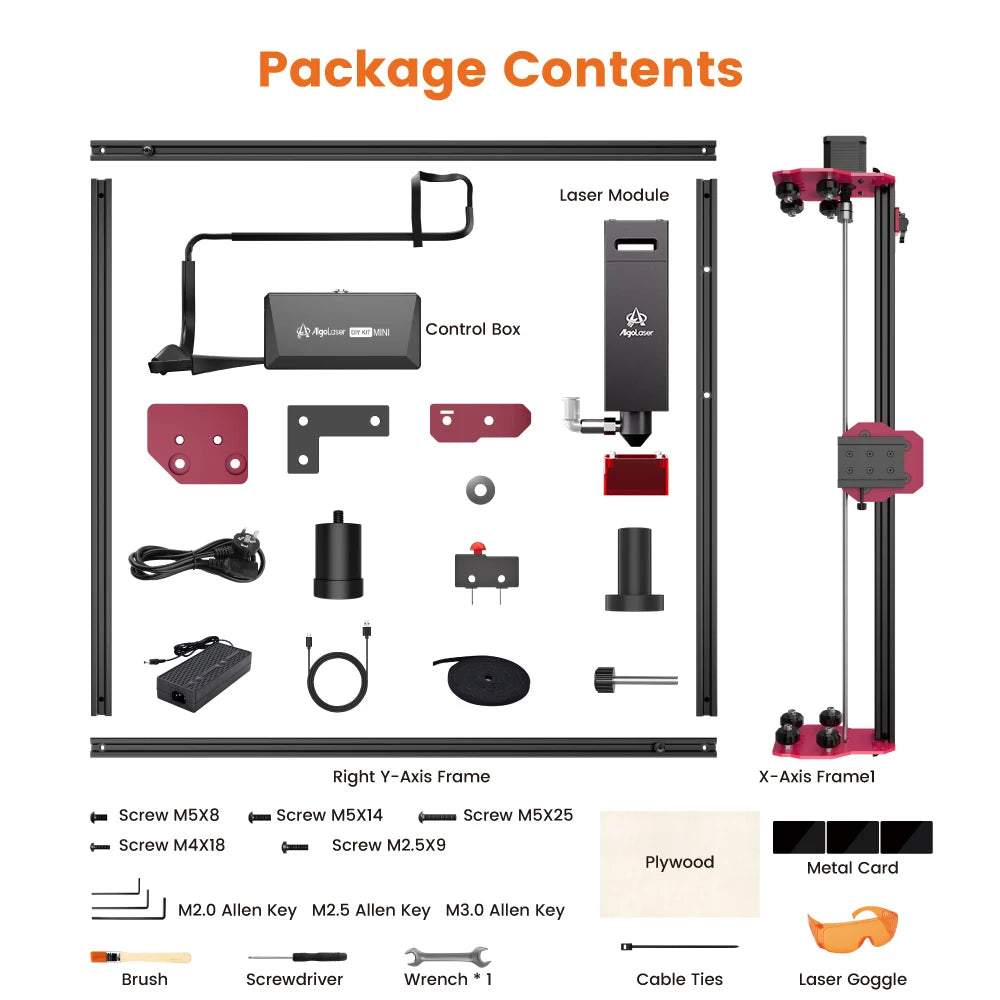

【Simple Installation】AlgoLaser DIY KIT MINI Laser Engraver adopts a modular design, which is convenient for users to assemble, repair, and replace and update machine parts, installation about 10-15minutes.
【Extensive Compatibility】AlgoLaser DIY KIT MINILaser Engraver can engraving cylinders by add to rotary rollers, raiser feets, can connect with air pump to ensure very clean cutting edge. can add extension kits to double size. can work with camera and protection enclosure and honeycomb platform. Unleash your creativity on over one hundred materials including paper, bamboo, wood, leather PCB board, aluminum oxide, metal, glass, etc.
【New eye protection design】AlgoLaser DIY KIT MINI Laser Engraver with newest panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light to perfectly protect your eyes.


















Welcome to AlgoLaser Official Store, we dedicated to offering you laser engraving machines with Fast Delivery, Reliable Quality and Affordable Price. We have lots of inventory in Russian, Czech republic, Spain, United States, Brazil, Mexico and China warehouse, about 3-7 Business Days Fast & Free Shipping. And we are original AlgoLaser original manufacturer in Shenzhen, China, you could rely on us for the consistent quality and service!
