SPECIFICATIONS

Battery Capacity: 8000mAh Li-ion Battery

Battery Included: Yes

Brand Name: Huepar

Certification: CE,FCC,RoHS

Charging Port: Type-C

Charging Time: About 5.0 hrs with 5V/2A adapter

Feature: With remote control

High-concerned chemical: None

Laser Beam: High Brightness Green beam

Laser Class: Class 2, < 1mW power output

Levelling Range: ±3°

Measurement Model: 16 Lines

Mode: Self-leveling & manual & pulse mode

Model Number: ZK04CG+LR-6RGA

Mount size: 1/4"-20

Name: Huepar 4D Cross Line Laser Level With Receiver

Operating Times: About 8 hours

Origin: Mainland China

Precision: ±2mm/10m

Self-leveling time: ≤3s

Size: 38.5*11.5*32.6cm

Type: Vertical & Horizontal Lasers,Cross Line Laser Tool

Wavelength: 505-520nm

Working Distance: 30m / 40-60m with laser receiver

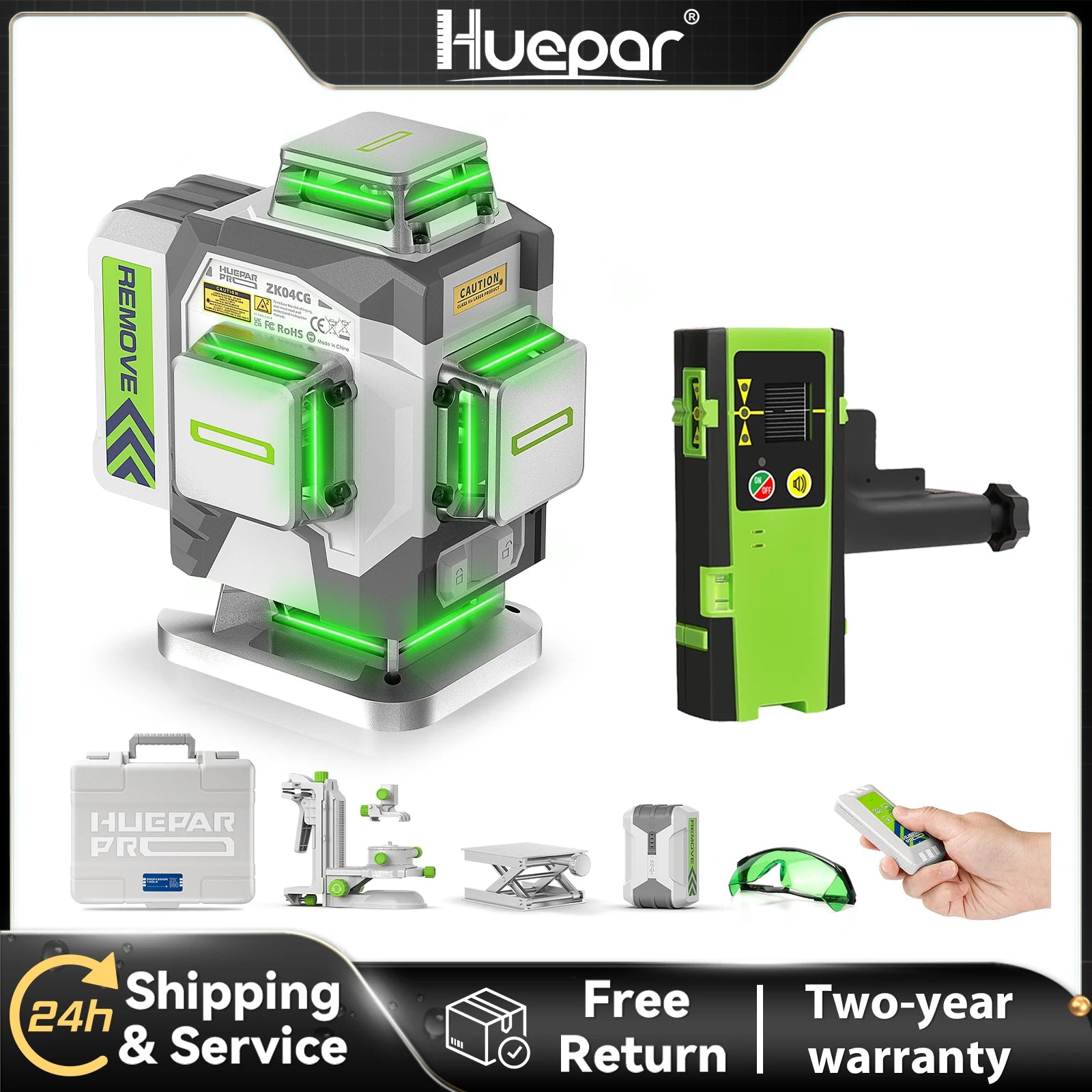

Huepar 4D Cross Line Laser Level High Accuracy ±2mm/10m Self Leveling Green Laser Tools With 8000mAh Li-ion Battery & Receiver

Huepar ZK04CG 4 x 360 2±mm Accuracy Green Laser Level Specifications:

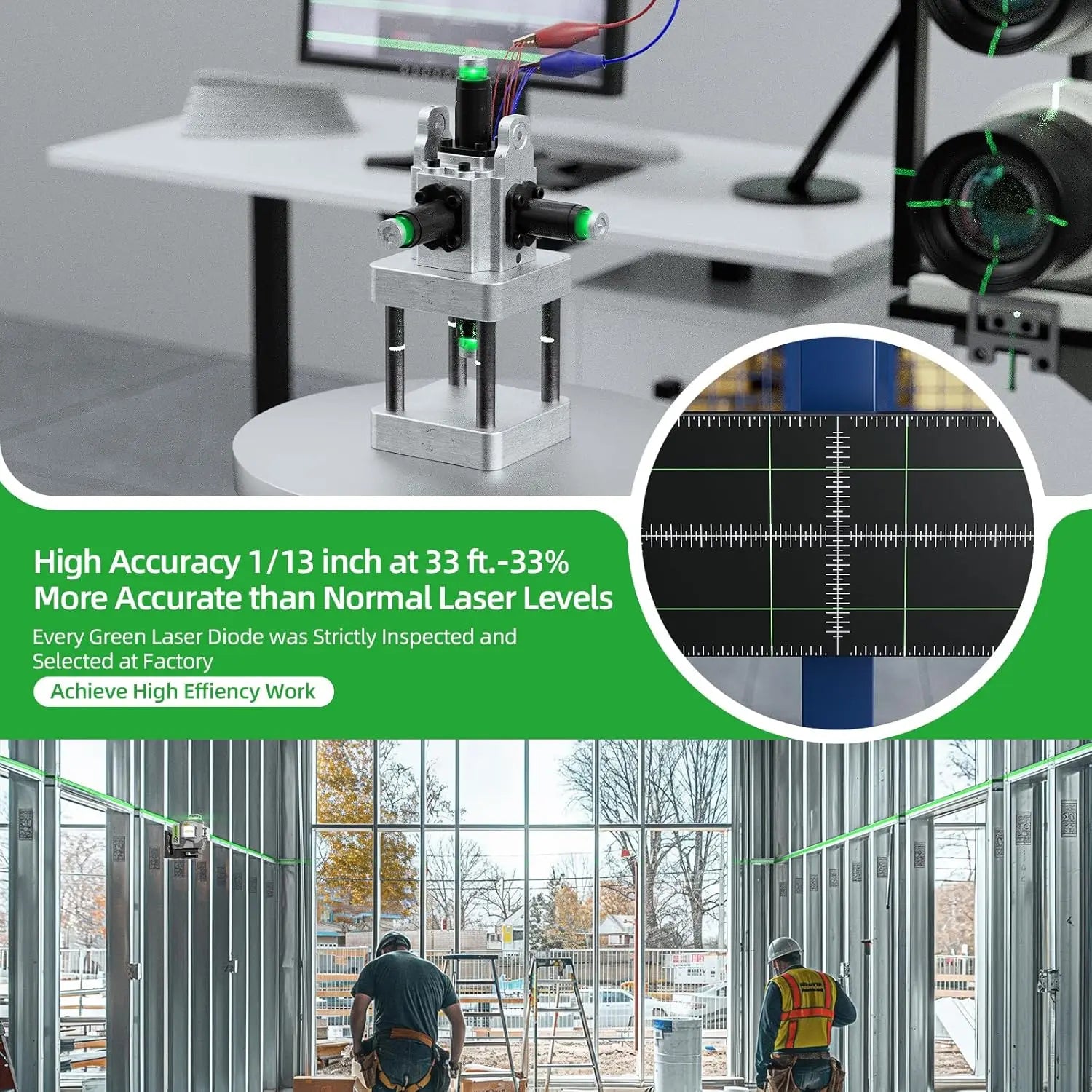

High Accuracy ±2mm/10, ±1/13 inch at 33Ft

• From a large number of laser level modules, high precision modules are selected and specially tuned by hand to produce a laser level with an accuracy of 2mm at 10m.

• The percentage of high-precision modules in the total number of modules is only 10%.

• Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

• The remote control enables to select the 4 x 360° laser lines individually at a distance up to 32.8Ft.

• The laser line(s) can be temporarily turned OFF by the remote control when need to leave for a while.

Line Switching

• Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

• The remote control enables to select the 4 x 360° laser lines individually at a distance up to 32.8Ft.

• The laser line(s) can be temporarily turned OFF by the remote control when need to leave for a while.

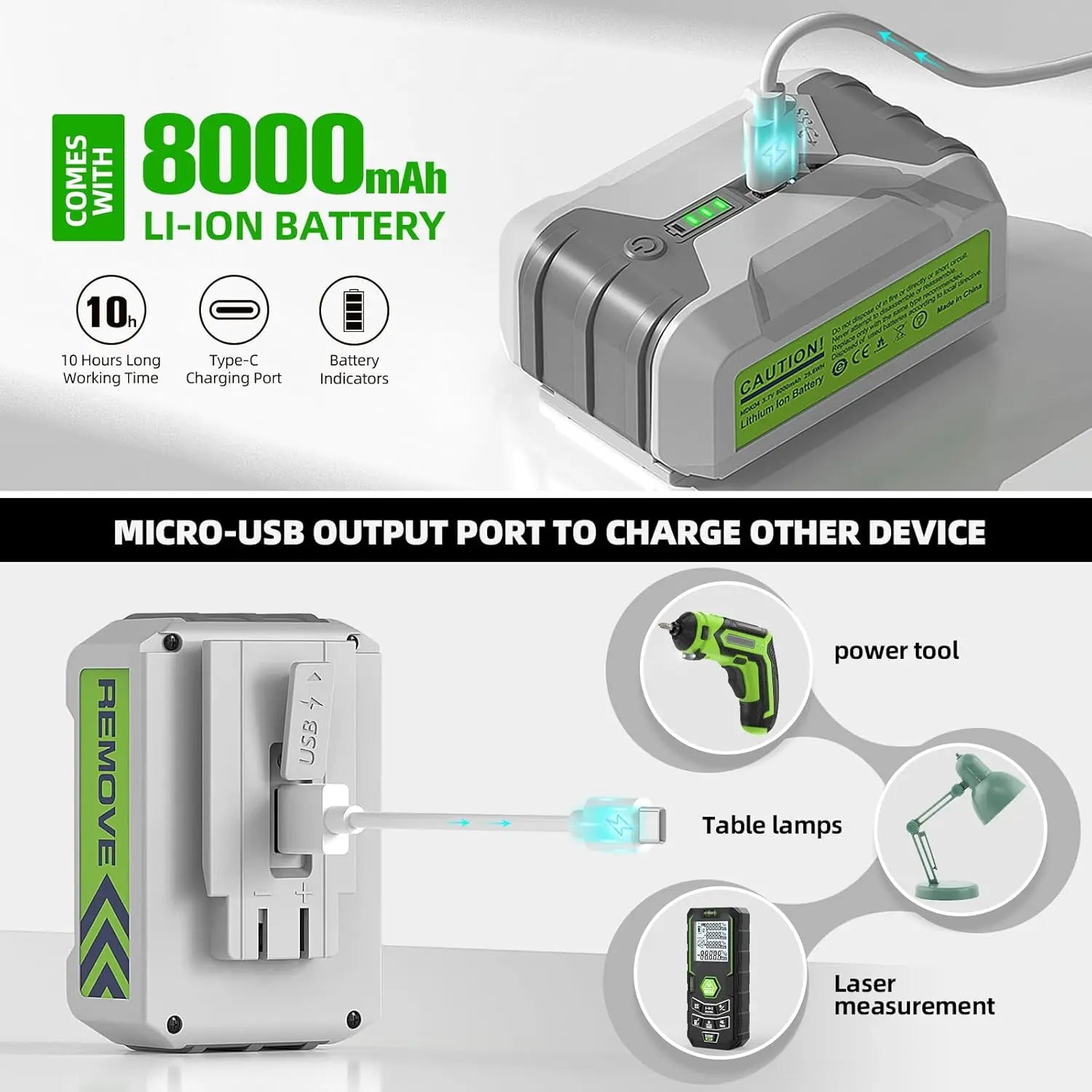

8 Hours Working Time With all beams on

• 8000mAh rechargeable Li-ion battery support the laser level to work for 8 hours with all four 360° laser beams on.

• Type-C charging port can be used to charge the battery through car charger, rechargeable treasure and other ways.

• Battery indicators let you know the power status at any time.

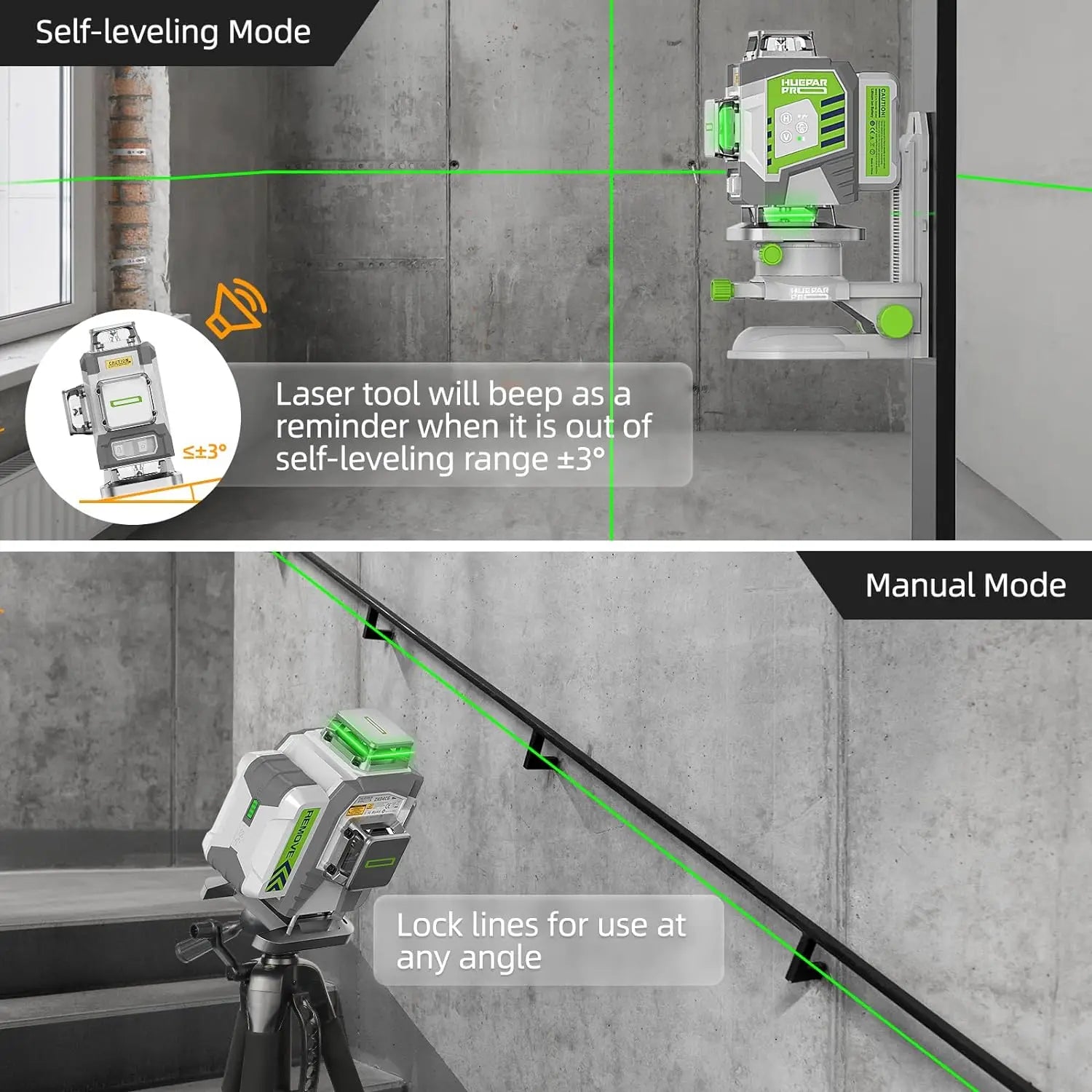

Self-leveling & Manual Mode

• Self-leveling mode:  Unlock the pendulum, and enable the self-leveling mode, when the tool exceeds the self-leveling range by ±3°.

• The laser beam(s) will blink about every 3-5 seconds to notify the user it is not self-leveling now.

• Manual mode:Once the pendulum is locked, it switches to manual mode, the self-leveling function is disabled, the cross laser tool is locked, and you can position the laser level at any angle you need.

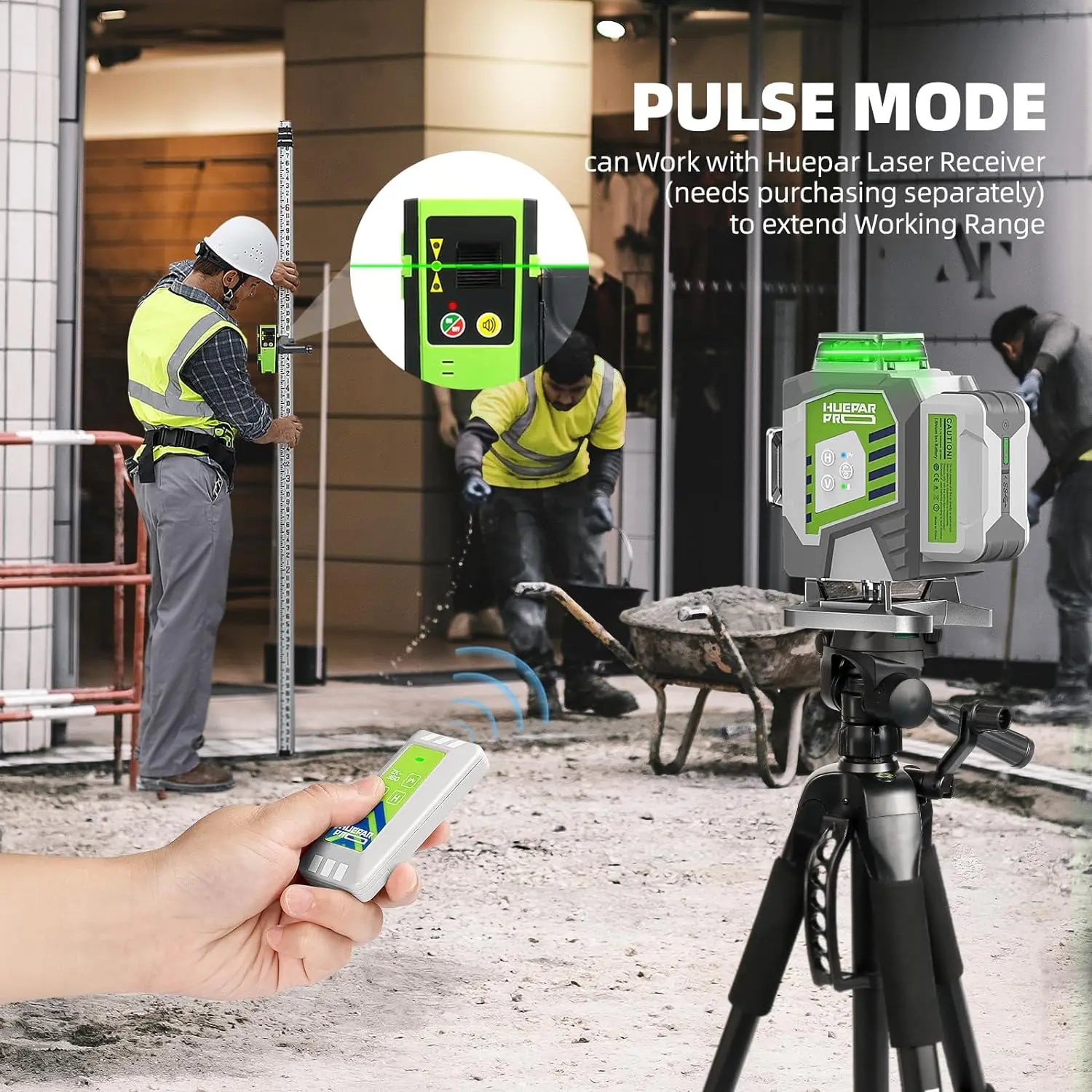

Outdoor Pulse Mode

• Turn ON the pulse mode: After powering ON, short press the "Pv" button to turn ON/OFF the pulse mode. When the pulse mode is activated, the laser beams are dimmer.

• Pulse mode extends the working range up to 40-60m in brighter working conditions when using with Huepar Line Laser Detector(LR-8RG/LR-5RG/LR-6RG) .

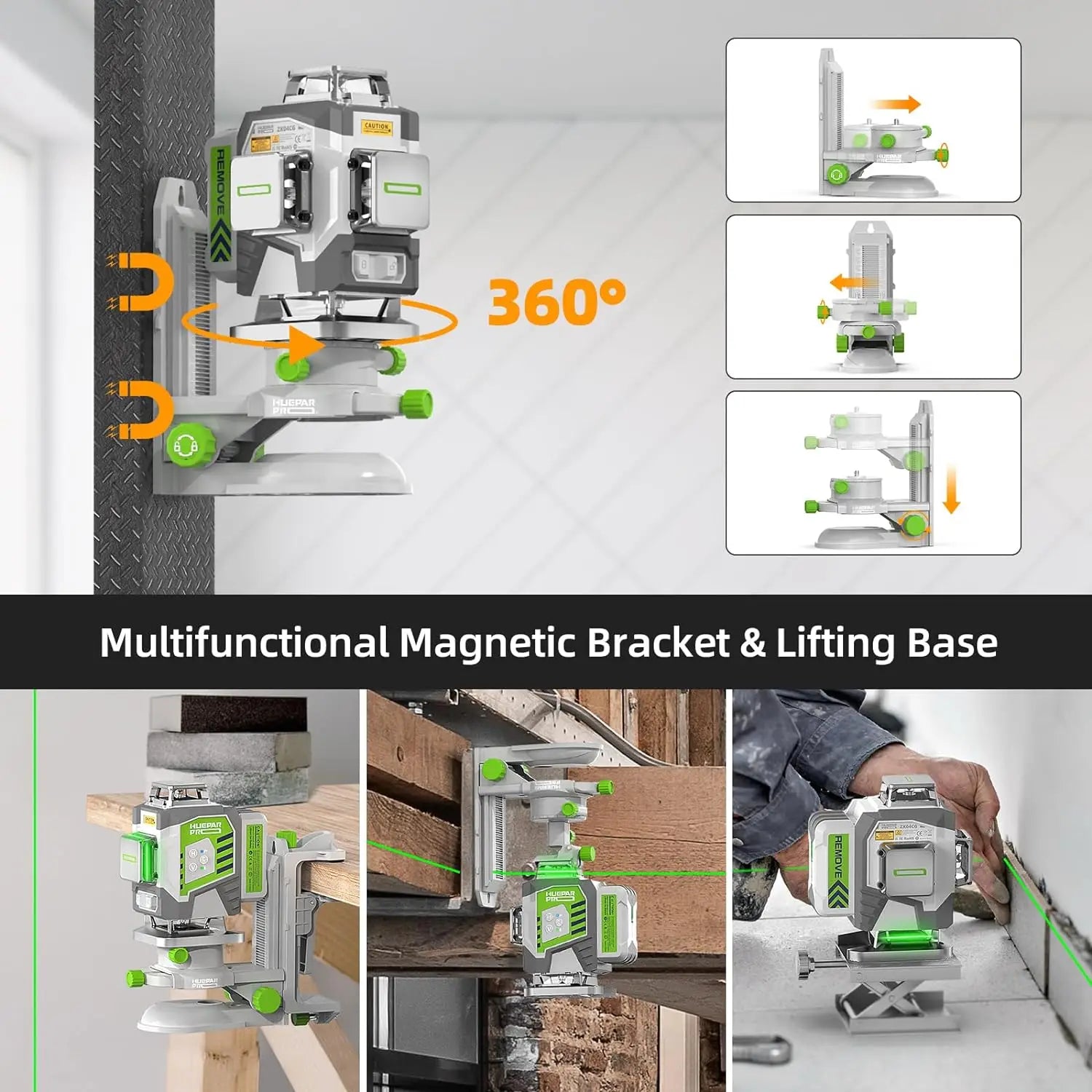

Strong magnetic bracket

• It allows for quick positioning to metal surfaces, helping hang the laser level for wall and ceiling applications.

• The fine-tuning knobs on the bracket enable to adjust laser line up & down, left & right, back & forth, and rotate 360°.

• The opening size of the back clip can be adjusted, offers the ability to mount to any object up to 1.97 inch ( 5cm ) thick. The back clip is compatible with most magnetic bases, increasing the adsorption force of the magnets and stability.

• A dedicated laser window adapter included helps to hang the laser tool, bringing the laser window closer to the wall and better for the ceiling application.

• The bracket has 1/4"-20 and 5/8"-11 threaded mounts on bottom to be used with tripods or pole mounts. And the laser tool also has 1/4"-20 mount thread to suit a tripod or pole mount.

360° Horizontal Floor Laser & Lifting Base

• This tiling laser tool generates one 360° horizontal floor laser at the bottom that can hit a 1/2 inch ultra-low horizontal line on the ground, prefect for the layout of tile, stone, brick, carpet and hardwood flooring, etc.

• With the lifting base, the laser lines raise from the surface between 0.83 inch and 3.2 inch height.

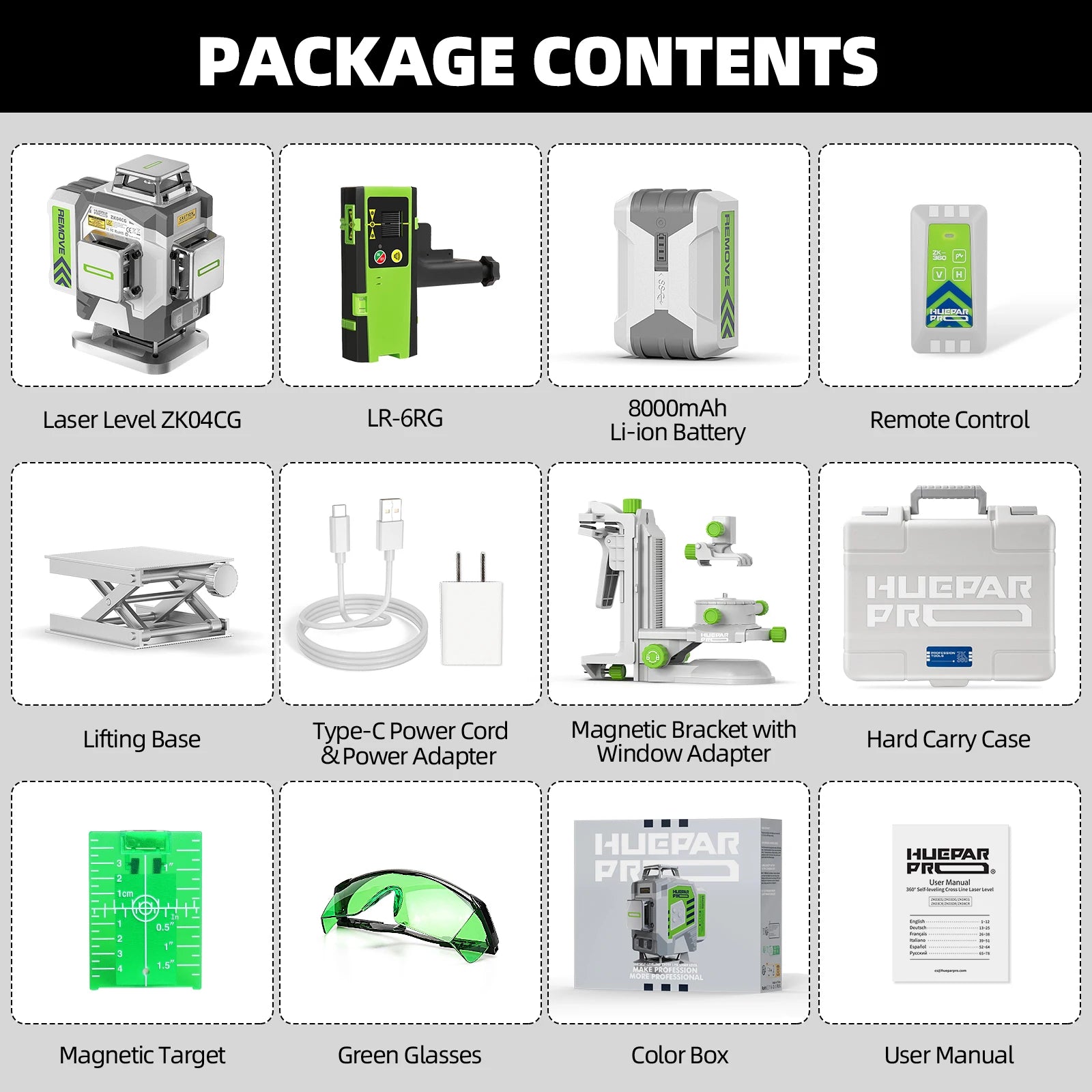

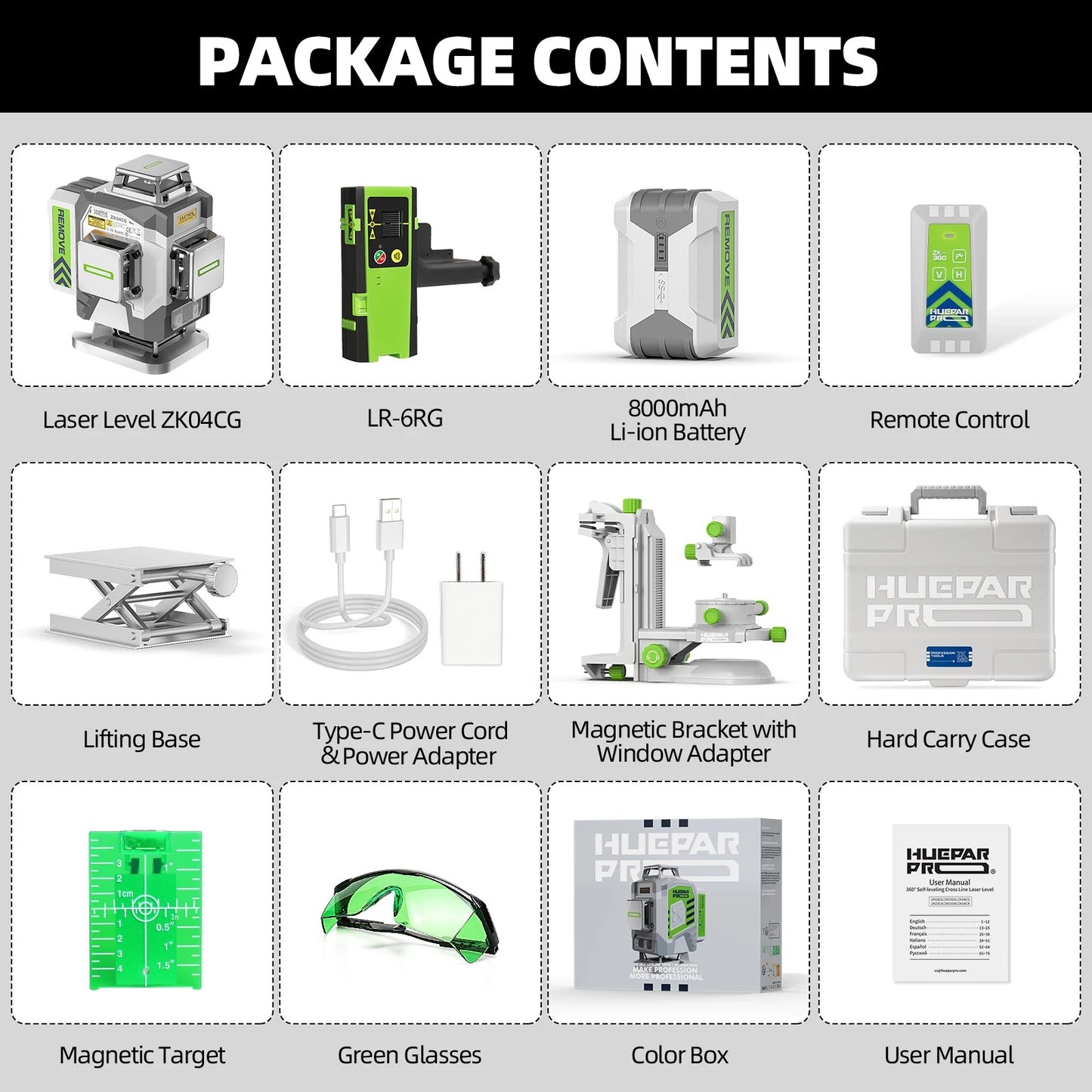

With top quality hard carry case and color box.

Use of different scenarios: Construction work, window installation, wall tiling, stair laying and so on.
