Dercription

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
Leveling Method: Electronic Leveling H&V
Laser Wavelength: 505-520nm (Green LD Laser)
Horizontal/Vertical Accuracy: ± 1/17 inch at 33Ft
Self-Leveling Range: ± 3.5°
Slope Capability: Dual (± 3.5°)
Working Distance (Line): 130Ft (100 LUX), 200Ft with receiver (Receiver included)
Power source: Li-ion battery & 4×˝AA˝ (LR6) batteries
Operating Time with Lithium Battery: 7 hours with all laser beams on
Operating Time with AA Batteries: 2 hours with all laser beams on
IP Rating: IP54
Operation Temperature Range: 14℉ ~ 113℉ (-10℃~ 45℃)
Mount Size: 5/8"-11

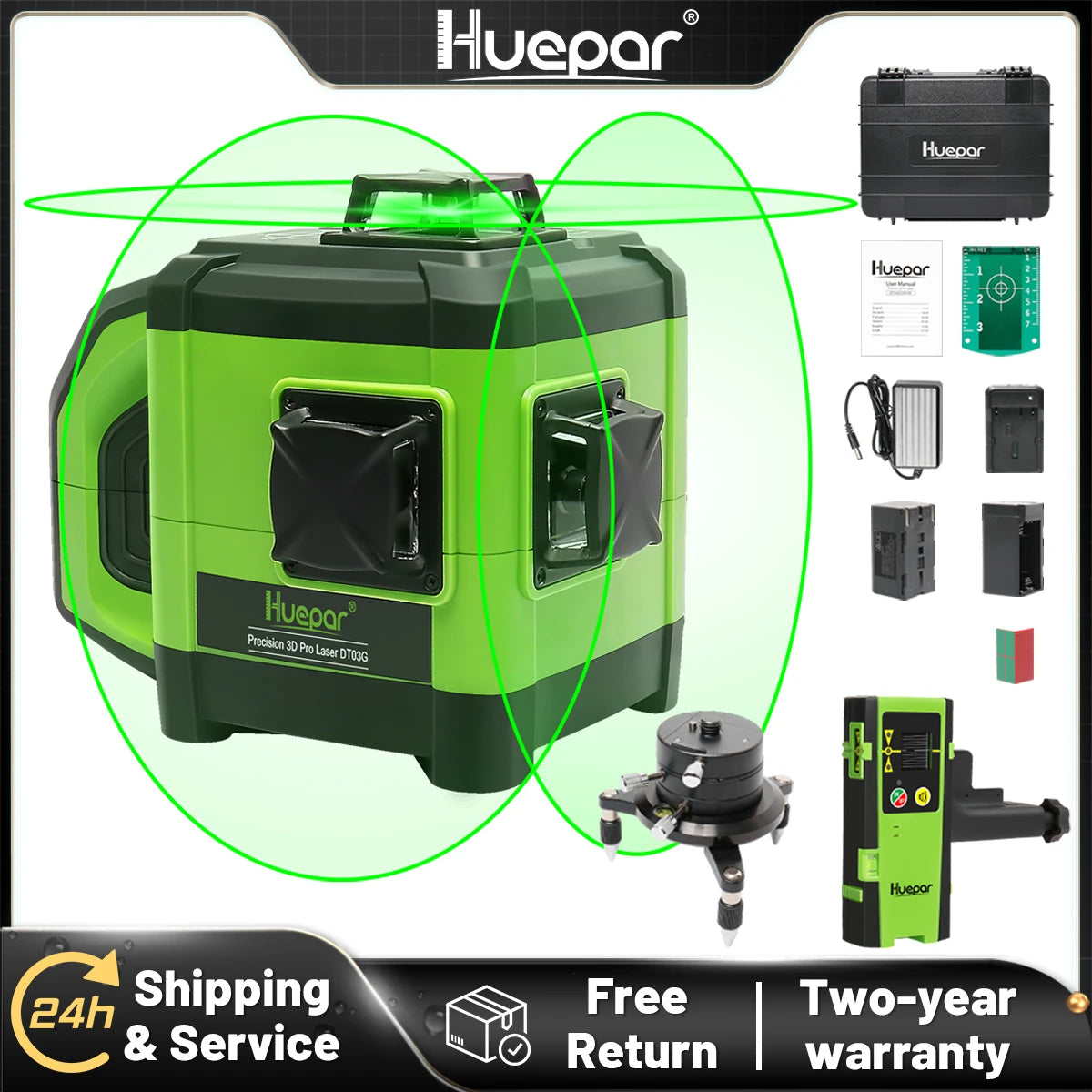

Package Contents

1 x Huepar DT03G Laser Level
1 x Receiver and Receiver Clamp

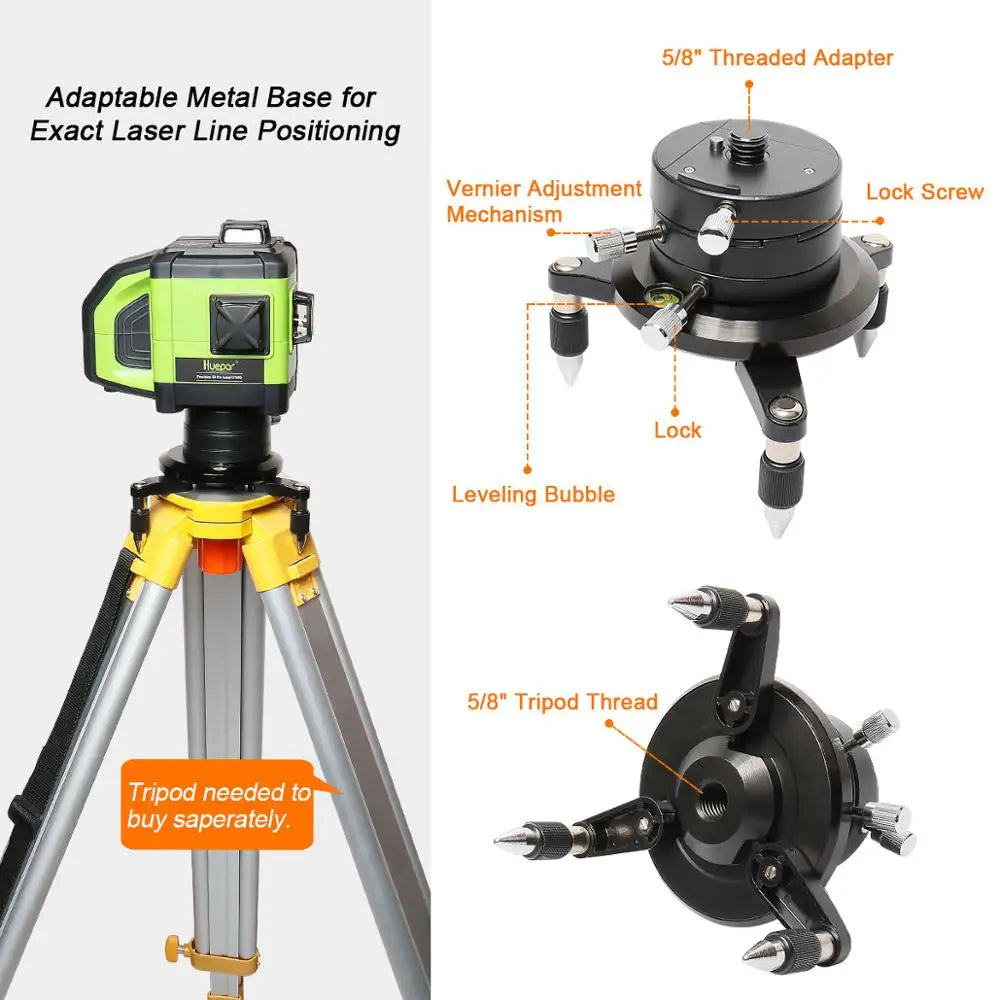

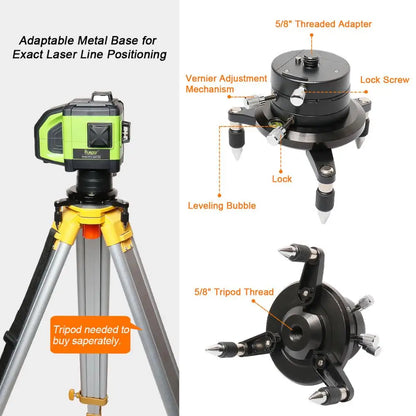

1 x Adaptable Metal Base
1 x Rechargeable Lithium Battery
1 x Battery Charger
1 x Power Adapter
4 x AA (LR6) Batteries
1 x AA Battery Holder
1 x Magnetic Target & 1 x Marking Target
1 x User Manuals & 1 x Hard Carry Case

Electronic Self-leveling mode & Manual mode

With smart electronic leveling sensor, the laser level self-levels with a higher accuracy up to ± 1/17 inch at 33Ft.
The self-leveling mode will be activated automatically after power on.
The power indicator will blink quickly in red light if the tool is placed improperly, or the slope of instrument exceeds the range ±3.5°.
Please place the device on a level surface when use in self-leveling mode.

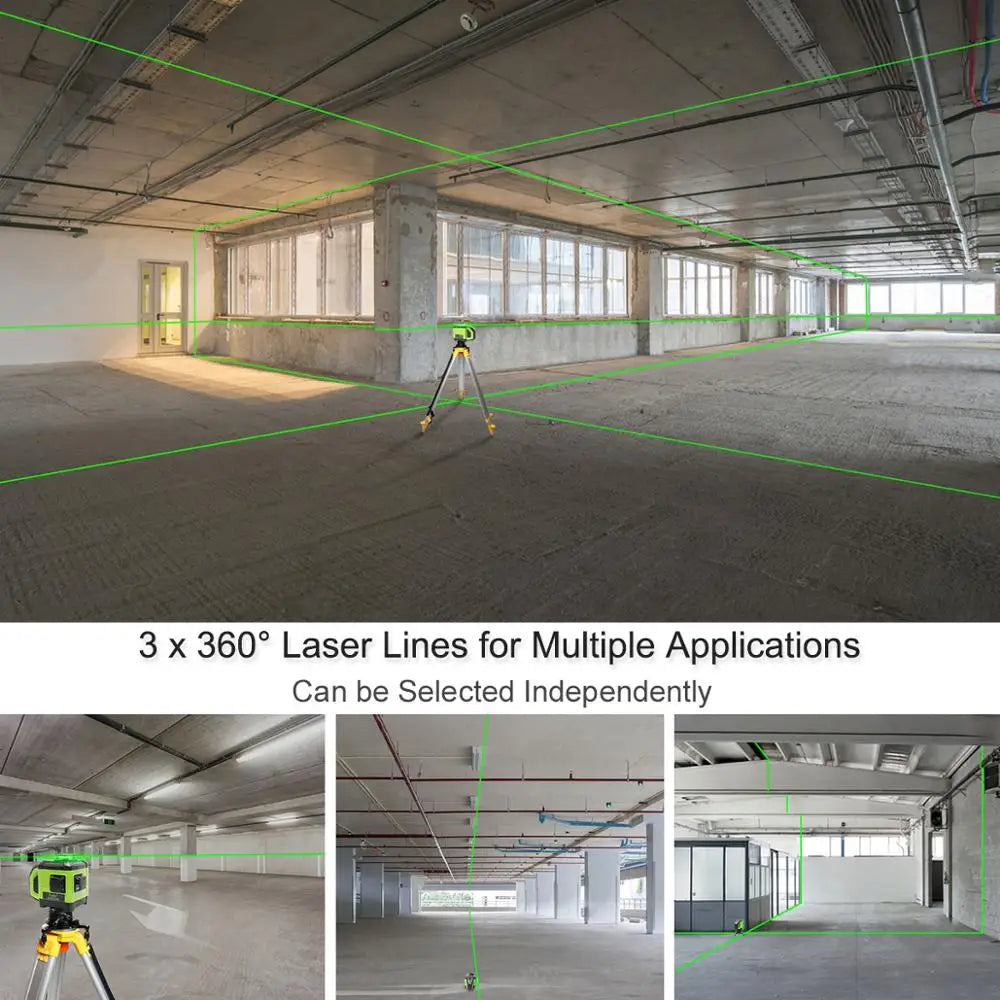

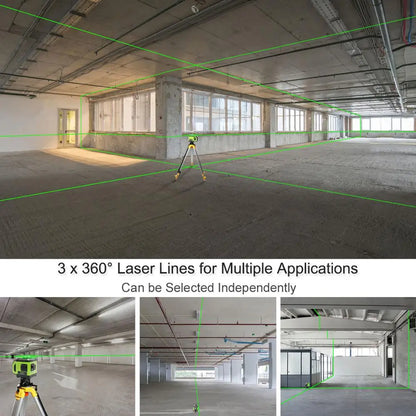

3 x 360° Multiple Line Switching Functions

This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes –one horizontal and two vertical lines.
The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications.
Three 360°Laser Lines can be Selected Freely: Short press button H to switch ON/OFF the horizontal line; Short press button V to switch two vertical lines.

Pulse Mode

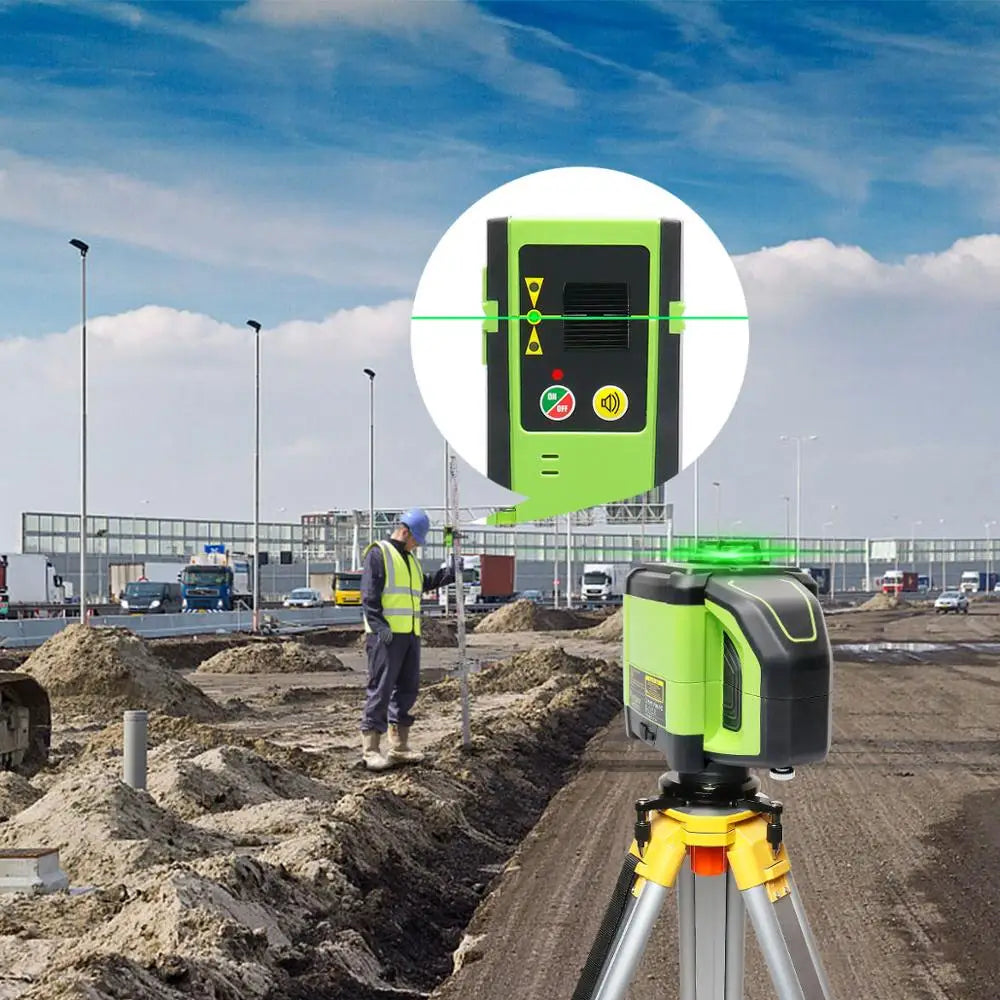

Pulse mode extends the working range up to 200Ft when using with the included receiver.
The included three-sided laser receiver makes it easier to detect the laser beam when work outside or in bright conditions.

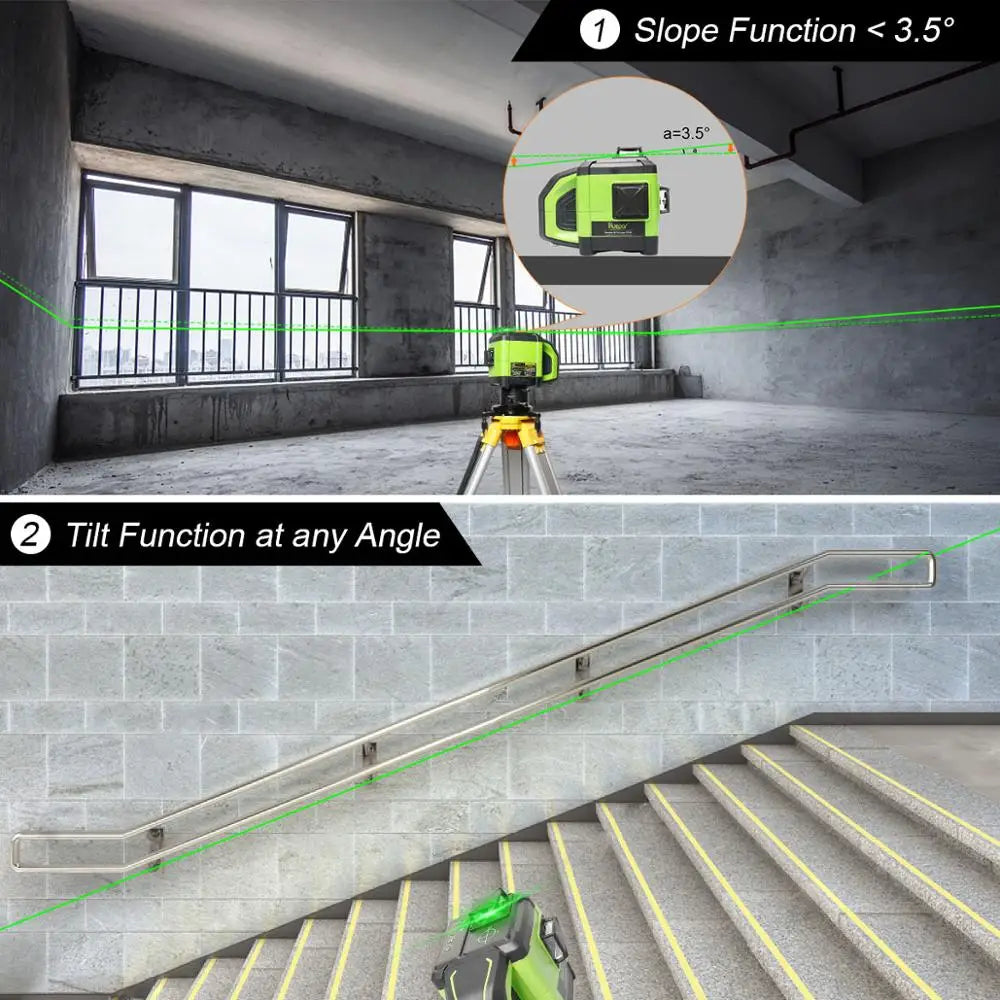

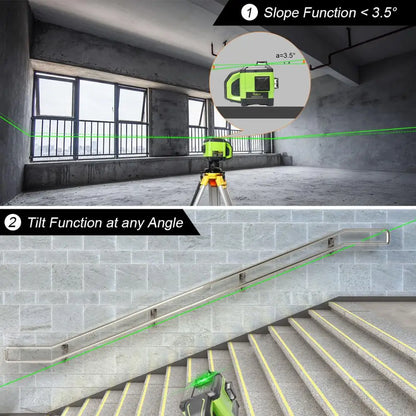

Dual Slope Function

Electronic dual-slope function allows users to perform slope within ± 3.5°. This dual-slope mode works perfectly when checking grade, setting drainage, landscaping-terracing or other slope work.
In manual mode, keep pressing and holding H or V button to adjust slope in both X and Y axis.

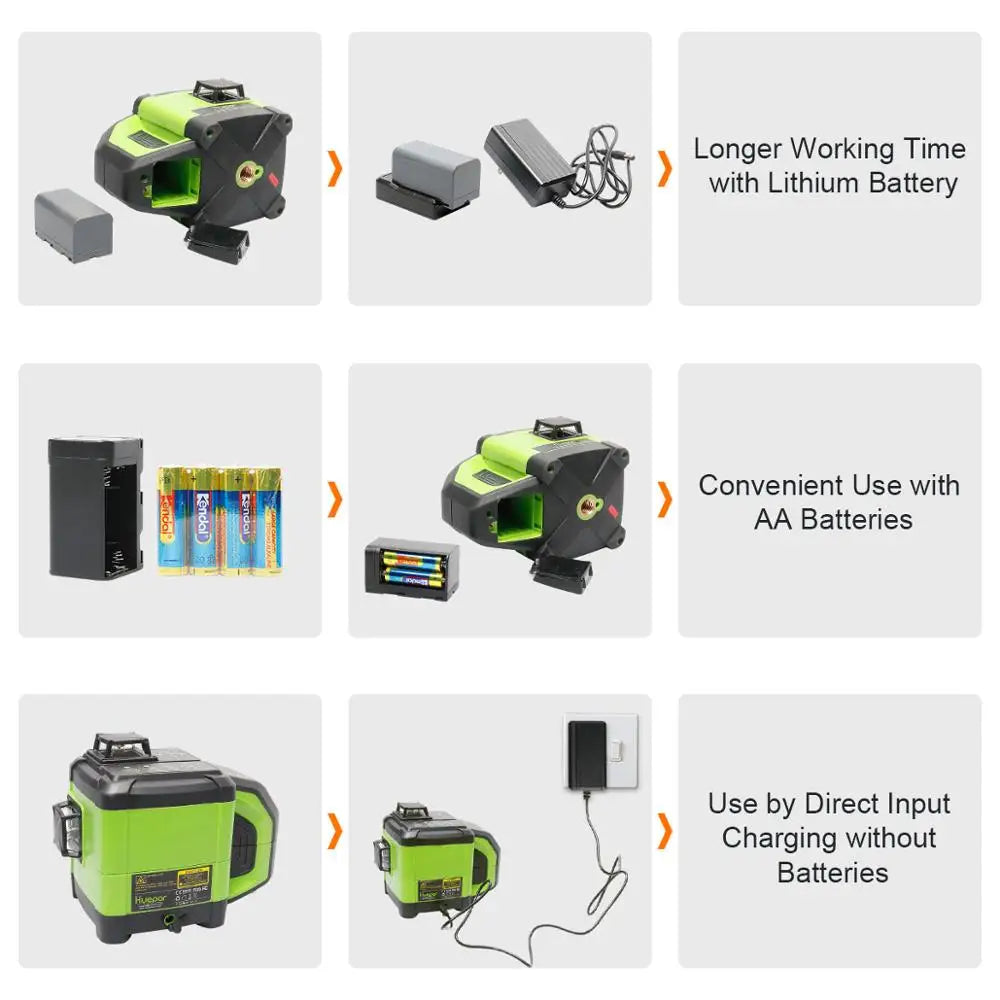

Triple Power Supply

This laser tool utilizes the included large capacity lithium battery or 4 AA batteries.
This laser tool comes with battery charger to recharge the battery independently.
Direct plugged application: After removing the batteries, the tool can be used directly by plugged in.
The battery is not being charged in the device when connected to the power adapter.

Adjustable Line Visibility

Visibility adjustment function enables users to select the line brightness in different light conditions.
Step 1: Press V >2s enter into visibility adjust mode
Step 2: Short press V or H to adjust the visibility
Step 3: Press V >2s to exit the mode and save the change
