Huepar S03DG 12 Lines 3D Green Laser Level Specifications:

● Laser Beam: Green Beam

● Screen type:LCD screen with backlight

● Projection: 12 Green Laser Lines

● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

● Laser Wavelength: Germany Osram 505nm-520nm

● Horizontal / Vertical Accuracy: ±3mm/10m, ±1/9 in. at 33 ft

● Leveling / Compensation Range: 3.5°±1°

● Leveling Time: ≤3s

● Working Distance: ≥20m, ≥40m with detector

● Working Time: About 7 hours with li-ion battery, About 1.5 hours with AA battery

●Power Source:7.4V/2600mAhLi-ion battery & 4 x AA battery

● Mount Size: 1/4"-20

● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness

● Operating Temperature: Between -10℃ and +50℃

● Storage temperature: Between -20℃ and +70℃

WARNING:

● Do not point the laser beam directly into the eyes.

Line Switching:

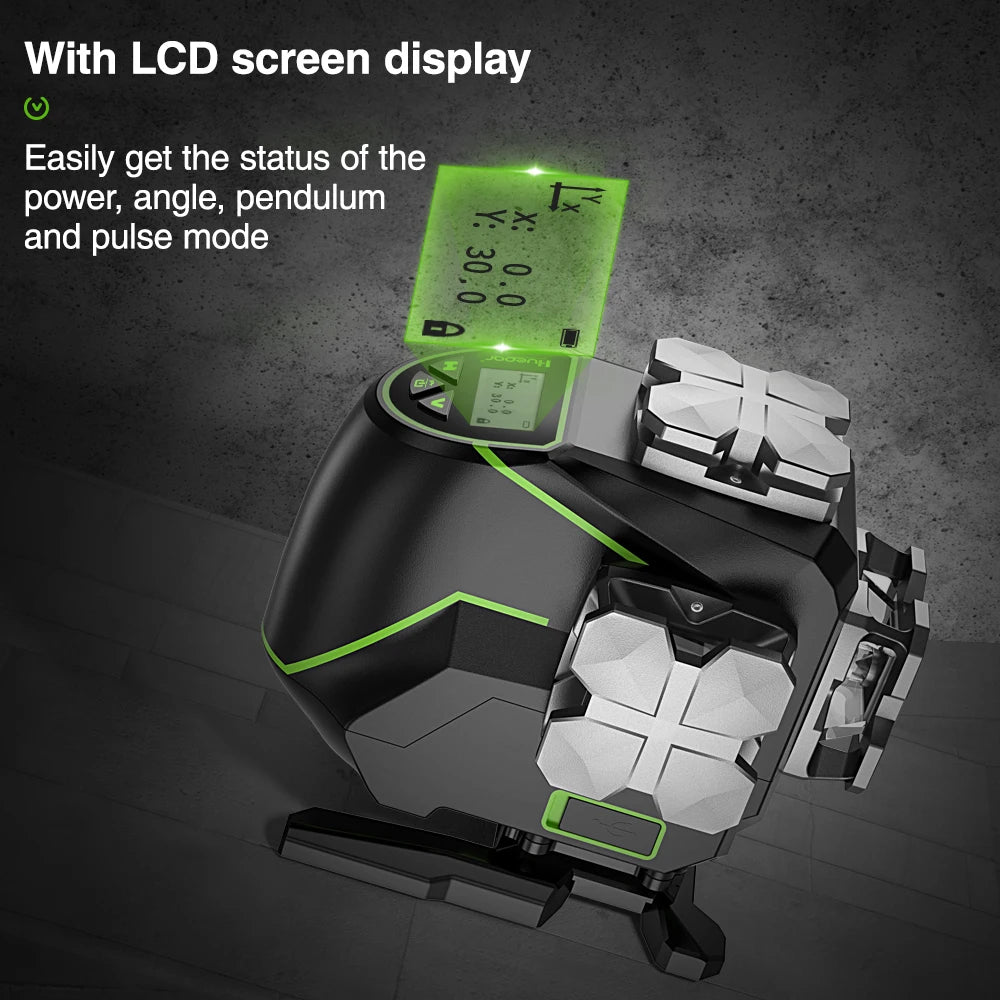

With LCD Display Screen:

The laser level kit features LCD screen display.

Users can easily get the status of the power, angle, pendulum and pulse mode on the display.

With Remote control:

The remote control enables to Turn ON /OFF the laser lines and switch four 360° laser lines individually at a distance up to 33Ft.

With the remote control, users can also turn on/off the pulse mode and adjust the line visibility.

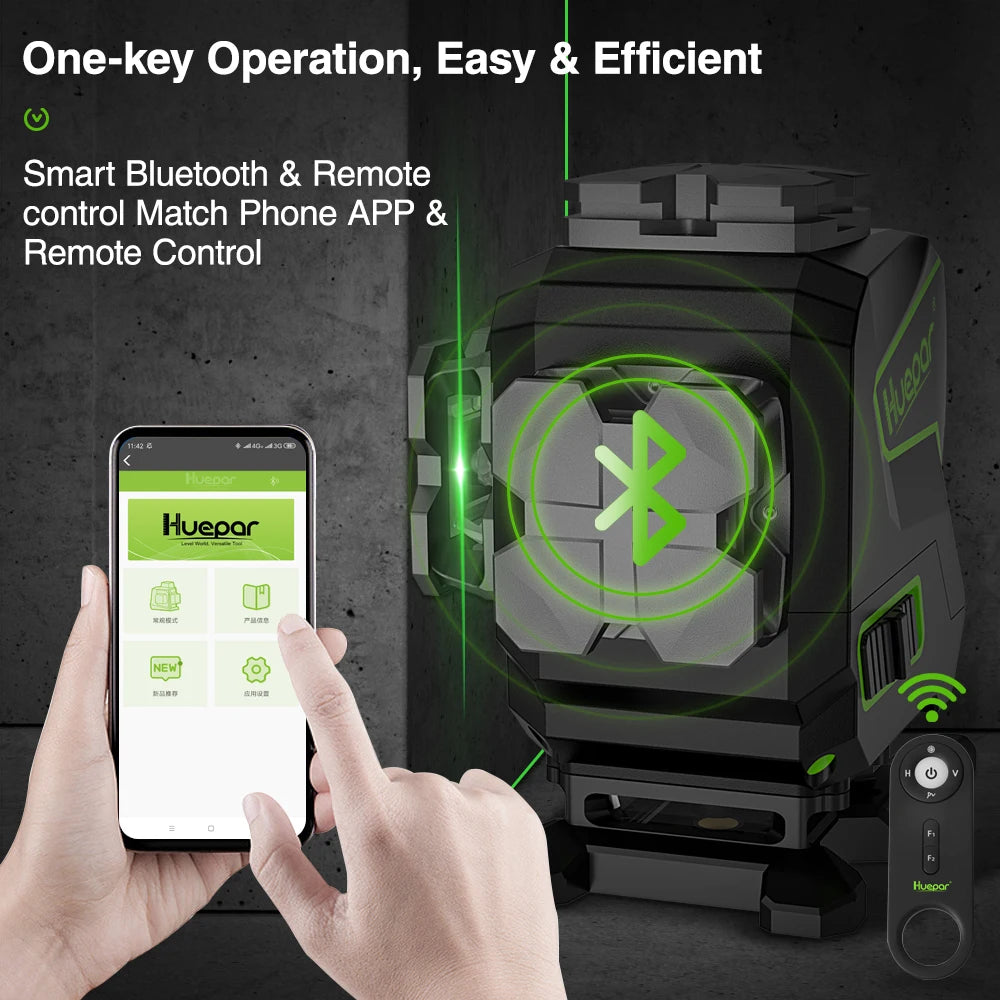

Connected With Smart Bluetooth:

Connect S03DG Laser Level with Free Huepar APP via Bluetooth Technology, users can control the laser tool by Mobile phone.The laser tool can connect two phones at the same time, whether on Android or iOS.

The functions of the laser tool can be easily operated with the Bluetooth feature.

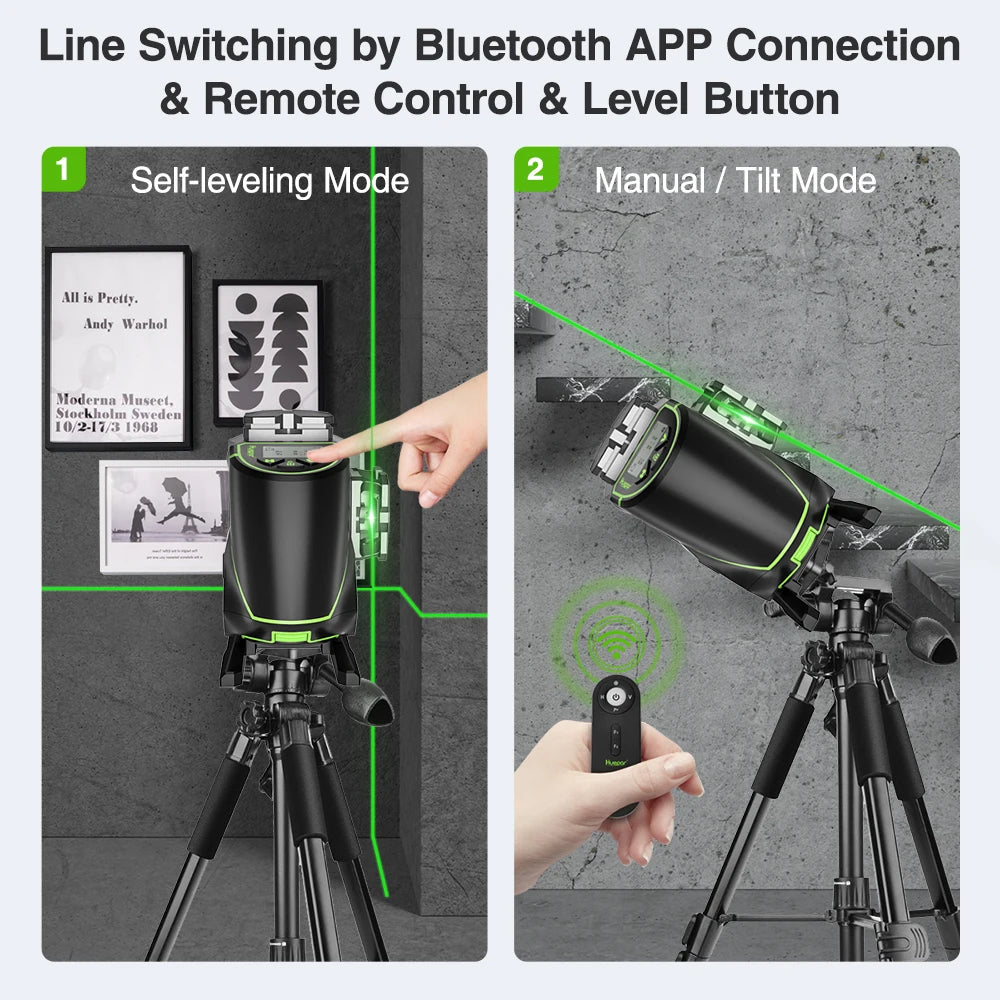

Self-leveling mode:

Once the pendulum unlocked, self-leveling mode is enabled.

The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.

Manual mode:

When the pendulum locked, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

Pulse Mode:

Turn ON pulse mode: Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.

Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.

It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.

Diverse Power Supply:

Large-capacity li-ion battery: 7 hours of extra-long working

AA battery: 4x AA battery for 1.5h usage

Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.

Charging protection help prevent the tool from overcharge.

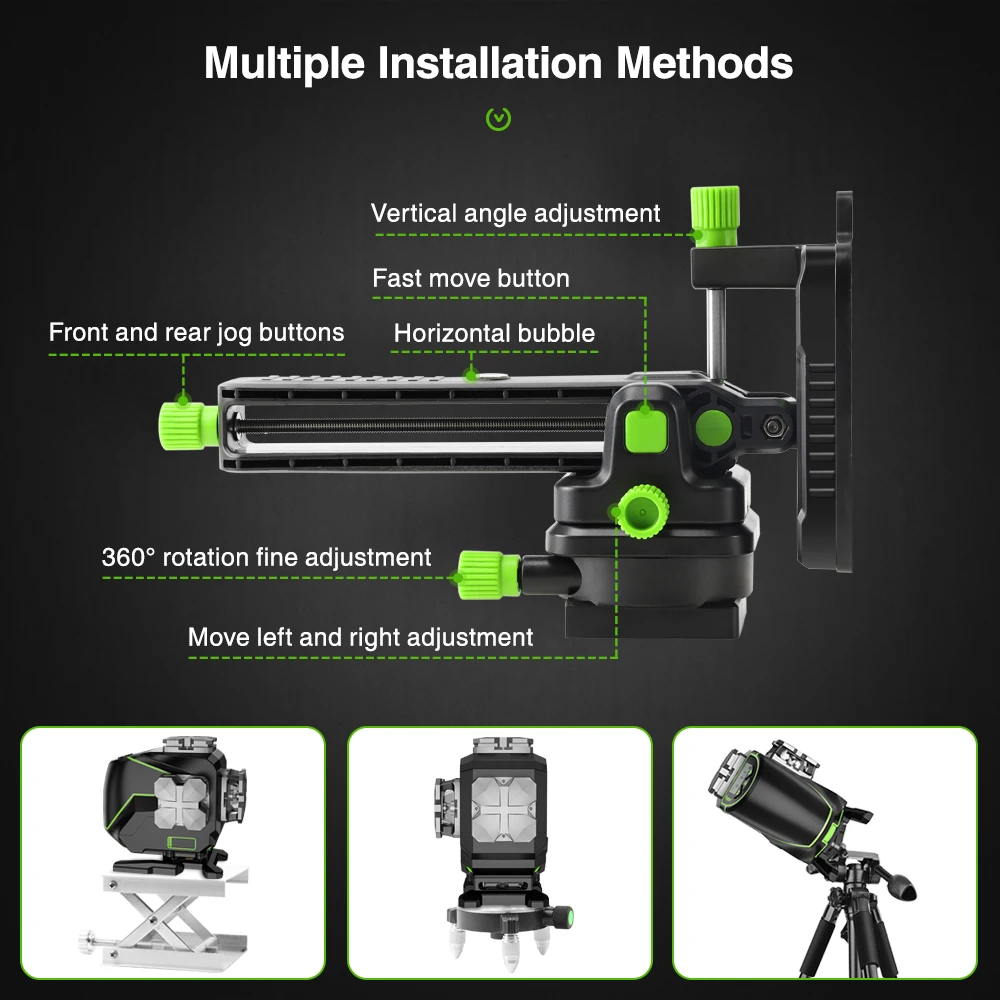

Multiple Installation Method:

360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree , projecting lines at any angle.

With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.15 inch height.

Mount Size: 1/4"-20 mounting thread for temporarily fastening in place or being fixed on tripod.

Beep as a reminder:

Laser tool will beep as a reminder when it is out of self-leveling range ±3.5°.
