SPECIFICATIONS

Battery Included: Yes

Brand Name: Huepar

Certification: CE,EAC,FCC,RoHS

Features: With Brightness adjust & Electric Rotating Base

Functions: With LCD Screen, Bluetooth, Remote Control

High-concerned chemical: None

Is Smart Device: Yes

Laser Beam: Green beam laser level

Laser Class: Class 2

Leveling/Compensation Range: ±3°

Measurement Model: 16 Lines

Model Number: W04CG+LR-6RGA

Mount Size: 1/4"-20 & 5/8"-11

Name: Huepar W04CG Laser Level With Detector

Origin: Mainland China

Power Source: 11.1V(12.6V Max) / 2600mAh Li-ion battery

Precision: ±3mm/10m(±1/9 in.at 33 ft)

Screen type: LCD screen with backlight

Size: 38.1*15*31.3cm

Type: Line Lasers,Green Cross Lazer Leveler

Wavelength: 505-530nm

Working Distance: 20m, 40m with detector

Working Time: 6.5 hours continual use with all laser beams on

is_customized: No

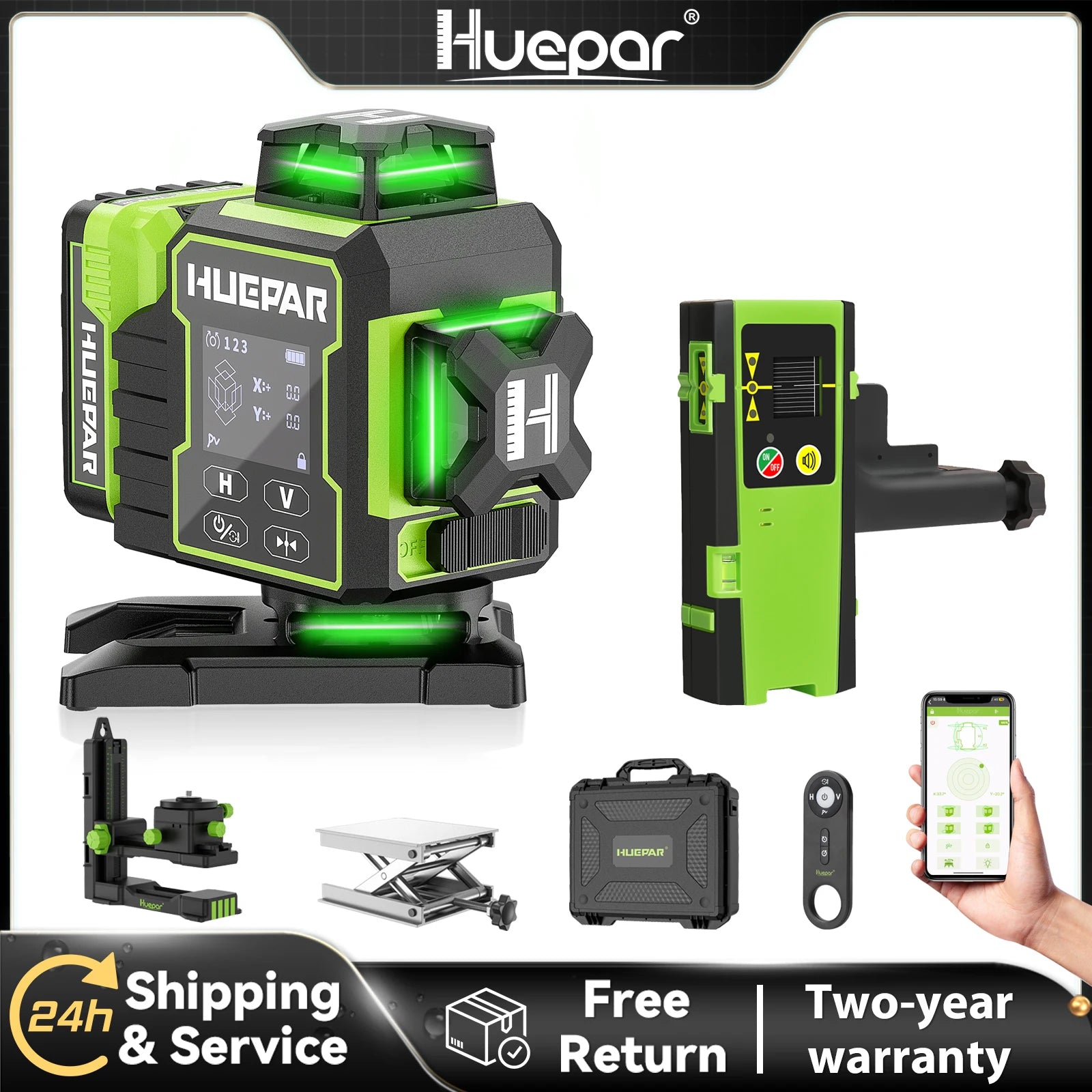

Huepar W04CG Laser Level Set Professional 16 Lines Bluetooth Lazer Leveller 4D Cross Line With Electric Rotating Base & Detector

Huepar W04CG With Detector 4D 16 Lines Cross Laser Level Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Laser Wavelength: 505-530nm

Screen type: LCD screen with backlight

Horizontal/Vertical Accuracy: ±3mm/10m(±1/9 in.at 33 ft)

Leveling/Compensation Range: ±3°

Working Distance (Line): 20M(60-100 LUX), 40M with Huepar Receiver LR-5RG/LR-6RG/LR-8RG

Operating Time: 6.5 hours continual use with all laser beams on

Power Source: Li-ion Battery 11.1V(12.6V Max)2600mAh

Charging Time: About 3.5 hours.

IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)

Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)

Mount Size: 1/4"-20 & 5/8"-11

Features: With electric base & Brightness adjust

Laser Receiver Details:

PWM: 1:1

Frequency: 10KHz

Display: Three-sided LED indicator display

Warning: Avoid direct exposure of the laser beam to the eyes.The laser would be affected by strong sun light when work outside.

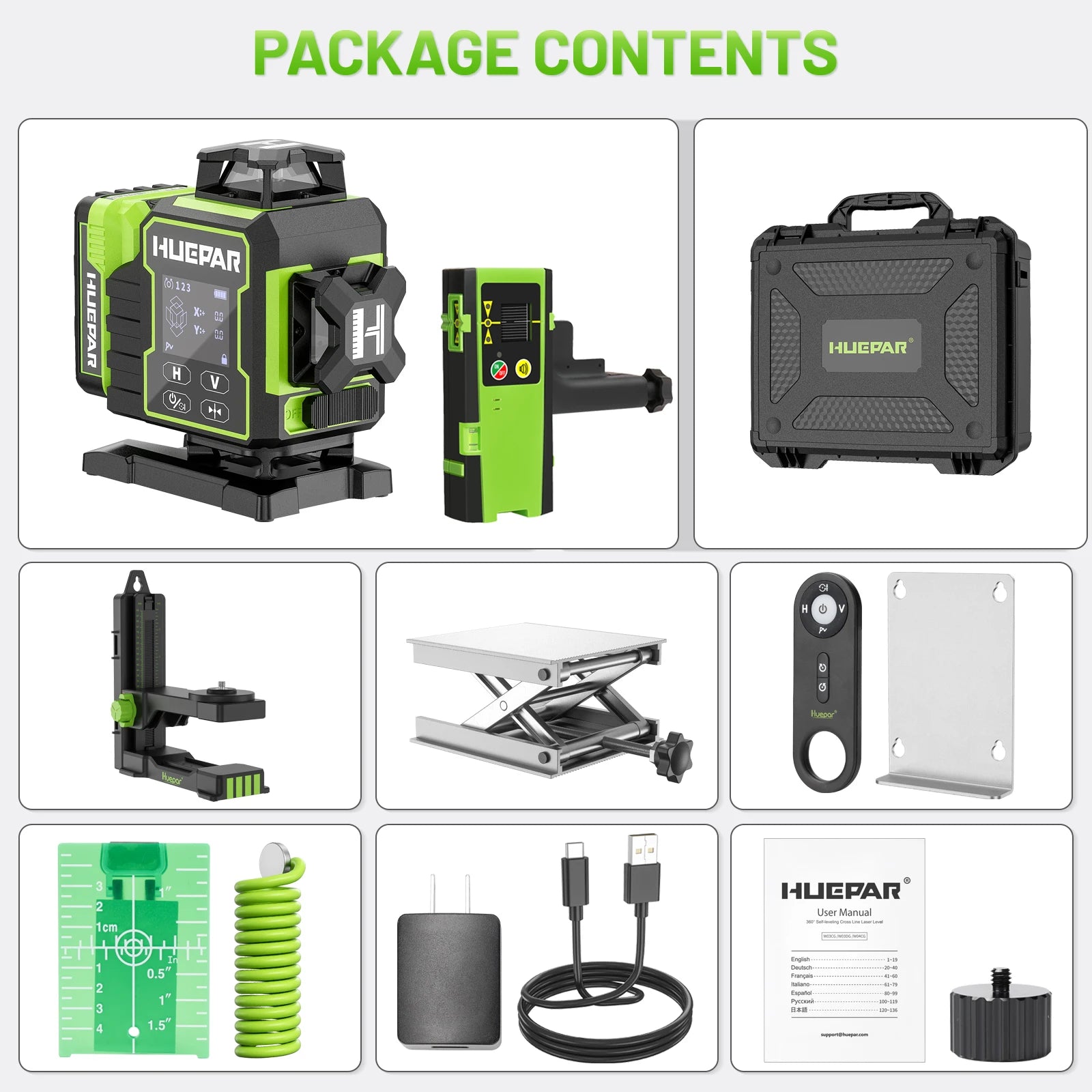

Package Contents: 1 x Huepar W04CG Green Laser Level 1 x Huepar Laser Detector LR-6RGA (or LR-5RG/LR-8RG) 1 x Thickened Drop-proof Hard Case 1 x Remote Control 1 x 12.6V 2600mAh Li-ion Battery 1 x Upgrade Magnetic Wall Bracket 1 x Green Target Plate & Drop-proof Rope 1 x Lifting Base 1 x Wall Hanging Plate 1 x 1/4" & 5/8" Mount Adapter 1 x Type-C Cord & Power Adapter 1 x Multi-language manual

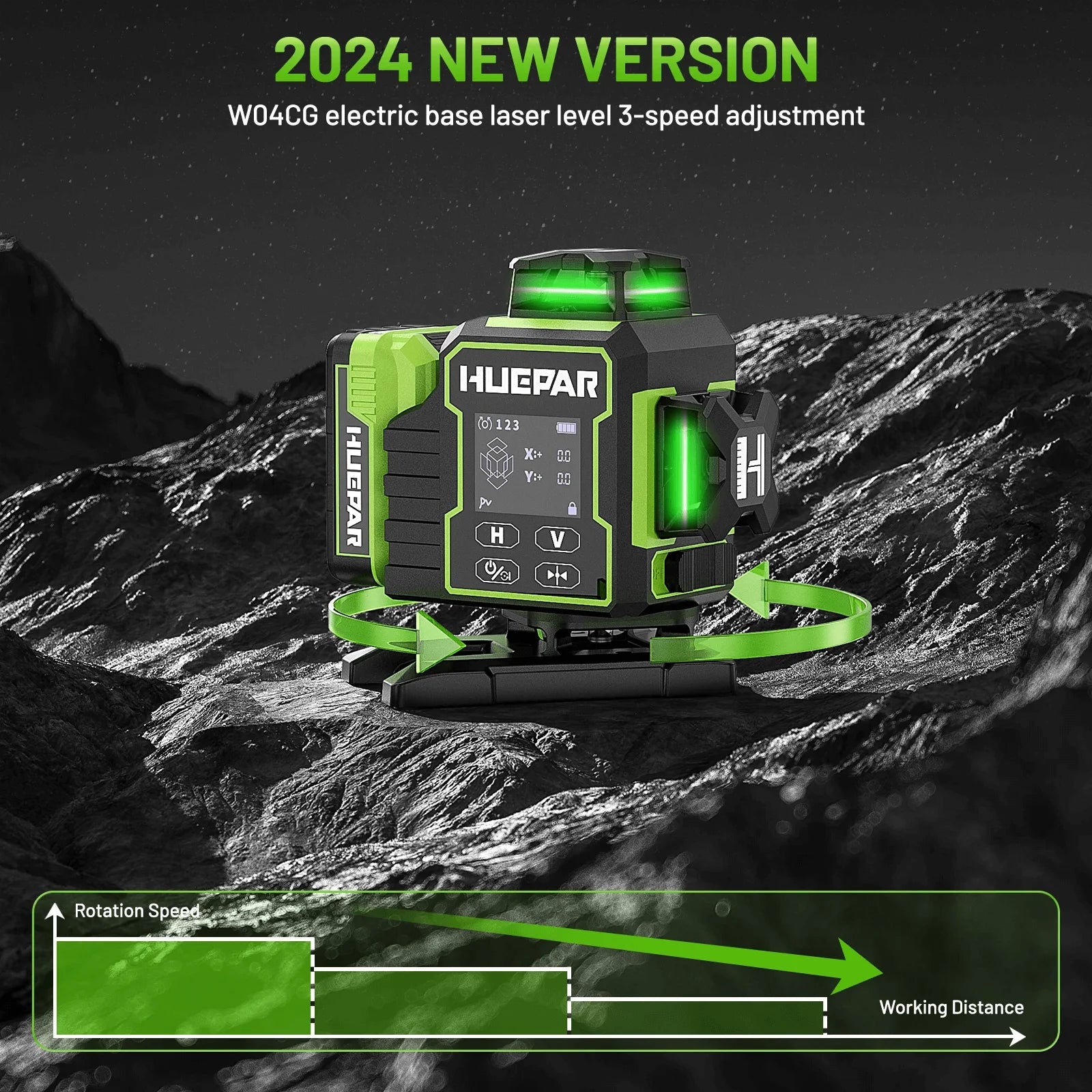

360° Electric Rotating Base

• This W04CG self leveling laser level has its own electric rotating base.
• It has three speeds: 9.1mm/s, 48mm/s, 240mm/s.
• You can choose high speed to move the laser lines quickly to the target location, or medium or low speed to fine-tune the laser line to the target location.
• You can control the rotation of the laser level within 65ft from the mobile phone APP or remote control.

4D 16 Lines Switching:

• Short press H and V button on the keypad or remote control to switch the Horizontal and Vertical laser lines separately.
• The laser lines can be selected separately according to job requirements.

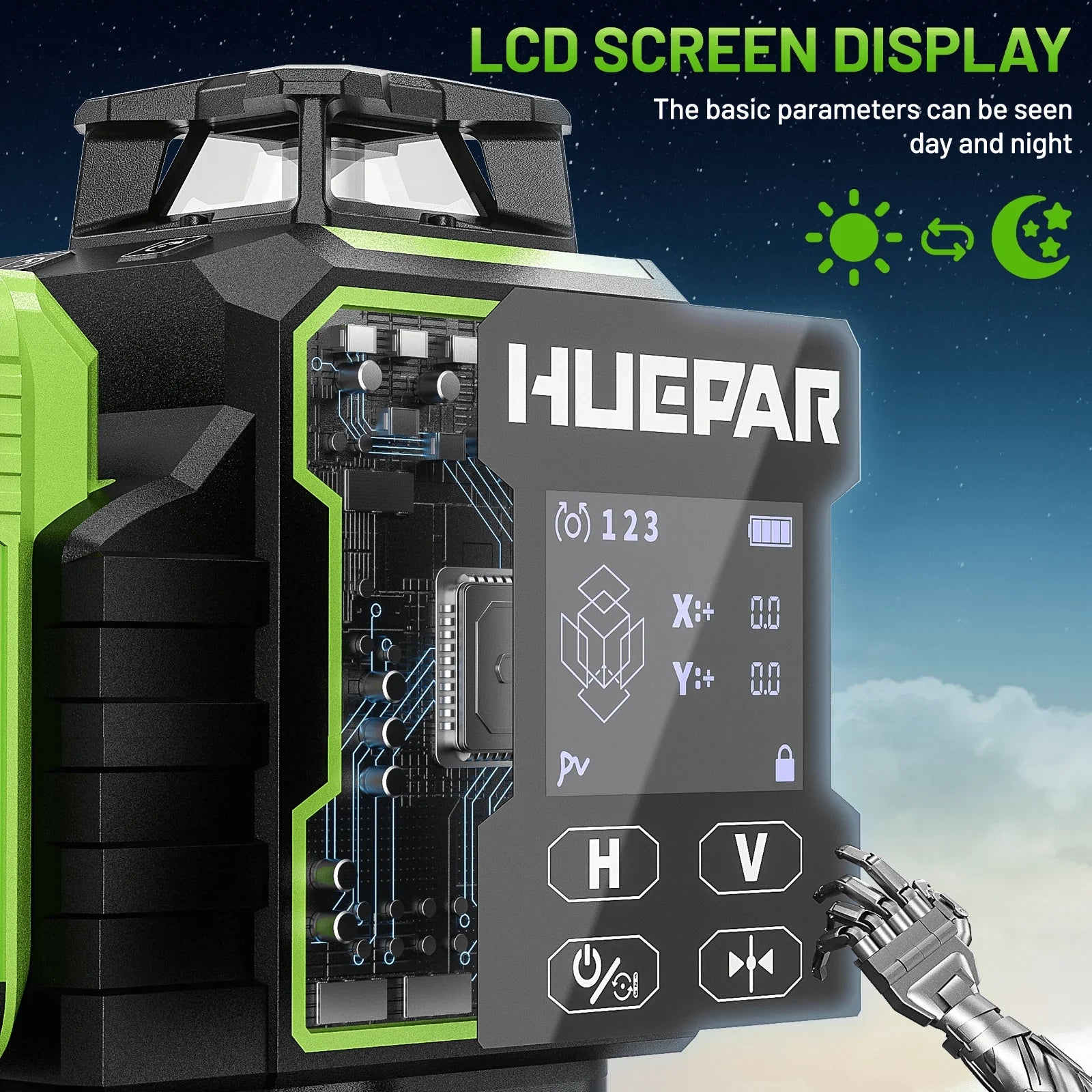

Advanced LCD Touch Panel and Backlit Display:

• The large backlit LCD display of the green laser level clearly displays the laser lines in use, the tilt angle, battery power condition, pulse mode, self leveling mode, manual mode, and rotation speed.
• The 4D laser level can be easily operated through the touch panel which is highly adaptable.

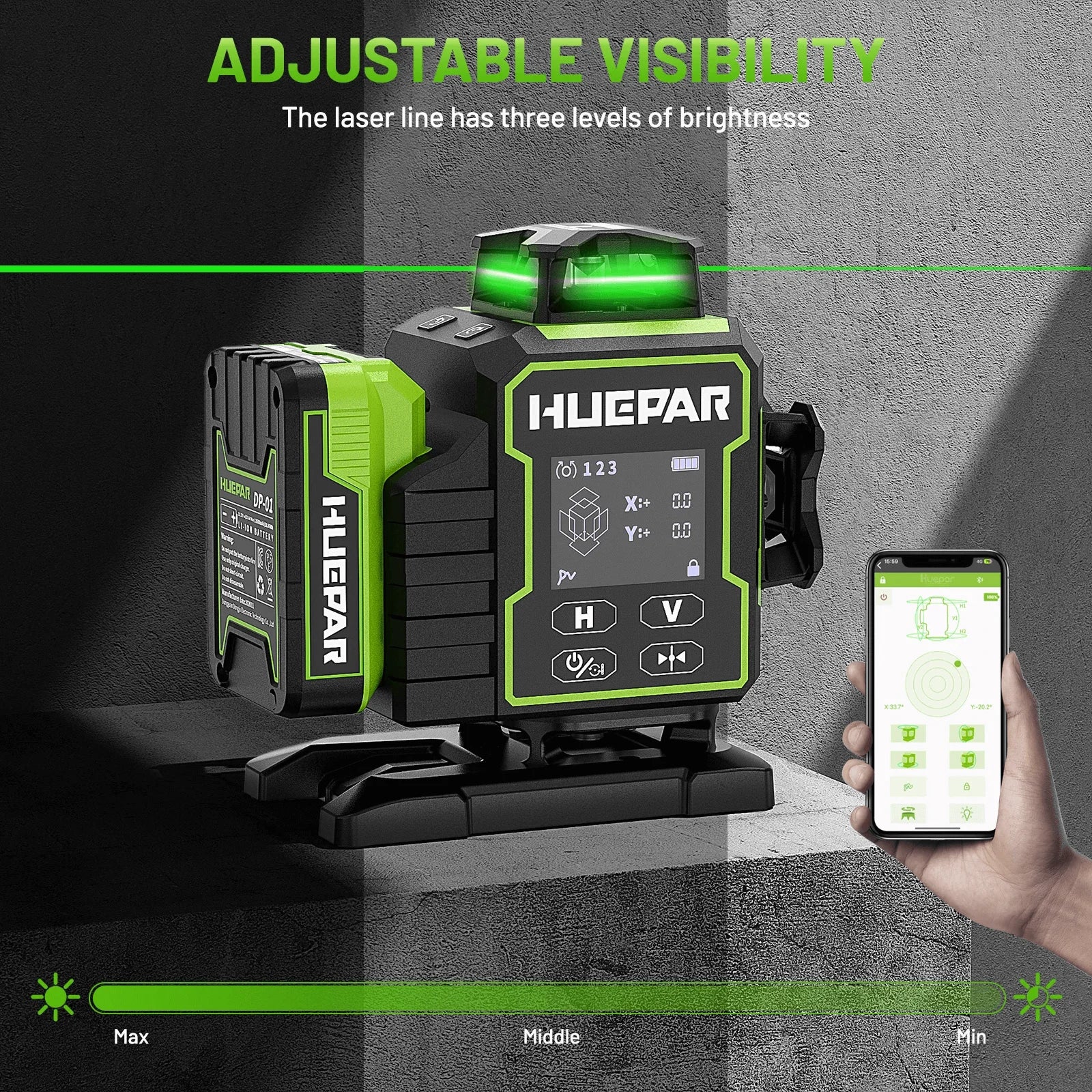

Adjustable Brightness:

• The Laser level has three levels of brightness for Min / Middle / Min.
•  The super bright green laser can be adjusted as your need in this 3 levels .

Connected With Bluetooth APP/ Remote Control:

• In addition to the key control, the 360 laser level is also equipped with mobile phone Bluetooth and remote control.
• You can control various modes using the accompanying remote or your phone's Bluetooth connection. Control range up to 65 feet.

Self leveling & Manual & Pulse Mode:

• Slide the switch to ON position to turn on self-leveling mode, the Huepar 4d laser level will be automatically leveled within ±3°.
• Slide to OFF position to turn on the manual leveling, which can be placed at any angle for use.

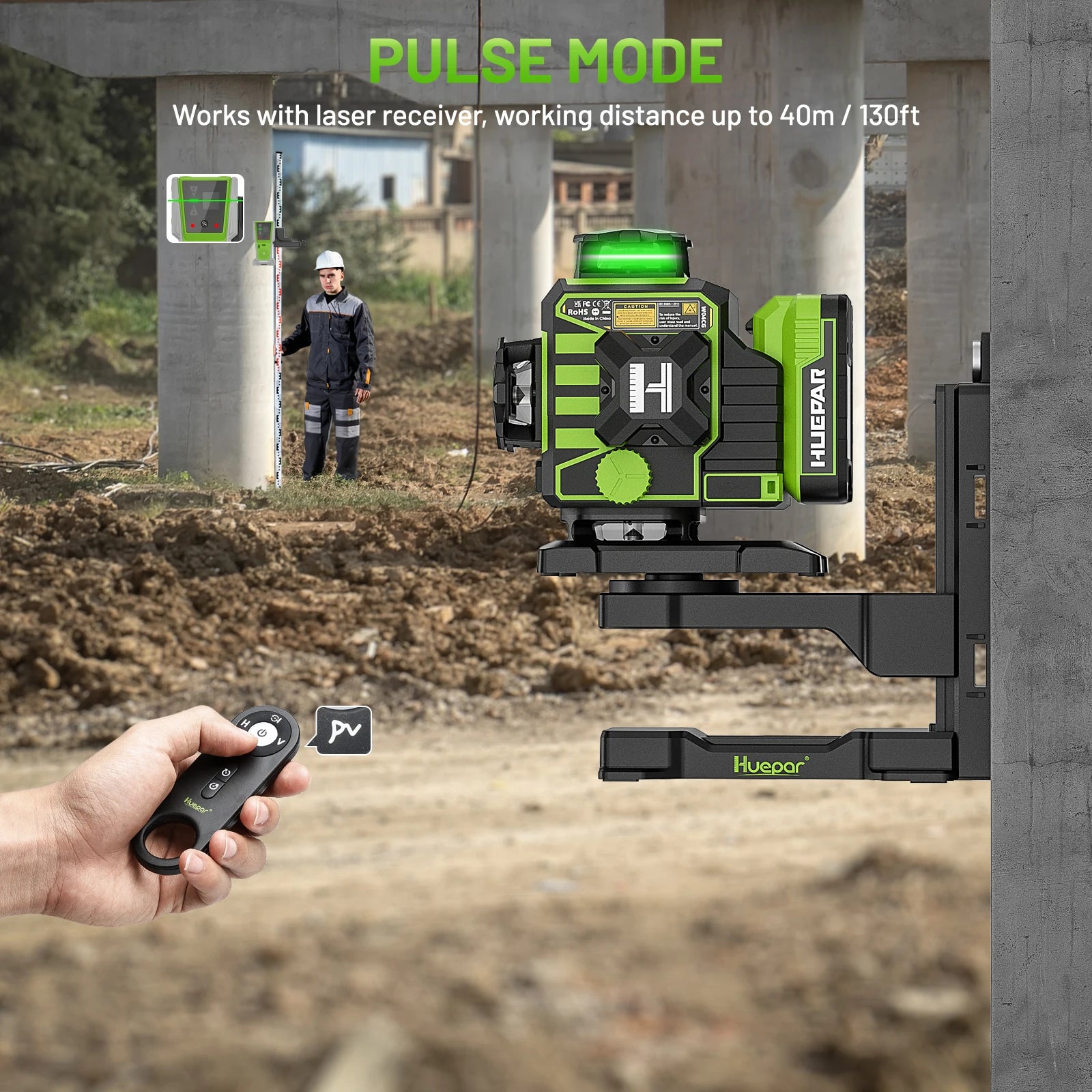

Pulse Mode:

• How to turn on the pulse mode? - Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.
• The laser level works well in bright outdoor daytime conditions using the pulse mode and Huepar's laser receiver, working distance up to 40m/130Ft.
• It is compatible with all Huepar LR-6RG&LR-5RG&LR-8RG Line Laser Receivers.

Charge and Use Simultaneously
:

• Laser Level features a convenient Type-C charging interface that enables you to charge the device while it's in use, ensuring uninterrupted operation.
• Large-capacity li-ion battery: 6.5 hours of extra-long working.

Anti-fall rope design & Strong Magnetic Wall Bracket :

• The Anti-fall rope avoid falling when working at high-space, effectively protect machines and people.
• Strong Magnetic Wall Bracket: Allows for attachment to metal track and steel.
• The laser offers 1/4"-20 and 5/8”-11 mounting thread to suit a standard tripod or pole mount.

360° Laser for Laying Floor Tiles:

• Allows for height adjustments and stable placement, ensuring that the laser lines are accurately aligned with the work surface.
•
  With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.54 inch height.

Durable metal laser windows & IP54:

Over-molded metal laser window with IP54 water/dust proof withstands tough job site conditions. Ideal for construction projects, home improvement.



Hard Carrying Case

W04CG comes with a upgraded sturdy hard carrying case, complete with foam inserts that are tailored to securely hold the machine and its accessories.
