SPECIFICATIONS

Brand Name: Huepar

Certification: CE,FCC,RoHS

Hign-concerned Chemical: None

Is Smart Device: Yes

Measurement Model: 12 lines

Model Number: Z03CG

Origin: Mainland China

Precision: ±3mm/10m(± 1/9" at 33Ft.)

Size: 32*13*29cm

Type: Vertical & Horizontal Lasers

Wavelength: 510-530nm

is_customized: No

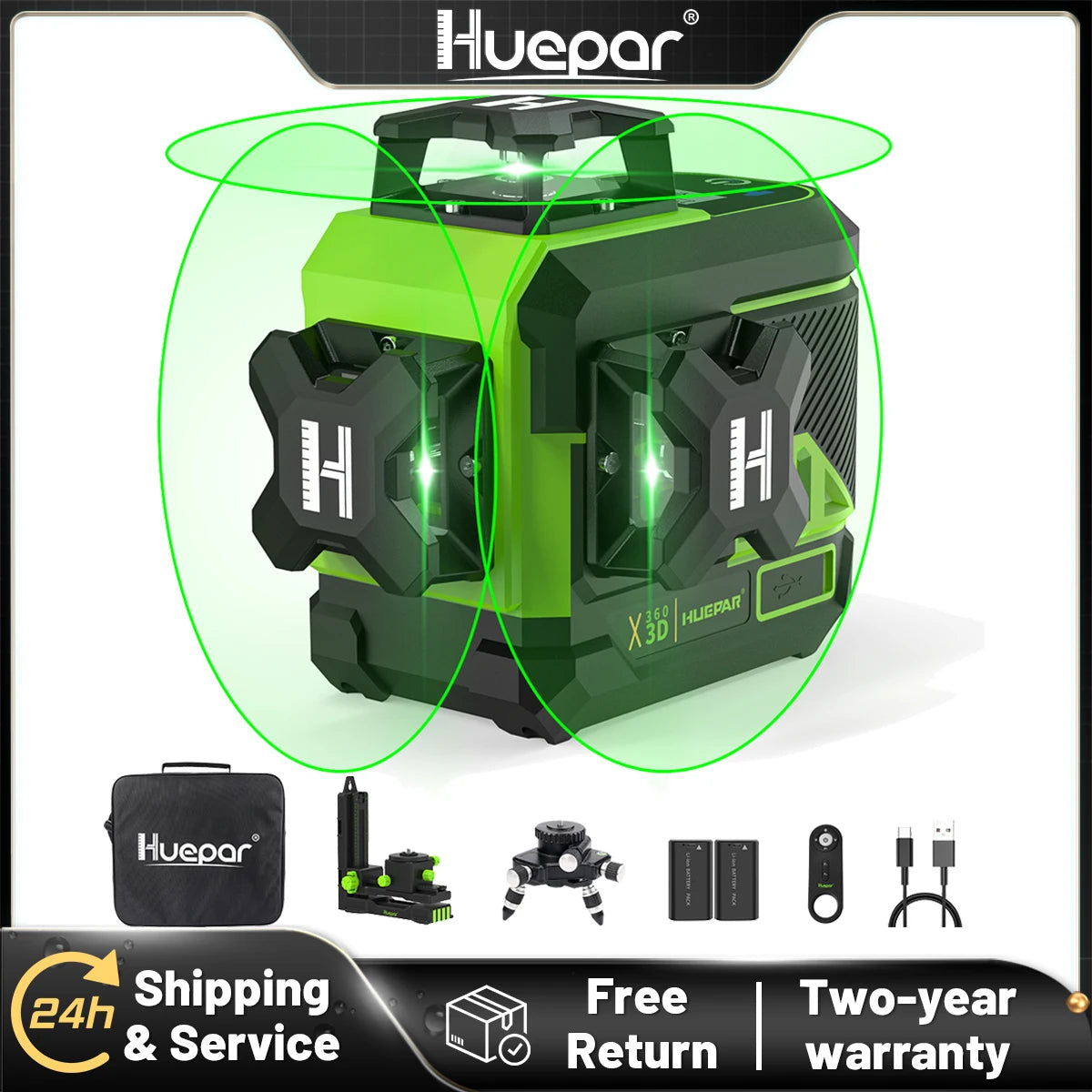

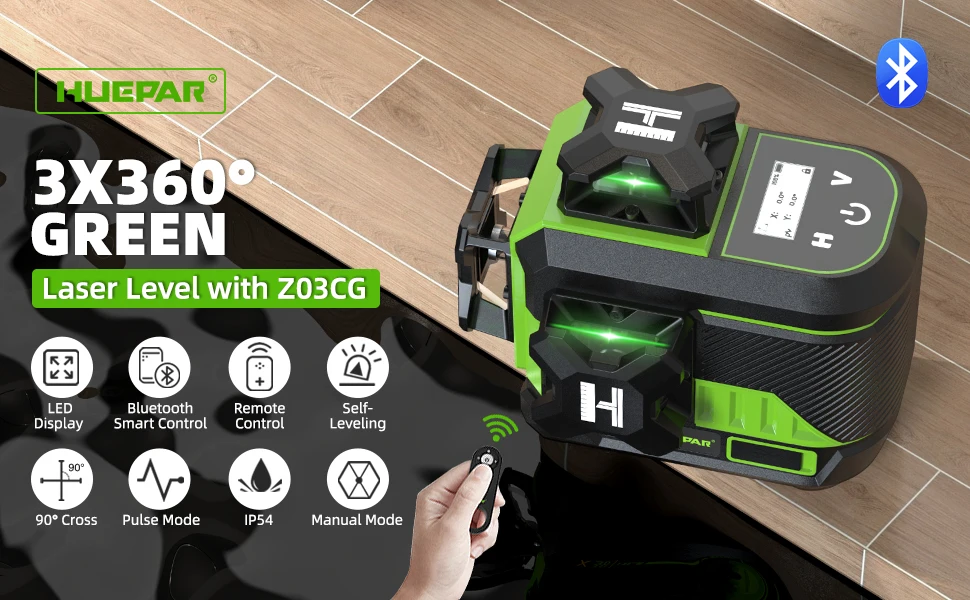

Huepar Z03CG 3x360 3D Green Laser Level Specifications:

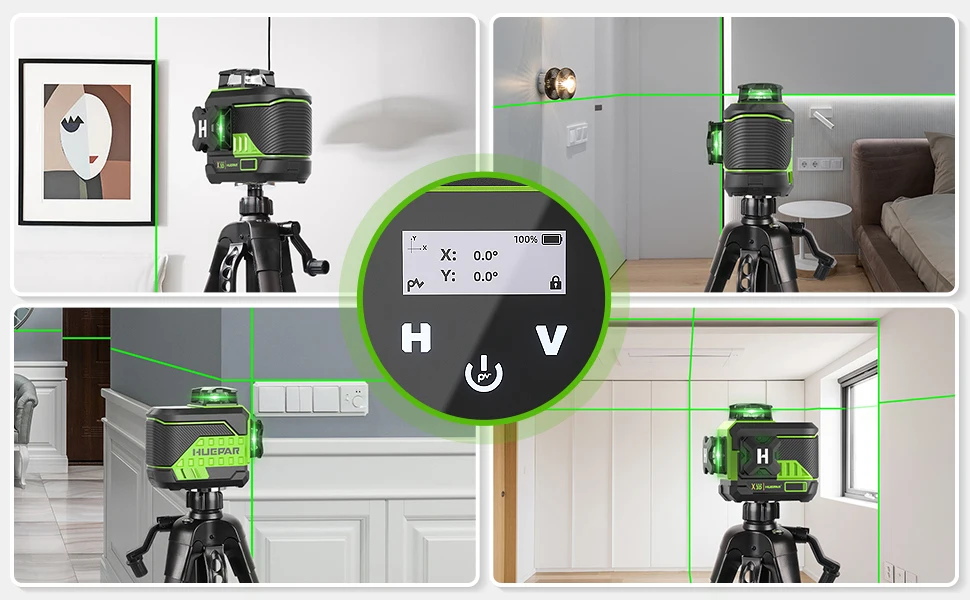

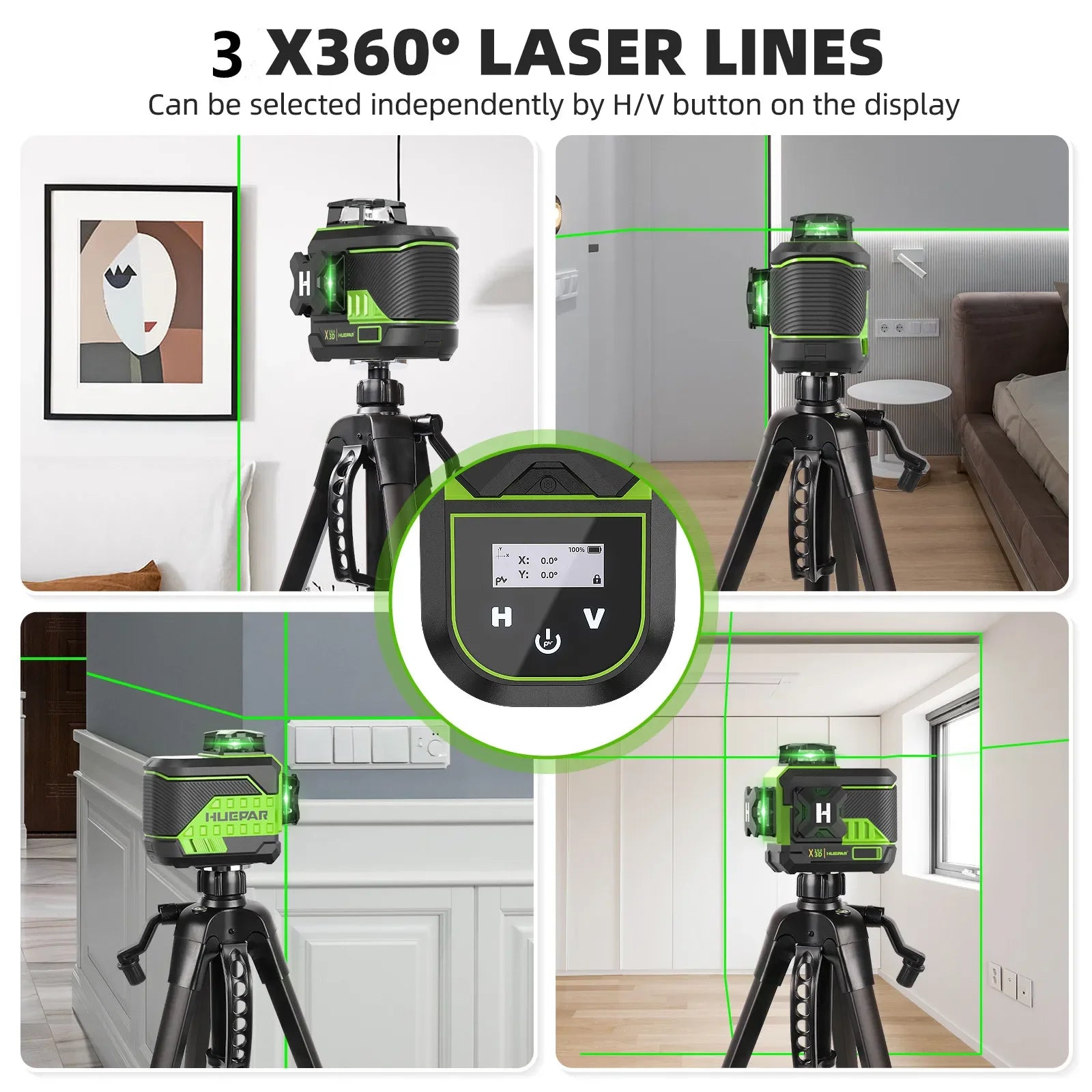

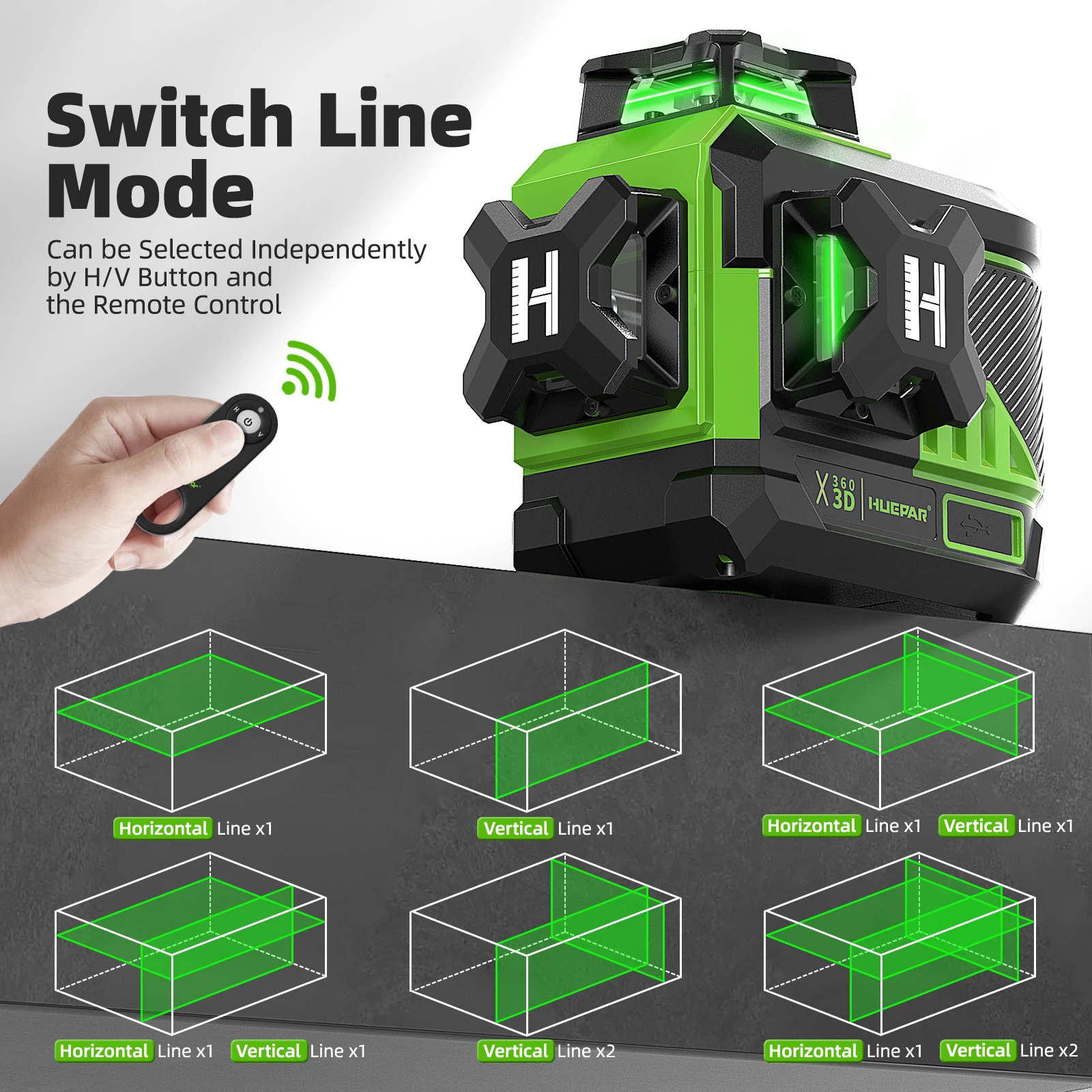

3x360° Laser Lines Switching With Remote Control Function:

• Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.

• The remote control enables to Turn ON /OFF the laser lines and switch four 360° laser lines individually at a distance up to 33Ft.

• With the remote control, users can also turn on/off the pulse mode.

• The laser lines can be selected separately according to job requirements.

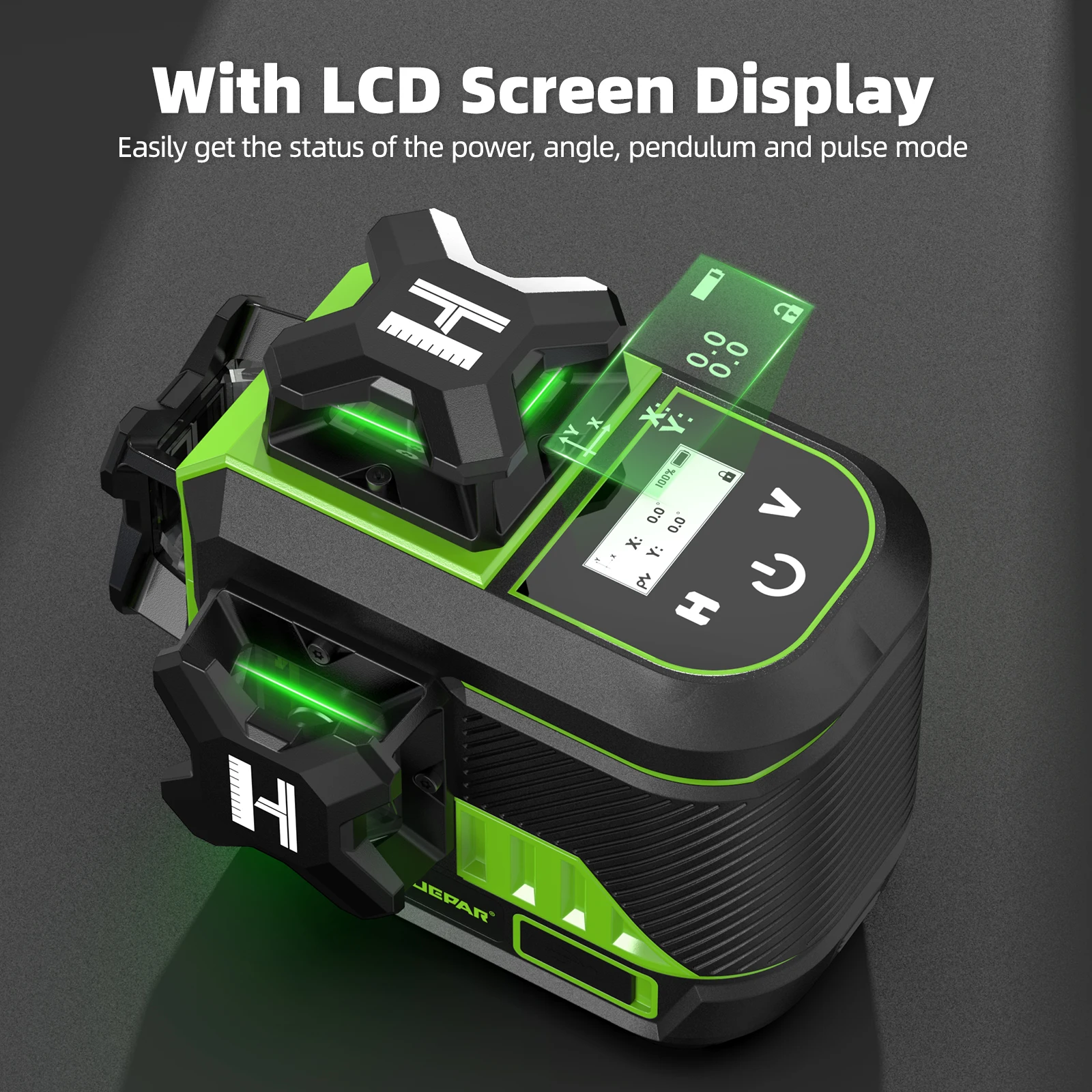

With LCD Display Screen:

• The laser level kit features LCD screen display.

• Users can easily get the status of the power, angle, pendulum and pulse mode on the display.

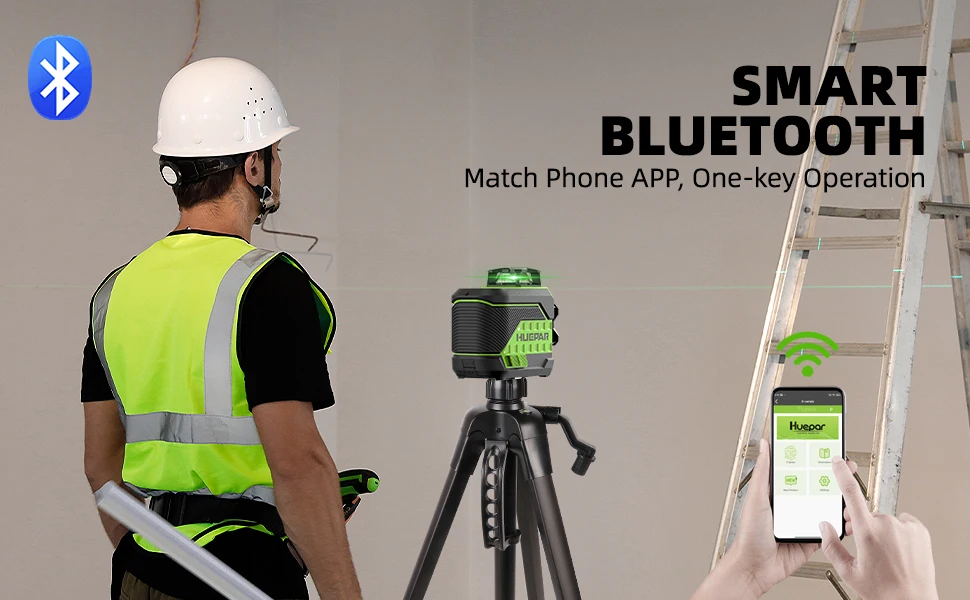

Connected With Smart Bluetooth:

• Connect the Laser Level with Free Huepar APP via Bluetooth Technology, users can control the laser tool by Mobile phone.

• The laser tool can connect two phones at the same time, whether on Android or iOS.

• The functions of the laser tool can be easily operated with the Bluetooth feature.

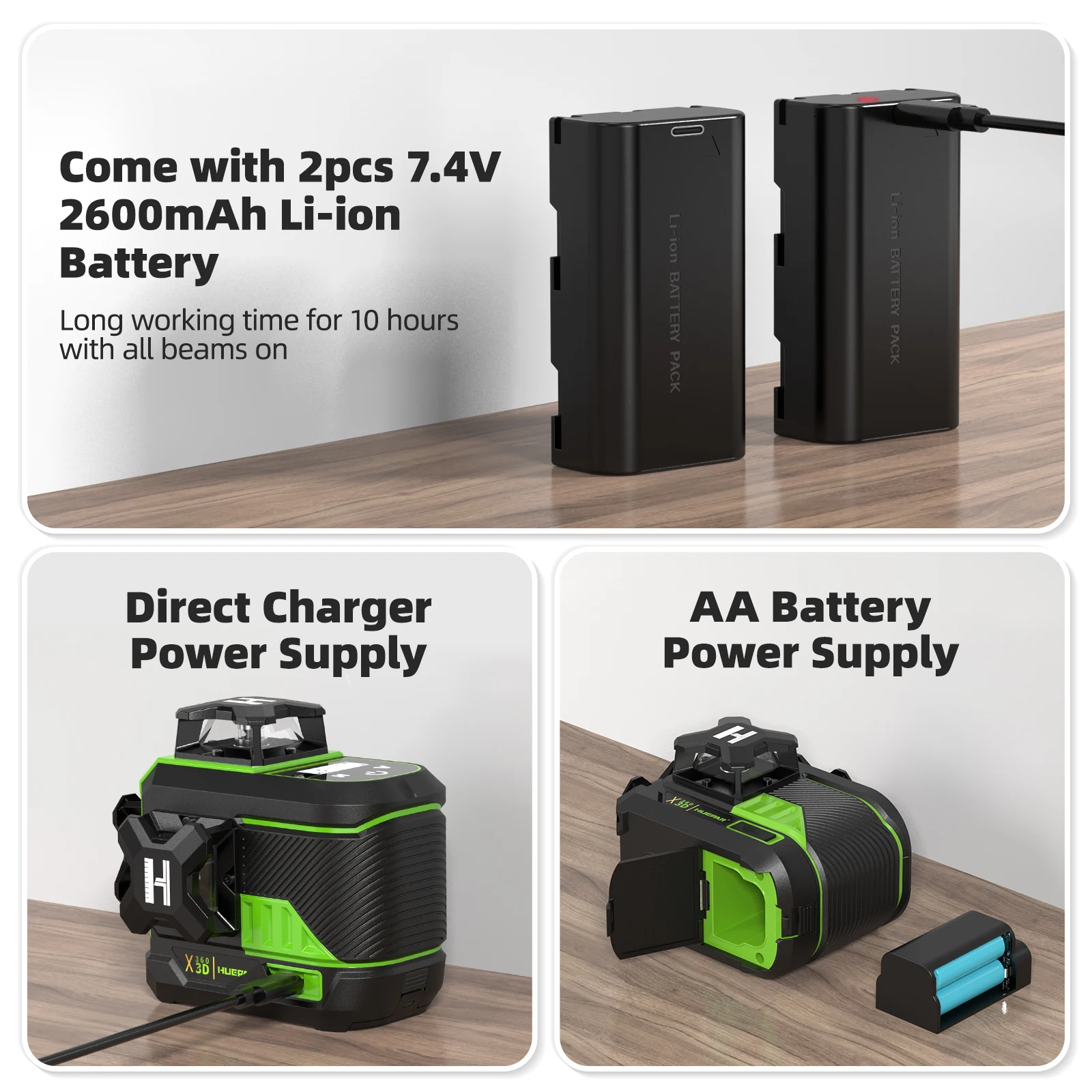

2 x Li-ion Batteries & AA Batteries Supplied:

• With 2pcs Large-capacity li-ion battery: 7 hours of extra-long working.
  The batteriers could be also charged by the Type-C cord.

• Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.

• Charging protection help prevent the tool from overcharge.

• It could be also worked with 4pcs AA battery for 0.5h usage, fully meet your usage needs.

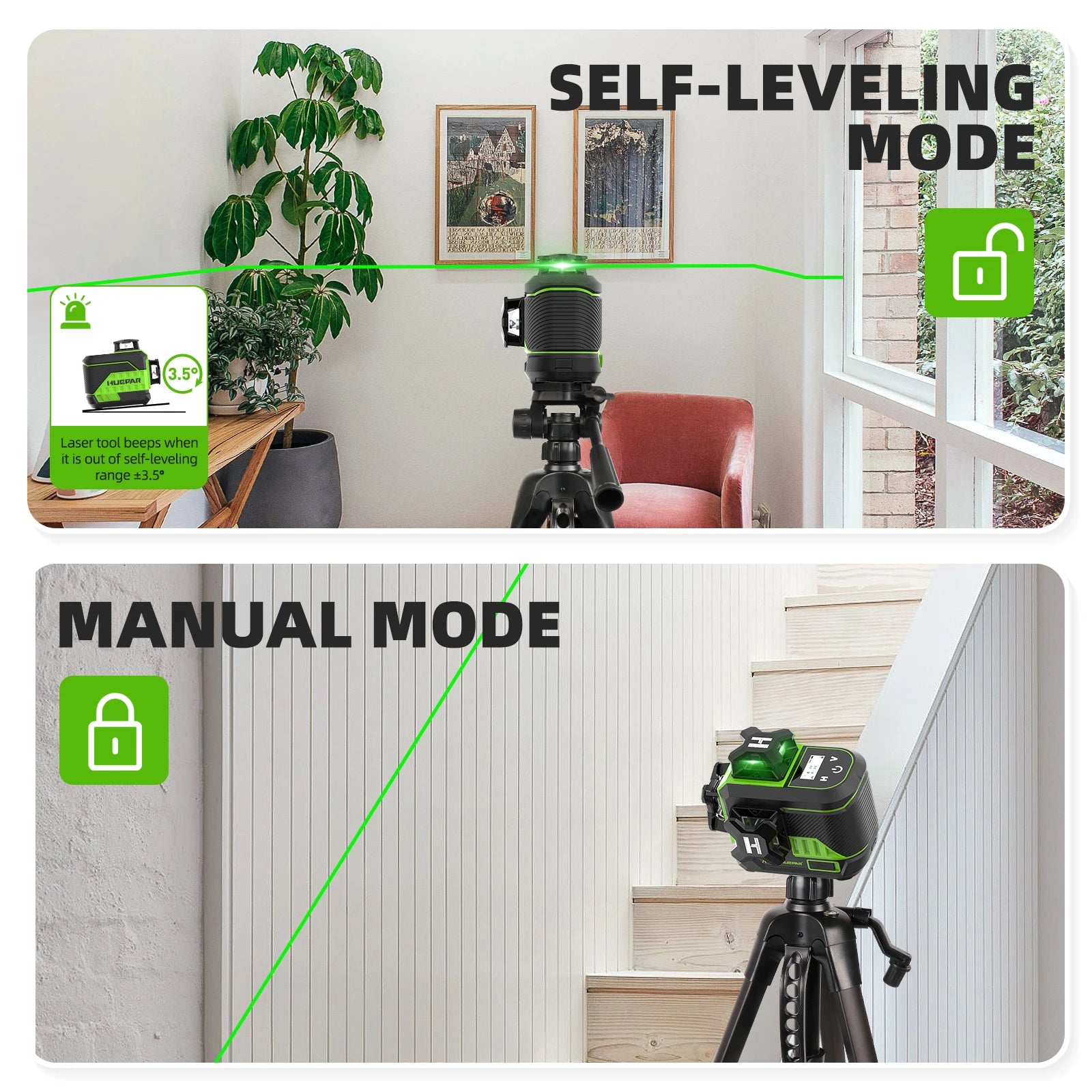

Self-leveling mode:

• Once the pendulum unlocked, self-leveling mode is enabled.

• The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.

Manual mode:

• When the pendulum locked, the laser tool can be placed for use at any angle.

• The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

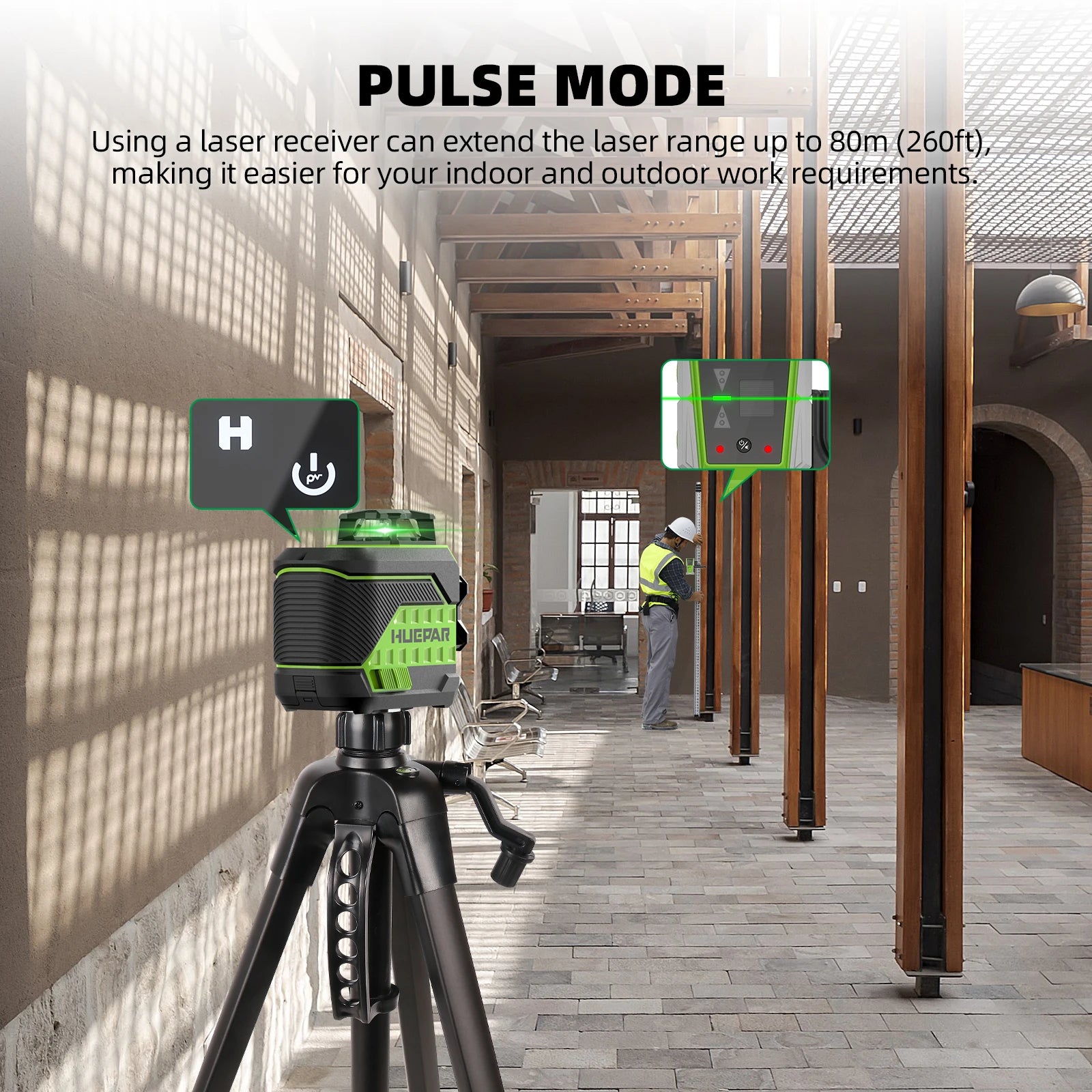

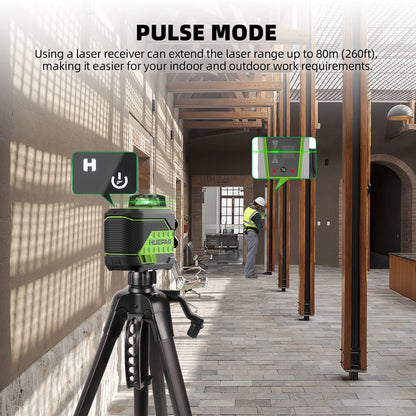

Pulse Mode:

• How to turn on the pulse mode? - Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.

• Pulse mode extends the working range up to 260Ft. in brighter working conditions when using with Huepar Line Laser Receiver.

• It is compatible with Huepar LR-8RG&LR-5RG Line Laser Receiver only.

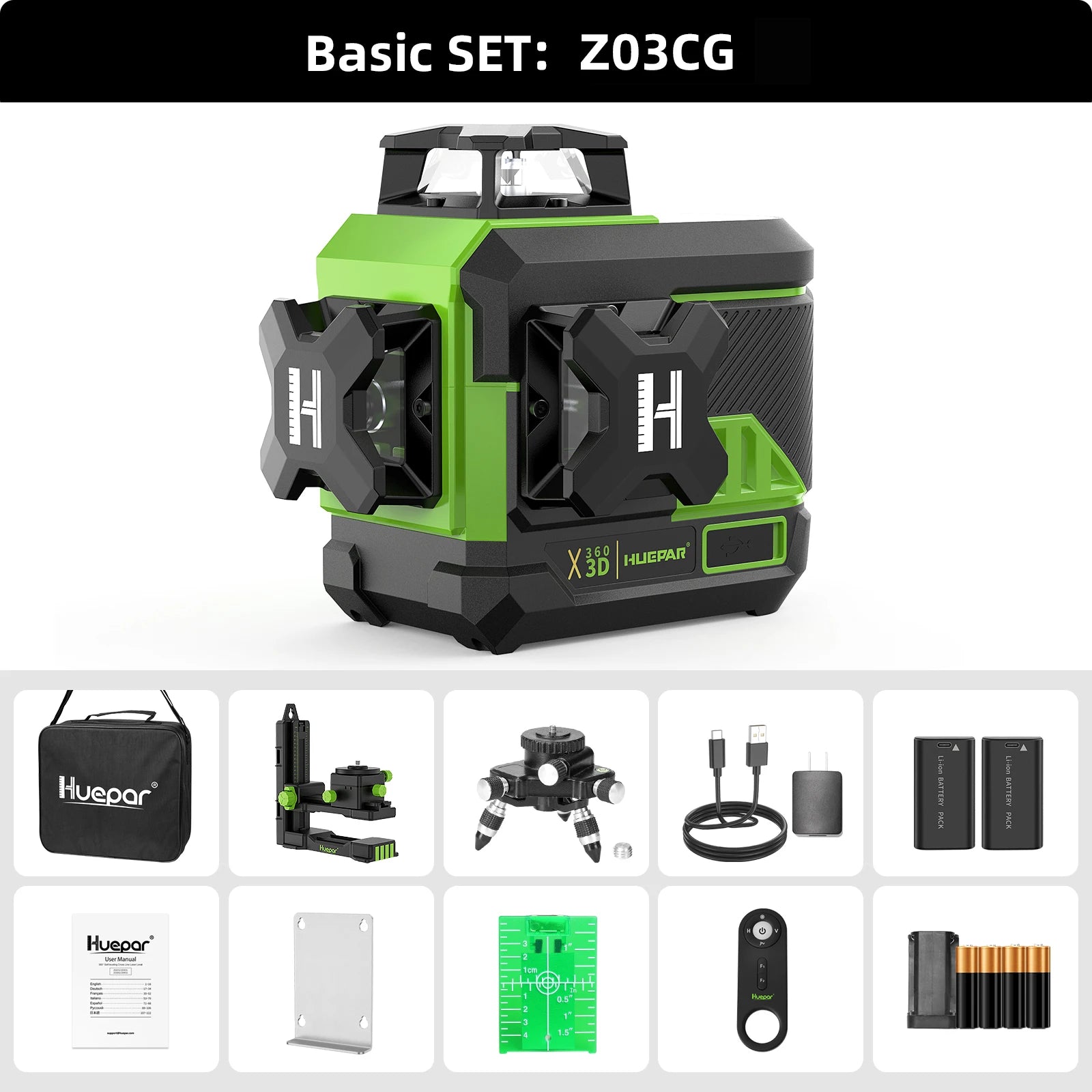

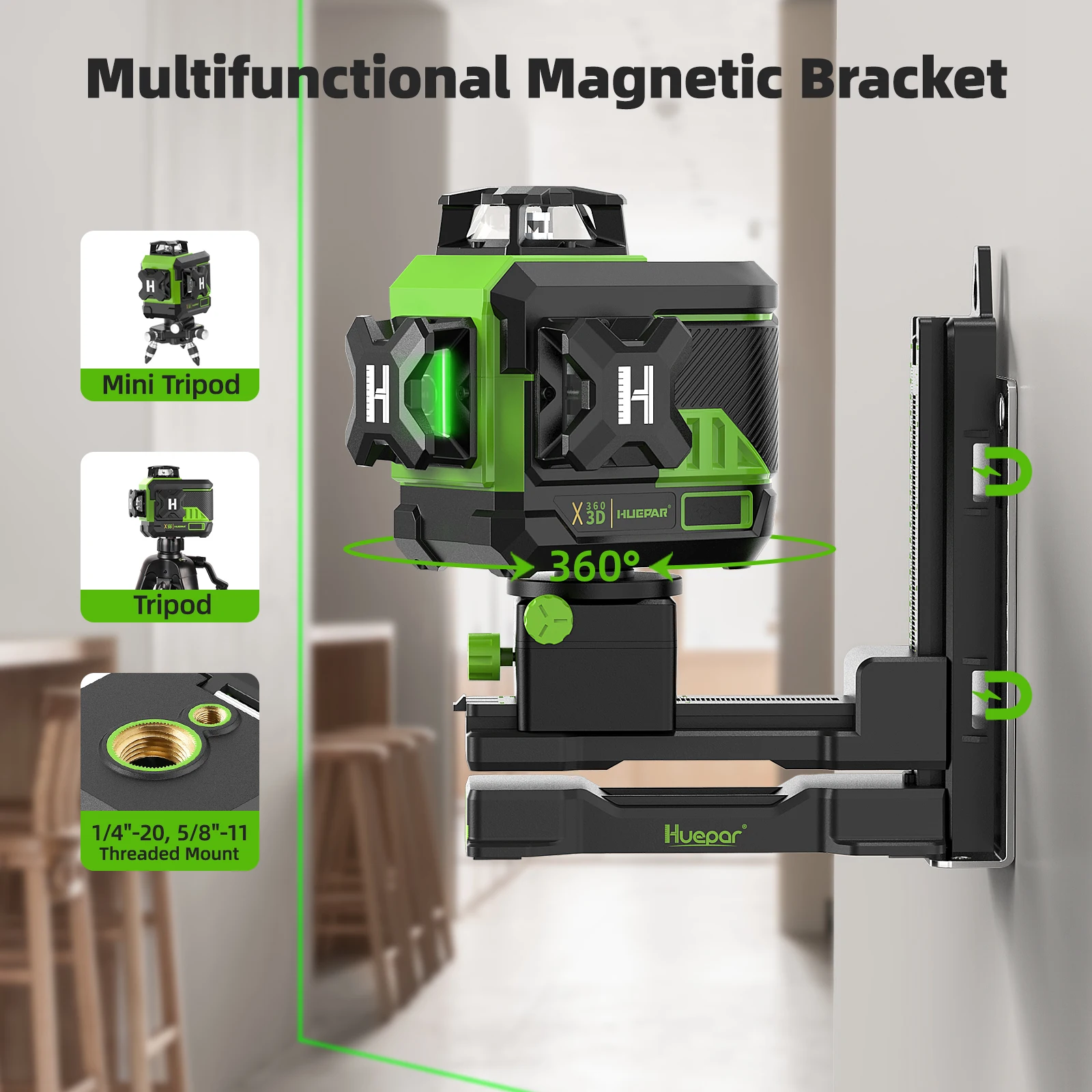

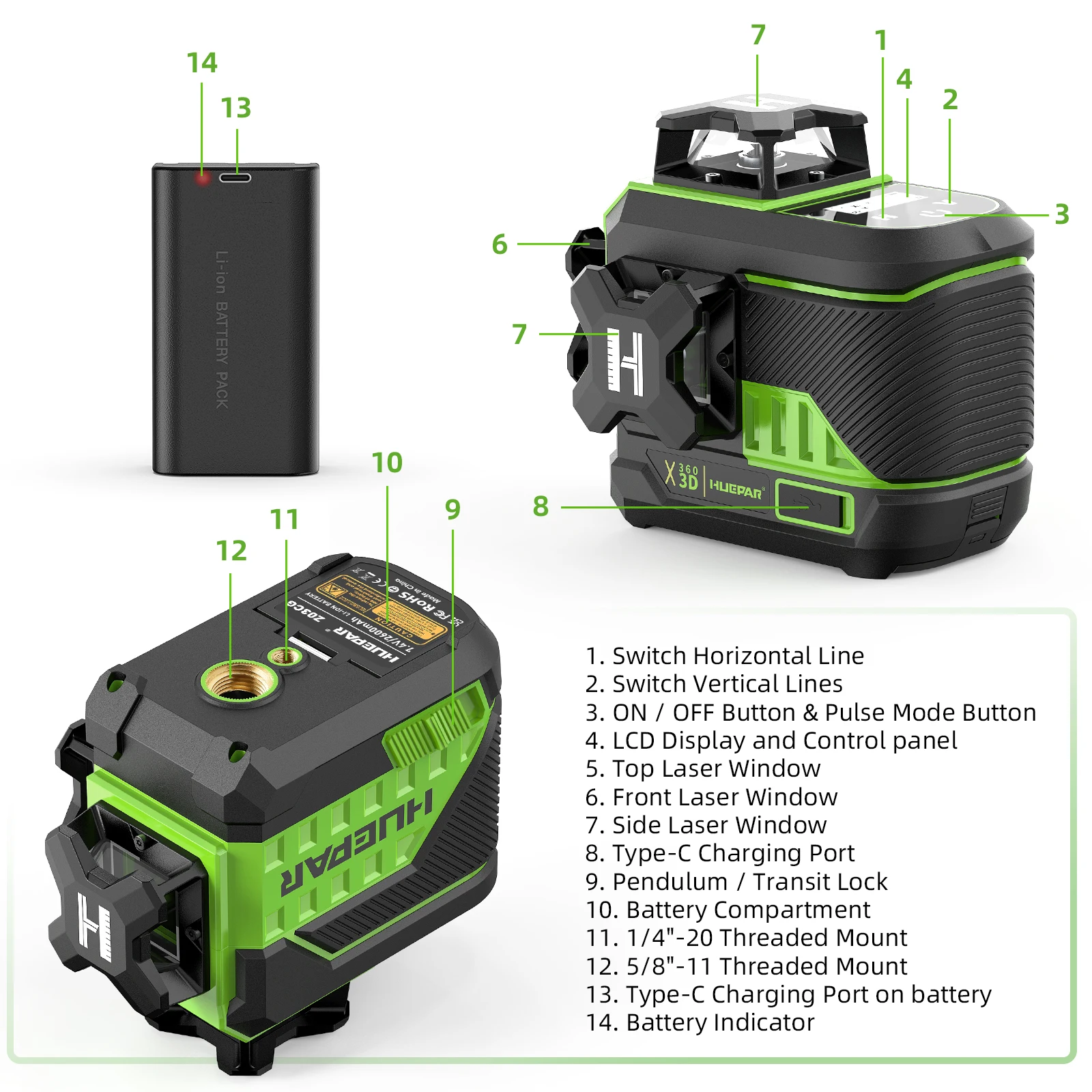

Multiple Installation Method:

• Strong Magnetic L-shape Pivoting Base: Allows for attachment to metal track and steel.

• The package also includes the laser level base of AT-2, it is good to use when you need to put the level face.

• Mount Size: 1/4"-20 & 5/8"-11 mounting thread for temporarily fastening in place or being fixed on tripod. We do supply the extra 5/8" threaded adapter in the package.

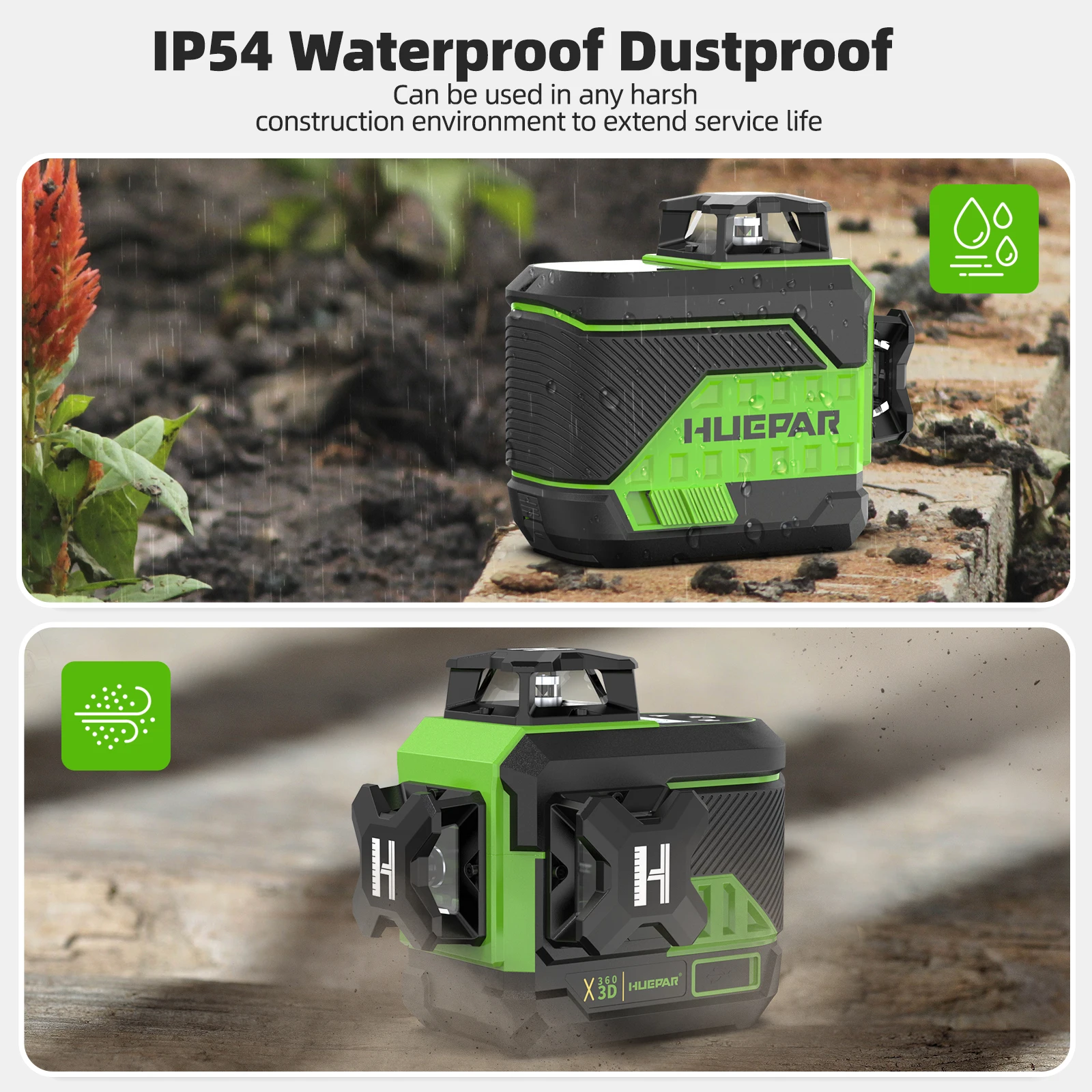

IP54 Waterproof and Dustproof

• Can be used in any harsh construction environment to extend service lift.

• The device do enjoy the one year warranty.
