Micro Firewall Appliance, Fanless Mini PC J3710 4C/4T, 4x 2.5 GbE i226-V LAN,AES-NI,DDR3 8GB SSD 128GB Router Netzwerk Security USB3.0/HD/DP/Console RJ45 Port/Wi-Fi, Dual Display

Micro Firewall Appliance, Fanless Mini PC J3710 4C/4T, 4x 2.5 GbE i226-V LAN,AES-NI,DDR3 8GB SSD 128GB Router Netzwerk Security USB3.0/HD/DP/Console RJ45 Port/Wi-Fi, Dual Display

Name: Micro Firewall Appliance, Fanless Mini PC J3710 4C/4T, 4x 2.5 GbE i226-V LAN,AES-NI,DDR3 8GB SSD 128GB Router Netzwerk Security USB3.0/HD/DP/Console RJ45 Port/Wi-Fi, Dual Display
Brand: QUORE
Price: 547.76 EUR
Availability: InStock

€547,76

Inclusief belasting. Verzendkosten worden berekend bij het afrekenen.

[{"id":61438208639306,"title":"DDR3 8GB RAM 128GB SSD","option1":"DDR3 8GB RAM 128GB SSD","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"Micro Firewall Appliance, Fanless Mini PC J3710 4C\/4T, 4x 2.5 GbE i226-V LAN,AES-NI,DDR3 8GB SSD 128GB Router Netzwerk Security USB3.0\/HD\/DP\/Console RJ45 Port\/Wi-Fi, Dual Display - DDR3 8GB RAM 128GB SSD","public_title":"DDR3 8GB RAM 128GB SSD","options":["DDR3 8GB RAM 128GB SSD"],"price":54776,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":61438208672074,"title":"DDR3 8GB RAM 256GB SSD","option1":"DDR3 8GB RAM 256GB SSD","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"Micro Firewall Appliance, Fanless Mini PC J3710 4C\/4T, 4x 2.5 GbE i226-V LAN,AES-NI,DDR3 8GB SSD 128GB Router Netzwerk Security USB3.0\/HD\/DP\/Console RJ45 Port\/Wi-Fi, Dual Display - DDR3 8GB RAM 256GB SSD","public_title":"DDR3 8GB RAM 256GB SSD","options":["DDR3 8GB RAM 256GB SSD"],"price":24898,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":61438208704842,"title":"NO RAM NO SSD","option1":"NO RAM NO SSD","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"Micro Firewall Appliance, Fanless Mini PC J3710 4C\/4T, 4x 2.5 GbE i226-V LAN,AES-NI,DDR3 8GB SSD 128GB Router Netzwerk Security USB3.0\/HD\/DP\/Console RJ45 Port\/Wi-Fi, Dual Display - NO RAM NO SSD","public_title":"NO RAM NO SSD","options":["NO RAM NO SSD"],"price":24898,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Processor and Operating System:Rouafwit fanless firewall mini appliance is equipped with Pentium J3710 processor featuring 4 cores and 4 threads (2MB cache, up to 2.64GHz),TDP 6.5W, and supports the AES-NI instruction set. It comes pre-installed with pfSense and also supports open-source operating systems such as Linux Ubuntu

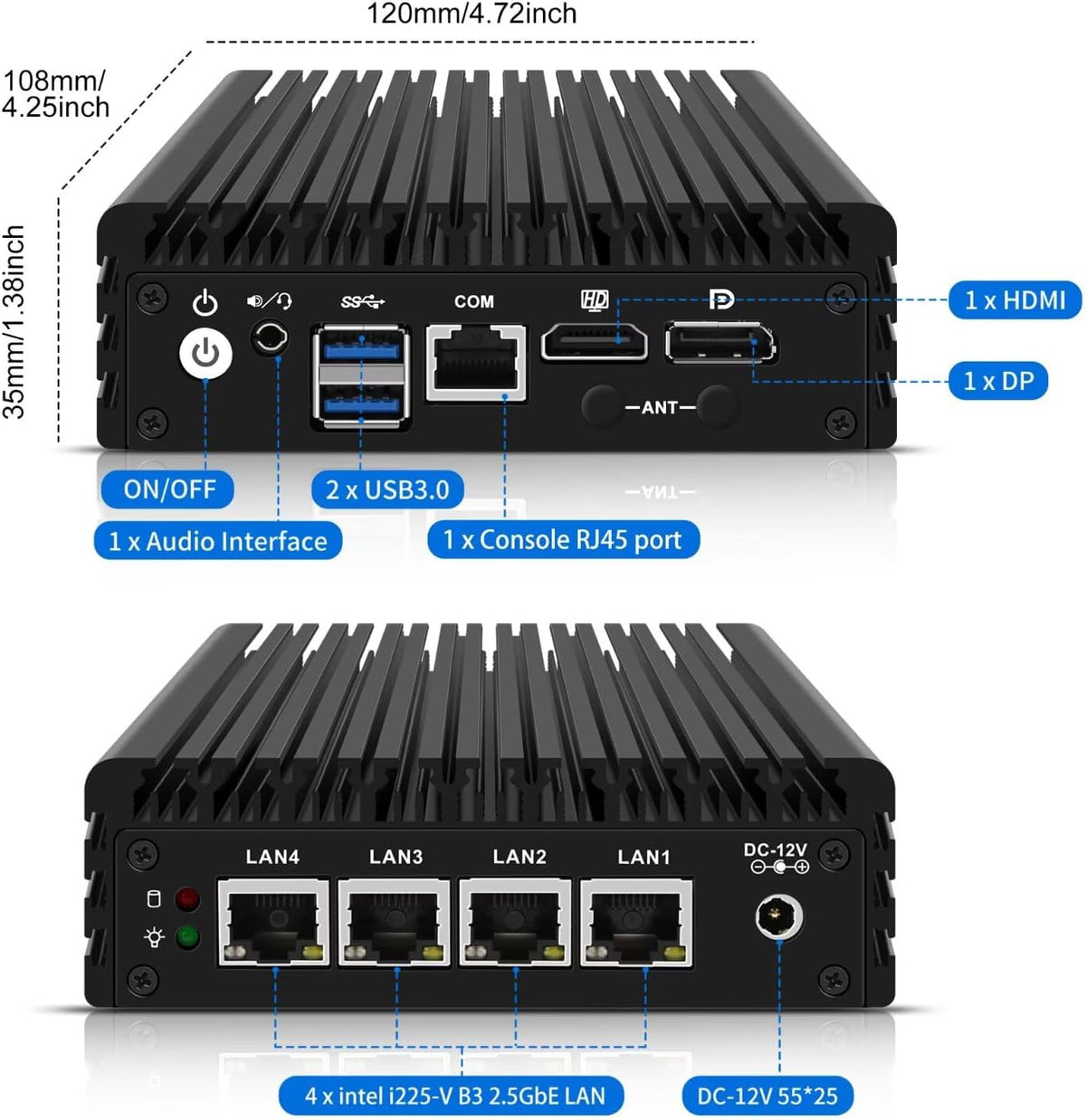

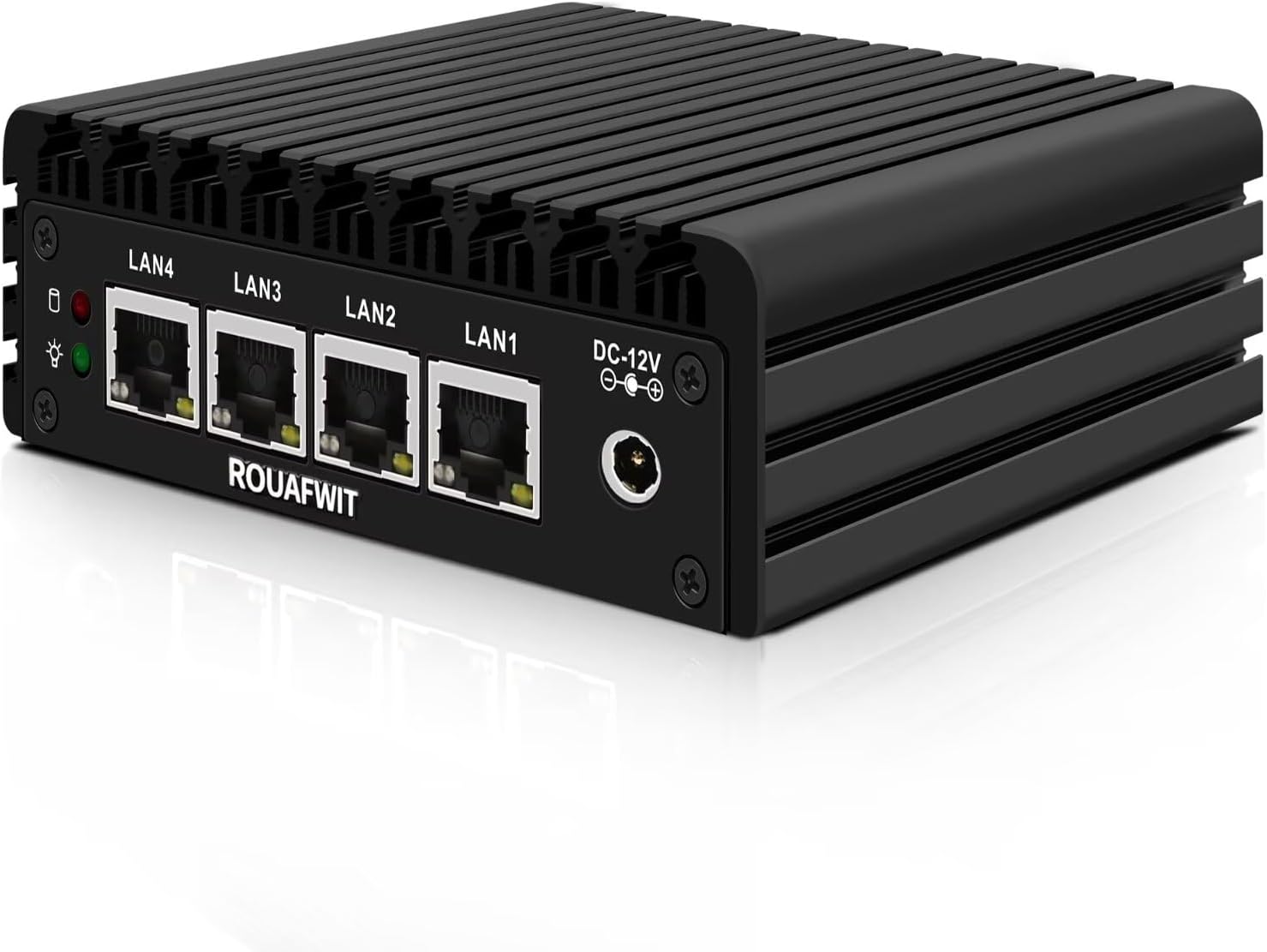

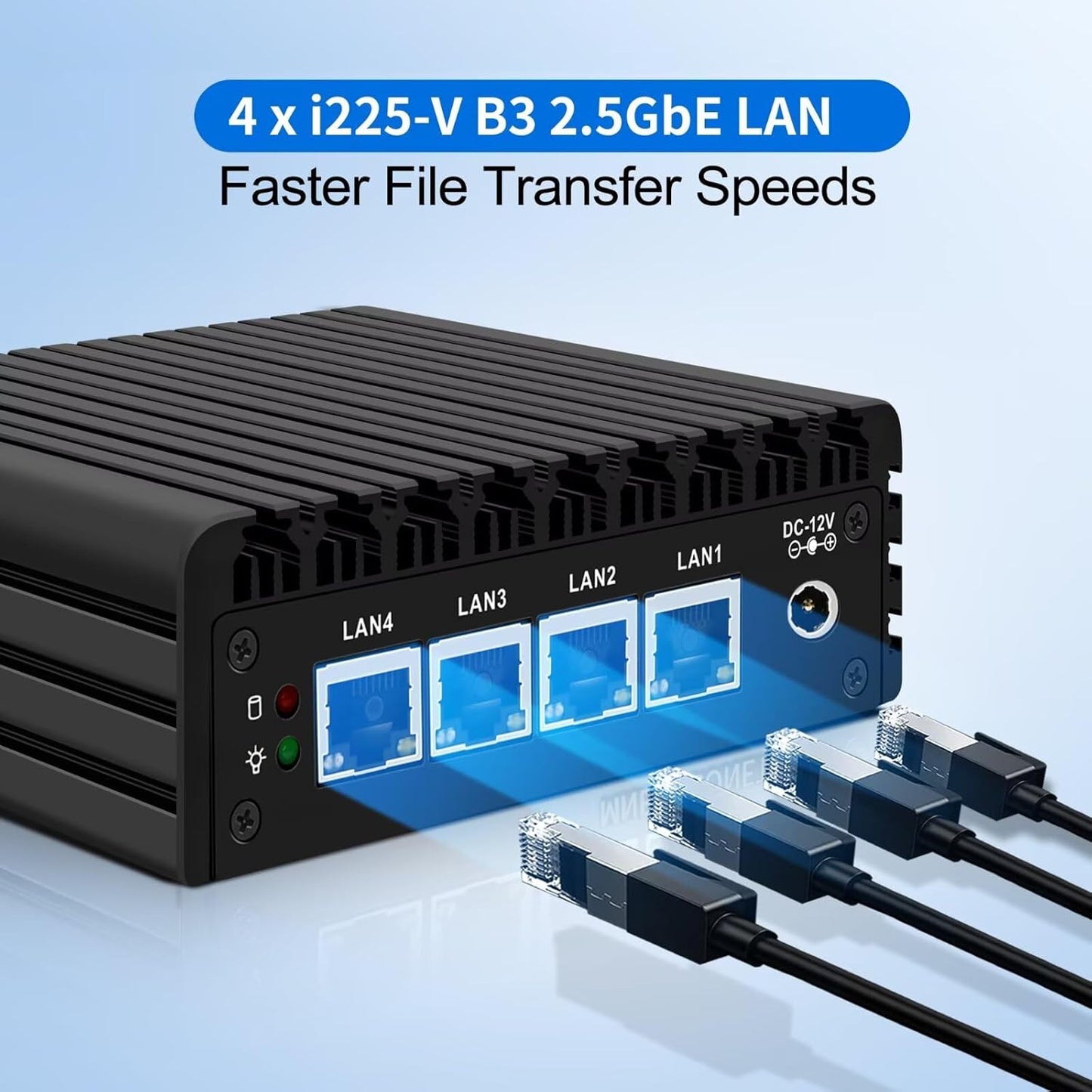

4 Ethernet Ports:The firewall mini device includes 4 independent 2.5GbE i226 Ethernet ports, 2 x USB 3.0 ports,1x RJ45 COM, 1x HD ports, 1x DP ports,and 1x DC power port. These 4 multi-gigabit Ethernet ports ensure fast and stable network connectivity, meeting the needs of software routing and other network applications

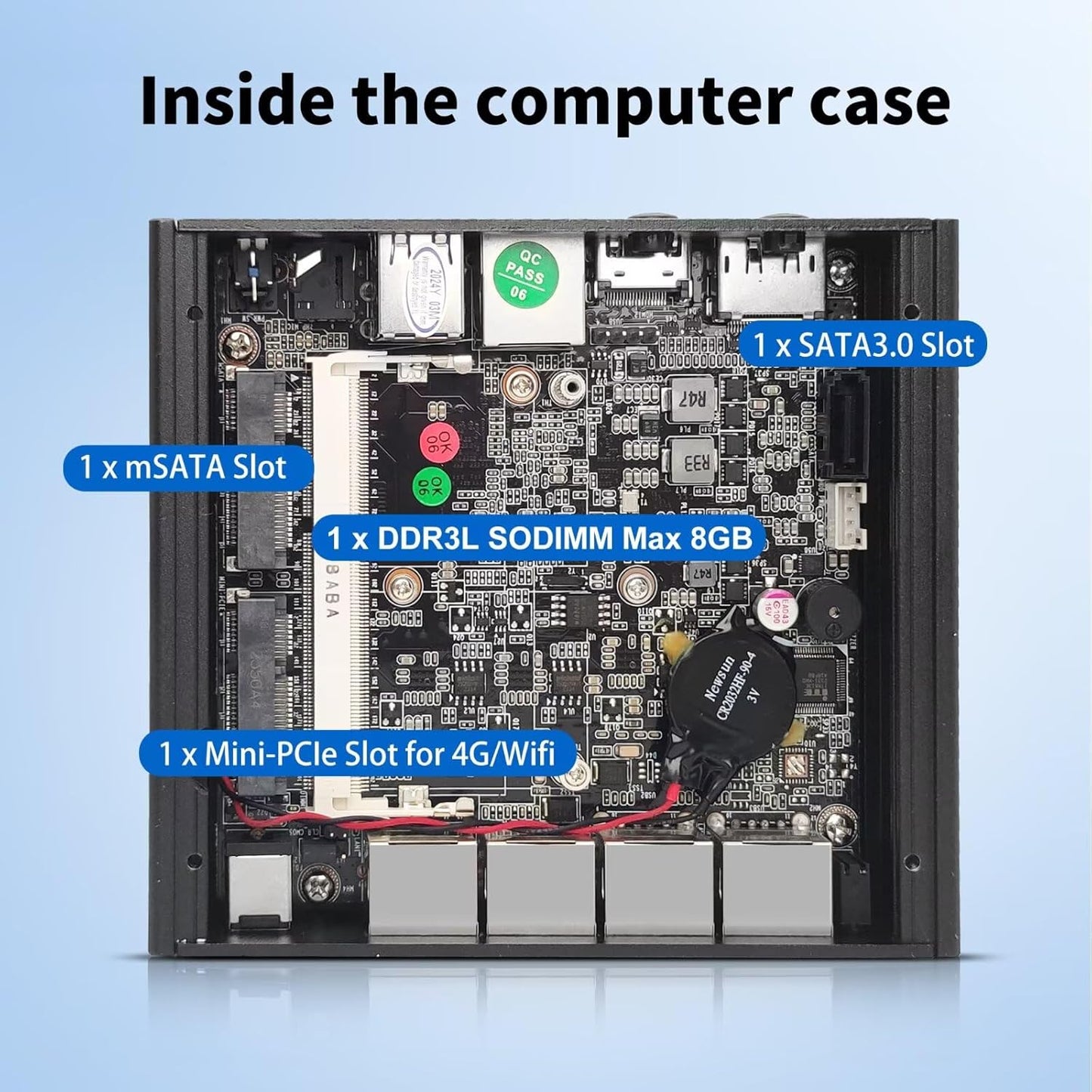

Memory and Storage:The mini firewall appliance features 1x SODIMM DDR3 memory slot,max 8GB, 1x MSATA slots, and 1x SATA slot, 1x Mini-PCle WiFi Slot. The memory capacity is sufficient to support various firewall software and hypervisor applications

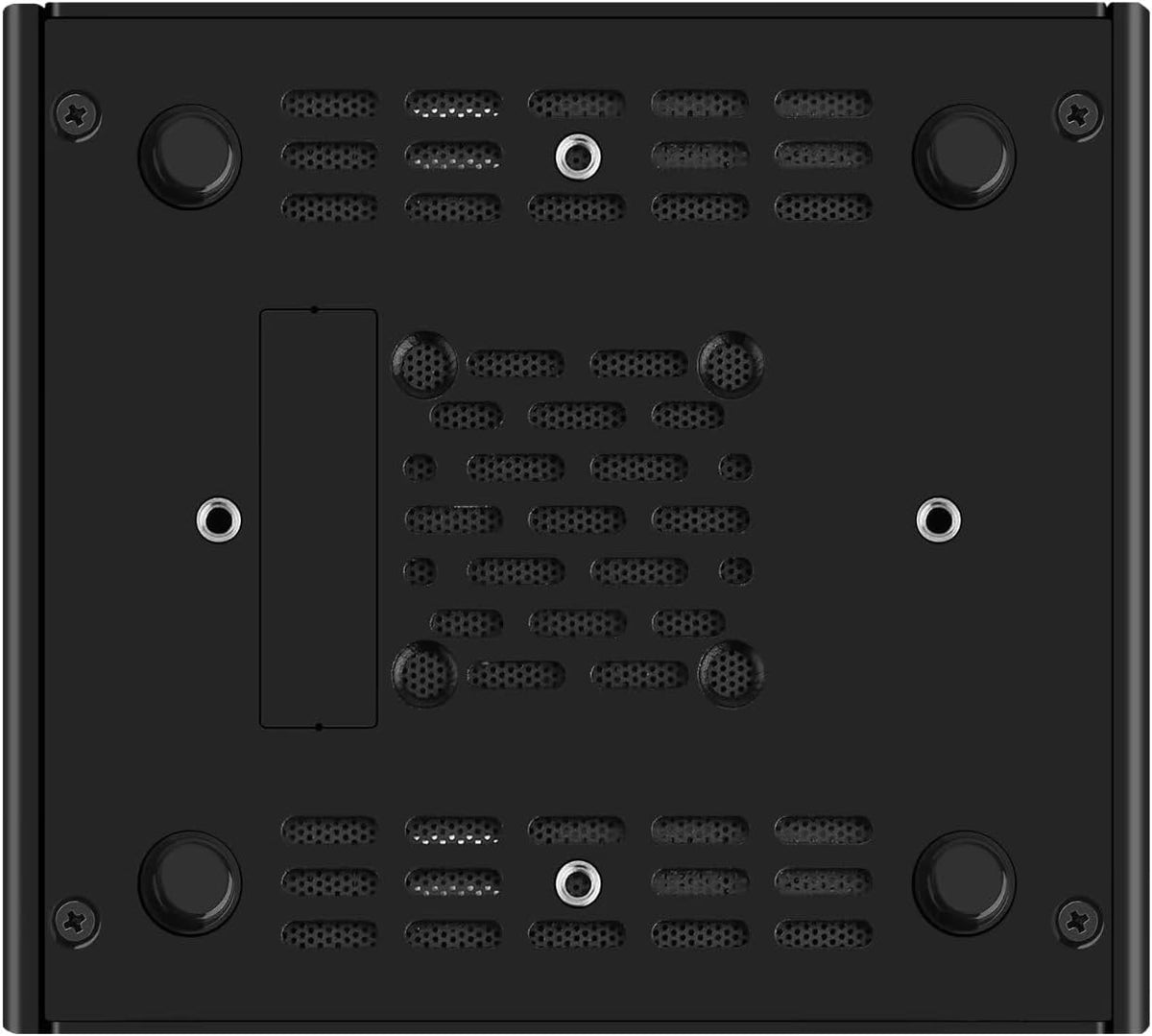

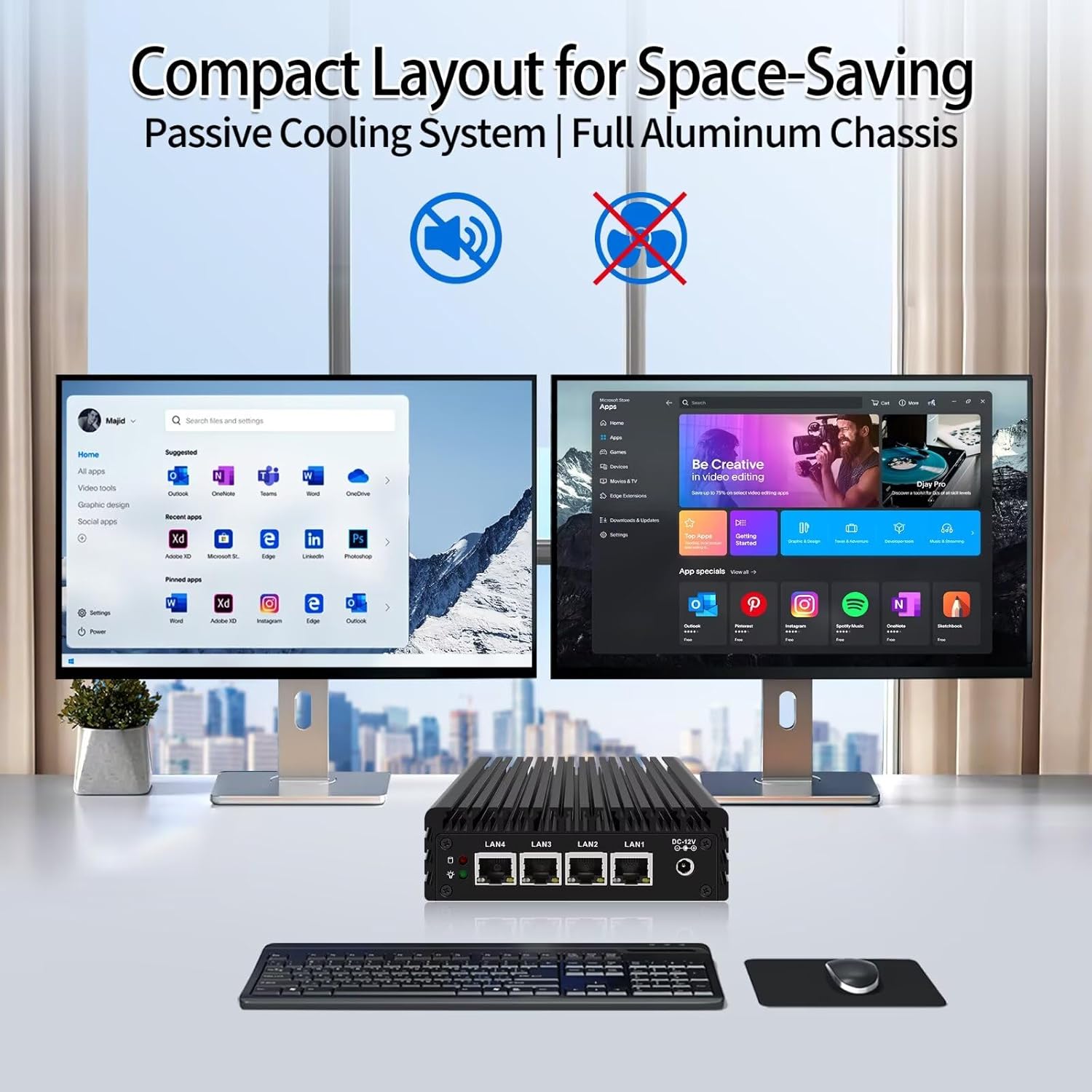

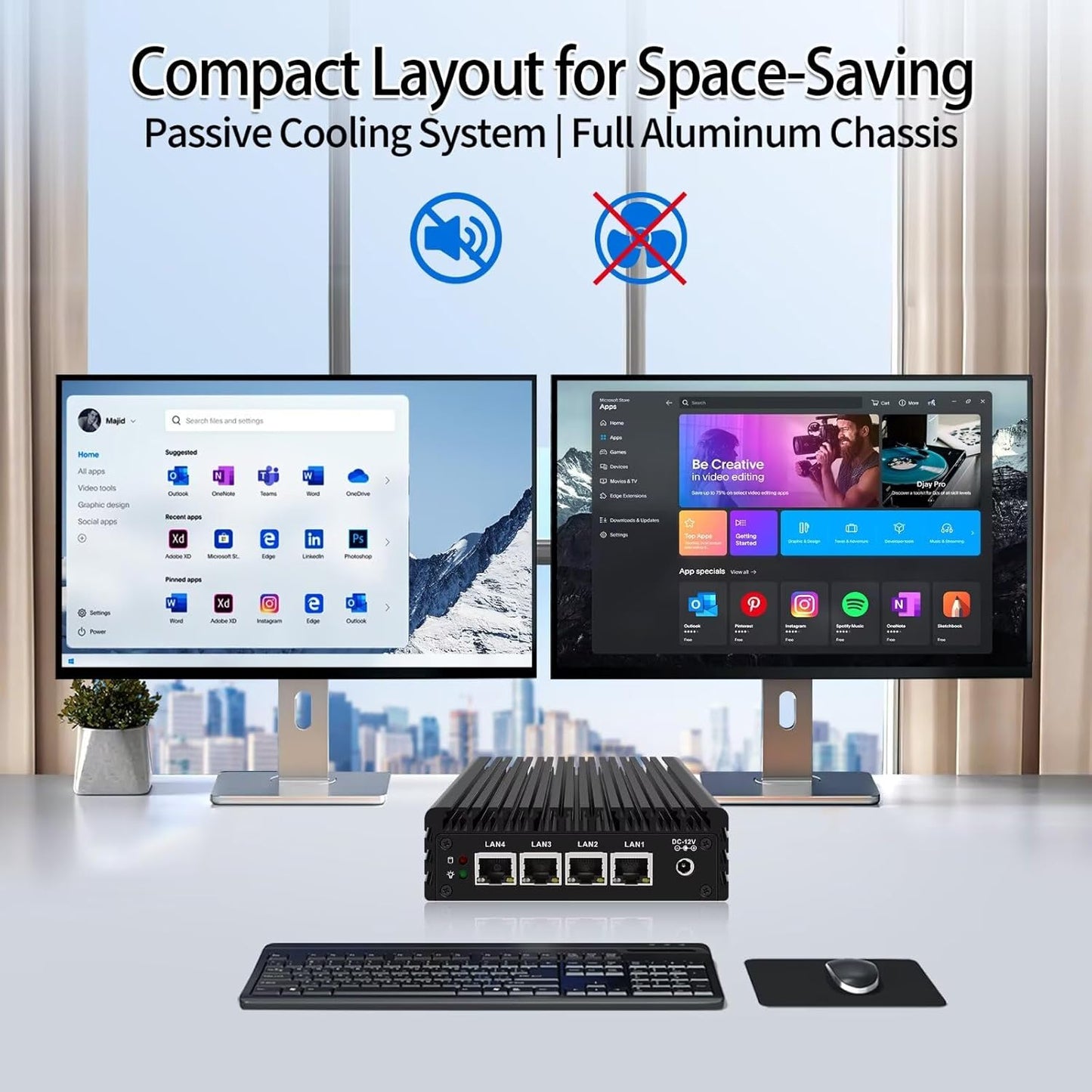

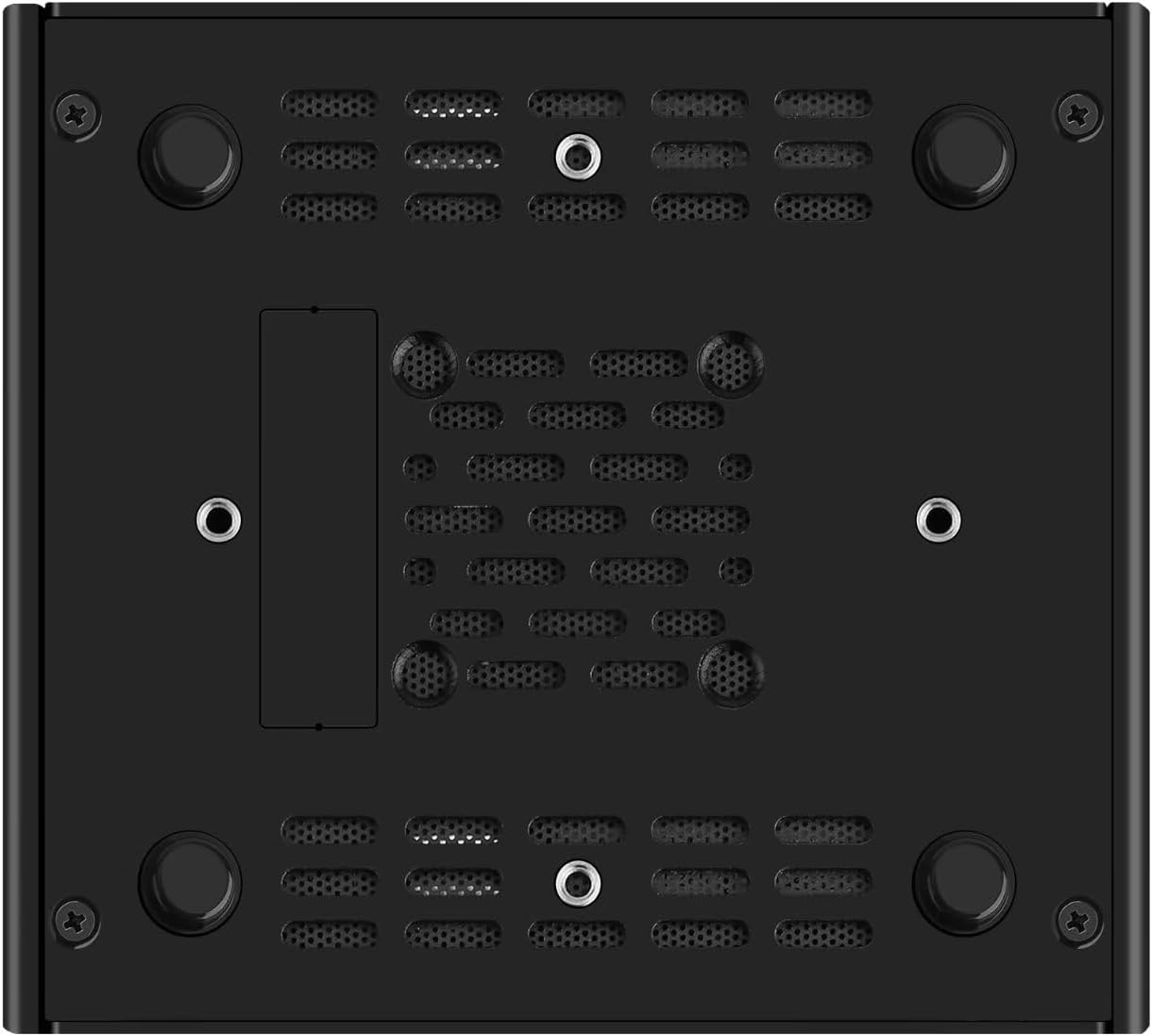

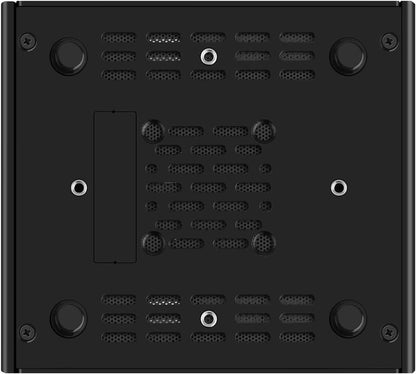

Compact and Fanless:This compact firewall box measures only 4.33 x 3.94 x 1.38 inches, offering powerful performance in a small form factor. It operates at a low power consumption of just 6.5W. The fanless aluminum alloy chassis ensures efficient and fast heat dissipation, enabling silent 24/7 operation. With VESA mounting holes, this mini PC can be installed on the back of a monitor to save space
Package Includes: 1x Mini PC, 1x Power Adapter, 1x Power Card, 1x User Manual, 1x Mounting Bracket with Screws

Use Cases

Product Features

CPU	Pentium J3710,4 Cores 4 Threads, up to 2.64GHz, TDP 6.5W
RAM	DDR3 MAX 8GB
Storage	1x MSATA slot, 1 x SATA 3.0 slot + 1 x Mini-PCIe slot for 4G/WiFi
Display	HD + DP 4K Dual Output
Ports	4x i225-V B3 2.5GbE LAN, 2 x USB 2.0 port, 1 x HD port, 1 x DP port, 1x Console RJ45 COM
Power	DC 12V 55*25mm
Size	120 x 108x 35mm/4.72x 4.25x 1.37 inches, N.W. 0.4KG
OS	Support PFsense, OPNsense, OpenWrt, Linux, ESXI, AES-Nl and other open-source

Firewall mini pc

	N97 6LAN	J6413 5LAN 2COM	N100 4LAN	J6413 4LAN	J6413 6LAN	N5105 4LAN	N6005 4LAN
Klantenrecensies	1	—	1	—	—	—	—
Prijs	€ 391,99	€ 335,80	€ 392,00	€ 312,00	€ 337,00	€ 307,00	€ 362,00
CPU	N97 4C/4T	J6413 4C/4T	N100 4C/4T	J6413 4C/4T	J6413 4C/4T	N5105 4C/4T	N6005 4C/4T
Memory	1xDDR5 Max 32GB	2x DDR4 Max 32GB	1xDDR5 Max 32GB	2x SODIMM DDR4 Max 32GB	2x SODIMM DDR4 Max 32GB	2x SODIMM DDR4 Max 32GB	2x SODIMM DDR4 Max 32GB
Storage	1x M.2 2280 NVMe SSD	1x M.2 2280 NVMe	1x M.2 2280 NVMe	1x M.2 2280 NVMe SSD	1x M.2 2280 NVMe SSD	1x M.2 2280 NVMe SSD	1x M.2 2280 NVMe SSD
Expandable	1 x M.2 2280 NVMe + 1x SATA3.0	2x SATA 3.0+1 x Mini PCle slot	1 x M.2 2280 NVMe + 2x SATA3.0	1 x M.2 2280 NVMe + 2x SATA3.0	1 x M.2 2280 NVMe + 2x SATA3.0	1x SATA3.0	1x SATA3.0
USB	5USB+ Tpye C	4USB+ Tpye C	6USB+ Tpye C	5USB+ Tpye C	4USB	4USB	4USB+ Tpye C
Display	2HD + Type-C 3 Output	HD + DP+Type-C 3 Output	2HD + Type-C 3 Output	2HD + Type-C 3 Output	HD + DP 2 Output	HD + DP 2 Output	HD + DP+Type-C 3 Output
TF Slot	YES	NO	YES	YES	NO	NO	YES
SIM Slot	NO	YES	NO	NO	YES	YES	NO
