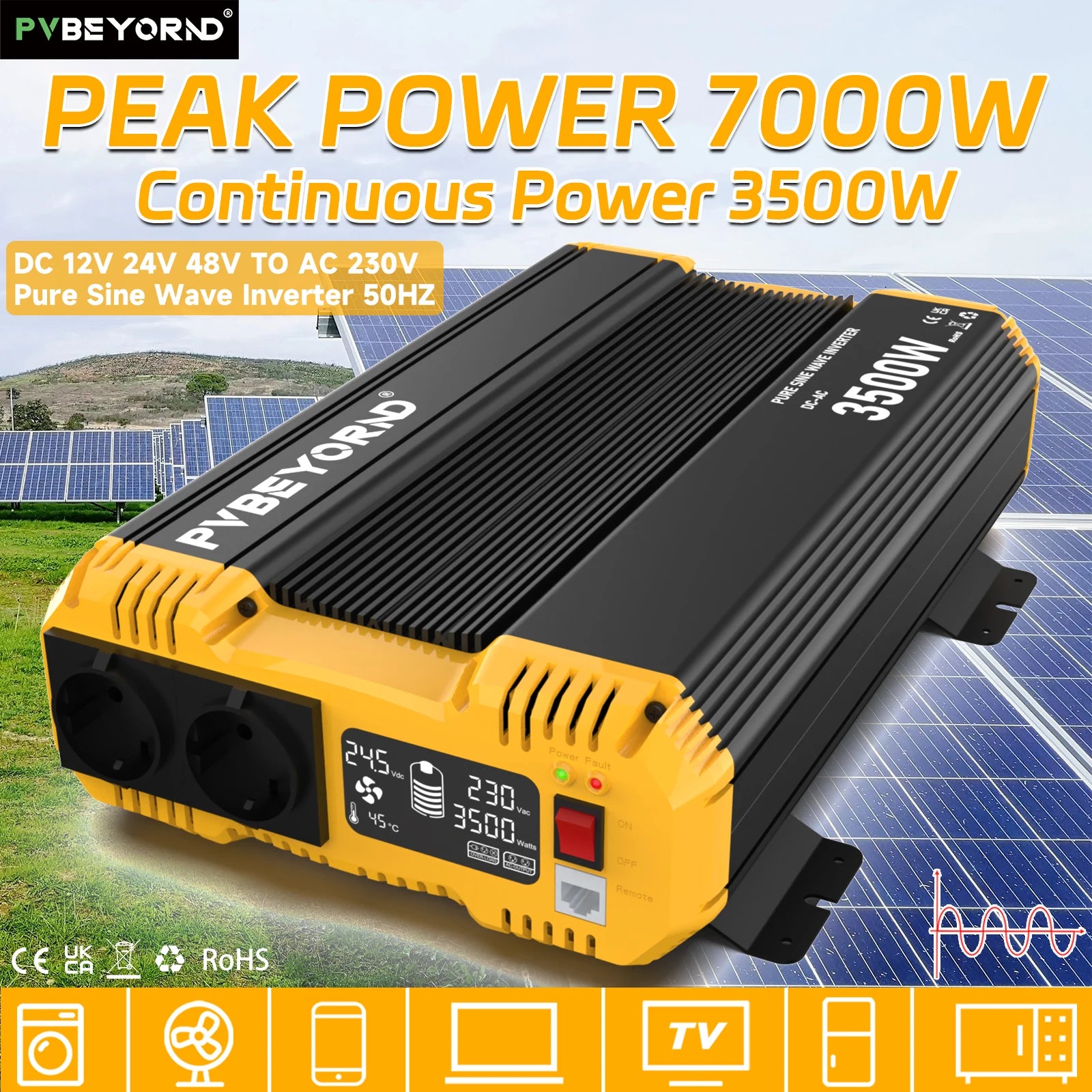

PVBEYORND Pure Sine Wave Inverter Power Inverter 7000W DC 12V 24V 48V To AC 230V 50HZ Continuous Power 3500W Suitable Home or RV

PVBEYORND Pure Sine Wave Inverter Power Inverter 7000W DC 12V 24V 48V To AC 230V 50HZ Continuous Power 3500W Suitable Home or RV

€427,84
€0,00 €427,84
Aanbieding Uitverkocht
Belastingen inbegrepen. Verzendkosten worden berekend bij de checkout.
Color
Input Voltage
Output Voltage|Ships From
Al meer dan 2.500 klanten geholpen
  • Gratis verzending
  • 30 dagen bedenktijd
  • Veilig betalen met iDEAL

SPECIFICATIONS

Brand Name: PVBEYORND

Certification: CE,RoHS,weee

Color: Yellow + Black

High-concerned chemical: None

Model Number: PSW

Origin: Mainland China

Output Frequency: 50HZ

Output Power: 3500W

Output Type: DUAL

Output Waveform: Pure Sine Wave

Peak Power: 7000W

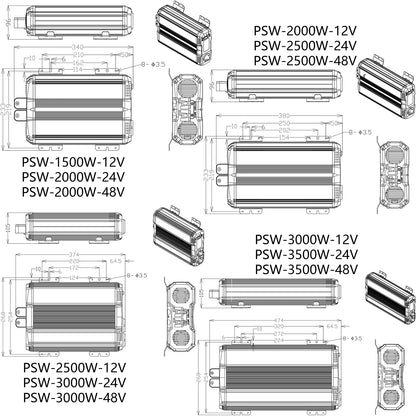

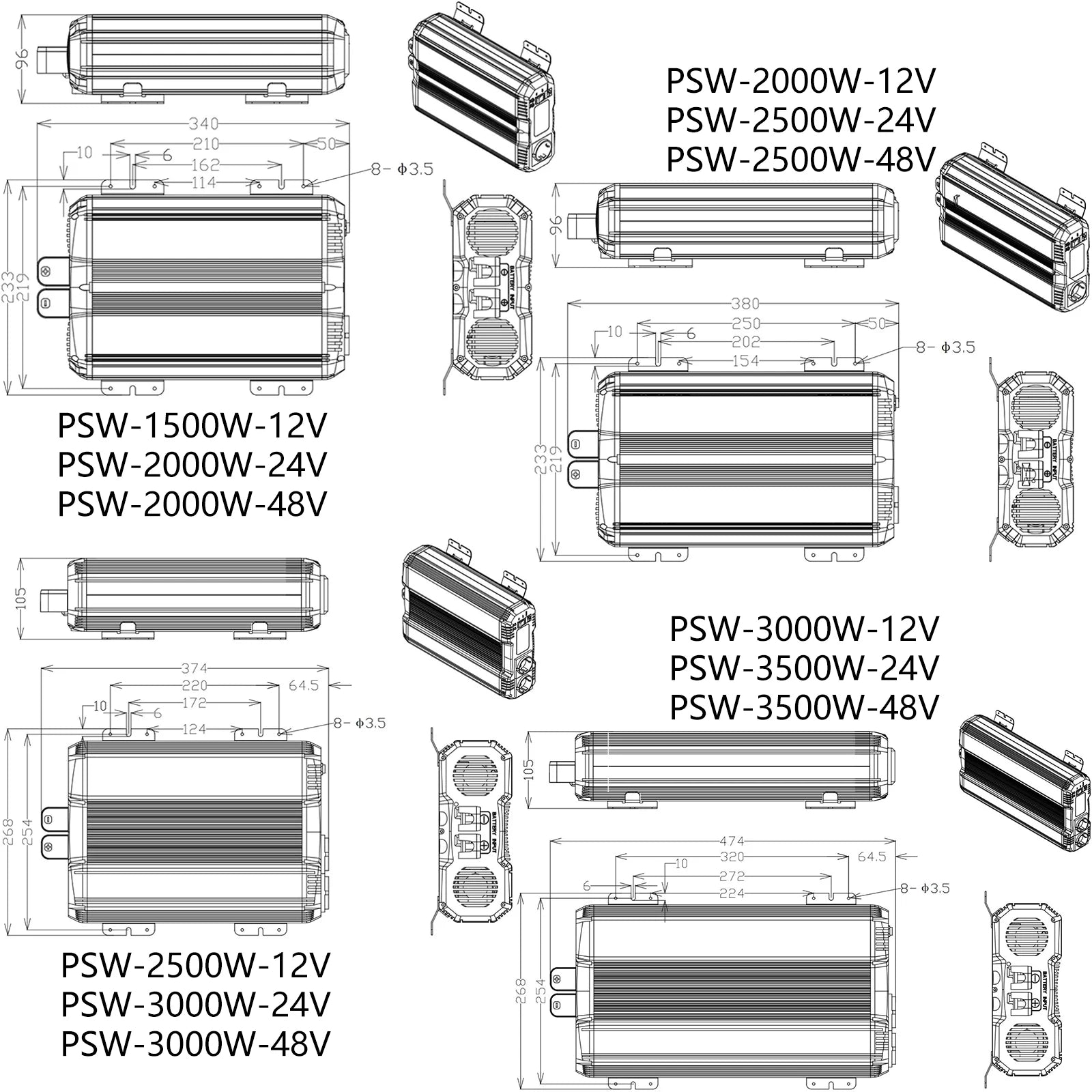

Size: 47.4*26.8*10.5CM

Type: DC/AC Inverters

Weight: 5.75KG

is_customized: Yes

Enjoy More Discou

Dear users, before purchasing, please select your country and check if a discount code is available. This will help you purchase high-quality products at lower prices.


Ordering Method for Ukrainian Customers:

Dear Ukrainian friends, if you can pick up your order from Poland, we suggest you fill in a shipping address in Poland or another EU country. This way, we can ship from our German warehouse to your provided EU address via DHL. This usually takes about a week.


Reminder: Dear buyer!

1. 1500W inverter, the continuous (rated) power is 1500W, and the peak power is 3000W.
2000W inverter with continuous (rated) power of 2000W and peak power of 4000W.
2500W inverter with continuous (rated) power of 2500W and peak power of 5000W.
3000W inverter with continuous (rated) power of 3000W and peak power of 6000W.
3500W inverter with continuous (rated) power of 3000W and peak power of 7000W.


(We should refer to the continuous power when purchasing an inverter, which refers to the output power that allows long-term continuous operation, while the peak power only exists at the moment when the appliance is started.)


2.The input voltage of 12V inverter, 24V inverter and 48V inverter cannot be used universally. If the input voltage is not selected correctly, the inverter will not work, so it is very necessary to select a battery that corresponds to the voltage range of the inverter


If you have any questions before purchasing, or if there are various problems during the use of the inverter, you can contact our customer service staff at any time, and we will reply quickly and solve various problems for you from the most professional perspective. Thank you for your understanding!


I wish you all a happy life and good health!

Feature

1. Pure sine wave, intelligent filtering, does not interfere with electrical appliances, and protects electrical appliances. The conversion efficiency is high (up to 95%), and the power consumption of the product itself is low, which can greatly extend the battery life.


2. Buzzer reminder. Once the protection function of the inverter is triggered, the inverter will immediately shut down the power supply, the load will enter the protection mode, and the buzzer will remind people.


3. Almost all electrical appliances can be used, including TV/LED lights/LCD monitors, especially inductive load appliances such as refrigerators, freezers, and induction cookers.

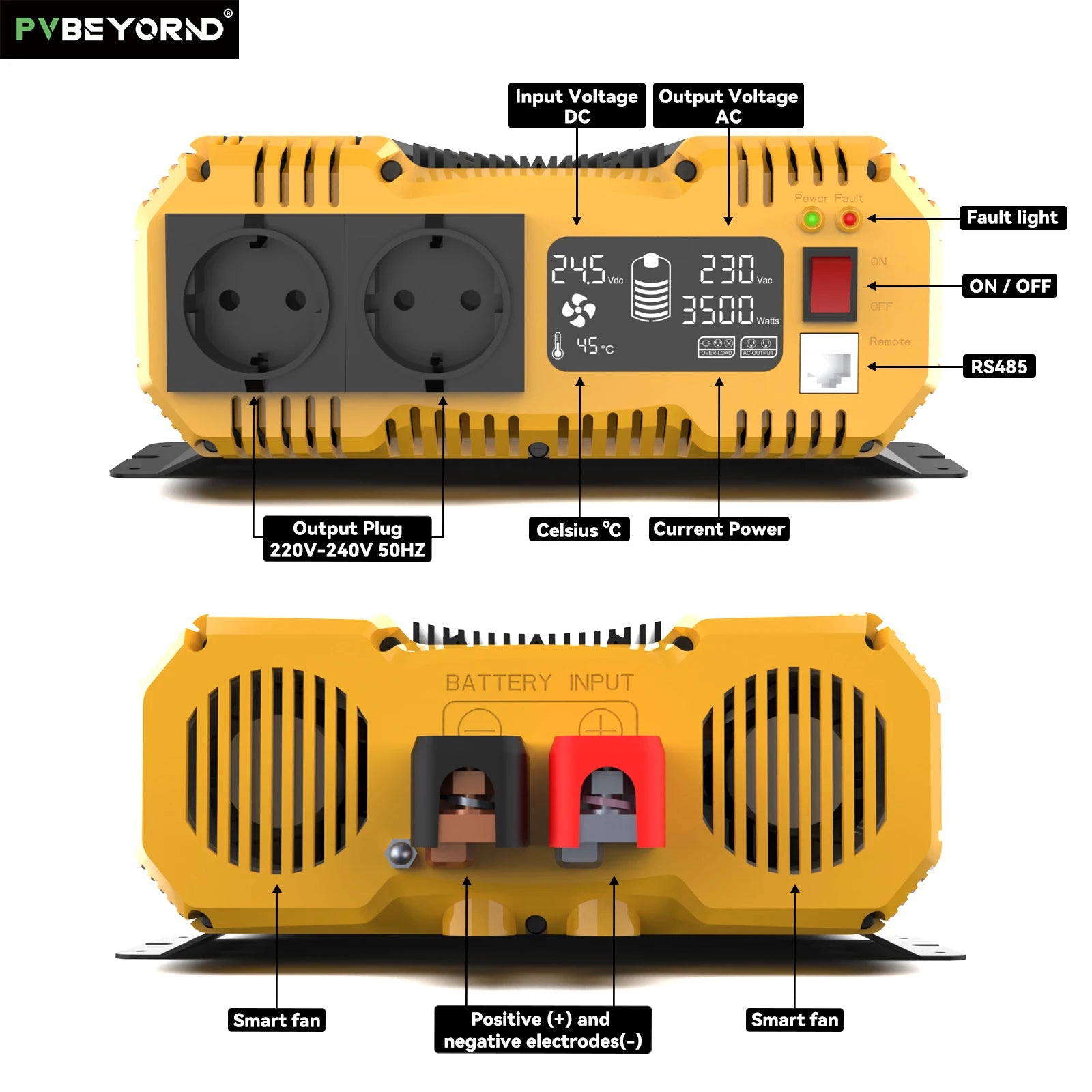

4. The 3M long cable can be connected to the display panel, which can not only control the on and off of the inverter but also display the current voltage and power


5.Aluminum-magnesium alloy body, strong shell can effectively protect the product itself, with double air ducts, high-quality heat sink for heat dissipation, good thermal conductivity, can quickly reduce the temperature of components, and ensure long-term work

Adequate Working Capacity

The power we marked is the power that the inverter can actually achieve and can run for a long time. You can give full play to its maximum performance 100% for a long time, which is a guarantee for the product

Product Information

Type: Pure Sine Wave Inverter
Output Current Waveform: Pure Sine Wave
Continuous Power: 1500W / 2000W / 2500W / 3000W / 3500W
Peak Power: 3000W / 4000W / 5000W / 6000W / 7000W
Input Voltage: 12V / 24V / 48V
Output Voltage: 220V - 240V
Output Frequency: 50HZ
Plug Specifications: EU

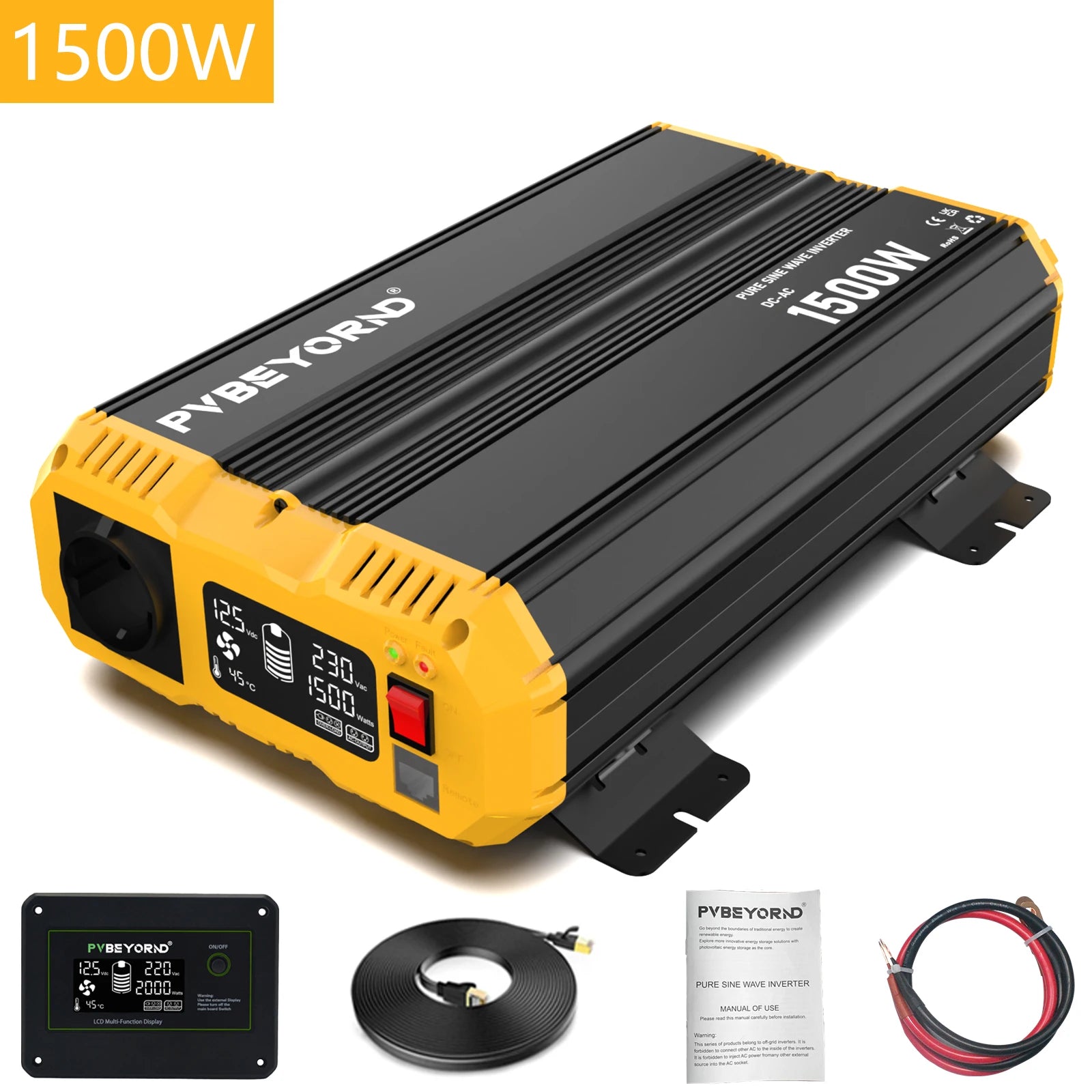

Packing List

1 x PVBEYORND Pure Sine Wave Inverter
1 x Control panel
1 x 3M control panel cable
1 x Positive and negative power cord
1 x User Manual

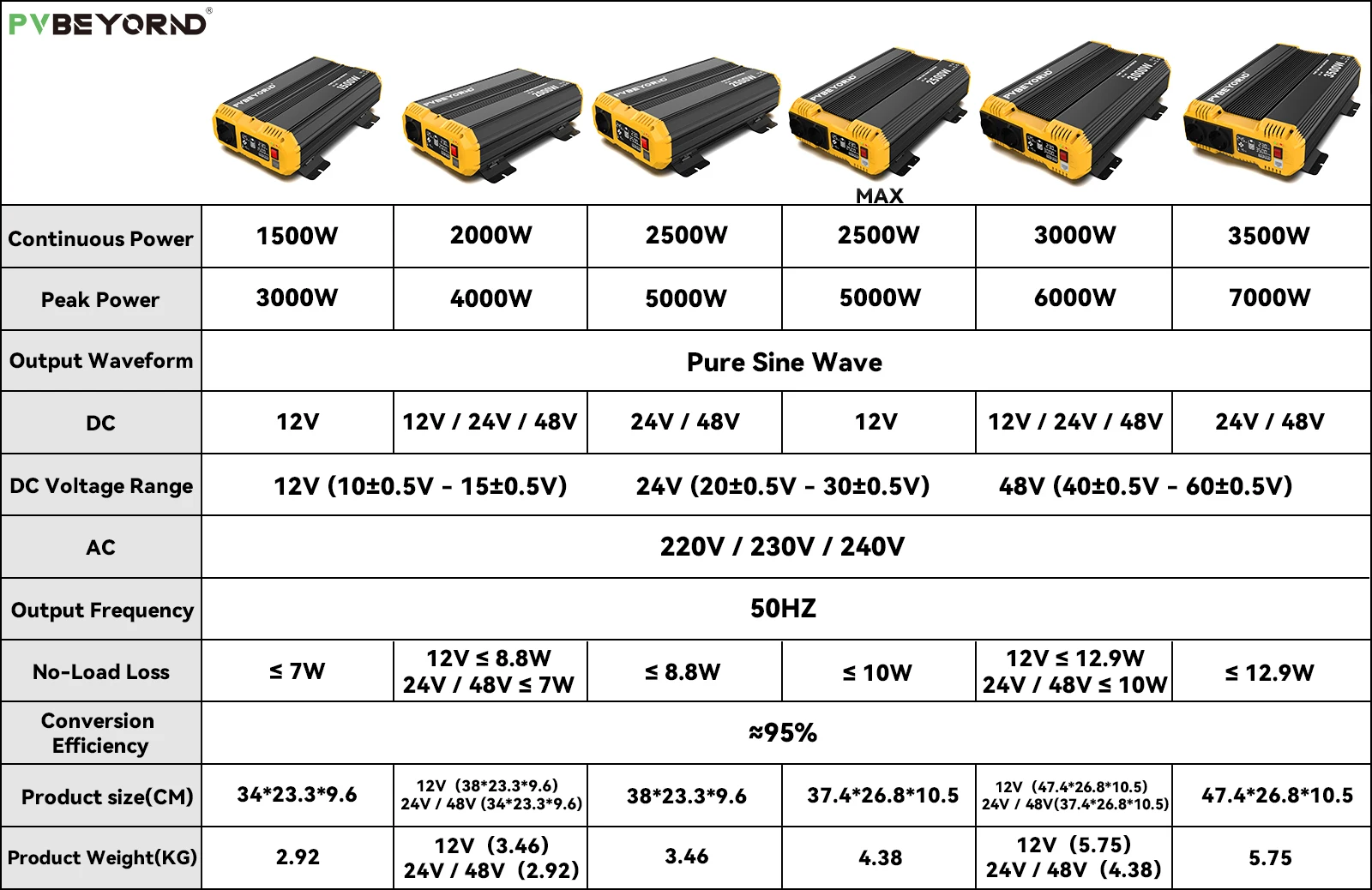

Basic Data

The following are the parameters of each specification of the inverter, including continuous power, peak power, output waveform, available input voltage range, output voltage range, frequency, no-load current, conversion efficiency, product size, and product net weight

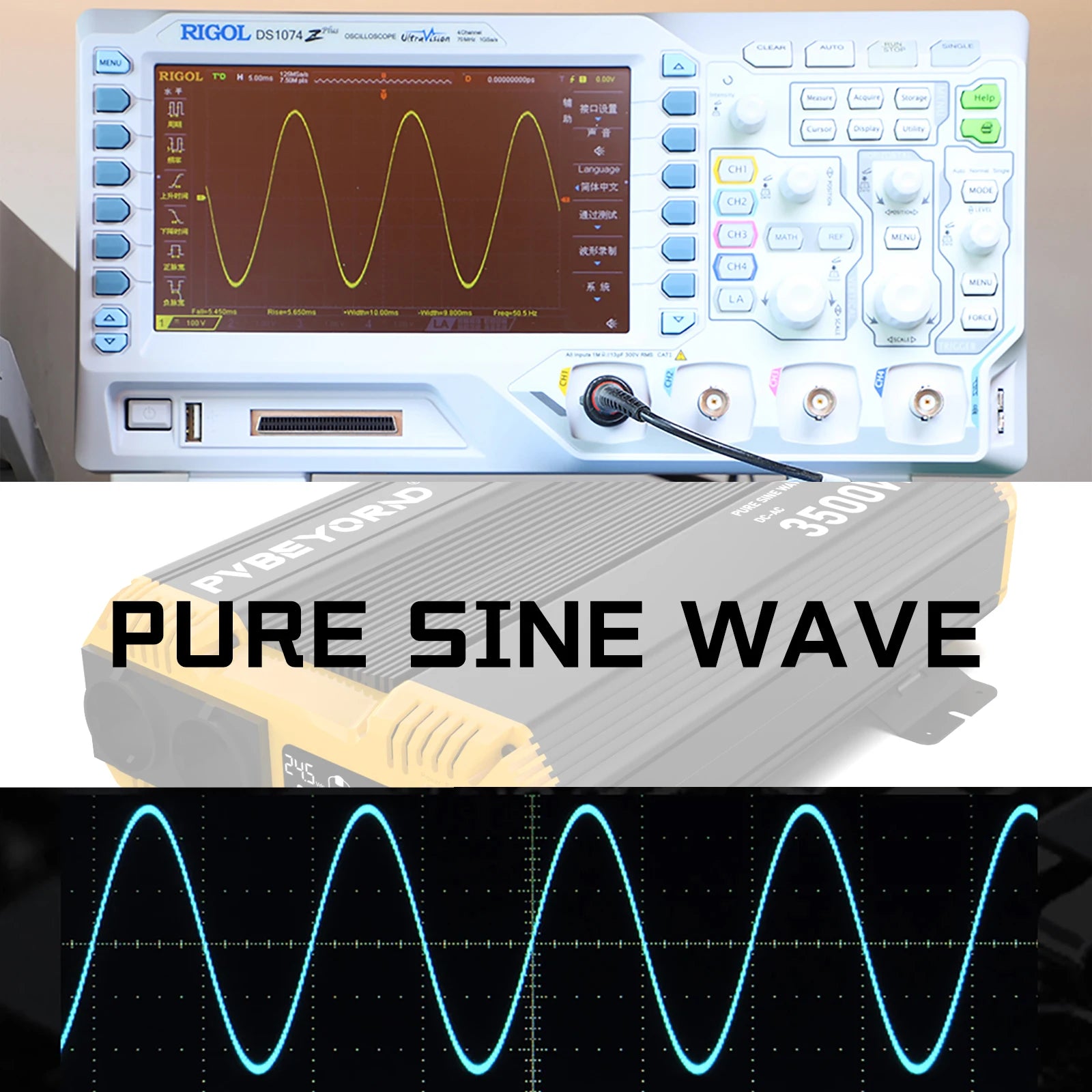

Pure Sine Wave

The pure sine wave inverter outputs the same electricity as the usual power grid, with a wide range of applications, high overload capacity, and excellent stability, providing the same AC current as the usual household. In the case of power satisfaction, almost any household appliances can be driven.


WIDE APPLICATION FIELD

Whether it is household electricity or outdoor electricity, RV power supply, industrial electricity, etc., our equipment can support it, not just refrigerators, microwave ovens, washing machines, TVs and boilers, etc.



Six Protection Functions

Positive and negative reverse polarity protection: by blowing the internal fuse

High temperature protection: When the temperature is higher than 85°C, the AC output will be turned off, and the alarm will sound 5 times/stop for 5 seconds (continuous mode). Automatically return to normal when the temperature is lower than 75°C

Overload protection: When the load is greater than 110%~130%, the AC output will be turned off after the alarm lasts for 15 seconds (the reset switch is restored). If the load is greater than 130%~150%, the alarm lasts for 5 seconds and then closes the AC output, (the reset switch is restored). When the load is greater than 150%%, the AC output will be turned off after 2 seconds, (the reset switch will be restored)

Low voltage protection: 12V model low voltage protection is 10V±4%, 24V model low voltage protection is 20V±4%, 48V model low voltage protection is 40V±4%. When the low voltage protection is triggered, the inverter will shut down automatically

High voltage protection: 12V model high voltage protection is 15V±4%, 24V model high voltage protection is 30V±4%, 48V model high voltage protection is 60V±4%. When the high voltage protection is triggered, the inverter will automatically shut down

Short circuit protection: turn off the device within 2 seconds (need to reset the switch to recover)


Higher conversion efficiency

By optimizing the circuit structure and using a higher-quality copper core, resistance can be significantly reduced, maximizing the value of every ampere of current.
