General

Brand: SCULPFUN
Type: Laser Engraver
Model: S9
Color: Sky Blue

Specification

Engraving size: 410*420mm
Engraving/cutting material:
Engraving materials: wood, paper, cardboard, plastic, white, PCB board, aluminum oxide,  304 Stainless steel, ceramic, dark stone

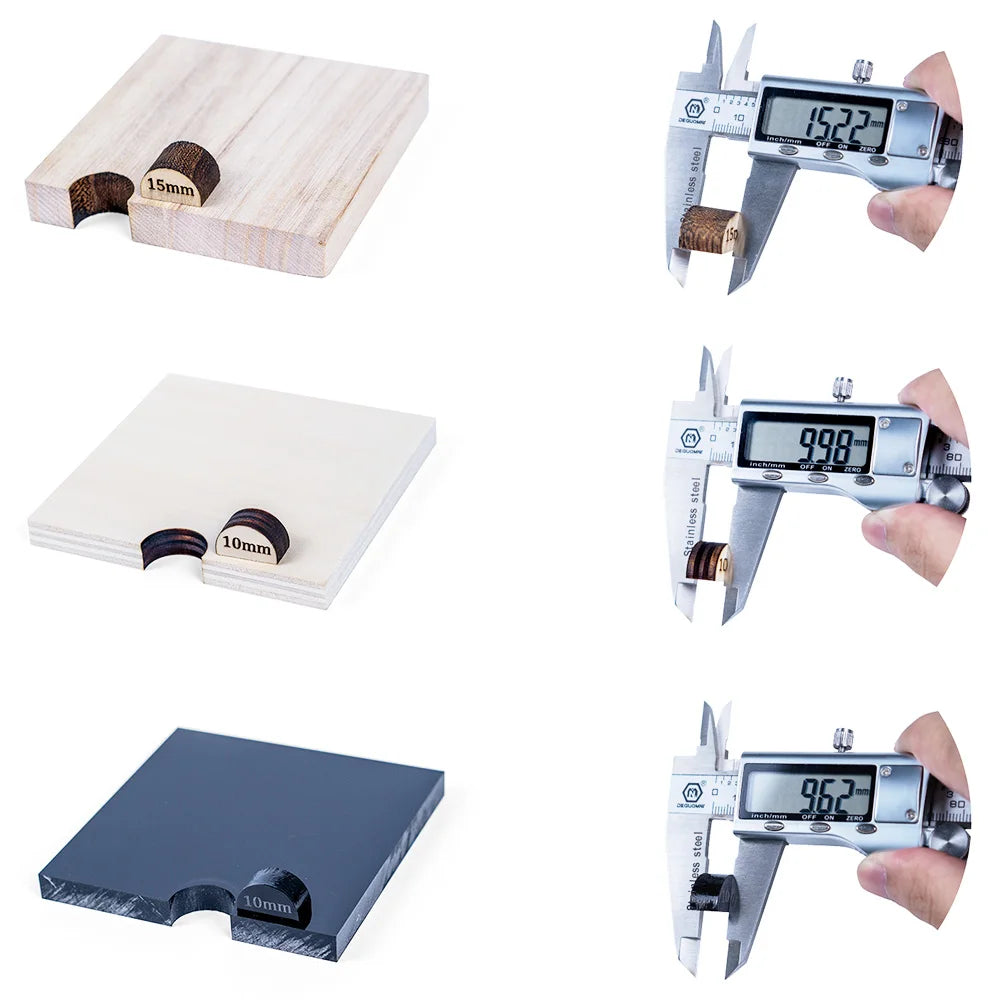

Cutting material:  wood, acrylic, cardboard,  fabric, bamboo, plastic board, KT board
Laser effect power: 90W   (cutting effect compared to 90W CO2 laser)
Machine Electricity Power: 30W  (It has nothing to do with cutting or engraving performance,just electricity consumes)
Diode laser power: 5.5-6W  (Please note that this is light energy and not electric energy)
Laser wave length 455±5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser + sliding device
Laser protective cover: The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot.
Operating software: LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method: USB connection
Power supply: International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A
Certification: CE FCC RoHS FDA IEC

Weight & Size

Product Weight: 3.0Kg
Package Weight: 4.4Kg
Package Size(L x W x H): 61.5*34.5*13cm

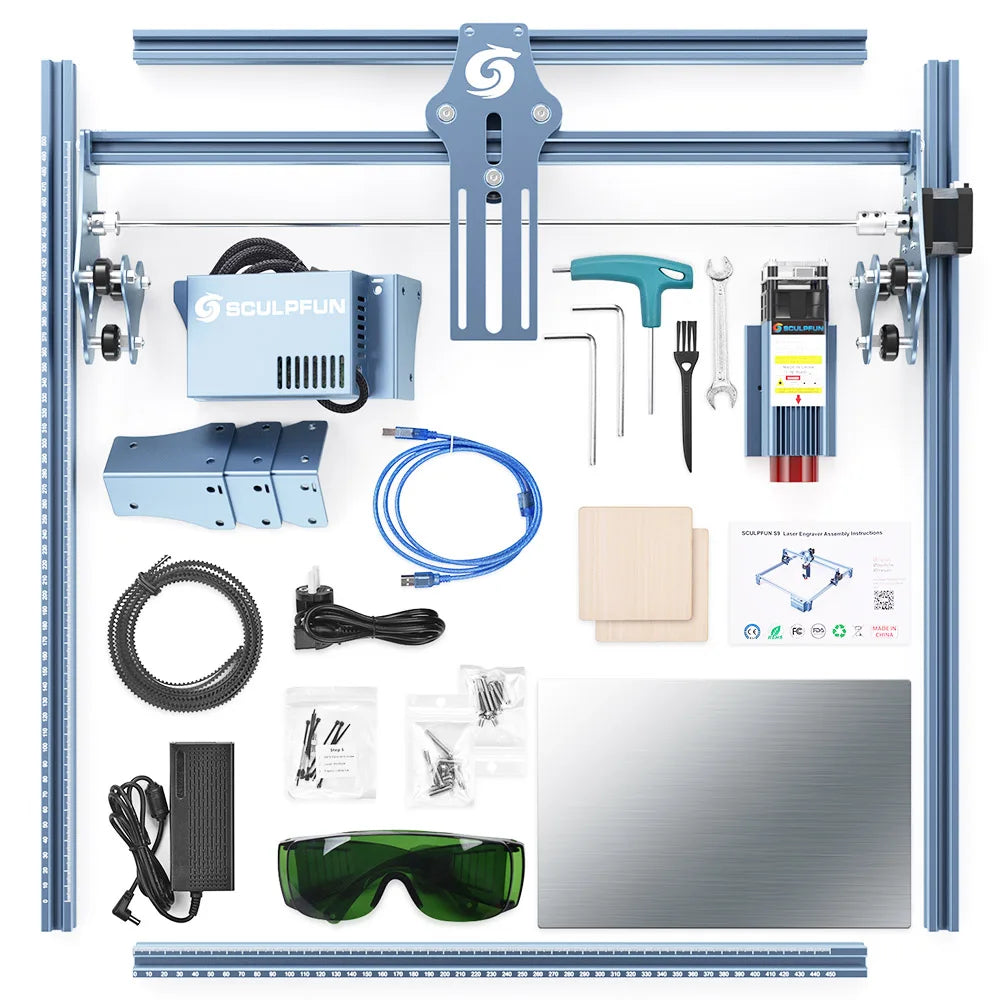

Package Contents

1× X axis assembly
2× X shaft
2× Y shaft
1× control box module set
3× support feet
1× laser module set
1×12V 5A power adapter
1× power adapter
1× USB cable
Step 1~5 Screw installation package
2× belt
1× T-shaped M5 screwdriver
1× L-shaped M4 screwdriver
1× L-shaped M3 screwdriver
10×Tie
1×  8-10mm nut wrench
1× brush
1× Laser goggles
1× 10x10cm  wood chip 3mm thickness
1× 10x10cm  wood chip 10mm thickness
1× A4 size steel desktop protection pad
