SPECIFICATIONS

Air flow rate: 35L/min

Application: Submersible

Brand Name: TUXING

Certification: CE

Cooling system: Water and fan cooling

Fuel: Electric

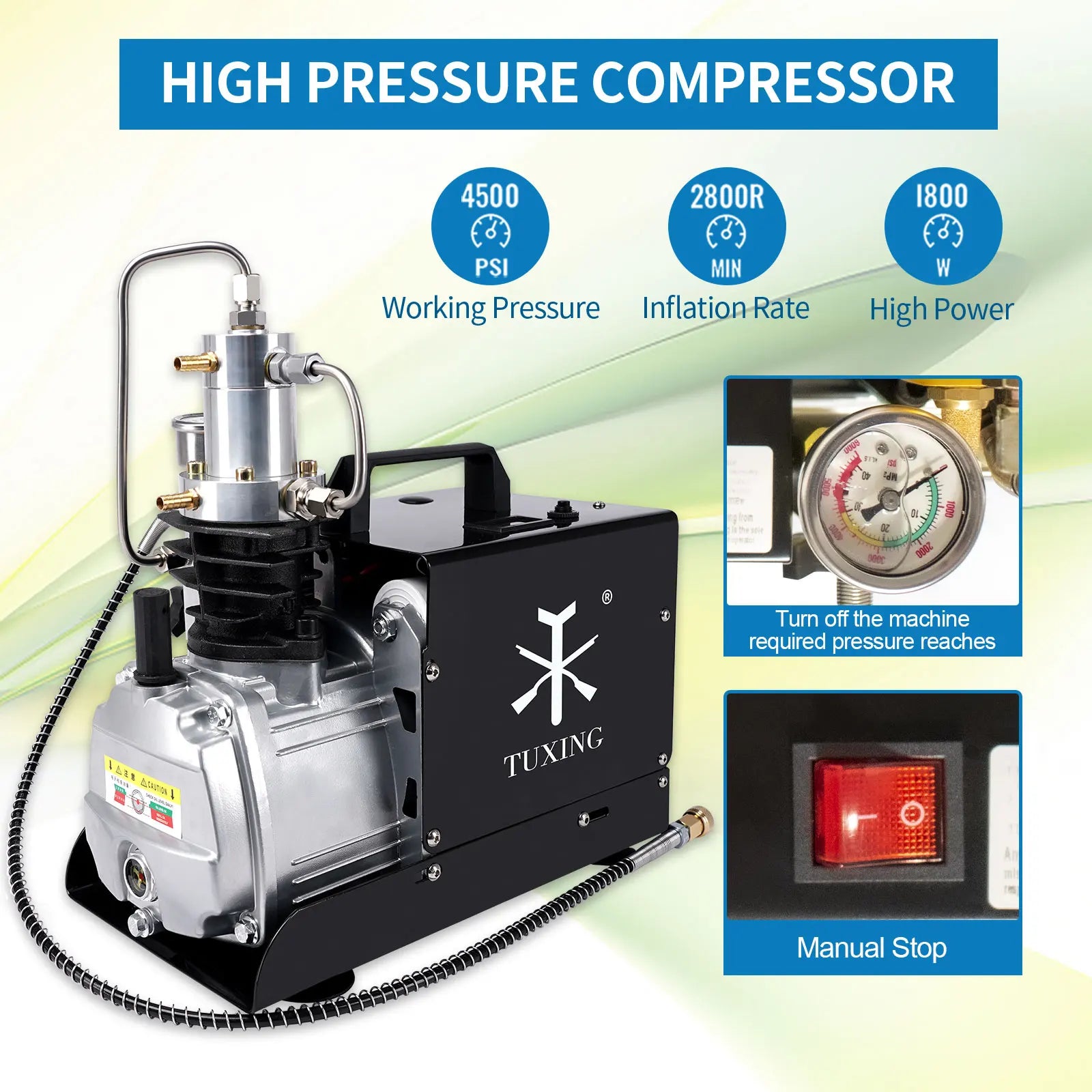

Function: Shut off the compressor automatically

High-concerned chemical: None

Inflating speed: 2800R/min

Lubrication mode: Splash

Model Number: TXES021

Motor power rating: 1.8KW

Origin: China Mainland

Power (W): Electric

Power Source: Other

Pressure: High Pressure

Standard or Nonstandard: Standard

Structure: Booster Pump

Theory: Reciprocating Pump

Use: Air Pump

Working pressure: 4500PSI/30MPA/300BAR

Commitment:

This product is in stock at our warehouses in Brazil, Chile, and Europe. We ship directly from local warehouses, so you don't need to worry about shipping or tax issues.

TXES031 1800W 300bar 50l/min water-cooled high-pressure PCP compressor

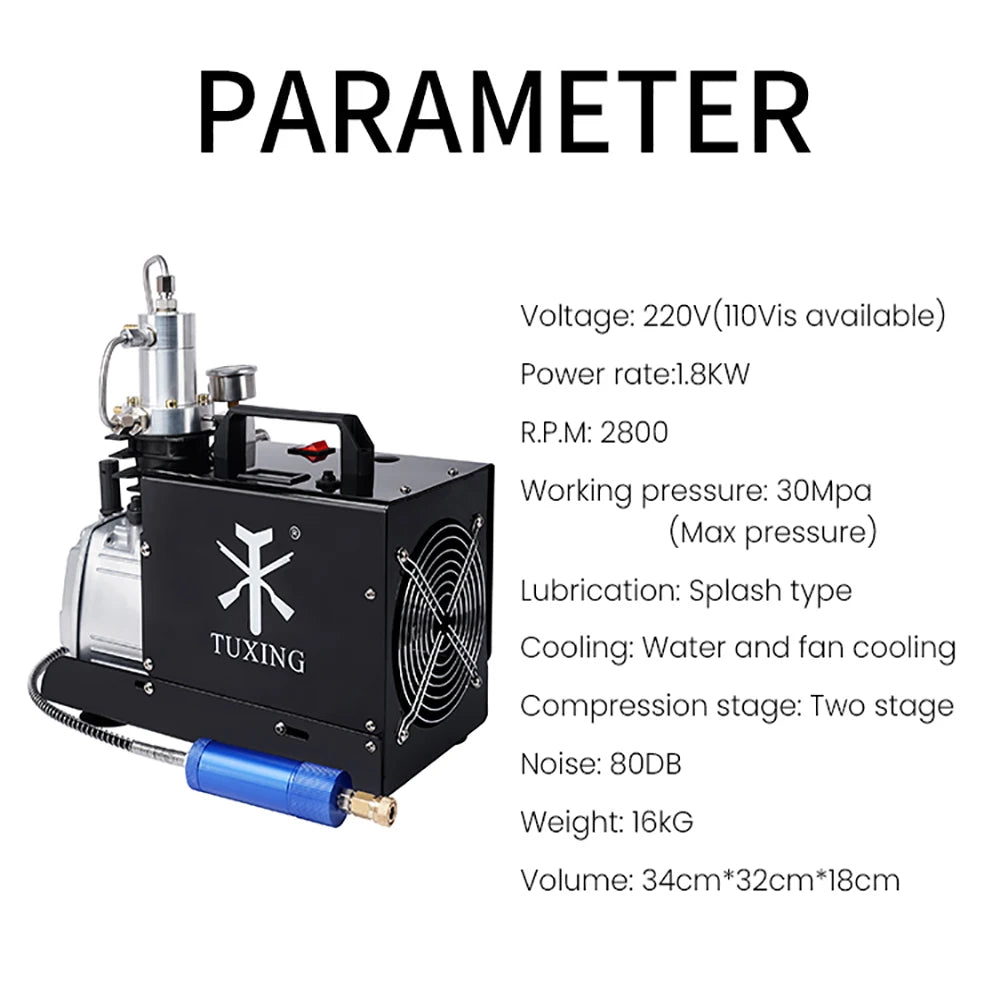

Specification

Brand: TUXING

Model: New TXES021

Voltage: 220V

Power: 1.8 kW

Speed: 2800R

Working pressure: 30 MPa (maximum pressure)

Lubrication method: splashing

Cooling method: water cooling and air cooling

Compression level: two levels

Noise: 80 dB

Volume: 34cm * 32cm * 18cm

Weight: 17 kg

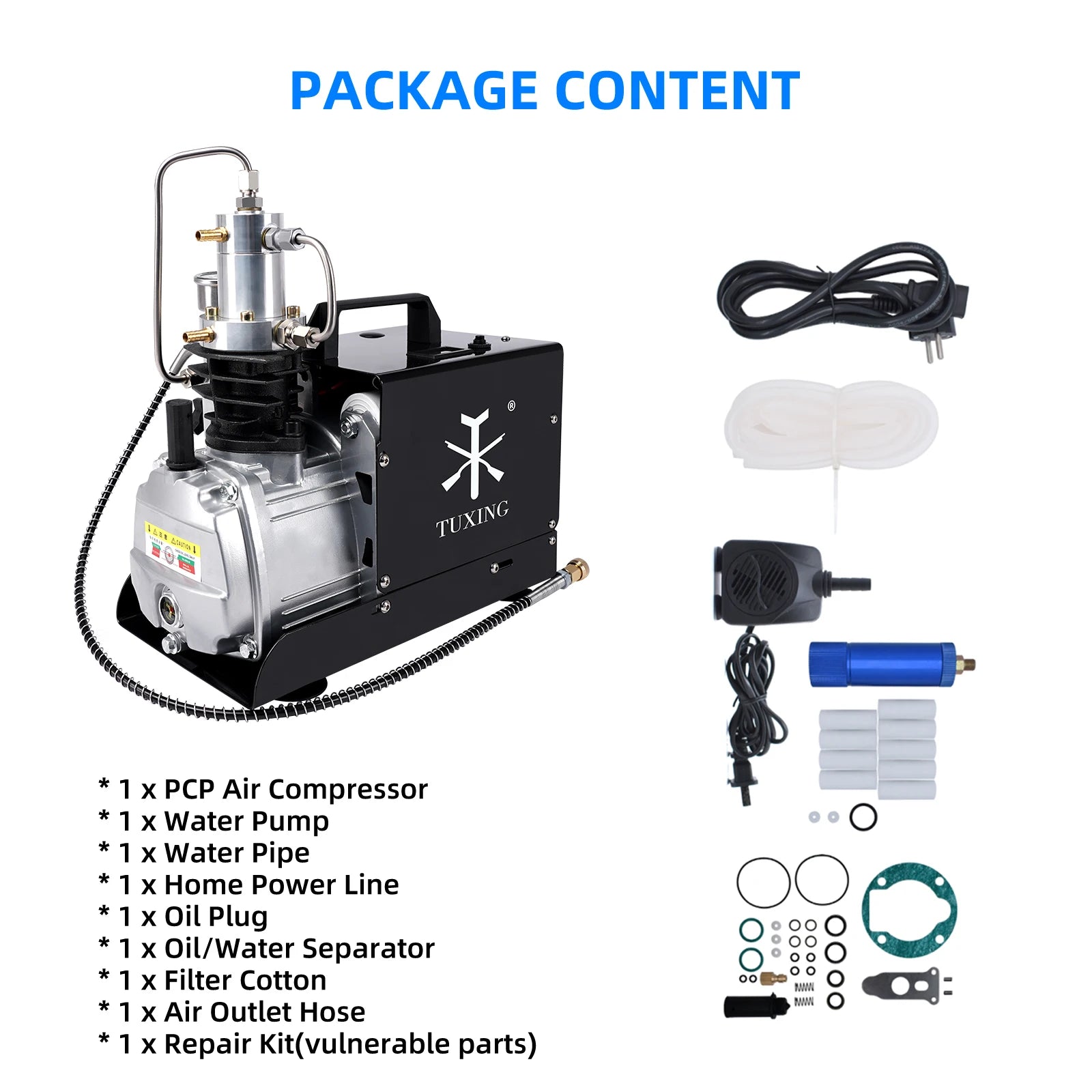

Package Contents

Packge Contents

1 x PCP Air Compressor

1 x Water Pump

1 x Water Hose

1 x Household Hose

1 x Oil Plug

1 x Oil-Water Separator

1 x Cotton Filter

1 x Air Exit Hose

1 x Repair Kit (Parts) (Fragile)

Cooling efficiency

Water cooling ensures stable operation even during long pumping cycles. The risk of overheating is reduced and the service life of the compressor is increased.

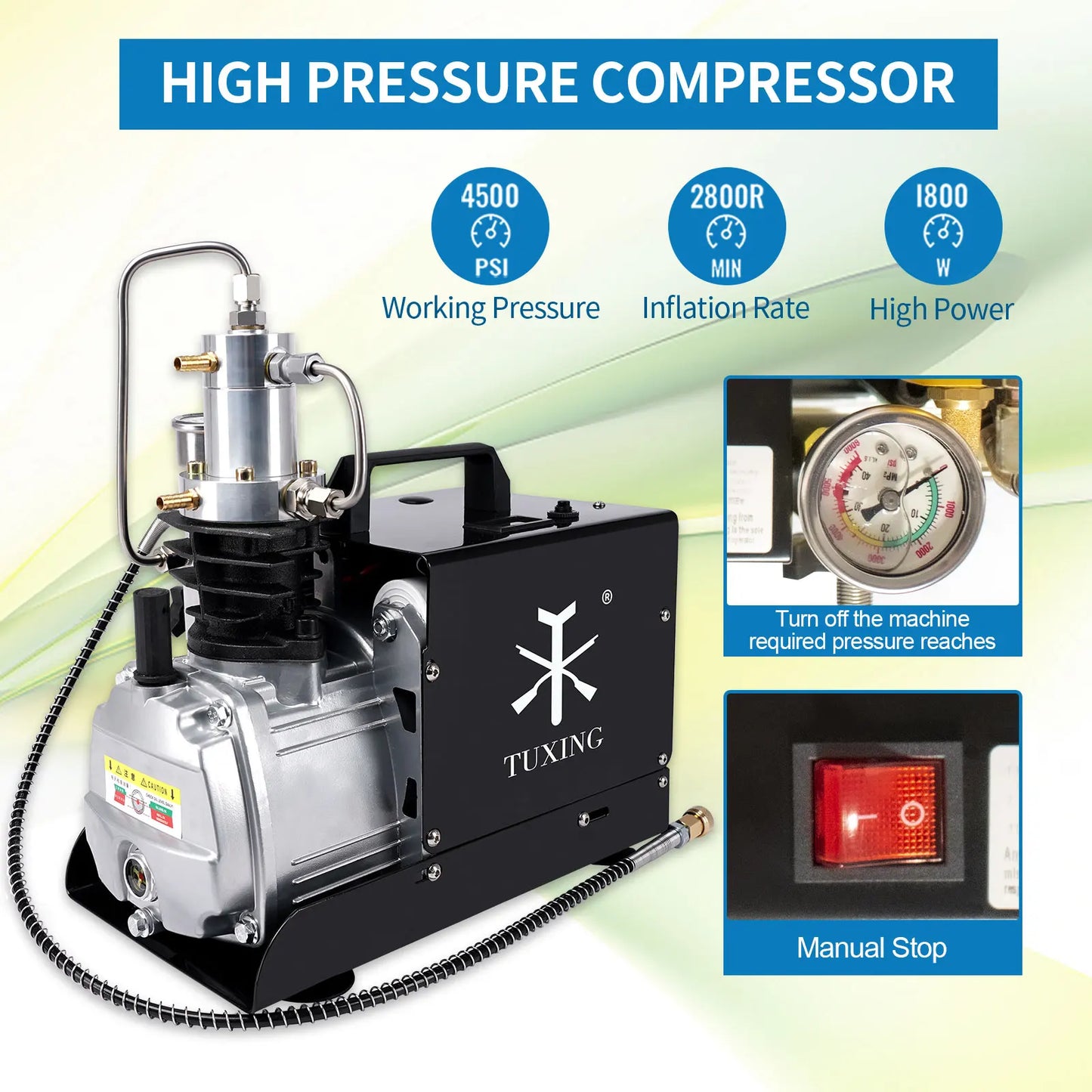

High pressure

The compressor is capable of generating pressure up to 300 bar, making it suitable for most PCP airgun models, including rifles and pistols.

Ease for use

The compact design and intuitive controls make the compressor easy to operate. It is also equipped with reliable pressure gauges and valves for monitoring pressure and temperature.

Fast inflation

The new cylinder head is coated with military-grade titanium alloy, which is more durable and has a longer service life!

The improved muffler makes the equipment run quieter and reduces vibration during operation, and the explosion-proof valve greatly improves the safety of high-pressure inflation.

Test Results

0.5L/4500 psi/6min
3L/4500 psi/35min

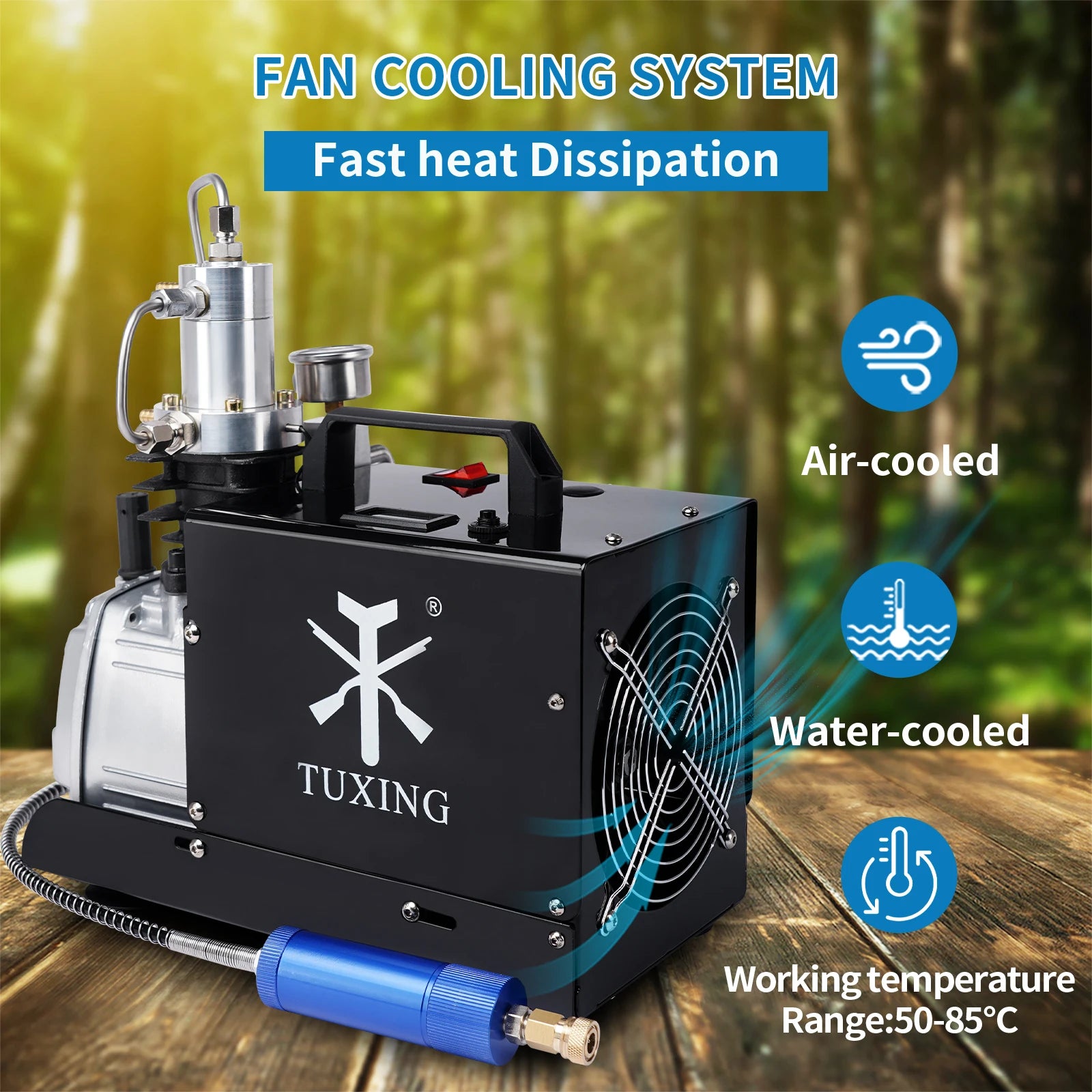

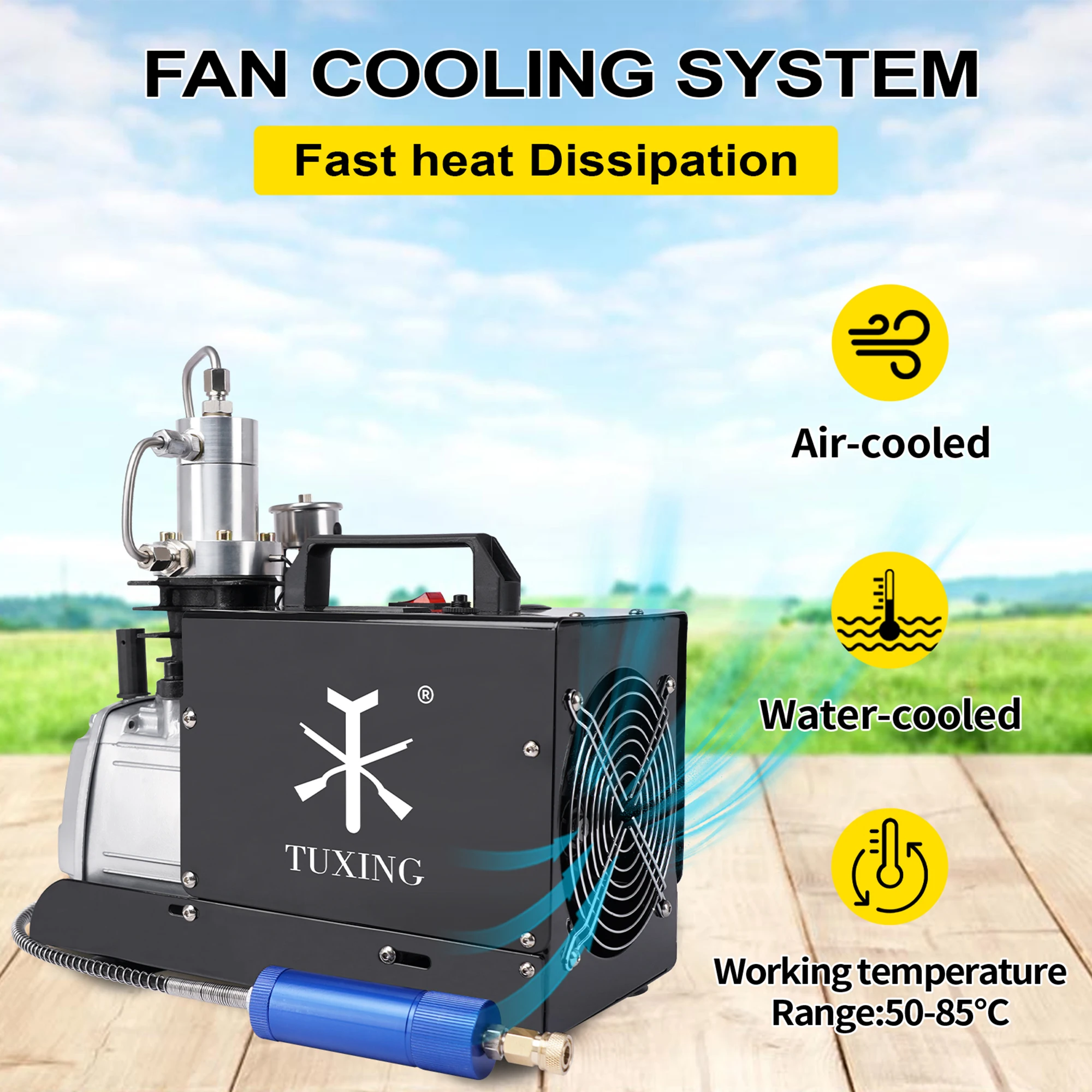

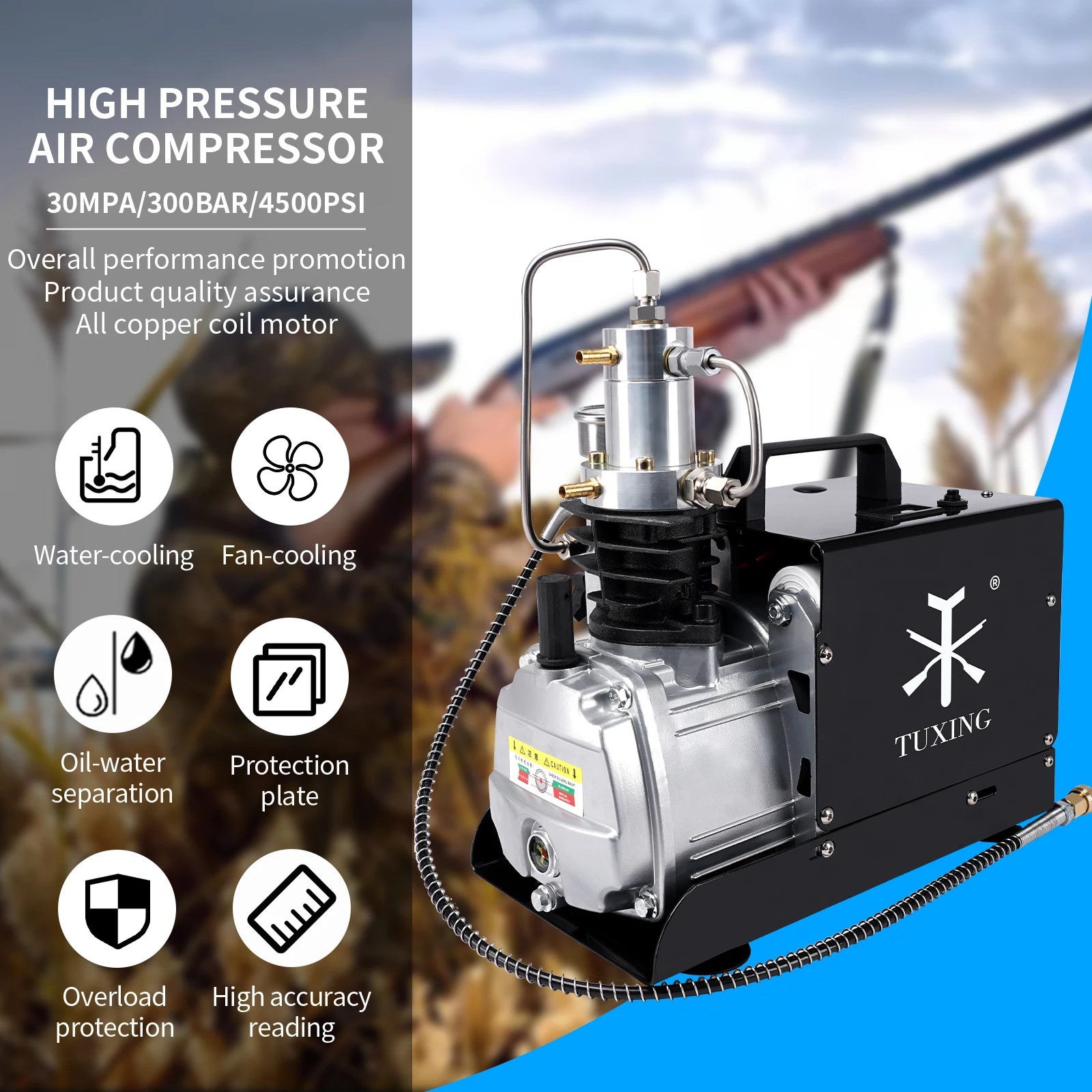

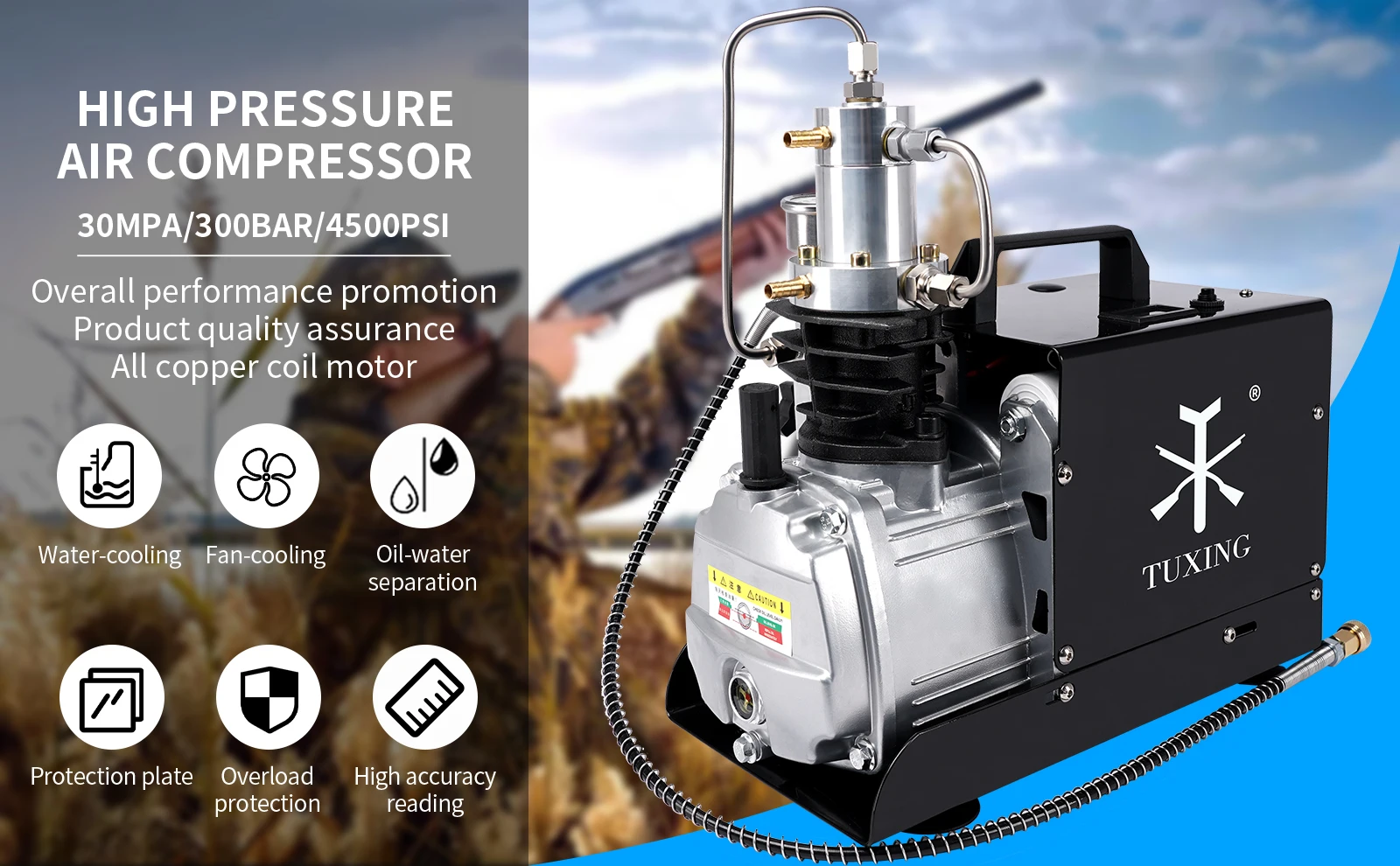

Dual cooling system

With an efficient dual cooling system (air cooling + open water cooling), the compressor can operate stably even during long inflation cycles.This reduces the risk of overheating and extends the service life.The device can reach a maximum temperature of 85°C.

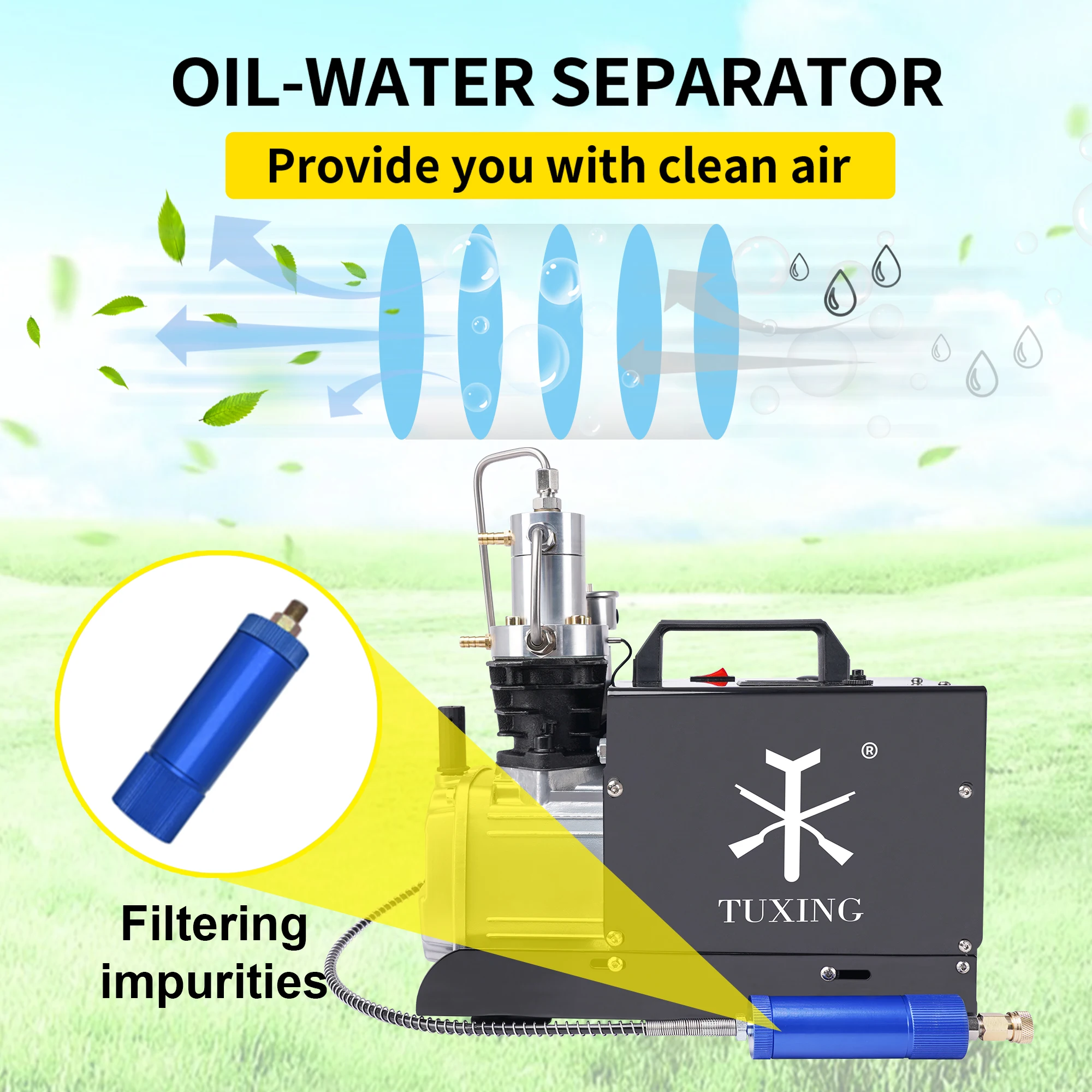

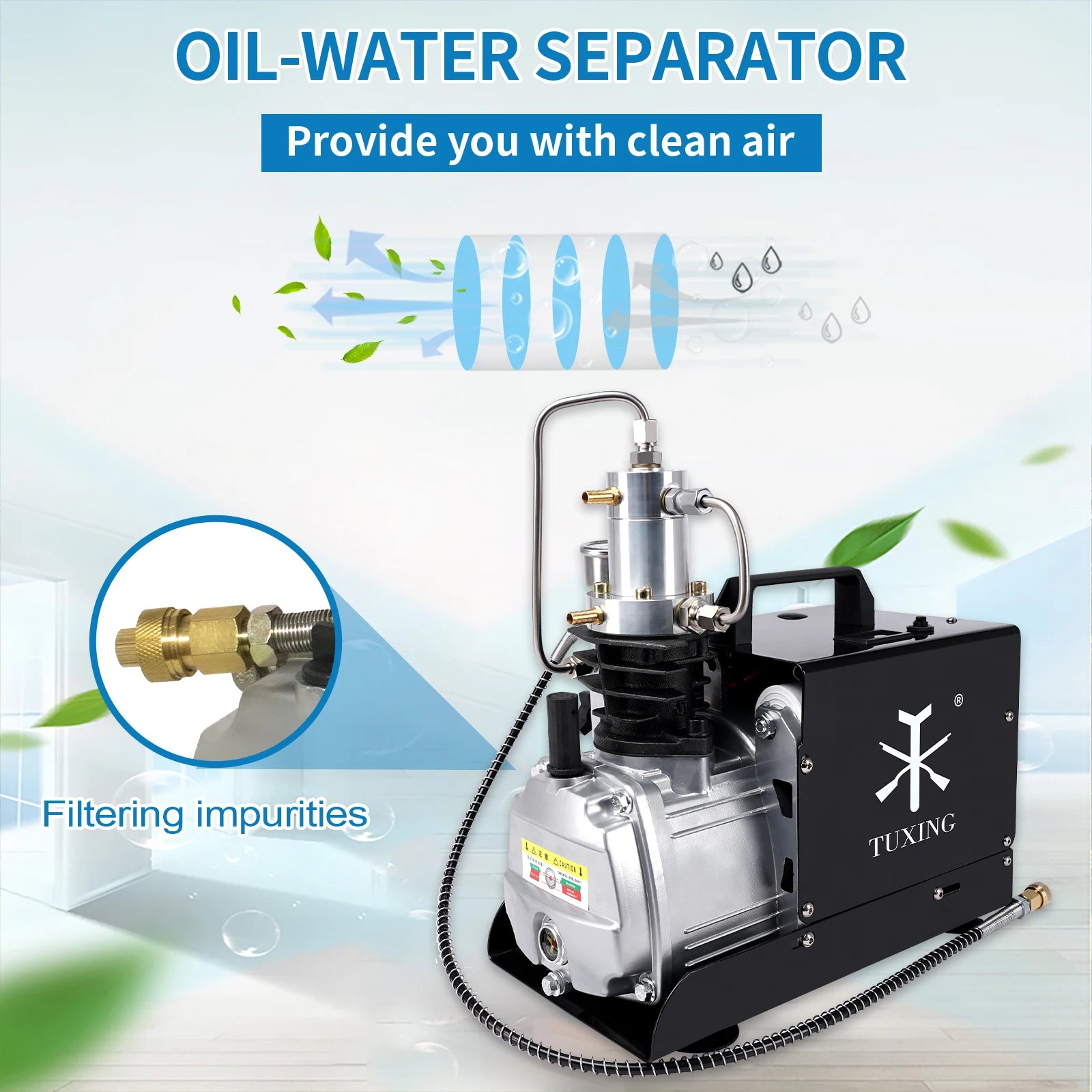

Professional Grade Filtration

The equipped oil-water separator enables professional-grade filtration and reduces the moisture content to 0.001%.The 8mm quick-release connector is compatible with PCP air guns, scuba cylinders (including SPUB scuba equipment) and industrial cylinders.Suitable for car tires, bicycle tires, scuba cylinders, firefighting, paintball, airsoft, leak detection, car and bicycle leak testing, pressure testing, etc.

Recommended use:

1. Oil change: The first oil change should be carried out after 50 hours of operation, but at least once every six months. Subsequent oil changes should be carried out every 1-2 months, but at least once every six months.

2. Blow out the air intake filter with compressed air before exhausting the air in the container.

3. If the compressor is not in use, remove condensate from the separator and close the valve. Store the compressor in a dry, sealed place with an ambient temperature of 0°C to 40°C, away from heat sources, open flames and explosive substances.

4. Running the compressor: Run the compressor regularly (once a week) for 5 minutes to prevent rust.

It is strictly forbidden to use the compressor to charge large gas cylinders; otherwise, the equipment may be damaged. Do not operate the compressor at a pressure exceeding 300 bar or when the cooling water system is not adjusted to the appropriate level. Always check the oil level and the condition of the hose to avoid damage.

5.Before use, remember to change the breathing mouthpiece!
