TUXING TXEDM041 PCP Air Compressor Double Cylinder 4500Psi 300Bar For 6.8L Scuba Diving Tank 2200W 50L/Min

TUXING TXEDM041 PCP Air Compressor Double Cylinder 4500Psi 300Bar For 6.8L Scuba Diving Tank 2200W 50L/Min

€696,02
€0,00 €696,02
Aanbieding Uitverkocht
Belastingen inbegrepen. Verzendkosten worden berekend bij de checkout.
Voltage
Color
Ships From
Al meer dan 2.500 klanten geholpen
  • Gratis verzending
  • 30 dagen bedenktijd
  • Veilig betalen met iDEAL

SPECIFICATIONS

Air flow rate: 40L/min

Application: Submersible

Brand Name: TUXING

Certification: CE

Cooling system: Water and fan cooling

Fuel: Electric

Function: Shut off the compressor manually

High-concerned chemical: None

Inflating speed: 2800R/min

Lubrication mode: Splash

Model Number: TXEDM041

Motor power rating: 2.2KW

Origin: Mainland China

Power (W): Electric

Pressure: High Pressure

Standard or Nonstandard: Standard

Structure: Booster Pump

Theory: Reciprocating Pump

Use: Booster Pump

Working pressure: 4500PSI/30MPA/300BAR

air compressor: pap air pump

pcp air compressor: pcp compressor

About this item
FAST INFLATION
The 0.5 liter bottle takes only 3 minutes to fill from 0-300 bar.
Filling of 6.8L liter bottles from 0-300 bar takes approx. 45 minutes (in a single operation).

DOUBLE CYLINDER
Adopting dual-stage compression design to ensure stable performance.Suitable for filling large capacity tank.

DOUBLE COOLING

The built-in 2800R high speed fan, together with external water cooling, enables the compressor to obtain faster heat dissipation, and the machine is robust and durable.Cooling water must be prepared in an external bucket, do not start the machine without cooling water.


WIDE APPLICATIONS

Suitable for automotive tires, bicycle tires, blown PCP air rifles, paintball cylinders, airsoft equipment or diving cylinders,etc.

EASY TO OPREATE

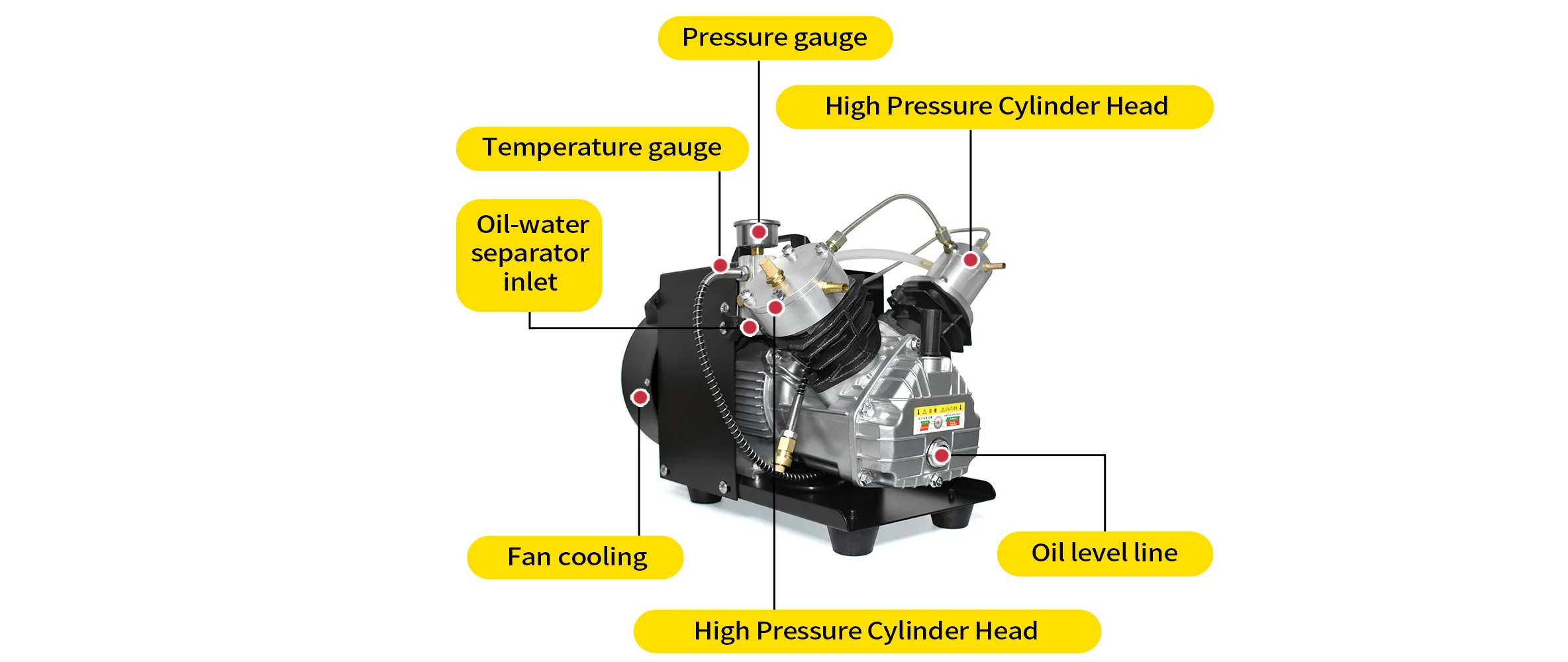

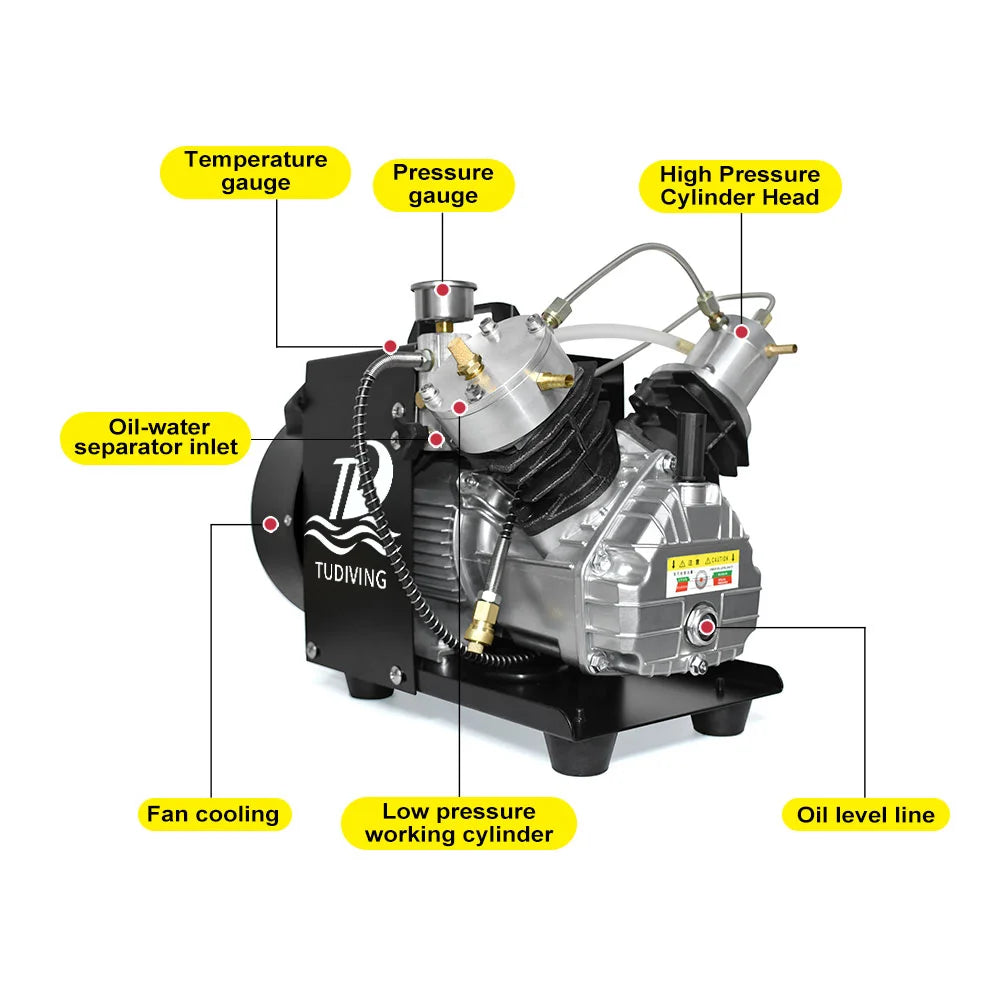

is equipped with precise silicone oil pressure and temperature gauges, easy to read, ready to check, manual stop, responsive and accurate.


EXTRA LONG WARRANTY

Out of absolute confidence in the product, the store offers a comprehensive warranty of up to one year. We guarantee the availability of the product at all times during the warranty period, when used in accordance with the instructions in the manual.


REAL-TIME INVENTORY

We have overseas warehouses in Brazil, Chile, Saudi Arabia, the United States, the United Kingdom, Europe and Russia, and products are shipped locally.


ATTENTION:
Replace the oil breather and replenish the oil before use!!!

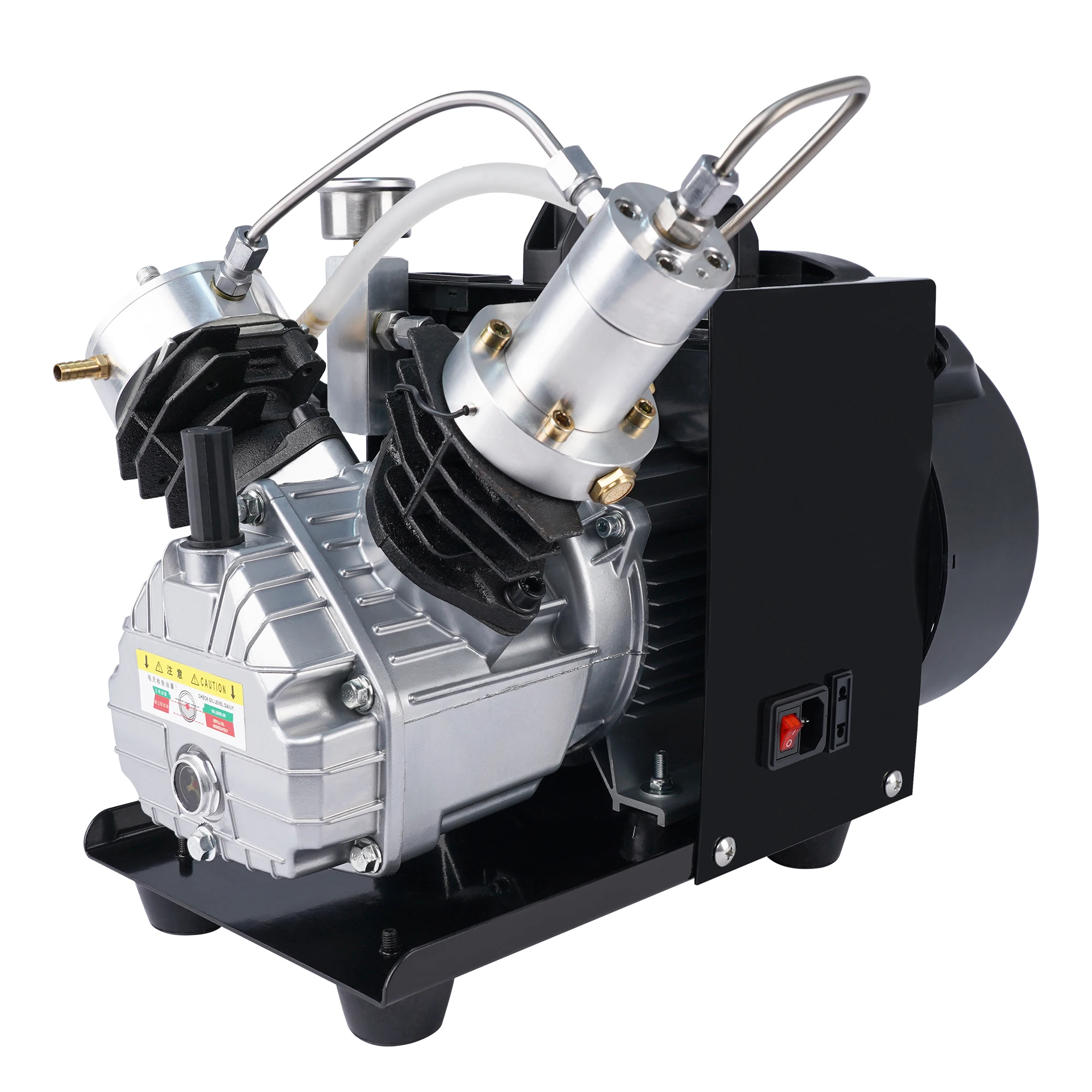

4500PSI MINI Portable PCP Air Compressor
TXEDM041 is two stage cylinder compressor heads,Fast filling speed,Suitable for filling large capacity tank.working pressure 300bar/4500psi/30mpa,inflating speed: 2800R/min.It is a water-cooled compressor, Designed with two-stage compression, which requires the use of water and oil,it can be used for diving,hunting,fire fighting, paintball,etc.

  • Shut Down Manually

  • Fill 0-6.8L Cylinder

  • Built-in Oil/Water Separator

  • Fan and Water cooling

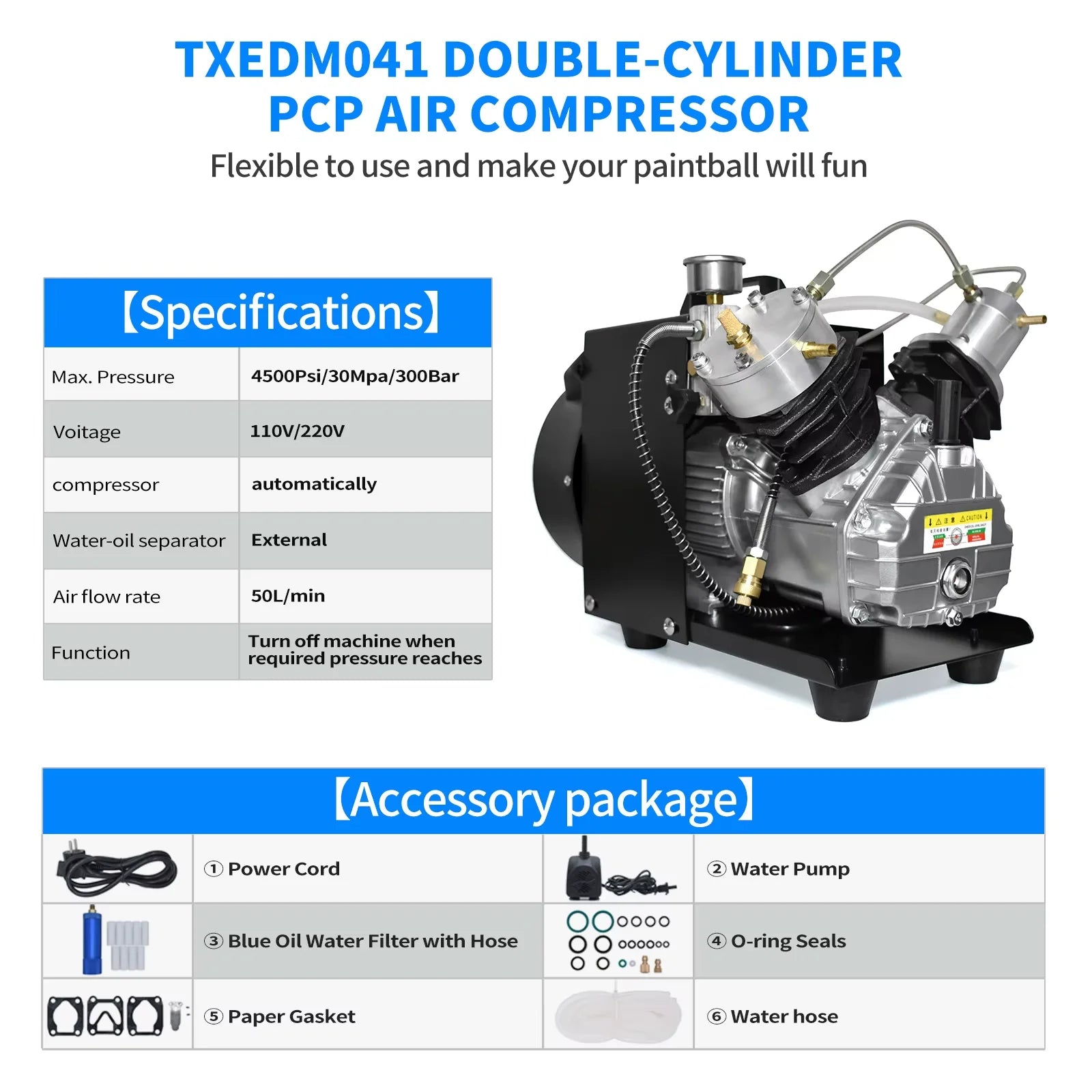

Specification

  • Model:TXEDM041

  • Voltage: 220v/50hz,110v/60hz

  • Power: 2200W

  • Inflating Rate: 2800R/min

  • Working Pressure: 30MPa/300Bar/4500Psi

  • Item size: 46*36*37cm

  • Weight：24kg

  • Tank Capacity:0-6.8L

  • Compression Stage: Two-stage reciprocating

  • Shut Down:manually stop

  • Cooling: Fan and water cooling

  • Lubricating Oil: ISO VG 46

  • Oil Capacity：0.4L

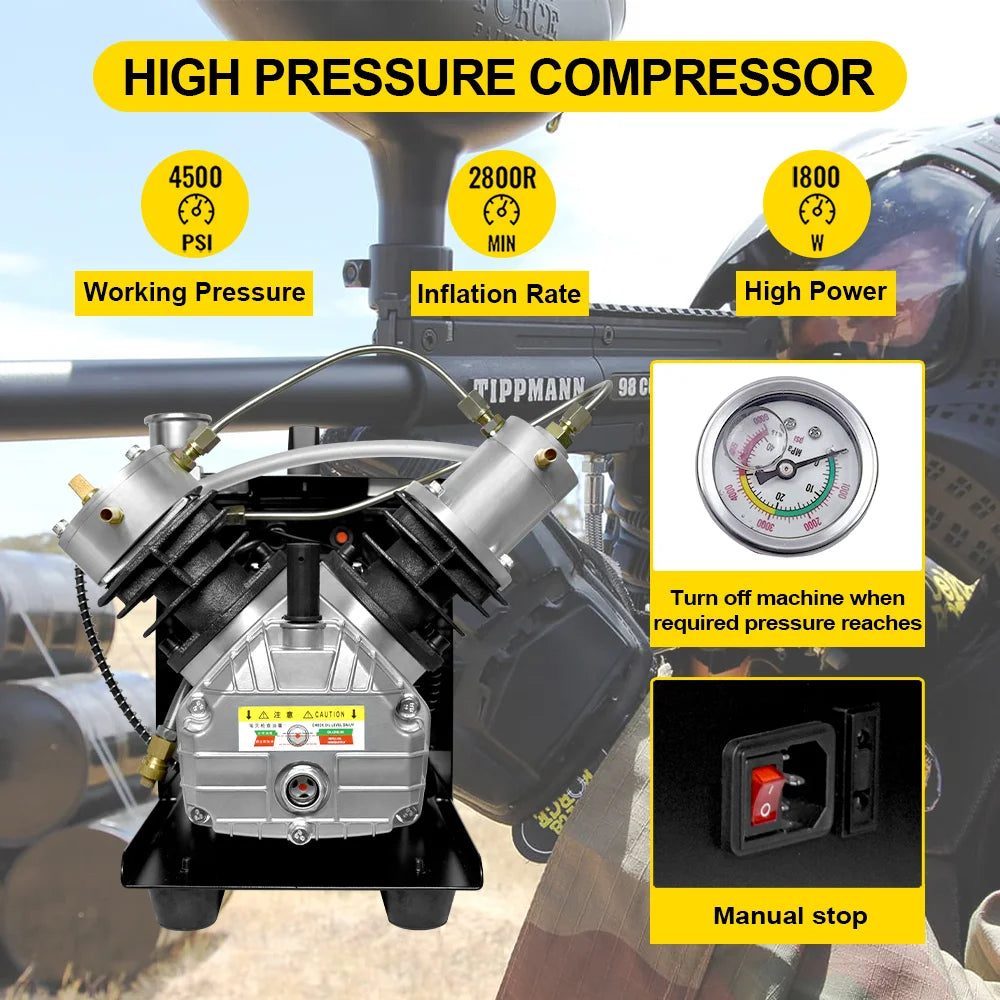

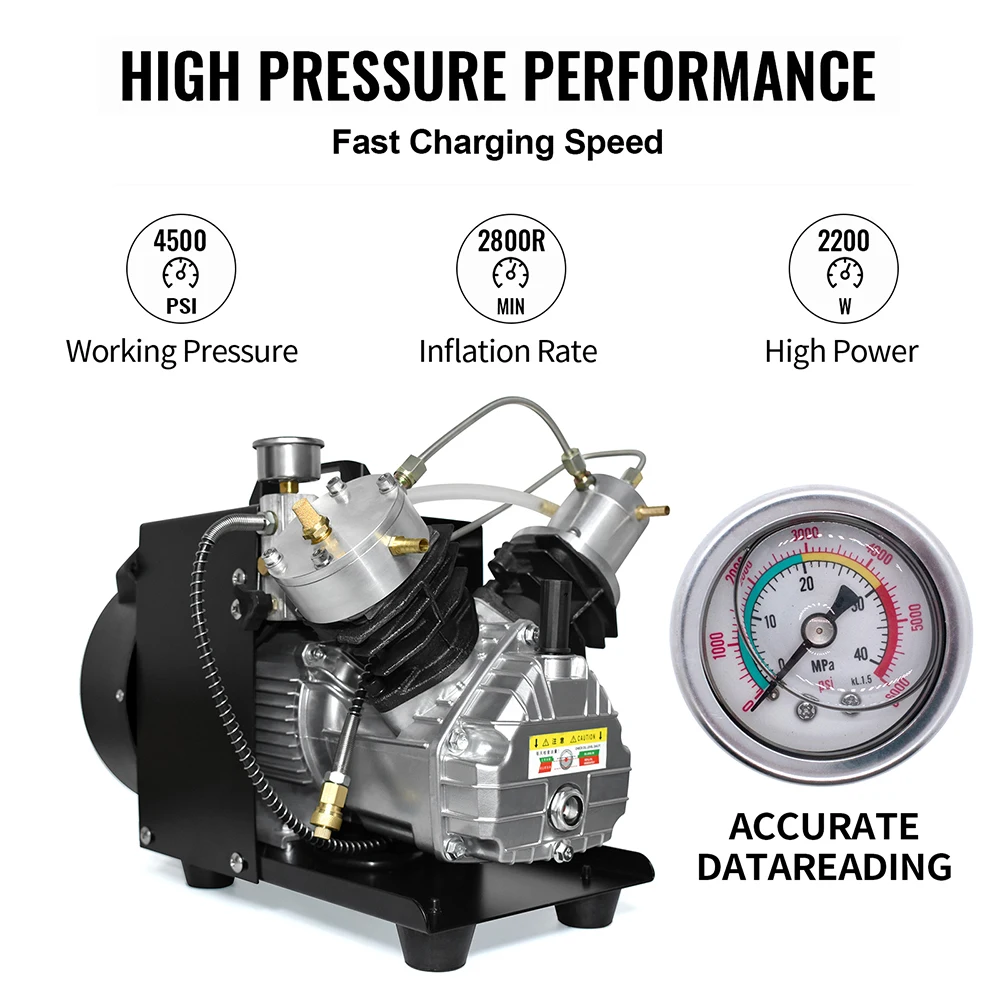

  • High Pressure Performance


    This compressor features a 2200W high-power copper motor and excellent
    inflation performance. The maximum working pressure is 4500PSI, the
    inflating rate is 2800R/min, and the flow rate is 50L/min.

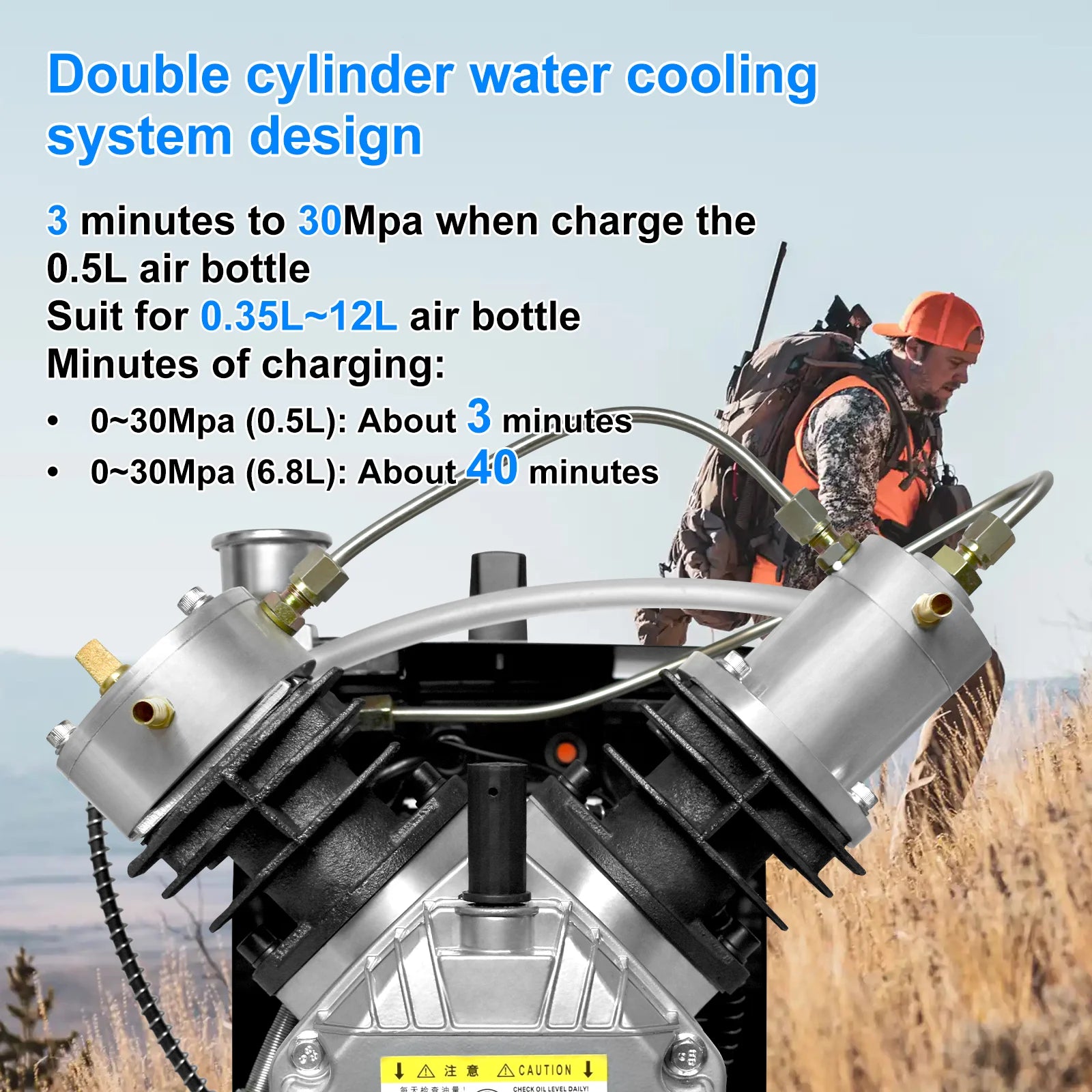

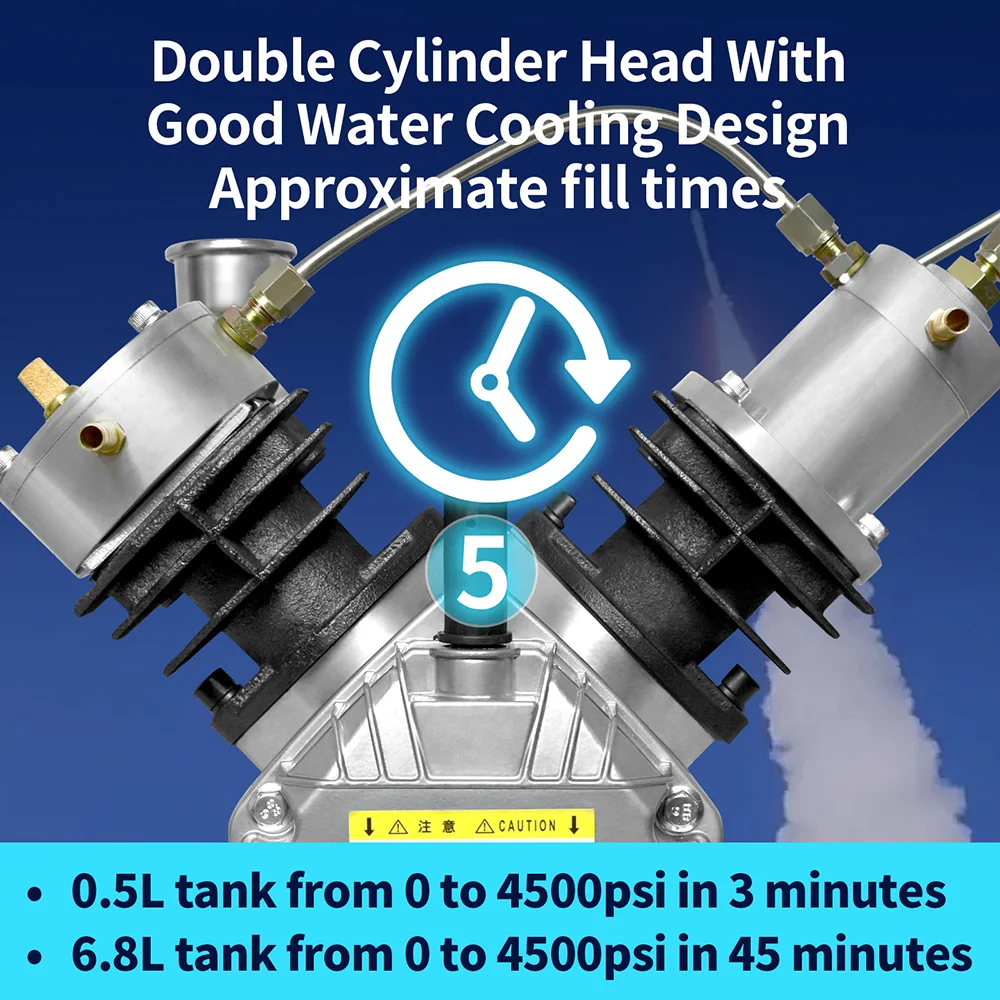

  • Two Stage Piston Cylinder Head


    Designed with two-stage compression to ensure stable performance,Fast filling speed,Suitable for filling large capacity tank,

    0.5L from 0-4500psi about 3--5min.

    6.8L from 0-4500psi about 30-45min.


  • Easy to Carry


    The compressor is designed with a convenient handgrip, effortless to carry
    and move. Stainless steel cylinder also provides stable and high-quality
    performance for you.

    Provides powerful help for your outdoor life


  • Fan Water Cooling Heat Dissipation


    It is cooled by water and fan; it has a fast heat dissipation
    performance.effectively protect the motor of the compressor to dissipate
    heat, and prolong the service life of the compressor.The Maximum
    temperature is 85℃.

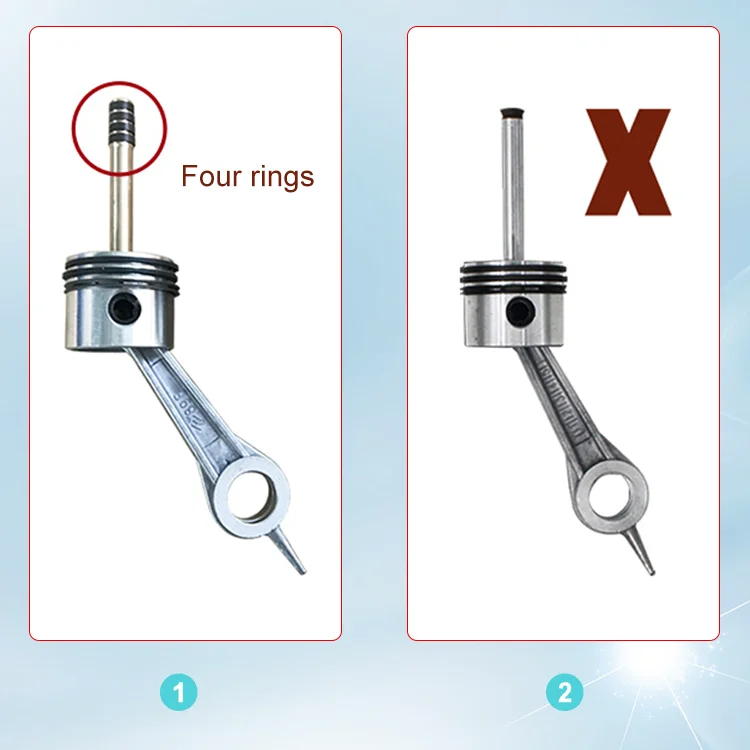

  • Pushing Rods Structure


    ①Tuxing brand
    Z shape piston rings , wear resistant,
    Cooper material +Easy maintenance.
    ②Other brands
    Need to screw to fix the push- ing rods.
    lt will break esier.

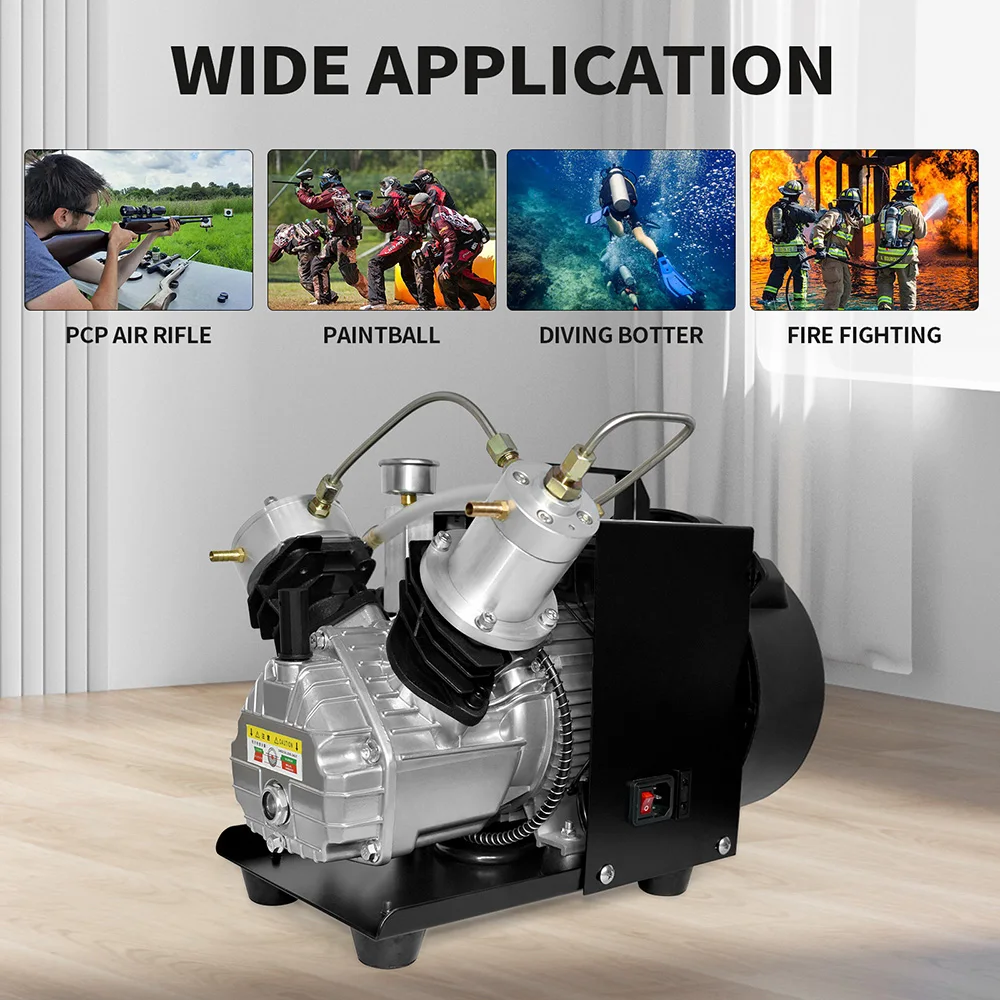

  • Wide Application


    This pcp/scuba compressor features oil and water separator filtration. Clean
    air will be discharged by the machine, suitable for the mini diving
    bottle, PCP rifle, paintball tank, air pistol, paintball air rifle, fire
    fighting, leakage detecting, pressure-tight test, air impermeability
    test, etc

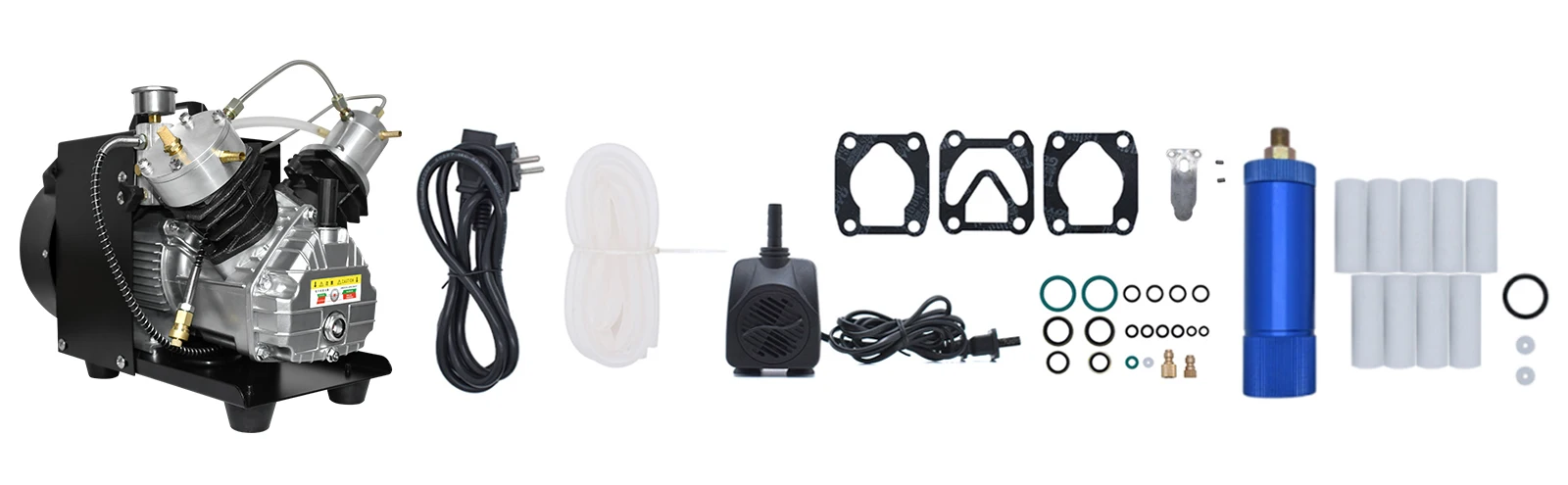

Package Content

  • 1 x PCP Air Compressor

  • 1 x Water Pump

  • 1 x water Pipe

  • 1 x Home Power Line

  • 1 x Oil Plug

  • 1 x Oil/Water Separator

  • 1 x Filter Cotton

  • 1 x Air Outlet Hose

  • 1 x Repair Kit(vulnerable parts)
